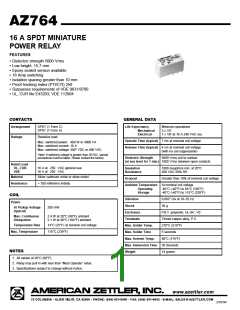

AZ764
16 A SPDT MINIATURE
POWER RELAY
FEATURES
• Dielectric strength 5000 Vrms
• Low height: 15.7 mm
• Epoxy sealed version available
• 16 Amp switching
• Isolation spacing greater than 10 mm
• Proof tracking index (PTI/CTI) 250
• Surpasses requirements of VDE 0631/0700
• UL, CUR file E43203; VDE 112904
CONTACTS
GENERAL DATA
Arrangement
SPDT (1 Form C)
SPST (1 Form A)
Life Expectancy
Mechanical
Electrical
Minimum operations
3 x 107
1 x 105 at 16 A 240 VAC res.
Ratings
Resistive load:
Operate Time (typical) 7 ms at nominal coil voltage
Max. switched power: 480 W or 4000 VA
Max. switched current: 16 A
Max. switched voltage: 300* VDC or 400 VAC
Release Time (typical) 4 ms at nominal coil voltage
(with no coil suppression)
*Note: If switching voltage is greater than 30VDC, special
precautions must be taken. Please contact the factory.
Dielectric Strength
5000 Vrms coil to contact
(at sea level for 1 min.) 1000 Vrms between open contacts
Rated Load
UL, CUR
VDE
16 A at 250 VAC general use
16 A at 250 VAC
Insulation
1000 megohms min. at 20°C
500 VDC 50% RH
Resistance
Material
Silver cadmium oxide or silver nickel
< 100 milliohms initially
Dropout
Greater than 10% of nominal coil voltage
Resistance
Ambient Temperature At nominal coil voltage
Operating
Storage
-40°C (-40°F) to 85°C (185°F)
-40°C (-40°F) to 115°C (239°F)
COIL
Vibration
0.062" DA at 10–55 Hz
30 g
Power
Shock
At Pickup Voltage
(typical)
200 mW
Enclosure
P.B.T. polyester, UL-94 ; V0
Tinned copper alloy, P.C.
270°C (518°F)
Max. Continuous
Dissipation
2.4 W at 20°C (68°F) ambient
2.1 W at 40°C (104°F) ambient
Terminals
Temperature Rise
Max. Temperature
14°C (25°F) at nominal coil voltage
115°C (239°F)
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
5 seconds
80°C (176°F)
Max. Immersion Time 30 Seconds
Weight 14 grams
NOTES
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.
2/1/01W
