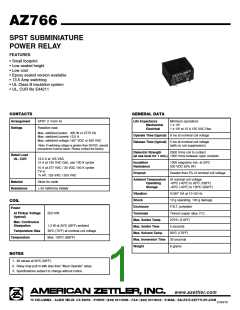

AZ766
SPST SUBMINIATURE
POWER RELAY
FEATURES
• Small footprint
• Low seated height
• Low cost
• Epoxy sealed version available
• 13.5 Amp switching
• UL Class B insulation system
• UL, CUR file E44211
CONTACTS
GENERAL DATA
Arrangement
Ratings
SPST (1 Form A)
Resistive load:
Life Expectancy
Mechanical
Electrical
Minimum operations
1 x 107
1 x 105 at 12 A 125 VAC Res.
Max. switched power: 300 W or 2770 VA
Max. switched current: 13.5 A
Operate Time (typical) 8 ms at nominal coil voltage
Max. switched voltage:150* VDC or 400 VAC
Release Time (typical) 5 ms at nominal coil voltage
*Note: If switching voltage is greater than 30VDC, special
precautions must be taken. Please contact the factory.
(with no coil suppression)
Dielectric Strength
(at sea level for 1 min.) 1000 Vrms between open contacts
2500 Vrms coil to contact
Rated Load
UL, CUR
13.5 A at 125 VAC
12 A at 125 VAC Gen. use 100 K cycles
Insulation
Resistance
1000 megohms min. at 20°C
500 VDC 50% RH
10 A at 277 VAC / 30 VDC 100 K cycles
TV–5
1/4 HP, 125 VAC / 250 VAC
Dropout
Greater than 5% of nominal coil voltage
Ambient Temperature At nominal coil voltage
Material
Silver tin oxide
Operating
Storage
-40°C (-40°F) to 85°C (188°F)
-40°C (-40°F) to 130°C (266°F)
Resistance
< 50 milliohms initially
Vibration
0.040" DA at 10–50 Hz
10 g operating, 100 g damage
P.B.T. polyester
Shock
COIL
Enclosure
Power
At Pickup Voltage
(typical)
253 mW
Terminals
Tinned copper alloy, P.C.
270°C (518°F)
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
Max. Continuous
Dissipation
1.3 W at 20°C (68°F) ambient
5 seconds
Temperature Rise
Temperature
39°C (70°F) at nominal coil voltage
80°C (176°F)
Max. 130°C (266°F)
Max. Immersion Time 30 seconds
Weight 6 grams
NOTES
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.
01/04/10
