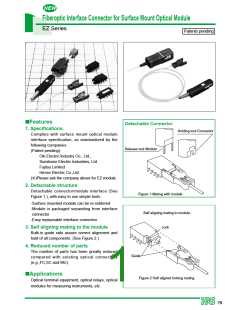

NEW
Fiberoptic Interface Connector for Surface Mount Optical Module
EZ Series
Patents pending
■Features
Detachable Connector
1. Specifications.
Holding tool-Connector
Complies with surface mount optical module
interface specification, as standardized by the
following companies
Release tool-Module
(Patent pending):
Oki Electric lndustry Co., Ltd.,
Sumitomo Electric lndustries, Ltd.
Fujitsu Limited
Hirose Electric Co.,Ltd.
(π)Please ask the company above for EZ module.
2. Detachable structure
Detachable connector/module interface (See
Figure 1-Mating with module
Figure 1.), with easy to use simple tools.
-Surface mounted module can be re-soldered
-Module is packaged separating from interface
connector
Self aligning mating to module.
Lock
-Easy replaceable interface connector
3. Self aligning mating to the module
Built-in guide rails assure correct alignment and
hold of all components. (See Figure 2.)
4. Reduced number of parts
The number of parts has been greatly reduced
compared with existing optical connectors
(e.g.,FC,SC and MU).
Guide
■Applications
Figure 2-Self aligned locking mating
Optical terminal equipment, optical relays, optical
modules for measuring instruments, etc.
75
