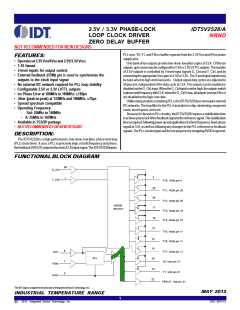

2.5V / 3.3V PHASE-LOCK
LOOP CLOCK DRIVER
IDT5V2528/A
NRND
ZERO DELAY BUFFER
NOT RECOMMENDED FOR NEW DESIGNS
PLL core, Y0, Y1, and FBOUT buffers operate from the 3.3V VDD and AVDD power
supply pins.
FEATURES:
• Operates at 3.3V VDD/AVDD and 2.5V/3.3V VDDQ
• 1:10 fanout
One bank of ten outputs provide low-skew, low-jitter copies of CLK. Of the ten
outputs,uptosevenmaybeconfiguredfor2.5Vor3.3VLVTTLoutputs. Thenumber
of 2.5V outputs is controlled by 3-level input signals G_Ctrl and T_Ctrl, and by
connectingtheappropriateVDDQ pinsto2.5Vor3.3V. The3-levelinputsignalsmay
be hard-wired to high-mid-low levels. Output signal duty cycles are adjusted to
50 percent, independent of the duty cycle at CLK. The outputs can be enabled or
disabledviatheG_Ctrl input.WhentheG_Ctrlinputismidorhigh,theoutputsswitch
inphaseandfrequencywithCLK;whentheG_Ctrlislow,alloutputs(exceptFBOUT)
are disabled to the logic-low state.
UnlikemanyproductscontainingPLLs,theIDT5V2528doesnotrequireexternal
RCnetworks. TheloopfilterforthePLLisincludedon-chip, minimizingcomponent
count, board space, and cost.
BecauseitisbasedonPLLcircuitry,theIDT5V2528requiresastabilizationtime
toachievephaselockofthefeedbacksignaltothereferencesignal.Thisstabilization
timeisrequired,followingpowerupandapplicationofafixed-frequency,fixed-phase
signal at CLK, as well as following any changes to the PLL reference or feedback
signals. ThePLLcanbebypassedfortestpurposesbystrappingAVDDtoground.
• 3-level inputs for output control
• External feedback (FBIN) pin is used to synchronize the
outputs to the clock input signal
• No external RC network required for PLL loop stability
• Configurable 2.5V or 3.3V LVTTL outputs
• tPD Phase Error at 100MHz to 166MHz: ±150ps
• Jitter (peak-to-peak) at 133MHz and 166MHz: ±75ps
• Spread spectrum compatible
• Operating Frequency:
-
Std: 25MHz to 140MHz
- A: 25MHz to 167MHz
• Available in TSSOP package
• NOT RECOMMENDED FOR NEW DESIGNS
DESCRIPTION:
The IDT5V2528 is a high performance, low-skew, low-jitter, phase-lock loop
(PLL) clock driver. It uses a PLL to precisely align, in both frequency and phase,
thefeedback(FBOUT)outputtotheclock(CLK)inputsignal.TheIDT5V2528inputs,
FUNCTIONALBLOCKDIAGRAM
28
G_Ctrl
3
1
T_Ctrl
TY0, VDDQ pin 4
26
TY1, VDDQ pin 25
24
TY2, VDDQ pin 25
MODE
SELECT
17
TY3, VDDQ pin 15
16
TY4, VDDQ pin 15
13
TY5, VDDQ pin 11
12
TY6, VDDQ pin 11
10
6
7
TY7, VDDQ pin 11
CLK
PLL
20
Y0, VDD pin 21
FBIN
AVDD
19
Y1, VDD pin 21
5
22
FBOUT, VDD pin 21
TheIDTlogoisaregisteredtrademarkofIntegratedDeviceTechnology,Inc.
MAY 2013
INDUSTRIAL TEMPERATURE RANGE
1
c
2013 Integrated Device Technology, Inc.
DSC 5971/12
IDT5V2528/A
2.5 / 3.3V PHASE-LOCK LOOP CLOCK DRIVER
INDUSTRIAL TEMPERATURE RANGE
PINCONFIGURATION
ABSOLUTEMAXIMUMRATINGS(1)
Symbol
Rating
Max.
–0.5to+4.6
–0.5to+5.5
–0.5to
Unit
V
VDD, VDDQ, AVDD
SupplyVoltageRange
InputVoltageRange
T_Ctrl
GND
1
28
27
26
25
24
23
22
21
20
19
18
G_Ctrl
GND
TY1
(2)
VI
V
2
(2)
VO
VoltageRangeappliedtoany
V
3
output in the HIGH or LOW state VDD+0.5
TY0
IIK (VI < 0)
InputClampCurrent
OutputClampCurrent
–50
mA
mA
VDDQ
4
VDDQ
TY2
IOK
±50
AVDD
CLK
5
(VO < 0 or VO > VDD)
6
GND
FBOUT
VDD
IO
ContinuousOutputCurrent
±50
mA
FBIN
AGND
GND
TY7
7
(VO = 0 to VDD)
VDD or GND
TSTG
8
ContinuousCurrent
±200
–65to+150
+150
mA
°C
°C
9
Y0
StorageTemperatureRange
JunctionTemperature
10
11
Y1
TJ
NOTES:
VDDQ
GND
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause
permanent damage to the device. This is a stress rating only and functional operation
of the device at these or any other conditions above those indicated in the operational
sections of this specification is not implied. Exposure to absolute maximum rating
conditions for extended periods may affect reliability.
TY6
TY5
12
13
17
16
TY3
TY4
GND
14
15
VDDQ
2. The input and output negative-voltage ratings may be exceeded if the input and output
clamp-current ratings are observed.
3. The maximum package power dissipation is calculated using a junction temperature
TSSOP
TOP VIEW
of 150°C and a board trace length of 750 mils.
CAPACITANCE(1)
Symbol
Description
Input Capacitance
VI = VDD or GND
Min
Typ.
Max. Unit
CIN
—
5
—
pF
pF
pF
CO
CL
Output Capacitance
VI = VDD or GND
—
6
—
Load Capacitance 2.5V outputs
3.3V outputs
—
—
20
30
—
—
NOTE:
1. Unused inputs must be held HIGH or LOW to prevent them from floating.
RECOMMENDEDOPERATINGRANGE
Symbol
Description
Min.
Typ.
Max.
Unit
V
(1)
VDD, AVDD
Power Supply Voltage
Power Supply Voltage
3
3.3
3.6
(1)
VDDQ
2.5VOutputs
3.3VOutputs
2.3
3
2.5
3.3
2.7
3.6
V
TA
AmbientOperatingTemperature
–40
+25
+85
°C
NOTE:
1. All power supplies should operate in tandem. If VDD or VDDQ is at a maximum, then VDDQ or VDD (respectively) should be at maximum, and vice-versa.
2
IDT5V2528/A
2.5 / 3.3V PHASE-LOCK LOOP CLOCK DRIVER
INDUSTRIAL TEMPERATURE RANGE
PINDESCRIPTION
Terminal
Name
CLK(1)
FBIN
No.
6
Type
Description
Clockinput
I
7
I
Feedbackinput
G_Ctrl(2)
28
3-level
3-levelinputfor2.5V/3.3VOutputSelect/Outputbankenable. When G_CtrlisLOW,alloutputsexceptFBOUTaredisabled
to a logic-LOW state. When G_Ctrl is MID or HIGH, all outputs are enabled and switch at the same frequency as CLK (see
OUTPUT SELECTION table).
T_Ctrl(2)
FBOUT
TY(7:0)
1
3-level
3-level input for 2.5V / 3.3V Output Select (see OUTPUT SELECTION table)
Feedbackoutput
22
3, 10, 12, 13,
16, 17, 24, 26
19,20
O
O
2.5Vor3.3VClockoutputs. 1,2,3,5,or7oftheseoutputsmaybeselectedas2.5Voutputs(seeOUTPUTSELECTIONtable).
Y(1:0)
O
3.3V Clock Outputs
(3)
AVDD
5
Power
Ground
Power
Power
Ground
3.3V Analog power supply. AVDD provides the power reference for the analog circuitry.
AGND
VDD
8
Analogground. AGNDprovidesthegroundreferencefortheanalogcircuitry.
21
3.3V Power supply
VDDQ
GND
4, 11, 15, 25
2, 9, 14, 18
23,27
2.5V or 3.3V Power supply for TY outputs
Ground
NOTES:
1. CLK must have a fixed frequency and fixed phase for the PLL to obtain phase lock. Once the circuit is powered up and a valid CLK signal is applied, a stabilization time of 1ms
is required for the PLL to phase lock the feedback signal to the reference signal.
2. 3-level inputs will float to MID logic level if left unconnected.
3. AVDD can be used to bypass the PLL for test purposes. When AVDD is strapped to ground, PLL is bypassed and CLK is buffered directly to the outputs.
(1)
STATIC FUNCTION TABLE (AVDD = 0V)
OUTPUTSELECTION
Inputs
T_Ctrl
X
Outputs
VDDQ
Configuration
Pin 4 (2.5V)
Pins 11, 15, 25 (3.3V)
Pin 25 (2.5V)
Pins 4, 11, 15 (3.3V)
Pins 4, 25 (2.5V)
Pins 11, 15 (3.3V)
Pins 4, 15, 25 (2.5V)
Pin 11 (3.3V)
Pins 11, 15, 25 (2.5V)
Pin 4 (3.3V)
Pins 4, 11, 15, 25 (3.3V)
G_Ctrl
CLK
TY(7:0)
Y(1:0)
FBOUT
G_Ctrl
T_Ctrl
TY(7:0)
L
L
L
H
H
L
L
H
L
L
H
L
M
L
TY0(2.5V)
X
H
H
TY1 - TY7 (3.3V)
TY1,TY2(2.5V)
TY0, TY3 - TY7 (3.3V)
TY0 - TY2 (2.5V)
TY3 - TY7 (3.3V)
TY0 - TY4 (2.5V)
TY5 - TY7 (3.3V)
TY1 - TY7 (2.5V)
TY0 (3.3V)
see
M
M
H
H
H
M
H
L
OUTPUT SELECTION
table
L
L
L
L
running
running
running
running
NOTE:
1. AVDD should be powered up along with VDD, before setting AVDD to ground, to put the
control pins in a valid state.
M
H
TYo - TY7 (3.3V)
DYNAMIC FUNCTION TABLE (AVDD = 3.3V)
Inputs
T_Ctrl
X
Outputs
Y(1:0)
G_Ctrl
L
L
CLK
L
H
TY(7:0)
L
L
FBOUT
L
L
L
L
H
L
X
see OUTPUT
L
L
SELECTION table
H
H
H
H
3
IDT5V2528/A
2.5 / 3.3V PHASE-LOCK LOOP CLOCK DRIVER
INDUSTRIAL TEMPERATURE RANGE
DCELECTRICALCHARACTERISTICSOVEROPERATINGRANGE
Symbol
VIK
Parameter
Test Conditions
Min.
Typ.(1)
Max
Unit
V
InputClampVoltage
Input HIGH Level
II = -18mA
- 1.2
VIH
CLK, FBIN
2
V
VIL
InputLOWLevel
CLK, FBIN
0.8
V
VIHH
VIMM
VILL
VOH
Input HIGH Voltage Level(2)
Input MID Voltage Level(2)
InputLOWVoltageLevel(2)
Output HIGH Voltage Level
(3.3VOutputs)
3-Level Inputs Only
3-Level Inputs Only
3-Level Inputs Only
IOH = -100μA
IOH = -12mA
IOH = -100μA
IOH = -12mA
IOL = 100μA
IOL = 12mA
VDD - 0.6
V
VDD/2 - 0.3
VDD/2 + 0.3
0.6
V
V
VDD - 0.2
2.4
V
VOH
VOL
VOL
I3
Output HIGH Voltage Level
(2.5VOutputs)
VDD - 0.1
2
V
V
OutputLOWVoltageLevel
(3.3VOutputs)
0.2
0.4
OutputLOWVoltageLevel
(2.5VOutputs)
IOL = 100μA
IOL = 12mA
0.1
V
0.4
3-LevelInputDCCurrent
(G_Ctrl,T_Ctrl)
VIN = VDD
HIGH Level
MID Level
LOW Level
+200
+50
VIN = VDD/2
–50
μA
μA
VIN = GND
–200
II
InputCurrent
VI = VDD or GND
±5
NOTES:
1. For conditions shown as Min or Max, use the appropriate value specified under recommended operating conditions.
2. These inputs are normally wired to VDD, GND, or left floating. Internal termination resistors bias floating inputs to VDD/2. If these inputs are switched, the function and timing of
the outputs may be glitched, and the PLL may require an additional tLOCK time before all datasheet limits are achieved.
POWERSUPPLYCHARACTERISTICS
Symbol
IDDPD
IDDA
Parameter
Test Conditions
Typ.(1)
8
Max
40
Unit
μA
mA
Power Down Supply Current
AVDD Supply Current
VDD = 3.6, VDDQ = 2.7V / 3.3V, AVDD = 0V
VDD = AVDD = 3.6V, VDDQ = 2.7V / 3.3V, CLK = 0 or VDD
3.5
10
IDD
Dynamic Power Supply Current VDD = AVDD = 3.6V, VDDQ = 2.7V / 3.3V, CL = 0pF
500
15
—
μA/MHz
VDD = AVDD = VDDQ = 3.6V
—
IDDD
Dynamic Power Supply
CurrentperOutput
CL = 30pF, CLK = 100MHz
mA
VDD = AVDD = 3.6V, VDDQ = 2.7V
CL = 20pF, CLK = 100MHz
12
—
NOTE:
1. For nominal voltage and temperature.
4
IDT5V2528/A
2.5 / 3.3V PHASE-LOCK LOOP CLOCK DRIVER
INDUSTRIAL TEMPERATURE RANGE
INPUT TIMING REQUIREMENTS OVER OPERATING RANGE
5V2528
5V2528A
Min
25
Max
140
60%
1
Min
25
Max
167
60%
1
Units
fCLOCK
tLOCK
Clockfrequency
MHz
Input clock duty cycle
Stabilizationtime(1)
40%
40%
ms
NOTE:
1.Time required for the integrated PLL circuit to obtain phase lock of its feedback signal to its reference signal. For phase lock to be obtained, a fixed-frequency, fixed-phase reference
signal must be present at CLK. Until phase lock is obtained, the specifications for propagation delay, skew, and jitter parameters given in the switching characteristics table are
not applicable.
SWITCHING CHARACTERISTICS OVER OPERATING RANGE - 5V2528(1)
Symbol
Parameter(2)
Phase Error from Rising Edge CLK to Rising Edge FBIN (100MHz-133MHz)
Phase Error minus Jitter from Rising Edge CLK to Rising Edge FBIN (133MHz)
OutputSkewbetween3.3VOutputs
Min.
–150
–50
—
—
—
Typ.
Max.
150
50
Unit
ps
ps
ps
ps
ps
ps
%
tPHASEerror
tPHASE error-jitter(3)
—
—
—
—
—
—
(4)
tSK1(0)
150
150
200
75
(4)
tSK2(0)
OutputSkewbetween2.5VOutputs
(4,5)
tSK3(0)
Output Skew between 2.5V and 3.3V Outputs
Cycle-to-CycleOutputJitter(Peak-to-Peak)at133MHz
Duty Cycle
tJ
–75
45
—
55
tR
tF
tR
tF
Output Rise Time for 3.3V Outputs (20% to 80%)
Output Fall Time for 3.3V Outputs (20% to 80%)
Output Rise Time for 2.5V Outputs (20% to 80%)
Output Fall Time for 2.5V Outputs (20% to 80%)
0.8
0.8
0.5
0.5
—
—
—
—
2.1
2.1
1.5
1.5
ns
ns
ns
ns
SWITCHING CHARACTERISTICS OVER OPERATING RANGE - 5V2528A(1)
Symbol
Parameter(2)
Phase Error from Rising Edge CLK to Rising Edge FBIN (100MHz-166MHz)
Phase Error minus Jitter from Rising Edge CLK to Rising Edge FBIN (166MHz)
OutputSkewbetween3.3VOutputs
Min.
–150
–50
—
—
—
—
–75
45
Typ.
—
Max.
150
50
Unit
ps
tPHASEerror
tPHASE error-jitter(3)
—
—
—
—
—
—
ps
(4)
tSK1(0)
150
150
200
250
75
ps
(4)
tSK2(0)
OutputSkewbetween2.5VOutputs
ps
(4,5)
tSK3(0)
Output Skew between 2.5V and 3.3V Outputs 25MHz to 133MHz
133MHz to 166MHz
ps
tJ
Cycle-to-CycleOutputJitter(Peak-to-Peak)at166MHz
Duty Cycle
ps
%
—
55
tR
tF
tR
tF
Output Rise Time for 3.3V Outputs (20% to 80%)
Output Fall Time for 3.3V Outputs (20% to 80%)
Output Rise Time for 2.5V Outputs (20% to 80%)
Output Fall Time for 2.5V Outputs (20% to 80%)
0.8
0.8
0.5
0.5
—
—
—
—
2.1
2.1
1.5
1.5
ns
ns
ns
ns
NOTES:
1. All parameters are measured with the following load conditions: 30pF || 500Ω for 3.3V outputs and 20pF || 500Ω for 2.5V outputs.
2. The specifications for parameters in this table are applicable only after any appropriate stabilization time has elapsed.
3. Phase error does not include jitter.
4. All skew parameters are only valid for equal loading of all outputs.
5. Measured for VDDQ = 2.3V and 3V, 2.5V and 3.3V, or 2.7V and 3.6V.
5
IDT5V2528/A
2.5 / 3.3V PHASE-LOCK LOOP CLOCK DRIVER
INDUSTRIAL TEMPERATURE RANGE
TEST CIRCUIT AND VOLTAGE WAVEFORMS
From Output
Under Test
From Output
Under Test
500
500
CL=30pF(2)
CL=20pF(2)
Test Circuit for 3.3V Outputs
Test Circuit for 2.5V Outputs
VDD/2
CLK
VDD/2
tPHASE ERROR
FBIN
Y, TY
CL
CLK
80%
20%
FBOUT
or
Any Y, TY (3.3V)
VDDQ/2
tR
tF
tSK3(o)
tF
IDT5V2528/A
500
on each Y,
TY output
(2)
VDDQ/2
VDDQ/2
tSK1(o)
FBOUT
Any Y, TY (3.3V)
FBIN
(4)
CF
500
PCBTRACE
80%
20%
VDDQ/2
Any TY (2.5V)
Any TY (2.5V)
tR
VDDQ/2
VDDQ/2
tSK2(o)
PHASE ERROR AND SKEW CALCULATIONS(3,4)
NOTES:
1. All inputs pulses are supplied by generators having the following characteristics: PRR ≤ 100MHz ZO = 50Ω, tR ≤ 1.2 ns, tF ≤ 1.2 ns.
2. CL includes probe and jig capacitance.
3. The outputs are measured one at a time with one transition per measurement.
4. Phase error measurements require equal loading at outputs Y, TY, and FBOUT. CF = CL – CFBIN – CPCBtrace; CFBIN ≅ 5pF.
6
IDT5V2528/A
2.5 / 3.3V PHASE-LOCK LOOP CLOCK DRIVER
INDUSTRIAL TEMPERATURE RANGE
ORDERINGINFORMATION
IDT
XXXXX
XX
X
Device Type Package Package
I
-40ºC to +85ºC (Industrial)
PGG
TSSOP - Green
5V2528
5V2528A
2.5V / 3.3V Phase-Lock Loop Clock Driver
7
IDT5V2528/A
2.5 / 3.3V PHASE-LOCK LOOP CLOCK DRIVER
INDUSTRIAL TEMPERATURE RANGE
REVISIONHISTORY
Rev
Table
Page
Discription of Change
Date
A
1
NRND - Not Recommended for New Designs
5/16/13
8
IDT5V2528/A
2.5 / 3.3V PHASE-LOCK LOOP CLOCK DRIVER
INDUSTRIAL TEMPERATURE RANGE
We’ve Got Your Timing Solution.
6024 Silver Creek Valley Road
San Jose, CA 95138
Sales
Tech Support
netcom@idt.com
800-345-7015 (inside USA)
+408-284-8200 (outside USA) +480-763-2056
Fax: 408-284-2775
www.IDT.com/go/contactIDT
DISCLAIMER Integrated Device Technology, Inc. (IDT) and its subsidiaries reserve the right to modify the products and/or specifications described herein at any time and at IDT’s sole discretion. All information
in this document, including descriptions of product features and performance, is subject to change without notice. Performance specifications and the operating parameters of the described products are determined
in the independent state and are not guaranteed to perform the same way when installed in customer products. The information contained herein is provided without representation or warranty of any kind, whether
express or implied, including, but not limited to, the suitability of IDT’s products for any particular purpose, an implied warranty of merchantability, or non-infringement of the intellectual property rights of others. This
document is presented only as a guide and does not convey any license under intellectual property rights of IDT or any third parties.
IDT’s products are not intended for use in applications involving extreme environmental conditions or in life support systems or similar devices where the failure or malfunction of an IDT product can be reasonably
expected to significantly affect the health or safety of users. Anyone using an IDT product in such a manner does so at their own risk, absent an express, written agreement by IDT.
Integrated Device Technology, IDT and the IDT logo are registered trademarks of IDT. Other trademarks and service marks used herein, including protected names, logos and designs, are the property of IDT or their
respective third party owners.
Copyright 2013. All rights reserved.
9
厂商 型号 描述 页数 下载

IDT

 		5V2305NRGI 2.5V至3.3V的高性能时钟缓冲器[ 2.5V TO 3.3V HIGH PERFORMANCE CLOCK BUFFER ] 10 页

IDT

 		5V2305NRGI8 2.5V至3.3V的高性能时钟缓冲器[ 2.5V TO 3.3V HIGH PERFORMANCE CLOCK BUFFER ] 10 页

IDT

 		5V2305NRI 2.5V至3.3V的高性能时钟缓冲器[ 2.5V TO 3.3V HIGH PERFORMANCE CLOCK BUFFER ] 10 页

IDT

 		5V2305NRI8 2.5V至3.3V的高性能时钟缓冲器[ 2.5V TO 3.3V HIGH PERFORMANCE CLOCK BUFFER ] 10 页

IDT

 		5V2305PGGI 2.5V至3.3V的高性能时钟缓冲器[ 2.5V TO 3.3V HIGH PERFORMANCE CLOCK BUFFER ] 10 页

IDT

 		5V2305PGGI8 2.5V至3.3V的高性能时钟缓冲器[ 2.5V TO 3.3V HIGH PERFORMANCE CLOCK BUFFER ] 10 页

IDT

 		5V2305PGI 2.5V至3.3V的高性能时钟缓冲器[ 2.5V TO 3.3V HIGH PERFORMANCE CLOCK BUFFER ] 10 页

IDT

 		5V2305PGI8 2.5V至3.3V的高性能时钟缓冲器[ 2.5V TO 3.3V HIGH PERFORMANCE CLOCK BUFFER ] 10 页

IDT

 		5V2305S [ High-Performance 1 to 5 Clock Buffer ] 10 页

IDT

 		5V2305SNTGK [ High-Performance 1 to 5 Clock Buffer ] 10 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.203887s
