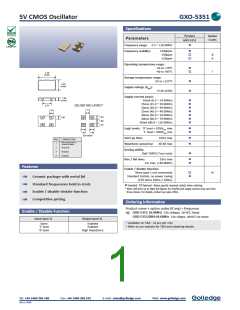

5VꢀCMOSꢀOscillator
GXO-5351
Specifications
Product
Option
Codes
Parameters
GXO-5351
Frequency range: 0.5 ~ 110.0MHz
Frequency stability:
±100ppm
±50ppm
±25ppm
B
A
Operating temperature range:
-10 to +70°C
-40 to +85°C
I
Storage temperature range:
-55 to +125°C
Supply voltage (VDD):
Supply current (max):
+5.0V (±5%)
10mA (0.5 ~ 14.9MHz)
15mA (15.0 ~ 29.9MHz)
20mA (30.0 ~ 39.9MHz)
25mA (40.0 ~ 49.9MHz)
30mA (50.0 ~ 59.9MHz)
40mA (60.0 ~ 79.9MHz)
50mA (80.0 ~ 110.0MHz)
Logic levels: ‘0’ level = 10%VDD max
‘1’ level = 90%VDD min
Start up time:
10ms max
40:60 max
Waveform symmetry:
Driving ability:
15pF CMOS (*see note)
Rise / fall time:
10ns max
7ns max (>40.0MHz)
Features
Enable / disable function:
None (pad 1 not connected)
Standard tristate, no power saving
(E/Dꢀtimes 100ns / 100ns)
N
Ceramic package with metal lid
Standard frequencies held in stock
Standard. Optional - Please specify required code(s) when ordering
*ꢀNote:ꢀwill drive up to 30pF, but figures for rise/fall and supply current may vary from
those shown. For details, contact our sales office.
Enable / disable tristate function
Competitive pricing
Ordering Information
Product name + option codes (if any) + frequency
eg: GXO-5351 16.0MHz 5.0V, ±100ppm, -10+70°C, Tristate
GXO-5351/BIN 64.0MHz 5.0V, ±50ppm, -40+85°C, No tristate
Enable / Disable Function
Input (pad 1)
Output (pad 3)
Available on T&R - 1k pcs per reel.
Refer to our website for T&R and soldering details.
Open
‘1’ level
‘0’ level
Enabled
Enabled
High Impedance
