7P004FEB0500C15

型号：

7P004FEB0500C15

品牌：

WEDC[ WHITE ELECTRONIC DESIGNS CORPORATION ]

页数：

6 页

PDF大小：

63 K

下载PDF手册

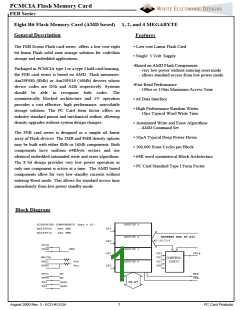

PCMCIA Flash Memory Card
FEB Series
Eight Bit Flash Memory Card (AMD based) 1, 2, and 4 MEGABYTE
General Description
Features
• Low cost Linear Flash Card
The FEB Econo Flash card series offers a low cost eight
bit linear Flash solid state storage solution for code/data
storage and embedded applications.
• Single 5 Volt Supply
•Based on AMD Flash Components
Packaged in PCMCIA type I or a type I half-card housing,
the FEB card series is based on AMD Flash memories:
Am29F080 (8Mb) or Am29F016 (16Mb) devices whose
device codes are D5h and ADh respectively. Systems
should be able to recognize both codes. The
symmetrically blocked architecture and 5V operation
provides a cost effective, high performance, nonvolatile
storage solution. The PC Card form factor offers an
industry standard pinout and mechanical outline, allowing
density upgrades without system design changes.
- very low power without entering reset mode
- allows standard access from low power mode
•Fast Read Performance
- 100ns or 150ns Maximum Access Time
• x8 Data Interface
• High Performance Random Writes
- 10µs Typical Word Write Time
• Automated Write and Erase Algorithms
- AMD Command Set
The FEB card series is designed as a simple x8 linear
array of Flash devices. The 2MB and 4MB density options
may be built with either 8Mb or 16Mb components. Both
components have uniform 64Kbyte sectors and use
identical embedded automated write and erase algorithms.
The 8 bit design provides very low power operation as
only one component is active at a time. The AMD based
components allow for very low standby currents without
entering Reset mode. This allows for standard access time
immediately from low power standby mode.
• 50µA Typical Deep Power-Down
• 100,000 Erase Cycles per Block
• 64K word symmetrical Block Architecture
• PC Card Standard Type I Form Factor
Block Diagram
SUPPORTED COMPONENTS (max
4
X):
DEVICE
3
2
1
0
Am29F080
Am29F016
-
-
max 4MB
max 8MB
CS3
CS2
CS1
CS0
DEVICE
DEVICE
DEVICE
ADDRESS BUS A0-A22
A0-20(19)
CD1#
CD2#
GND
CS3
CS2
CS1
CS0
CE1#
WAIT#
BVD1
BVD2
CONTROL
LOGIC
Vcc
Vcc
VPP1
VPP2
VS1
NC
WE#
OE#
NC
open
open
D0-D7
VS2
1
August 2000 Rev. 3 - ECO #13124
PC Card Products
PCMCIA Flash Memory Card
FEB Series
Pinout
Pin Signal name I/O
Function
Ground
Data bit 3
Data bit 4
Data bit 5
Active
Pin Signal name I/O
Function
Ground
Active
1
2
3
4
5
6
7
8
9
10
11
12
13
GND
DQ3
DQ4
DQ5
DQ6
DQ7
CE1#
A10
OE#
A11
A9
35
36
37
38
39
40
41
42
43
44
45
46
47
GND
CD1#
DQ11
DQ12
DQ13
DQ14
DQ15
CE2#
VS1
RFU
RFU
A17
A18
I/O
I/O
I/O
I/O
O
I/O
I/O
I/O
I/O
I
Card Detect 1
Data bit 11
Data bit 12
Data bit 13
Data bit 14
Data bit 15
Card Enable 2
Voltage Sense 1
Reserved
LOW
N.C.
N.C.
N.C.
N.C.
N.C.
N.C.
N.C.
Data bit 6
Data bit 7
I/O
I
I
I
I
I
I
I
Card enable 1
Address bit 10
Output enable
Address bit 11
Address bit 9
Address bit 8
Address bit 13
LOW
LOW
I
O
Reserved
Address bit 17
Address bit 18
A8
A13
I
I
2)
14
15
A14
I
I
Address bit 14
Write Enable
48
49
A19
A20
I
I
I
Address bit 19
Address bit 20
1MB
2)
WE#
LOW
N.C.
2MB
16
17
18
RDY/BSY#
Vcc
Vpp1
O
Ready/Busy
Supply Voltage
12VProg. Voltage
50
51
52
A21
Vcc
Vpp2
Address bit 21
Supply Voltage
12V Prog. Voltage
4MB 2)
N.C.
N.C.
2)
19
20
21
22
23
24
25
26
27
28
29
30
31
32
A16
A15
A12
A7
A6
A5
A4
A3
A2
A1
I
I
I
I
I
I
I
I
I
Address bit 16
Address bit 15
Address bit 12
Address bit 7
Address bit 6
Address bit 5
Address bit 4
Address bit 3
Address bit 2
Address bit 1
Address bit 0
Data bit 0
53
54
55
56
57
58
59
60
61
62
63
64
65
66
A22
A23
A24
A25
VS2
I
I
I
I
O
I
Address bit 22
Address bit 23
Address bit 24
Address bit 25
Voltage Sense 2
Card Reset
Extended Bus cycle
Reserved
Attrib Mem Select
Bat. Volt. Detect 2
Bat. Volt. Detect 1
Data bit 8
8MB
N.C.
N.C.
N.C.
N.C.
N.C.
N.C.
RST
Wait#
RFU
REG#
BVD2
BVD1
DQ8
DQ9
DQ10
O
I
O
O
I/O
I/O
O
N.C.
I
I
A0
DQ0
DQ1
DQ2
I/O
I/O
I/O
N.C.
N.C.
N.C.
Data bit 1
Data bit 2
Data bit 9
Data bit 10
1)
33
34
WP
GND
O
Write Potect
Ground
67
68
CD2#
GND
O
Card Detect 2
Ground
LOW
Notes:
1. Connected to GND - no write protection.
2. Shows density for which specified address bit is MSB. Higher order addresses are not connected (i.e. for 4MB card
A21 is MSB, A22-A25 are N.C.).
Mechanical
Interconnect area
1.6mm ± 0.05
(0.063”)
10.0mm MIN
(0.400”)
3.0mm MIN
1.0mm ± 0.05
(0.039”)
Substrate area
54.0mm ± 0.10
(2.126”)
85.6mm ± 0.20
(3.370”)
1.0mm ± 0.05
(0.039”)
10.0mm MIN
(0.400”)
3.3mm ± T1 (0.130”)
T1=0.10mm interconnect area
T1=0.20mm substrate area
2
August 2000 Rev. 3 - ECO #13124
PC Card Products
PCMCIA Flash Memory Card
FEB Series
Card Signal Description
Symbol
A0 - A25
Type
INPUT
Name and Function
ADDRESS INPUTS: A0 through A25 enable direct addressing of
up to 64MB of memory on the card. The memory will wrap at the
card density boundary. The system should not try to access memory
beyond the card density. The upper addresses are not connected.
DQ0 – DQ15
INPUT/OUT DATA INPUT/OUTPUT: DQ0 THROUGH DQ15 constitute the
bi-directional databus. DQ0 - DQ7 constitute the lower (even) byte.
DQ8 – DQ15 are not connected. DQ7 is the MSB.
CE1#, CE2#
OE#
INPUT
INPUT
INPUT
N.C.
CARD ENABLE 1 AND 2: CE1# enables even byte accesses,
CE2# enables odd byte accesses. CE2# is not connected.
OUTPUT ENABLE: Active low signal enabling read data from the
memory card.
WRITE ENABLE: Active low signal gating write data to the
memory card.
READY/BUSY OUTPUT: Indicates status of internally timed erase
or program algorithms. A high output indicates that the card is ready
to accept accesses. This signal is not connected.
CARD DETECT 1 and 2: Provide card insertion detection. These
signals are connected to ground internally on the memory card. The
host socket interface circuitry shall supply 10K-ohm or larger pull-up
resistors on these signal pins.
WE#
RDY/BSY#
CD1#, CD2#
OUTPUT
WP
OUTPUT
N.C.
WRITE PROTECT: This signal is pulled low internally. This
signifies write protect = "off " for all cases.
PROGRAM/ERASE POWER SUPPLY: 12V. Not connected for
5V only card.
VPP1, VPP2
VCC
GND
REG#
CARD POWER SUPPLY: 5.0V
GROUND: for all internal circuitry.
ATTRIBUTE MEMORY SELECT: This signal is not connected
- card does not have attribute memory.
RESET: Active high signal for placing cards in Power-on default
state. Reset can be used as a Power-Down signal for the memory
array.
N.C.
N.C.
RST
WAIT#
OUTPUT
OUTPUT
OUTPUT
WAIT: This signal is pulled high internally for compatibility. No
wait states are generated.
BATTERY VOLTAGE DETECT: These signals are pulled high to
maintain SRAM card compatibility.
VOLTAGE SENSE: Notifies the host socket of the card's VCC
requirements. VS1 and VS2 are open to indicate a 5V card has been
inserted.
BVD1, BVD2
VS1, VS2
RFU
N.C.
RESERVED FOR FUTURE USE
NO INTERNAL CONNECTION TO CARD: pin may be driven
or left floating
Functional Truth Table
Function Mode
/REG /CE2 /CE1 /OE /WE D15-D8
D7-D0
High-Z
Even-Byte
Even-Byte
Standby Mode
Read Low Byte Access
Write Low Byte Access
High-Z
High-Z
X
X
X
X
X
X
X
H
L
L
X
L
H
X
H
L
3
August 2000 Rev. 3 - ECO #13124
PC Card Products
PCMCIA Flash Memory Card
FEB Series
DC Characteristics (1)
3
)
Symbol Parameter
Density
Notes Typ
Max Units Test Conditions
(MBytes)
I
VCC Read Current
1,2,4,8
30
mA
VCC = 5.25V
tcycle = 100ns
CCR
I
VCC Program Current
VCC Erase Current
VCC Standby Current
1,2,4,8
1,2,4,8
1,2,4,8
60
60
50
mA
mA
µA
CCW
I
CCE
2)
I
20
VCC = 5.25V
Control Signals = VCC
Reset = X
CCS
CMOS Test Conditions: VIL = VSS ± 0.2V, VIH = VCC ± 0.2V
Notes:
1. All currents are RMS values unless otherwise specified.
2. Control Signals: CE1#, CE2#, OE#, WE#.
3. Typical: VCC = 5V, T = +25°C.
AC Characteristics (1)
VCC = 5V ± 5%, TA = 0°C to + 70°C
Symbol
Parameter
100 ns
150 ns
Min
Max
Min
Max
Unit
ns
Read Cycle Time
100
150
tC(R)
t (A)
Address Access Time
Card Enable Access Time
Output Enable Access Time
Write Cycle Time
100
100
50
150
150
75
ns
a
t (CE)
a
ns
t (OE)
a
ns
t W
c
100
60
150
80
ns
t (WE)
W
Write Pulse Width
ns
Note: AC timing diagrams and characteristics are guaranteed to meet or exceed PCMCIA 2.1 specifications.
Data Write and Erase Performance (1 ,3)
VCC = 5V ± 5%, TA = 0°C to + 70°C
(1)
Typ
Symbol
Parameter
Notes Min
Max
Units
Test Conditions
t
t
Byte Program time
2,4
7
1000 µs
WHQV1
EHQV1
t
t
Block Program Time
Block Erase Time
2
2
0.15
1
0.7
15
sec
sec
Word Program Mode
WHQV2
EHQV2
Notes:
1. Typical: Nominal voltages and TA = 25°C.
2. Excludes system overhead.
3. Valid for all speed options.
4. To maximize system performance RDY/BSY# signal should be polled.
5. Chip erase time based on 8 Mbit Flash components.
4
August 2000 Rev. 3 - ECO #13124
PC Card Products
PCMCIA Flash Memory Card
FEB Series
PRODUCT MARKING
WED7P008FEB0500C15 C995 9915
EDI
Date code
Lot code / trace number
Part number
Company Name
Note:
Some products are currently marked with our pre-merger company name/acronym (EDI). During our
transition period, some products will also be marked with our new company name/acronym (WED).
Starting October 2000 all PCMCIA products will be marked only with the WED prefix.
PART NUMBERING
7P008FEB0500C15
Card access time
15
25
150ns
250ns
Temperature range
C
I
Commercial 0°C to +70°C
Industrial -40°C to +85°C
Packaging option
00
Standard, type 1
Card family and version
- See Card Family and Version Info. for details (next page)
Card capacity
008
8MB
PC card
P
Standard PCMCIA
R
Ruggedized PCMCIA
Card technology
7
8
FLASH
SRAM
5
August 2000 Rev. 3 - ECO #13124
PC Card Products
PCMCIA Flash Memory Card
FEB Series
Ordering Information
Eight Bit Flash Memory Card
7P XXX FEB YY 00 T ZZ
where
XXX:
001
002
004
008
1MB (03 only)
2MB (03, 05)
4MB (03, 05)
8MB (05 only)
YY:
T:
03
05
29F080 base
29F016 base
C
I
Commercial
Industrial
M
Military Temp
ZZ:
10
15
100ns
150ns
Revision history:
rev level
rev 0
description
date
initial release
Logo change
Feb 2, 1998
May 27, 1999
June 1, 2000
rev 1
rev 2
Added page 5
Page Header change
Corrected Errors on pg. 4
rev 3
August 1, 2000
White Electronic Designs Corporation
One Research Drive, Westborough, MA 01581, USA
tel: (508) 366 5151
fax: (508) 836 4850
www.whiteedc.com
6
August 2000 Rev. 3 - ECO #13124
PC Card Products
厂商 型号 描述 页数 下载

WEDC

 		7P001FEA0200C15 [ Flash Card, 1MX8, 150ns, CARD-68 ] 6 页

WEDC

 		7P001FEA0300C15 [ Flash Card, 1MX8, 150ns, CARD-68 ] 6 页

WEDC

 		7P001FLG0100C15 [ Flash Card, 512MX16, 150ns, CARD-68 ] 11 页

ETC

 		7P001FLG0100C20 周边其他\n[ Peripheral Miscellaneous ] 13 页

WEDC

 		7P001FLG0100I15 [ Flash Card, 512MX16, 150ns, CARD-68 ] 11 页

WEDC

 		7P001FLG0100I20 [ Flash Card, 512MX16, 200ns, CARD-68 ] 11 页

WEDC

 		7P001FLG0101C15 [ Flash Card, 512MX16, 150ns, CARD-68 ] 11 页

WEDC

 		7P001FLG0101C20 [ Flash Card, 512MX16, 200ns, CARD-68 ] 11 页

WEDC

 		7P001FLG0101I15 [ Flash Card, 512MX16, 150ns, CARD-68 ] 11 页

ETC

 		7P001FLG0101I20 周边其他\n[ Peripheral Miscellaneous ] 13 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.228684s
