Pl tronics, Inc.
.
19013 36th Ave. W, Suite H Lynnwood, WA 98036 USA
Manufacturer of High Quality Frequency Control Products

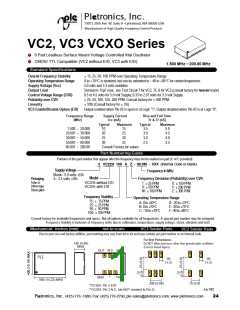

VC2, VC3 VCXO Series
6 Pad Leadless Surface Mount Voltage Controlled Xtal Oscillator
CMOS/ TTL Compatible (VC2 without E/D, VC3 with E/D)
–
1.500 MHz 200.00 MHz
Standard Specifications
Overall Frequency Stability
Operating Temperature Range
Supply Voltage (Vcc)
Output Load
Control Voltage Range (CVR)
Pullablity over CVR
± 15, 25, 50, 100 PPM over Operating Temperature Range
-
°
0 to +70 C is standard, but can be extended to 40 to +85°C for certain frequencies
5.0 volts and 3.3 volts available
Std load is 15pF max., see Test Circuit 7 for VC2, TC 8 for VC3 (consult factory for heavier loads)
0.5 to 4.5 volts for 5.0 volt Supply; 0.33 to 2.97 volts for 3.3 volt Supply
± 25, 50, 100, 150, 200 PPM. Consult factory for ± 300 PPM.
± 10% (Consult factory for ± 5%)
Linearity
VC3 Enable/Disable Option (E/D) Output enabled when Pin #2 is open or at Logic “1”; Output disabled when Pin #2 is at Logic “0”.
Frequency Range
(MHz)
Supply Current
Icc (mA)
Rise and Fall Time
Tr & Tf (nS)
Typical
Maximum
Typical
3.5
3.0
3.0
2.5
Maximum
5.0
–
1.500 20.000
10
20
25
30
15
25
30
35
–
20.001 30.000
4.5
4.0
3.5
–
30.001 50.000
–
50.001 60.000
–
60.001 200.00
Consult Factory for values
Part Numbering Guide
Portions of the part number that appear after the frequency may not be marked on part (C of C provided)
3 VC22H 100 A Z - 60.0M - XXX (Internal Code or blank)
Supply Voltage
Blank= 5.0 volts ±5%
3= 3.3 volts ±5%
Frequency in MHz
Model
VC22H=without E/D
VC32H=with E/D
Packaging
Tube or
24mm tape
16mm pitch
Frequency Deviation (Pullability) over CVR
T: ± 25 PPM
V: ± 50 PPM
W: ± 100 PPM
X: ± 150 PPM
Y: ± 200 PPM
Z: ± 300 PPM
Frequency Stability
Operating Temperature Range
15: ± 15 PPM
25: ± 25 PPM
50: ± 50 PPM
100: ± 100 PPM
A: 0 to +50°C
B: 0 to +70°C
C: -10 to +70°C
D: -20 to +75°C
E: -30 to +75°C
F: -40 to +85°C
Consult factory for available frequencies and specs. Not all options available for all frequencies. A special part number may be assigned.
Frequency Stability is inclusive of frequency shifts due to calibration, temperature, supply voltage, shock, vibration and load
inches (mm)
Mechanical:
not to scale
VC3 Solder Pads
VC2 Solder Pads
Due to part size and factory abilities, part marking may vary from lot to lot and may contain our part number or an internal code.
For Best Performance,
.195 (4.95)
MAX
Do NOT allow any traces other than ground under oscillators
(Even in buried layers)
Vcc
OUT N.C.
6
5
4
6
4
4
5
6
PLE
.05
.05
(1.3)
(1.3)
1
3
2
1
2
3
1
3
Vcon
GND
*
.560 (14.23) MAX
.200 (5.08)
*VC22H: Pin 2 N.C. (do NOT connect to Pin 2)
.15 (3.8)
*VC32H: Pin 2 E/D
July 2002
(425) 776 -1880, Fax: (425) 776-2760, ple-sales@pletronics.com, www.pletronics.com
24
