EZGPM01

型号：

EZGPM01

描述：

GPS接收器[ GPS RECEIVER ]

品牌：

ETC[ ETC ]

页数：

10 页

PDF大小：

388 K

下载PDF手册

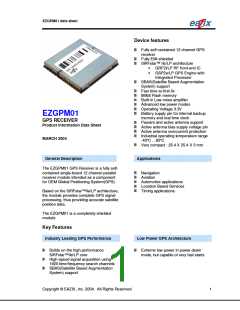

EZGPM01 data sheet
Device features
Fully self-contained 12 channel GPS
receiver
Fully EMI shielded
SiRFstar™ IIe/LP architecture
•
•
GRF2i/LP RF front-end IC
GSP2e/LP GPS Engine with
Integrated Processor
SBAS(Satellite Based Augmentation
System) support
Fast time-to-first-fix
8Mbit Flash memory
Built-in Low-noise amplifier
Advanced low power modes
Operating Voltage 3.3V
Battery supply pin for internal backup
memory and real time clock
Passive and active antenna support
Active antenna bias supply voltage pin
Active antenna overcurrent protection
Industrial operating temperature range
-40ºC …85ºC
EZGPM01
GPS RECEIVER
Product Information Data Sheet
MARCH 2004
Very compact : 25.4 X 25.4 X 3 mm
General Description
Applications
The EZGPM01 GPS Receiver is a fully self-
contained single-board 12 channel parallel
receiver module intended as a component
for OEM Global Positioning System(GPS).
Navigation
Aviation
Automotive applications
Location Based Services
Timing applications
Based on the SiRFstar™IIe/LP architecture,
the module provides complete GPS signal
processing, thus providing accurate satellite
position data.
The EZGPM01 is a completely shielded
module.
Key Features
Industry Leading GPS Performance
Low Power GPS Architecture
Builds on the high performance
SiRFstar™IIe/LP core
Extreme low power in power-down
mode, but capable of very fast starts
High-speed signal acquisition using
1920 time/frequency search channels
SBAS(Satellite Based Augmentation
System) support
Copyright © EAZIX, Inc. 2004. All Rights Reserved
1
EZGPM01 data sheet
Maximizes GPS Position Availability
Multiple Operating Modes
SingleSat™ updates in reduced visibility
Superior urban canyon performance
FoliageLock™ or weak signal tracking
Continuous Mode
TricklePower™ Mode
Push-to-Fix™ Mode
Block Diagram
Antenna
Input
BOOTSELECT
XTAL
GPS
Data
RTC
VANT
(Optional)
RF
Filter
LNA
1PPS
GSP2e/LP
Signal
Processor
AGC
GRF2i/LP
RF IC
RXA/TXA
RXB/TXB
Clock
XTAL
Reset
IC
Data
Bus
Address
Bus
Power
Voltage
Regulator
Battery
FLASH
8Mbit
EZGPM01
Figure 1: EZGPM01 Block Diagram
Copyright © EAZIX, Inc. 2004. All Rights Reserved
2
EZGPM01 data sheet
Mechanical Drawing
2.5mm
1.0mm 3.0mm
2mm
1.9mm
2mm
4.9mm
2.8mm
25.4mm
9.4mm
1.277mm
8mm
1.5mm
25.4mm
12.6mm
6.35mm
Figure 2: EZGPM01 recommendations for layout and pads
Copyright © EAZIX, Inc. 2004. All Rights Reserved
3
EZGPM01 data sheet
Device Terminal Functions
16
17
18
19
20
15
14
13
12
11
21
22
23
24
25
26
27
28
29
30
10
9
8
7
6
5
4
3
2
1
Figure 3: EZGPM01 Terminals
Copyright © EAZIX, Inc. 2004. All Rights Reserved
4
EZGPM01 data sheet
Terminal
1
Terminal Name
I/O
I
Description
3.3V DC supply voltage
Digital ground
VCC
DGND
2
3
4
BOOTSELECT
RXA
I
I
Boots in update mode when high
Serial Data Input A
5
6
7
TXA
TXB
RXB
O
O
I
Serial Data Output A
Serial Data Output B
Serial Data Input B
8
9
GPIO3
RF_ON
DGND
I/O
O
Indicates RF part is ON
Digital ground
Analog ground
Analog ground
Analog ground
Analog ground
Analog ground
Analog ground
Antenna input
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
AGND
AGND
AGND
AGND
AGND
AGND
RF_IN
AGND
I
Analog ground
V_ANT
VCC_RF
V_BAT
RESET_N
GPIO10
GPIO6
GPIO5
GPIO7
GPIO0
GPIO1
T-MARK(1PPS)
DGND
I
O
I
I
I/O
I/O
I/O
I/O
I/O
I/O
O
Supply for active antenna
2.85V output of RF section
External backup battery
Resets the module when low
One-pulse-per-second
Digital ground
Table 1: Device Terminal Functions
Copyright © EAZIX, Inc. 2004. All Rights Reserved
5
EZGPM01 data sheet
Electrical Characteristics
Absolute Maximum Ratings
Parameter
Symbol
Vcc
Vin
Iant
Tstg
Min
Max
6
5
100
+125
Units
V
V
mA
ºC
Power Supply Voltage
Input Pin Voltage
Antenna Bias Current
Storage Temperature
-55
Table 2: Absolute Maximum Ratings
Operating Conditions
TA = 25ºC; 3V active antenna
Parameter
Power Supply
Voltage
Symbol Condition
Vcc
Min
3.0
Typ
3.3
Max
6
Units
V
Backup Battery
Voltage
Antenna Bias
Voltage
Vbat
Vant
2.5
2.0
3.0
3.0
3.6
12
V
V
Supply Current
TricklePower
Supply Current
Icc
Itps
Vcc = 3.3V
Vcc = 3.3V;
20% duty
67
16.5
mA
mA
cycle; 1 sec
update period
Vbat = 3.0V
Standby Battery
Current
Antenna Bias
Current
Ibat
Iant
Topr
3.8
18
ꢀA
mA
ºC
Vant = 3.0V
Operating
-40
85
Temperature
Table 3: Operating Conditions
Electrical Specifications
General
Frequency
CA Code
Channels
L1, CA code, 1575.42 MHz
1.023 MHz chip rate
12
Sensitivity
Holding Sensitivity(C/N ave. 26dB-Hz)
-144dBm
Accuracy
Position
10 meters CEP (SA off)
Copyright © EAZIX, Inc. 2004. All Rights Reserved
6
EZGPM01 data sheet
Velocity
Time
0.1 meters/second (SA off)
1 ꢀsec synchronized to GPS time
DGPS Accuracy
Position
< 5 meters (SA off)
Velocity
0.05 meters/second, typical
Datum
WGS-84
Time-To-First-Fix
Reacquisition
SnapStart™
Hot Start
Warm Start
Cold Start
100ms
< 3 seconds
< 8 seconds
< 38 seconds
< 45 seconds
Serial Port
Electrical Interface
Protocol support
2 full duplex serial communication
NMEA, SiRF binary, RTCM SC-104
Time – 1PPS
Level
CMOS
Pulse Duration
Time Reference
Measurement
100 ms
At the pulse positive edge
Aligned to GPS second
Table 4: Electrical Specifications
Operating Modes
TricklePower™ Description
The TricklePower™ mode provides the lowest average power dissipation by powering down the
module after a position fix. It cycles through three states: tracking state(or full power), cpu state, and
trickle state.
The receiver is in the full power tracking state when it is first turned on, after a system reset, and when
the internal RTC wakeup interrupt is generated. Satellite search, initial acquisition, initial position
calculation, and tracking measurements are always taken in full power.
In the CPU state, the RF antenna section and GPS clock has been turned off, although the RTC keeps
running. The CPU would keep running to process the GPS data until a position fix is determined and
the result has been transmitted by the serial communication interface.
The trickle state is a low power standby state in which the CPU clock and RF circuits are turned off but
power is still applied to the baseband. After a set amount of time, the receiver wakes up, makes a
reset and tries to acquire satellites.
Copyright © EAZIX, Inc. 2004. All Rights Reserved
7
EZGPM01 data sheet
Push-to-Fix™ Description
The push-to-fix™ mode puts the receiver into a background duty cycle mode that provides a periodic
refresh of position, GPS time, ephemeris data, and RTC calibration every 30 minutes. The push-to-fix
mode sets the receiver in a background duty cycle consisting of 30 seconds of On time in the tracking
state at full power, followed by a position computation in the CPU state, followed by approximately
29.5 minutes in the trickle state.
Copyright © EAZIX, Inc. 2004. All Rights Reserved
8
EZGPM01 data sheet
Application Circuit
Figure 4: EZGPM01 Reference Design
Copyright © EAZIX, Inc. 2004. All Rights Reserved
9
EZGPM01 data sheet
Ordering and Contact Information
Order Number
Description
EZGPM01
MOQ is 1k. Leadtime: 12-16 weeks
All trademarks mentioned in this document are property of their respective owners.
SiRF and SiRF logo are registered trademarks of SiRF Technology, Inc. SiRFstar, SingleSat, SnapLock, SnapStart,
FoliageLock, Push-to-Fix, TricklePower are trademarks of SiRF Technology, Inc.
EAZIX, Inc.
Unit 301 Plaz@ Building B
6530 Northgate Avenue, Filinvest Corporate City
Alabang, Muntinlupa City
Philippines 1770
Tel: + 632 772-4941
+ 632 772-4942
+ 632 772-4943
Fax: + 632 772-4944
Website: http://www.eazix.com/
E-mail: info@eazix.com
Copyright © EAZIX, Inc. 2004. All Rights Reserved
10
