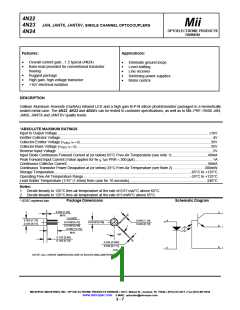

4N22
4N23
4N24
Mii
JAN, JANTX, JANTXV, SINGLE CHANNEL OPTOCOUPLERS
Applications:
OPTOELECTRONIC PRODUCTS
DIVISION
Features:
•
•
Overall current gain...1.5 typical (4N24)
Base lead provided for conventional transistor
biasing
•
•
•
•
•
Eliminate ground loops
Level shifting
Line receiver
•
•
•
Rugged package
Switching power supplies
Motor control
High gain, high voltage transistor
+1kV electrical isolation
DESCRIPTION
Gallium Aluminum Arsenide (GaAlAs) infrared LED and a high gain N-P-N silicon phototransistor packaged in a hermetically
sealed metal case. The 4N22, 4N23 and 4N24’s can be tested to customer specifications, as well as to MIL-PRF-19500 JAN,
JANS, JANTX and JANTXV quality levels.
*ABSOLUTE MAXIMUM RATINGS
Input to Output Voltage........................................................................................................................................................ ±1kV
Emitter-Collector Voltage..........................................................................................................................................................4V
Collector-Emitter Voltage (VCEO, I = 0)....................................................................................................................................35V
F
Collector-Base Voltage (VCEO, I = 0) .......................................................................................................................................35V
Reverse Input Voltage ............F.................................................................................................................................................2V
Input Diode Continuous Forward Current at (or below) 65°C Free-Air Temperature (see note 1)....................................40mA
Peak Forward Input Current (Value applies for tw < 1µs PRR < 300 pps) ..............................................................................1A
Continuous Collector Current ..............................................................................................................................................50mA
Continuous Transistor Power Dissipation at (or below) 25°C Free-Air Temperature (see Note 2) ................................300mW
Storage Temperature..........................................................................................................................................-65°C to +125°C
Operating Free-Air Temperature Range ............................................................................................................-55°C to +125°C
Lead Solder Temperature (1/16” (1.6mm) from case for 10 seconds).............................................................................. 240°C
Notes:
1. Derate linearly to 125°C free-air temperature at the rate of 0.67 mA/°C above 65°C.
2. Derate linearly to 125°C free-air temperature at the rate of 5 mW/°C above 65°C.
* JEDEC registered data
Package Dimensions
Schematic Diagram
0.040 [1.02]
MAX.
C
E
3
1
6 LEADS
5
6
0.305 [7.75]
0.335 [8.51]
A
0.045 [1.14]
0.029 [0.73]
3
7
5
0.022Ø [5.08]
0.016Ø [0.41]
0.019Ø [0.48]
0.500 [12.70]
2
1
MIN.
45°
0.155 [3.94]
0.185 [4.70]
0.034 [0.864]
0.028 [0.711]
B
K
2
7
TO5
NOTE: ALL LINEAR DIMENSIONS ARE IN INCHES (MILLIMETERS)
