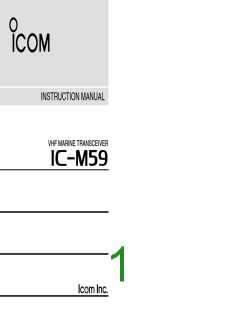

INSTRUCTION MANUAL

VHF MARINE TRANSCEIVER

iC- m59

IN CASE OF EMERGENCY

If your vessel requires assistance, contact other vessels and

the Coast Guard by sending a distress call on channel 16.

Or, transmit your distress call using digital selective calling on

channel 70 (the optional UX-120 ^{DSC UNIT}must be installed).

❍ USING CHANNEL 16

❍ USING DIGITAL SELECTIVE CALLING (ch 70)

(UX-120 required)

DISTRESS CALL PROCEDURE

1. “MAYDAY MAYDAY MAYDAY”

1. Push and hold [16•EMER] for 5 sec. until you

hear 5 short beeps change to one long beep.

2. “THIS IS - - - - - - - - - - - - - - ” (name of vessel)

2. Then, push [PTT] to transmit the call.

3. Your call sign or other indication of the vessel

(AND 9-digit DSC ID if you have one).

3. Wait for an acknowledgment from a coast sta-

tion.

4. “LOCATED AT - - - - - - - - - - ” (your position)

• When received, channel 16 is automatically selected.

5. The nature of the distress and assistance re-

quired.

4. Push and hold [PTT], then transmit the appro-

priate information as at left.

6. Any other information which might facilitate the

rescue.

TABLE OF CONTENTS

IN CASE OF EMERGENCY..................................................i

TABLE OF CONTENTS ...................................................... ii

IMPORTANT ...................................................................... iii

CAUTIONS.......................................................................... iii

5 SET MODE ........................................................... 19 – 21

I Entering SET mode .................................................. 19

I SET mode items ....................................................... 19

6 CONNECTIONS AND MAINTENANCE .............. 22 – 27

I Unpacking ................................................................ 22

I Additional requirements ............................................ 22

I Connections .............................................................. 23

I Mounting the transceiver .......................................... 24

I Dimensions ............................................................... 25

I Antenna .................................................................... 26

I Fuse replacement ..................................................... 26

I Cleaning ................................................................... 26

I Optional unit installations .......................................... 26

1 OPERATING RULES ..................................................... 1

2 PANEL DESCRIPTION ............................................ 2 – 5

I Front panel ................................................................. 2

I Microphone ................................................................. 3

I Function display .......................................................... 4

3 BASIC OPERATION .............................................. 6 – 11

I Power ON ................................................................... 6

I Channel selection ....................................................... 6

I Receiving .................................................................... 8

I Transmitting ................................................................ 9

I Scan function ............................................................ 10

I Call channel programming ........................................ 11

I Display backlighting .................................................. 11

7 TROUBLESHOOTING ................................................ 28

8 VHF MARINE CHANNEL LIST ................................... 29

9 SPECIFICATIONS ....................................................... 30

10 OPTIONS ................................................................... 31

4 DIGITAL SELECTIVE CALLING ......................... 12 – 18

I General ..................................................................... 12

I Distress call transmission ......................................... 13

I All ships call transmission ......................................... 14

I Individual call transmission ....................................... 15

I Receiving DSC calls ................................................. 16

WHEN INSTALLING THE DSC UNIT

NEVER transmit a distress call when your vessel does not

need immediate help. Distress calls can be used only in times

of emergency.

IMPORTANT

READ ALL INSTRUCTIONS carefully and com-

pletely before using the transceiver.

AVOID using or placing the transceiver in direct sunlight or

in areas with temperatures below –20°C (–4°F) or above

+60°C (+140°F).

SAVE THIS INSTRUCTION MANUAL—This in-

struction manual contains important operating instructions for

the IC-M59.

DO NOT operate the transceiver without running the ves-

sel’s engine. When your vessel’s engine is OFF and the

transceiver is transmitting, the vessel’s battery will soon be-

come exhausted.

YOU MUST HAVE a DSC vessel ID in order to oper-

ate the optional DSC functions of the transceiver. See your

Dealer for details.

KEEP the transceiver out of the reach of children.

KEEP the antenna cable and DC power cable as far away

as possible from electrical pumps, generators and other elec-

tronic instruments to prevent instrument malfunctions.

CAUTIONS

RWARNING NEVER connect the transceiver to an

AC outlet. This may pose a ﬁre hazard or result in an electric

shock.

KEEP the transceiver and microphone at least 1 meter

away from your vessel's magnetic navigation compass.

RWARNING HIGH VOLTAGE! NEVER touch

the antenna or an internal antenna connector during trans-

mission. This may result in an electric shock or a burn.

NEVER connect the transceiver to a power source of more

than 16 V DC. This connection will ruin the transceiver.

iii

OPERATING RULES

OPERATOR’S LICENSE

D Priorities

A restricted Radiotelephone Operator Permit is the license

most often held by small vessel radio operators when a radio

is not required for safety purposes.

• Read all rules and regulations pertaining to priorities and

keep an up-to-date copy handy. Safety and distress calls

take priority over all others.

The Restricted Radiotelephone Operator Permit must be

posted near the transceiver or be kept with the operator. Only

a licensed radio operator may operate a transceiver.

• You must monitor channel 16 when you are not operating

on another channel.

• False or fraudulent distress calls are prohibited under law.

However, non-licensed individuals may talk over a transceiver

if a licensed operator starts, supervises, ends the call and

makes the necessary log entries.

D Privacy

• Information overheard but not intended for you cannot law-

fully be used in any way.

A current copy of the applicable government rules and regu-

lations is only required to be on hand for vessels in which a

radio telephone is compulsory. However, even if you are not

required to have these on hand it is your responsibility to be

thoroughly acquainted with all pertinent rules and regulations.

• Indecent or profane language is prohibited.

D Radio licenses

SHIP STATION LICENSE

When your craft is equipped with a VHF FM transceiver, you

must have a current radio station license before using the

transceiver. It is unlawful to operate a ship station which is not

licensed.

Inquire through your dealer or the appropriate government

agency for a Ship-Radiotelephone license. This license in-

cludes the call sign which is your craft’s identiﬁcation for radio

purposes.

PANEL DESCRIPTION

I Front panel

PWR/VOL

VHF MARINE

OFF

SQUELCH

TAG

TRI

EMER

ALL

SCAN

DIM

DUAL

U/I/C

CH/WX

/IND

HI/LO

CHANNEL SELECTOR [CHANNEL]

display and control/switch backlighting intensity. (p. 11)

Selects an operating channel in the selected channel

group.

CHANNEL/WEATHER CHANNEL SWITCH

[CH/WX•U/I/C]

SCAN SWITCH [SCAN•TAG]

• Selects and toggles between regular and weather chan-

nels.

• Selects one of 3 regular channels in sequence when

pushed for 1 sec. (p. 7)

• Starts and stops normal or priority scan when tag chan-

nels are programmed. (p. 10)

• Push and hold for 1 sec. to toggle the tag setting for the

displayed channel. (p. 10)

➠ International, U.S.A. and Canadian channels are available for

regular channels.

HIGH/LOW POWER SWITCH [HI/LO•DIM]

• Toggles between high and low output powers. (p. 9)

• While pushing, rotate the channel selector to adjust the

DUAL/TRI-WATCH SWITCH [DUAL•TRI] (p. 8)

• Activates dualwatch for checking channel 16.

^{PANEL DESCRIPTION}2

• Push and hold for 1 sec. to activate tri-watch for checking

channel 16 and the call channel.

I Microphone

CALL CHANNEL SWITCH [9•ALL/IND]

• Selects the call channel—the call channel is programma-

ble, channel 9 being the default. (p. 11)

• Push and hold for 1 sec. to enter the standby condition of

a DSC call. (When an optional UX-120 is installed).

(pgs. 14, 15)

HI/LO

➠ Both “All ships call” and “Individual call” are selectable.

CHANNEL 16 SWITCH [16•EMER]

• Selects channel 16. (p. 6)

CHANNEL UP/DOWN SWITCHES [M]/[L]

• Select an operating channel in the selected channel

group.

• Push and hold to enter the standby condition for a dis-

tress call transmission using the DSC function (when an

optional UX-120 is installed). (p. 13)

➠ These switches can be used instead of the transceiver’s

channel selector.

SQUELCH CONTROL [SQUELCH]

• Rotate clockwise to eliminate audio noise. (p. 8)

• Activates the built-in attenuator when rotated deep clock-

wise. (p. 8)

HIGH/LOW POWER SWITCH [HI/LO]

The same function as the transceiver’s front panel.

• Toggles between high and low output powers. (p. 9)

• While pushing, push the [M]/[L] switches to adjust the display

and control/switch backlighting intensity. (p. 11)

POWER/VOLUME CONTROL [PWR/VOL]

Turns power ON and OFF and adjusts the audio output

level. (p. 6)

PANEL DESCRIPTION

I Function display

t y

TX BUSY

LOW CALL

CANUSA

INT

TAG

DUALTRI

SCAN SCRM

DUP ACK RCV

WX ALT

q TRANSMIT INDICATOR

t SCAN INDICATOR

Appears while transmitting. (p. 9)

Appears and ﬂashes during scan operation. (p. 10)

w BUSY INDICATOR

y DUALWATCH INDICATOR

Appears when receiving a signal or when [SQUELCH] is

rotated too far counterclockwise. (p. 8)

Appears and ﬂashes during dualwatch operation. (p. 8)

u TRI-WATCH INDICATOR

e CHANNEL INDICATOR

Appears and ﬂashes during tri-watch operation. (p. 8)

Shows the operating channel. (pgs. 6, 7)

i VOICE SCRAMBLER INDICATOR

Appears while the optional voice scrambler is activated.

(p. 8)

r TAG CHANNEL INDICATOR

Appears when the selected channel is set as a tag chan-

nel. (p. 10)

^{PANEL DESCRIPTION}2

o DUPLEX INDICATOR

! LOW POWER INDICATOR

Appears when the selected channel is a duplex channel.

Shows that low output power is selected. (p. 9)

! ACKNOWLEDGEMENT/RECEIVE INDICATORS

Appear during optional DSC operation. (pgs. 13–18)

• “RCV” appears when a DSC call is received.

• “ACK RCV” appears when an acknowledgement is received.

• “ACK” and “$” appear when transmitting an acknowledge-

ment.

! CALL CHANNEL INDICATOR

Appears when the call channel is selected. (p. 6)

! DSC INDICATORS (pgs. 13–18)

Appear during optional DSC operation and show a format

speciﬁer, message, etc.

! NMEA INDICATOR

Appears when NMEA devices (such as a GPS receiver)

are connected. (p. 12)

! WEATHER ALERT INDICATOR

Indicates the weather alert function is activated. (p. 7)

! MODE INDICATORS (p. 7)

• “USA” shows USA channels are selected.

• “CAN” shows Canadian channels are selected.

• “INT” shows International channels are selected.

• “WX” shows weather channels are selected.

BASIC OPERATION

I Power ON

I Channel selection

➀ Rotate [PWR/VOL] clockwise to turn power ON.

D Channel 16

Channel 16 is the distress channel. It is used for establishing

initial contact with another station and for emergency com-

munications. Channel 16 is monitored during dualwatch/tri-

watch. While standing by you are required to monitor channel

16.

TX BUSY

LOW CALL

CANUSA

INT

TAG DUALTRI

SCAN SCRM

DUP ACK RCV

All display indications

appear briefly*.

WX ALT

*“SCRM” appears only when an optional

UT-79 is installed.

“dSC” appears only when an optional

UX-120 is installed.

Push

USA

or hang the microphone

on the microphone hanger.

➁ Operate the transceiver as indicated in the following sec-

tions.

D Call channel

D Low voltage indicator

The call channel is used to store your most often-used chan-

nel for quick recall. In addition, the call channel is monitored

during tri-watch. The default setting for the call channel is

channel 9 which is for pleasure use.

When “b” appears and flashes as

USA

shown at right, there is a DC power

source problem. In this case, check

your vessel’s battery and DC

power cable.

CALL

Push

USA

“CALL” indicates that the

call channel is selected.

^{BASIC OPERATION}3

D U.S.A., Canadian and international channels

There are 61 U.S.A., 57 Canadian and 57 international chan-

nels. These channel groups may be speciﬁed for the operat-

ing area.

D Weather channels

There are 10 weather channels. These are used for monitor-

ing NOAA (National Oceanographic and Atmospheric

Administration) weather broadcasts.

➀ Push [CH/WX] to select a regular channel.

• If a weather channel appears, push [CH/WX] again.

➁ Rotate the channel selector to select a channel.

• “DUP” appears for duplex channels.

CH/WX

Push

once or twice

➂ To change the channel group, push [CH/WX•U/I/C] for 1

sec.

• U.S.A., Canadian and international channels can be selected in

sequence.

USA

Push for 1 sec.

U.S.A. channels

U/I/C

CH/WX

✔ CONVENIENT

Weather alert function: NOAA broadcast stations transmit

a weather alert tone before an important weather announce-

ment.

TAG

DUP

CAN

INT

When the weather alert function is turned ON, the “ALT” indi-

cator ﬂashes until any key is pushed.

This function is activated when a weather channel is selected

or during any scan. See “SET mode items” on p. 19.

International channels

Canadian channels

BASIC OPERATION

D Dual/tri-watch functions

I Receiving

These functions allow you to conveniently check the distress

channel (ch 16) or, both the distress and pleasure call chan-

nel (ch 9; programmable) while receiving another channel.

When receiving a signal on one of these channels, the trans-

ceiver stops on the channel until the signal disappears.

➀ Rotate [PWR/VOL] to turn power ON.

➁ Rotate [SQUELCH] fully counterclockwise.

➂ Adjust [PWR/VOL] to a suitable listening level.

➃ Rotate [SQUELCH] clockwise until the audio noise disap-

pears.

➥ Push [DUAL•TRI] momentarily for dualwatch.

➄ Select the desired channel. See pgs. 6–7 for details.

• When a signal is received:

DUAL

BUSY

USA

DUAL

BUSY

➧ The squelch opens;

USA

➧ Audio is emitted from the speaker;

➧ “BUSY” appears in the function dis-

play.

Checking channel 16

every 2 sec.

When receiving a signal

on channel 16. Channel

16 is monitored until the

signal disappears.

➅ When an interrupting signal is received; rotate [SQUELCH]

deeply clockwise.

➥ Push and hold [DUAL•TRI] for tri-watch.

D Voice scrambler function

For confidential communications, use the optional voice

scrambler function. All members of your group must have the

UT-79 ^{VOICE SCRAMBLER UNIT}installed in order to communi-

cate using this function.

TRI

BUSY

CALL

USA

TRI

USA

Checking channel 16

and the call channel

every 2 sec.

When receiving a signal

on the call channel, the

call channel is monitored

while checking ch 16 in

2 sec. intervals.

➥ While pushing [HI/LO], push

SCRM

USA

[CH/WX] to toggle the function ON

and OFF.

• “SCRM” appears when the function is ON.

• This function cannot be used on CH 16.

• Set the scramble code in SET mode in advance (p. 19).

When receiving a signal

on channel 16, channel

16 has priority.

BUSY

TRI

USA

^{BASIC OPERATION}3

CALL PROCEDURES

You must identify yourself when you transmit and you must

respect time limits.

I Transmitting

Before transmitting, read the call procedures at right.

➀ Select an operating channel. See pgs. 6, 7 for details.

➁ Push [HI/LO] to select transmit output power.

• “LOW” appears when low output power is selected.

• High power cannot be selected on some channels. Refer to the

channel list on p. 29.

1) Give your call sign each time you call another vessel or

a coast station. If you have no call sign, identify the sta-

tion by giving the vessel name and the name of the li-

cense.

➂ Push and hold the PTT switch to transmit.

• “$” appears.

2) Give your call sign at the end of each transmission that

lasts more than 3 minutes.

➃ Speak into the microphone at your normal voice level.

• Do not hold the microphone too closely to your mouth or speak

too loudly. This may distort the transmit signal.

➄ Release the PTT switch to receive.

3) You must pause and give your call sign at least once

every 15 minutes during long ship-to-shore calls.

4) Keep your calls short (less than 3 minutes). Wait 2 min-

utes before repeating a call.

IMPORTANT: In order to maximize the readability of your trans-

mitted signal, pause for a moment after pushing [PTT], hold the

microphone 15–20 cm from your mouth, then speak into the mi-

crophone at an even, normal voice level.

5) Unnecessary transmissions are not allowed.

TIME-OUT TIMER (U.S.A. version only)

MOMENTARY HIGH POWER

The transceiver has a time-out timer function to prevent

continuous, long transmissions. Transmit is automatically

inhibited after 5 min. of continuous transmission.

On U.S.A. channels 13, 15 and 67, transmission using high

power is momentarily possible. To use high power, push

and hold [HI/LO] while transmitting.

BASIC OPERATION

D Scan operation

➀ Select the desired channel group (USA, CAN, INT) or WX

I Scan function

The transceiver has a high speed scan function for standing

by on utility signals. The scan speed is 8 channels/sec. (ex-

cept when the weather alert function is in use).

channels with [CH/WX•U/I/C].

• When the weather alert function is in use, select the desired WX

channel in the display, then perform the above operation.

➁ Push [SCAN] to start scanning.

Two scan types are available: normal scan (scans all tag

channels in sequence) and priority scan (checks channel 16

while scanning). These scans can be selected in set mode

(p. 19).

• “SCAN” appears and ﬂashes in the function display.

• “16” appears during priority scan.

➂ To stop the scan, push [SCAN] again.

• “SCAN” disappears.

D Setting tag channels

You can specify channels as tag channels for efﬁcient scan-

ning. Tag channels can be set for each channel group (USA,

CAN, INT) independently.

➥ Select the desired channel, then push and hold

[SCAN•TAG] for 1 sec. to toggle the tag setting.

✔ Scan resume timer:

When a signal is detected, scan pauses until the signal dis-

appears or resumes after pausing 5 sec., according to the set

mode setting. (p. 19)

TAG

Appears when the channel is

specified as a tag channel.

✔ Conﬁrming tag channels:

While operating scan, rotate [DIAL].

• Only tag channels are selected.

• Stop rotating [DIAL] to resume scan.

USA

✔ Clearing all tag channels:

✔ Weather alert function:

While pushing [HI/LO], push and hold [SCAN•TAG] for 3 sec.

until the long beep becomes 2 short beeps.

• All tag channels in the selected channel group are released.

When the function is turned ON (p. 19), the selected weather

channel is checked during scan. Refer to p. 7 for a descrip-

tion of weather alert.

^{BASIC OPERATION}3

➄ Push [9] again to program the

displayed channel as the call

channel.

• The call channel number and

channel group stop ﬂashing.

I Call channel programming

The call channel key, [9], is used to select channel 9, how-

ever, you can program your most often-used channels in

each channel group for quick recall.

CALL

USA

➀ Push [CH/WX•U/I/C] for 1 sec.

USA

one or more times to select

I Display backlighting

The function display and switches can be backlit for better

visibility under low light conditions.

the desired channel group

(USA, INT, CAN) to be pro-

grammed.

➁ Push [9] to select the call

channel of the selected chan-

nel group.

TAG

CALL

USA

While pushing [HI/LO•DIM], rotate the channel selector to ad-

just the backlighting.

➥ Backlighting can be set to 1 of 3 intensities or turned OFF.

• “CALL” and the call channel

number appear.

➂ While pushing [HI/LO] push [9]

to enter call channel write

mode.

CALL

USA

• Call channel number and chan-

nel group to be programmed ﬂash.

➃ Rotate the channel selector to

select the desired channel.

CALL

USA

UX-120 required

DIGITAL SELECTIVE CALLING

I General

In addition, when a GPS receiver (NMEA0183 ver. 1.5, 2.0 or

2.1) is connected, your vessel’s position and the current UTC

time are transmitted together with the vessel’s identity when

making a distress call.

When an optional UX-120 DSC UNIT is installed, digital selec-

tive calling (or DSC) can be used via the IC-M59. DSC is a

method of radio communications involving digital signals

rather than the more conventional method of voice commu-

nications. The advantage of using digital communications

over voice communications is that information (especially

useful for distress calls and other urgent matters) can be pre-

programmed into a radio and transmitted accurately.

See p. 27 for unit installation.

DSC TYPE

DESCRIPTION

REF.

This sends distress information which includes your vessel’s ID (and position data/UTC time

when a GPS receiver is connected). Send under emergency conditions only. DSC acknowl-

edgement will be received from a coast station after making a distress call.

pgs.

13, 16

Distress call

This is used to alert Coast stations (or other ships) when a vessel in distress is unable to do

so. The IC-M59 can only receive this type of signal; not transmit.

Distress relay call

All ships call

p. 16

pgs.

14, 16

This is used for non-emergency situations. This signal includes information which allows a re-

ceiving transceiver to automatically select a speciﬁed channel for voice communication.

This allows you to send a signal to a speciﬁc vessel only. The vessel’s ID code must be pre-

programmed in advance. Two kinds of acknowledgements (able to comply/unable to comply)

are available (for sending or receiving) after an individual call.

pgs.

15, 17

Individual call

This is used for announcement to all ships in the speciﬁed area—when a GPS receiver is

connected calls directed to areas other than yours are rejected. Receive only for the IC-M59.

Geographical area call

p. 17

^{DIGITAL SELECTIVE CALLING}4

I Distress call transmission

➃ When a distress acknowledge-

CAUTION: Distress calls may be transmitted under

conditions of emergency only i.e. your vessel is in danger

of sinking and/or a person’s life is in danger.

BUSY

INT

LOW

ment is received, emergency

alarm sounds and channel 16

is automatically selected.

• Push any key to cancel the

alarm.

ACK RCV

➀ Push and hold [16•EMER] until

ACK RCV

LOW

INT

you hear

4 short beeps

INT

change to one long beep.

• The display changes as at right.

➁ Push [PTT] to transmit the dis-

tress call.

LOW

➄ Transmit your distress call particulars by voice using the

following procedure:

1. “MAYDAY.”

INT

2. “THIS IS ” (name of vessel).

3. The 9-digit identity AND the call sign (or other identiﬁcation

of the vessel).

4. The vessel’s position if DSC does not include it.

5. The nature of the distress and assistance required.

6. Any other information which might facilitate the rescue.

➂ The transceiver remains on channel 70 until an acknowl-

edgement is received.

• When no acknowledgement is received, the distress call is re-

peated until an acknowledgement is received.

• To cancel this, turn power OFF then ON again.

• Calls to you other than distress acknowledgement cannot be re-

ceived.

NOTE: When a GPS receiver (NMEA 0183) is connected,

your vessel’s position is automatically transmitted with the

distress call.

NOTE: Acknowledgement of a DSC distress alert is nor-

mally made by coast stations only.

DIGITAL SELECTIVE CALLING

I All ships call transmission

Large ships use channel 70 as their “listening channel.” When

you want to announce a message to these ships, use the “all

ships call” function.

➅ Push and hold [PTT] again to send an announcement to

all ships.

NOTE: Channel busy

BUSY

LOW

When channel 70 is busy, the

➀ Select a simplex channel for

USA

all ships call is not transmit-

USA

the traffic channel (for voice

ted. The transceiver waits

communication after sending

This display appears

while the call is in

standby.

until the channel is clear, then

transmits the call automati-

cally.

the all ships call).

• Some ‘A’ channels (eg. channel 88A) cannot be used.

➁ Rotate [SQUELCH] clockwise until the audio noise disap-

pears.

NOTE: Error indication

➂ While pushing [9•ALL/IND] ro-

LOW

When a transmission inhibited

channel (e.g. ch 70) is se-

lected for the traffic channel,

LOW

USA

tate the channel selector to se-

lect “ALL” as at right.

➃ Push and hold [9•ALL/IND]

LOW

USA

the display at right appears. In this case, an appropriate

channel must be selected.

until you hear 4 short beeps

change to one long beep.

• The display changes as at right.

This display may also appear if [9•ALL/IND] is accidentally

released early while being pushed and held in step ➂.

LOW

➄ Push [PTT] momentarily to

USA

transmit the all ships call.

• After transmission, the channel

set in step ➀ above is selected.

USA

^{DIGITAL SELECTIVE CALLING}4

I Individual call transmission

➆ Standby on channel 70 until an acknowledgement is re-

The individual call function allows you to transmit a DSC sig-

ceived.

nal to a speciﬁc party only.

➇ When the acknowledgement is

BUSY

LOW

➀ Set the ID code for the individual you wish to call in ad-

vance.

• This code is input into the address item in SET mode. (p. 19)

ACK RCV

USA

received, the display changes

as at right.

• Beeps sound.

• The channel set in step ➁ is se-

ACK RCV

USA

➁ Select the traffic channel (for

USA

voice communication after the

lected.

individual call is sent).

• Select a simplex channel (some

➈ Push and hold [PTT] to communicate your message to the

responding party.

‘A’ channels cannot be used) for ship-to-ship contact.

• Select a duplex channel for ship-to-coast contact.

➂ Rotate [SQUELCH] clockwise until the audio noise disap-

pears.

➃ While pushing [9•ALL/IND] rotate the channel selector to

select “Ind” as at right.

NOTE: Unable to comply

LOW

ACK RCV

When the received acknowl-

edgement includes “unable to

comply,” the message display

changes as at right. In such a

case, wait at least 5 min. be-

fore re-transmitting the call.

USA

ACK RCV

• When no address ID is pre-programmed, “Ind” cannot be selected.

➄ Push and hold [9•ALL/IND]

LOW

USA

until you hear 4 short beeps

NOTE: Channel busy error indication

change to one long beep.

The same as for the all ships call. Refer to the page oppo-

site for details.

• The display changes as at right.

• When “ALL” appears instead of

LOW

USA

“Ind,” rotate the channel selector

to select “Ind” while pushing [9•ALL/IND].

➅ Push [PTT] momentarily to transmit the individual call.

• “HIGH” power is automatically selected while transmitting the call.

DIGITAL SELECTIVE CALLING

D Receiving a distress relay call

I Receiving DSC calls

Several types of DSC transmissions can be received. The re-

quired action depends on the particular DSC type as outlined

in the following examples. However, in all examples, you must

be monitoring channel 70 in order to receive such signals.

A distress relay call may be transmitted from a large ship to a

coast station. While monitoring channel 70 and a distress

relay call is received:

➥ Emergency alarm sounds.

➥ “RCV” and “RLY” appear in the

BUSY

LOW

RCV

INT

NOTE: When channel 70 is set as a tag channel and scan

is functioning, DSC calls will not be received. DSC calls

can only be received when channel 70 is selected.

display; then, channel 16 is

automatically selected.

➥ Push [16] to stop the alarm.

RCV

➥ Monitor channel 16 until the

INT

emergency communication

has been completed.

D Receiving a distress call

While monitoring channel 70 and a distress call is received:

➥ Emergency alarm sounds.

➥ “RCV” and “dTR” appear in

BUSY

D Receiving an all ships call

While monitoring channel 70 and an all ships call is received:

LOW

RCV

INT

the display; then, channel 16

is automatically selected.

➥ Push [16] to stop the alarm.

➥ Emergency alarm or beeps

BUSY

LOW

RCV

sound depending on the re-

INT

RCV

➥ Continue monitoring channel

INT

ceived category.

16 as a coast station may re-

➥ “RCV” and “ALL” appear in the

quire assistance in any rescue attempt.

display; then, the channel

RCV

speciﬁed by the calling station

INT

is automatically selected for

voice communications.

➥ Monitor the selected channel for an announcement from

the calling vessel.

^{DIGITAL SELECTIVE CALLING}4

D Receiving a geographical area call

While monitoring channel 70 and a geographical area call (for

the area you are in) is received:

D Receiving an individual call

When receiving an individual call, an acknowledgement must be

sent back to the calling station within 4.5 min. Operation and

transceiver function differs depending on the SET mode settings.

➥ Emergency alarm or beeps

BUSY

LOW

RCV

USA

sound depending on the re-

Two messages can be selected for acknowledgement:

• “Able to comply” ..............You can communicate with the

calling vessel via the mic after a DSC connection.

• “Unable to comply”...........You cannot communicate with

the calling vessel after a DSC connection (e.g. opera-

tor leaves transceiver).

ceived category.

➥ “RCV” and “GEO” appear in

the display; then, the channel

RCV

USA

speciﬁed by the calling station

is automatically selected for

voice communications.

While monitoring channel 70 and an individual call is

received:

➥ Monitor the selected channel for an announcement from

the calling ship.

➥ Emergency alarm or beeps sound depending on the re-

NOTE: When no GPS receiver is connected or if there is a

problem with the connected receiver, all geographical area

calls are received, regardless of your position.

ceived category.

BUSY

➥ “RCV” and “Ind” appear in the

LOW

RCV

USA

display.

➥ The channel specified by the

calling station is automatically

selected for checking the

RCV

USA

channel condition (except

when full automatic acknowl-

edgement is selected).

➥ Proceed as follows on the next page according to your pre-

set conditions.

DIGITAL SELECTIVE CALLING

• When semi-automatic (SA; default) or manual (SL) is

selected in SET mode (p. 21):

• When full automatic (FA) is selected in SET mode

(p. 21):

➀ Push and hold [9•ALL/IND] until

➥ The transceiver automatically replies to the call in one of

LOW

ACK

USA

you hear 4 short beeps change

into one long beep to send

“Able to comply” message.

two ways, depending on the

auto acknowledge setting in

ACK

USA

SET mode (p. 21).

• If you want to send “Unable to

• When able to comply is set (Ab),

the transceiver automatically

transmits an able to comply ac-

knowledgement and then selects

the channel as specified by the

calling station for voice communications.

LOW

ACK

USA

comply” message, or other indi-

vidual or all ships call, rotate the

channel selector to select them.

RCV

USA

➁ Push [PTT] momentarily to

ACK

USA

transmit the acknowledge-

ment.

• When unable to comply is set

(Un), the transceiver automati-

cally transmits an unable to com-

• The channel speciﬁed by the call-

ing station is selected.

• When “Unable to comply” is

transmitted in step ➀, the trans-

ceiver remains on channel 70.

ACK

USA

RCV

USA

ply

acknowledgement

and

remains on channel 70.

LOW

ACK

USA

➂ After receiving a voice transmission, reply via the mic.

Differences between semi-automatic and manual

Semi-automatic: When no op-

eration is performed, the

LOW

ACK

USA

transceiver

automatically

sends an “Unable to comply” acknowledgement 4.5 min.

after the call is received.

Manual: When no operation is performed after receiving a

call, NO acknowledgement is transmitted.

SET MODE

I Entering SET mode

I SET mode items

SET mode is used to customize operation of the transceiver

to suit your operating needs.

Beep tones (p. 20)

D To enter SET mode:

➀ While pushing [16], turn power ON.

• Keep pushing [16] until the initial SET mode display appears.

• SET mode is selected.

Normal/priority

scan (p. 20)

Weather alert (p. 20)

Scan timer (p. 20)

➁ To exit SET mode, turn power OFF then ON again.

D To select an item:

There are up to 8 items in SET mode (depending on options

installed) that may be adjusted to suit your operating needs.

➀ Select SET mode as above.

When UX-120 is installed.

➁ Push [16] to select the desired item; then rotate [CHAN-

Address ID (p. 21)

NEL] to select the desired condition.

• See the following pages for details on each SET mode item.

Acknowledgement

method

(p. 21)

The diagram at right shows

the default settings for each

SET mode item and the

order of selection.

Auto acknowledge

contents (p. 21)

When UT-79 is installed.

Items inside dotted lines only

appear when optional units

are installed.

Scramble code (p. 20)

SET MODE

D BEEP TONES

D SCAN TIMER

This item sets the transceiver's conﬁrmation beep tones (when This item sets the scan timer ON or OFF.

pushing a switch/rotating [CHANNEL]) ON or OFF.

Scan timer ON (default)

Scan timer OFF

Beep tones ON (default)

Beep tones OFF

• Scan pauses on a signal

and resumes 5 sec. later.

• Scan pauses on a signal

until the signal disappears,

and resumes 2 sec. after

that.

NOTE: Emergency alarm and beeps for DSC operation

cannot be turned OFF.

D NORMAL/PRIORITY SCAN

D SCRAMBLE CODE

This item sets the scan function to normal or priority operation. This item sets a scramble code for communication using the

(See p. 10)

optional voice scrambler unit. (p. 8)

Normal scan (default)

Priority scan

Scramble code “01”

Scramble code “127”

D WEATHER ALERT

This item sets the weather alert function ON or OFF. (p. 7)

Weather alert ON (default)

Weather alert OFF

^{SET MODE}5

D ADDRESS

D ACKNOWLEDGEMENT METHOD

This item sets the other station’s 10-digit ID code for individual This item sets the acknowledgement method for reply to a

calls. Note that your own ID cannot be set in SET mode.

➀ Push [9] to select the digit (1 through 10).

➁ Rotate [CHANNEL] to set the desired value for the selected

digit or turn the individual call OFF.

calling station when receiving an individual call. (See p. 18)

Full automatic

Acknowledgement is transmitted au-

tomatically using the specified mes-

sage.

• Select “–” to clear the digit and turn the individual call OFF.

Semi automatic

Manual

Acknowledgement

transmitted

NOTE: The 10th digit must be

set to “0” when your ID is 9 dig-

its This is reserved for future

manually. If no transmission for 4.5

min., acknowledgement is transmit-

ted automatically using the “Unable to

comply” message.

10th digit set to “0”

use.

Acknowledgement can only be trans-

mitted manually.

[EXAMPLE]: Setting the ID code to 6042737400

D AUTO ACKNOWLEDGE CONTENTS

Appears only when full automatic (FA) is selected in the previ-

ous item. This item sets “unable to comply” or “able to comply”

Push

Unable to comply

Able to comply

as the full automatic acknowledgement transmission. (p. 18)

CONNECTIONS AND MAINTENANCE

I Unpacking

I Additional requirements

q Mounting bracket ............................................................ 1

w DC power cable (OPC-632) ........................................... 1

e Microphone hanger (OPC-562) ...................................... 1

r Mounting bracket knobs ................................................. 4

t Mounting screws (5 x 20) ............................................... 4

y Mic hanger screws (3.5 x 30) ......................................... 2

u Flat washers (M4) ........................................................... 2

i Sticker (for scrambler function)* ..................................... 1

D FOR GENERAL OPERATION

• Marine VHF antenna

• Coaxial cable

D FOR DSC OPERATION

• UX-120 DSC UNIT

D FOR ENHANCED DSC OPERATION

• GPS receiver with NMEA0183 output for sending posi-

tioning and time data with a distress call

➄

D FOR VOICE SCRAMBLER OPERATION

• UT-79 VOICE SCRAMBLER UNIT

➀

➂

➅

Consult with your dealer if you need this function—dis-

assembly and soldering of the transceiver are required

for installation.

➆

➇

➁

➃

VOICE SCRAMBLER

* Attach the sticker on the top side of the front panel when the UT-79

is installed.

^{CONNECTIONS AND MAINTENANCE}6

I Connections

w DC POWER CONNECTOR

q DSC CONNECTOR (optional OPC-457; through the

UX-120)

Connects the supplied DC power cable from this connec-

tor to an external 12 V DC power source.

e ANTENNA CONNECTOR

7-pin plug connects a GPS receiver for transmission of po-

sition data and time.

Connects a marine VHF antenna with a PL-259 connec-

tor to the transceiver.

q Test data out +

CAUTION: Transmitting without an antenna will damage

the transceiver.

y Test data out _

t NMEA IN +

r EXTERNAL SPEAKER JACK

t MICROPHONE HANGER

r NMEA IN _

Connects to the transceiver’s ground. Resting the micro-

Acceptable command: GAA

phone on the hanger automatically selects channel 16.

Acceptable format: NMEA0183 ver. 1.5, 2.0 or 2.1

CONNECTIONS AND MAINTENANCE

I Mounting the transceiver

DASHBOARD MOUNTING (with optional MB-28)

The universal mounting bracket supplied with your transceiver

allows overhead or dashboard mounting. Please read the fol-

lowing instructions carefully.

• Mount the transceiver securely with the 4 supplied screws

(M5 x 20) to a surface which is more than 10 mm thick and

can support more than 5 kg.

• Mount the transceiver so that the face of the transceiver is at

90 ° to your line of sight when operating it.

CAUTION: KEEP the transceiver and microphone at

least 1 meter away from your vessel’s magnetic navigation

compass.

OVERHEAD MOUNTING

NOTE: Check the installation angle; the function display

may not be easy-to-read at some angles.

NOTES FOR SUPPLIED STICKER

When installing an optional UT-79 ^{VOICE SCRAMBLER UNIT}

Attach the operation sticker on the top side of the front

panel for reference.

When installing an optional UX-120 ^{DSC UNIT}

Attach the WARNING sticker supplied with the UX-120

near the transceiver's front panel so that it is clearly visible

during operation.

^{CONNECTIONS AND MAINTENANCE}6

I Dimensions

146 mm 5³⁄4"

70 mm 2 ³⁄4"

54 mm 2 ¹⁄8"

141 mm 5⁹⁄16"

166 mm 5⁹⁄16"

CONNECTIONS AND MAINTENANCE

I Antenna

I Cleaning

A key element in the performance of any communication sys-

tem is an antenna. Ask your Dealer about antennas and the

best places to mount them.

If the transceiver becomes dusty or dirty, wipe it clean with a

dry, soft cloth.

AVOID the use of solvents such as benzene or al-

cohol, as they may damage transceiver surfaces.

I Fuse replacement

Two fuses are installed in the supplied DC power cable. If a

fuse blows or the transceiver stops functioning, track down

the source of the problem, if possible, and replace the dam-

aged fuse with a new, rated one.

I Optional unit installations

In order to add the DSC or voice scrambler functions to the

IC-M59, the following optional units must be installed.

UX-120: DSC functions

☛ Fuse rating: 10 A

OPC-457: GPS connection when UX-120 is installed

UT-79: Voice scrambler function

➀ Turn the transceiver power OFF and disconnect the DC

power cable.

➁ Unscrew 4 screws from the rear panel, then remove the

transceiver cover. (ﬁg. 1)

➂ Install the desired unit. (ﬁg. 2 to 4)

➃ Replace the transceiver cover and tighten the screws.

• 4 to 6 kg of torque MUST be applied to ensure water resistance.

^{CONNECTIONS AND MAINTENANCE}6

Opening the transceiver case

(Fig. 1)

UT-79 installation (Fig. 2)

Remove these

in advance,

then attach the

UT-79.

UT-79

Attach the operating

sticker here.

Apply 4 to 6 kg torque

when replacing screws.

UX-120 installation (Fig. 3)

OPC-457 installation (Fig. 4)

Supplied with the UX-120.

➂ Connect onto the

UX-120.

➀ Remove the plastic

cover.

➁ Pass the cable

through, then

tighten the cable

nut.

Be careful not to shift

the connector.

TROUBLESHOOTING

PROBLEM

POSSIBLE CAUSE

SOLUTION

REF.

No power comes on.

• Power cord not connected properly.

• Blown fuse.

• Check the power cord connection.

• Check the polarity of the power connection, then, p. 26

p. 23

replace the fuse.

No sound comes from the

speaker.

• [SQUELCH] is rotated too far clockwise.

• Rotate [SQUELCH] counterclockwise to a suit-

able position.

p. 8

No beeps sound even when a • Beep function is turned OFF.

• Set beeps to ON in SET mode.

p. 20

switch is pushed.

Sensitivity is low and only

strong signals are audible.

• [SQUELCH] is rotated too far clockwise.

• Rotate [SQUELCH] counterclockwise to a suit-

able position.

p. 8

• Antenna feedline or the antenna connector sol- • Check, and if necessary, replace the feedline or

p. 23

der has poor contact or is short circuited.

solder the antenna connector again.

Transmitting is impossible or

high power cannot be se-

lected.

• Transmission is restricted on some channels.

• Change channels.

p. 29

Desired channel cannot be

selected.

• Different channel group is selected.

• Backlight function is turned OFF.

• No “TAG” channels are programmed.

• Push and hold [CH/WX • U/I/C] to select the ap- p. 7

propriate channel group (U.S.A., INT or CAN).

No display backlighting.

• While pushing [HI/LO • DIM], rotate the channel p. 11

selector to select the desired brightness.

Scan does not start.

• Set channels to be scanned as “TAG” channels. p. 10

Receive signal cannot be un- • Voice scrambler has been turned OFF.

• Install the optional UT-79, then activate the func- p. 8

derstood.

• Voice scrambler code has not been set correctly. tion.

• Reset the scramble code.

p. 20

VHF MARINE CHANNEL LIST

Channel number Frequency (MHz)

USA INT CAN Transmit Receive

Channel number Frequency (MHz)

USA INT CAN Transmit Receive

Channel number Frequency (MHz)

USA INT CAN Transmit Receive

Channel number Frequency (MHz)

USA INT CAN Transmit Receive

01 156.050 160.650

156.050 156.050

156.950 161.550

19A 156.950 156.950

20 157.000 161.600

157.000 157.000

156.275 160.875

83 157.175 161.775

83A 157.175 157.175

84 157.225 161.825

157.225 157.225

01A

02A

03A

04A

19A

65A 65A 65A 156.275 156.275

83A

02 156.100 160.700

156.100 156.100

156.325 160.925

156.325 156.325

66A*¹

20A

66A 66A

84A

67*²

03 156.150 160.750

156.150 156.150

21 157.050 161.650

21A 157.050 157.050

157.100 161.700

67 156.375 156.375

68 156.425 156.425

69 156.475 156.475

85 157.275 161.875

157.275 157.275

21A

22A

85A

156.200 160.800

86 157.325 161.925

157.325 157.325

70*³70*³70*³

04A 156.200 156.200

156.250 160.850

22A 157.100 157.100

23 157.150 161.750

157.150 157.150

156.525 156.525

86A

71 156.575 156.575

72 156.625 156.625

73 156.675 156.675

74 156.725 156.725

87 157.375 161.975

157.375 157.375

05A

05A 156.250 156.250

06 156.300 156.300

156.350 160.950

23A

87A

24 157.200 161.800

25 157.250 161.850

26 157.300 161.900

27 157.350 161.950

28 157.400 162.000

60 156.025 160.625

156.025 156.025

88 157.425 162.025

157.425 157.425

88A

07A

07A 156.350 156.350

08 156.400 156.400

09 156.450 156.450

10 156.500 156.500

11 156.550 156.550

12 156.600 156.600

77*¹

Guard

77*¹

Frequency (MHz)

WX channel

156.875 156.875

156.925 161.525

Transmit Receive

RX only

162.550

162.400

162.475

162.425

162.450

162.500

162.525

161.650

161.775

163.275

60A

61A

62A

63A

64A

78A

79A

80A

81A

82A

78A 156.925 156.925

156.975 161.575

13*²

156.075 160.675

13*¹

14 156.700 156.700

156.750 156.750

156.650 156.650

61A 156.075 156.075

156.125 160.725

79A 156.975 156.975

157.025 161.625

15*²15*¹15*¹

62A 156.125 156.125

156.175 160.775

80A 157.025 157.025

157.075 161.675

17*¹

16 156.800 156.800

17*¹

156.850 156.850

156.900 161.500

156.175 156.175

81A 157.075 157.075

157.125 161.725

64 156.225 160.825

64A 156.225 156.225

18A

18A 156.900 156.900

82A 157.125 157.125

*¹Low power only. *²Momentary high power.

*³Receive only (except for DSC transmissions).

SPECIFICATIONS

General

Transmitter

• Output power

• Modulation system

• Frequency coverage

: Transmit 156–157.5 MHz

Receive 156–163 MHz

: All U.S.A., International and

Canadian channels plus 10

weather channels

: High 25 W

: Variable reactance phase

modulation

Low 1 W

• Usable channels

• Max. frequency deviation: 5.0 kHz

• Spurious emissions

: Less than –70 dB

• Mode

: 16K0G3E, (16K0G2B when

optional DSC is in use)

• Microphone impedance : 600 Ω

• Power supply requirement : 13.8 V DC 15%

Receiver

• Current drain

(at 13.8 V DC)

: Transmit

high power

• Receive system

: Double conversion

superheterodyne

• Intermediate frequencies : 1st 21.8 MHz

6.0 A

1.5 A

low power

Receive

standby

2nd 455 kHz

• Sensitivity

: 0.22 µV (typical) for 12 dB SINAD

: 0.18 µV at threshold

: More than 70 dB

350 mA

• Squelch sensitivity

• Adjacent channel

selectivity

• Spurious reponse

rejection

• Intermodulation rejection : More than 70 dB

• Audio output power : 3.5 W at 10% distortion

• Audio output impedance : 4 Ω

max. audio output 1.2 A

10 ppm

: –20°C to +60°C;

• Frequency stability

• Usable temp. range

: More than 70 dB

–4°F to +140°F

• Dimensions

(projections not included)

• Weight

: 140(W) x 55(H) x 155(D) mm

5¹⁄2(W) x 2⁵⁄32(H) x 6³⁄32(D) in

: 1.0 kg; 2.2 lb

All stated speciﬁcations are subject to change without notice or

obligation

OPTIONS

MB-28 FLUSH MOUNT

For mounting the IC-M59 to a

panel. Available in black or

white.

SP-10 EXTERNAL

SPEAKER

A compact, external speaker.

Features easy installation.

SP-5 EXTERNAL

SPEAKER

A large, external speaker for

superior audio output.

PS-66

DC-DC CONVERTER

Input voltage: 19 to 32 V DC

Output voltage: 13.6 V DC

D INTERNAL UNITS

• UT-79 VOICE SCRAMBLER UNIT

Provides private communications. Analog-type voice scram-

bling unit with 128 scramble codes available.

• UX-120 DSC UNIT

When the UX-120 is installed, the transceiver conforms to

U.S. Coast Guard proposal SC-101 for marine digital com-

munications.

OPC-457

NMEA CABLE

Allows you to connect NMEA

equipment such as a GPS re-

ceiver.

Count on us!

A-5384D-1EX-➀

Printed in Japan

1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003 Japan

厂商	型号	描述	页数
SANKEN	UX-C2B	高压整流二极管[ High-Voltage Rectifier Diodes ]	2 页
SANKEN	UX-C2BV1	[ Rectifier Diode, 1 Element, 0.35A, Silicon ]	2 页
SANKEN	UX-C2BVD	[ 暂无描述 ]	2 页
SANKEN	UX-F0B	高压整流二极管[ High-Voltage Rectifier Diodes ]	2 页
SANKEN	UX-F0BV	[ 暂无描述 ]	2 页
SANKEN	UX-F0BV1	[ Rectifier Diode, 1 Element, 0.35A, Silicon ]	2 页
SANKEN	UX-F0BVD	[ Rectifier Diode, 1 Element, 0.35A, Silicon ]	2 页
SANKEN	UX-F0BVO	[ Rectifier Diode, 1 Element, 0.35A, Silicon ]	2 页
SANKEN	UX-F0BWS	[ Rectifier Diode, 1 Element, 0.35A, Silicon ]	2 页
ETC	UX-F5B	高压整流二极管\n[ High-Voltage Rectifier Diodes ]	2 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

IC型号索引：

深圳网络警察报警平台

公共信息安全网络监察

经营性网站备案信息

不良信息举报中心

工商网监电子标识

全国公安机关备案

基本文件流程错误 SQL 调试用户

/www/wwwroot/www.ic72.com/public/index.php ( 0.79 KB )
/www/wwwroot/www.ic72.com/vendor/autoload.php ( 0.73 KB )
/www/wwwroot/www.ic72.com/vendor/composer/autoload_real.php ( 1.63 KB )
/www/wwwroot/www.ic72.com/vendor/composer/platform_check.php ( 1.01 KB )
/www/wwwroot/www.ic72.com/vendor/composer/ClassLoader.php ( 15.99 KB )
/www/wwwroot/www.ic72.com/vendor/composer/autoload_static.php ( 12.68 KB )
/www/wwwroot/www.ic72.com/vendor/ralouphie/getallheaders/src/getallheaders.php ( 1.60 KB )
/www/wwwroot/www.ic72.com/vendor/symfony/deprecation-contracts/function.php ( 0.99 KB )
/www/wwwroot/www.ic72.com/vendor/guzzlehttp/guzzle/src/functions_include.php ( 0.16 KB )
/www/wwwroot/www.ic72.com/vendor/guzzlehttp/guzzle/src/functions.php ( 5.55 KB )
/www/wwwroot/www.ic72.com/vendor/adbario/php-dot-notation/src/helpers.php ( 0.57 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/think-helper/src/helper.php ( 8.34 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/think-orm/stubs/load_stubs.php ( 0.16 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/Exception.php ( 1.69 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/Facade.php ( 2.71 KB )
/www/wwwroot/www.ic72.com/vendor/yansongda/supports/src/Functions.php ( 1.53 KB )
/www/wwwroot/www.ic72.com/vendor/hyperf/engine/src/Functions.php ( 0.83 KB )
/www/wwwroot/www.ic72.com/vendor/symfony/polyfill-mbstring/bootstrap.php ( 8.26 KB )
/www/wwwroot/www.ic72.com/vendor/symfony/polyfill-mbstring/bootstrap80.php ( 9.77 KB )
/www/wwwroot/www.ic72.com/vendor/yansongda/artful/src/Functions.php ( 2.38 KB )
/www/wwwroot/www.ic72.com/vendor/phpseclib/phpseclib/phpseclib/bootstrap.php ( 0.72 KB )
/www/wwwroot/www.ic72.com/vendor/symfony/var-dumper/Resources/functions/dump.php ( 1.49 KB )
/www/wwwroot/www.ic72.com/vendor/yansongda/pay/src/Functions.php ( 19.32 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/App.php ( 14.29 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/Container.php ( 15.39 KB )
/www/wwwroot/www.ic72.com/vendor/psr/container/src/ContainerInterface.php ( 1.02 KB )
/www/wwwroot/www.ic72.com/app/provider.php ( 0.19 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/Http.php ( 6.04 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/think-helper/src/helper/Str.php ( 7.29 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/Env.php ( 4.52 KB )
/www/wwwroot/www.ic72.com/app/common.php ( 105.26 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/helper.php ( 18.47 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/Config.php ( 4.62 KB )
/www/wwwroot/www.ic72.com/config/api.php ( 0.59 KB )
/www/wwwroot/www.ic72.com/config/app.php ( 2.94 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/facade/Env.php ( 1.67 KB )
/www/wwwroot/www.ic72.com/config/cache.php ( 1.07 KB )
/www/wwwroot/www.ic72.com/config/console.php ( 0.23 KB )
/www/wwwroot/www.ic72.com/config/cookie.php ( 2.06 KB )
/www/wwwroot/www.ic72.com/config/database.php ( 5.02 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/facade/Config.php ( 1.37 KB )
/www/wwwroot/www.ic72.com/config/email.php ( 2.34 KB )
/www/wwwroot/www.ic72.com/config/filesystem.php ( 0.68 KB )
/www/wwwroot/www.ic72.com/config/lang.php ( 0.82 KB )
/www/wwwroot/www.ic72.com/config/log.php ( 1.35 KB )
/www/wwwroot/www.ic72.com/config/middleware.php ( 0.19 KB )
/www/wwwroot/www.ic72.com/config/payment.php ( 0.00 KB )
/www/wwwroot/www.ic72.com/config/route.php ( 1.54 KB )
/www/wwwroot/www.ic72.com/config/session.php ( 0.70 KB )
/www/wwwroot/www.ic72.com/config/trace.php ( 0.58 KB )
/www/wwwroot/www.ic72.com/config/view.php ( 0.96 KB )
/www/wwwroot/www.ic72.com/app/event.php ( 0.26 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/Event.php ( 6.97 KB )
/www/wwwroot/www.ic72.com/app/service.php ( 0.13 KB )
/www/wwwroot/www.ic72.com/app/AppService.php ( 0.26 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/Service.php ( 1.64 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/Lang.php ( 7.22 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/lang/zh-cn.php ( 13.27 KB )
/www/wwwroot/www.ic72.com/app/lang/zh-cn.php ( 0.08 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/initializer/Error.php ( 3.27 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/initializer/RegisterService.php ( 1.33 KB )
/www/wwwroot/www.ic72.com/vendor/services.php ( 0.18 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/service/PaginatorService.php ( 1.52 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/service/ValidateService.php ( 0.99 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/service/ModelService.php ( 1.75 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/think-multi-app/src/Service.php ( 1.08 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/think-trace/src/Service.php ( 0.77 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/Middleware.php ( 6.65 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/initializer/BootService.php ( 0.77 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/think-orm/src/Paginator.php ( 11.71 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/Validate.php ( 46.61 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/think-orm/src/Model.php ( 26.86 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/think-orm/src/model/concern/Attribute.php ( 19.12 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/think-orm/src/model/concern/RelationShip.php ( 26.44 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/think-orm/src/model/concern/ModelEvent.php ( 2.58 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/think-orm/src/model/concern/TimeStamp.php ( 5.69 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/think-orm/src/model/concern/AutoWriteId.php ( 1.44 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/think-orm/src/model/concern/Conversion.php ( 10.85 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/think-helper/src/contract/Arrayable.php ( 0.09 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/think-helper/src/contract/Jsonable.php ( 0.13 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/Db.php ( 2.88 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/think-orm/src/DbManager.php ( 8.33 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/Log.php ( 6.27 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/Manager.php ( 3.92 KB )
/www/wwwroot/www.ic72.com/vendor/psr/log/src/LoggerTrait.php ( 2.69 KB )
/www/wwwroot/www.ic72.com/vendor/psr/log/src/LoggerInterface.php ( 2.68 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/Cache.php ( 4.91 KB )
/www/wwwroot/www.ic72.com/vendor/psr/simple-cache/src/CacheInterface.php ( 4.71 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/think-helper/src/helper/Arr.php ( 16.08 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/cache/driver/File.php ( 7.60 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/cache/Driver.php ( 8.17 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/contract/CacheHandlerInterface.php ( 1.99 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/Console.php ( 22.64 KB )
/www/wwwroot/www.ic72.com/app/Request.php ( 0.09 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/Request.php ( 54.27 KB )
/www/wwwroot/www.ic72.com/app/middleware.php ( 0.26 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/Pipeline.php ( 2.61 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/think-trace/src/TraceDebug.php ( 2.94 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/think-multi-app/src/MultiApp.php ( 7.06 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/Route.php ( 23.25 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/route/RuleName.php ( 5.31 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/route/Domain.php ( 5.53 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/route/RuleGroup.php ( 13.56 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/route/Rule.php ( 23.18 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/route/RuleItem.php ( 9.19 KB )
/www/wwwroot/www.ic72.com/route/app.php ( 0.77 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/facade/Route.php ( 4.68 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/route/dispatch/Url.php ( 3.42 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/route/dispatch/Controller.php ( 6.61 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/route/Dispatch.php ( 6.07 KB )
/www/wwwroot/www.ic72.com/app/controller/Pdf.php ( 21.90 KB )
/www/wwwroot/www.ic72.com/app/controller/Api.php ( 11.17 KB )
/www/wwwroot/www.ic72.com/app/BaseController.php ( 2.04 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/facade/Cookie.php ( 1.48 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/Cookie.php ( 5.97 KB )
/www/wwwroot/www.ic72.com/app/model/Type.php ( 0.45 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/think-orm/src/db/connector/Mysql.php ( 4.33 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/think-orm/src/db/PDOConnection.php ( 51.60 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/think-orm/src/db/Connection.php ( 8.79 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/think-orm/src/db/ConnectionInterface.php ( 4.86 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/think-orm/src/db/builder/Mysql.php ( 16.56 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/think-orm/src/db/Builder.php ( 22.26 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/think-orm/src/db/BaseBuilder.php ( 27.29 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/think-orm/src/db/Query.php ( 15.19 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/think-orm/src/db/BaseQuery.php ( 41.48 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/think-orm/src/db/concern/TimeFieldQuery.php ( 7.43 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/think-orm/src/db/concern/AggregateQuery.php ( 3.26 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/think-orm/src/db/concern/ModelRelationQuery.php ( 19.29 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/think-orm/src/db/concern/ParamsBind.php ( 3.66 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/think-orm/src/db/concern/ResultOperation.php ( 6.98 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/think-orm/src/db/concern/Transaction.php ( 2.77 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/think-orm/src/db/concern/WhereQuery.php ( 18.79 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/think-orm/src/db/concern/JoinAndViewQuery.php ( 6.96 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/think-orm/src/db/concern/TableFieldInfo.php ( 2.46 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/log/driver/File.php ( 6.17 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/contract/LogHandlerInterface.php ( 0.86 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/log/Channel.php ( 3.88 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/event/LogRecord.php ( 0.86 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/think-orm/src/model/Collection.php ( 6.96 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/think-helper/src/Collection.php ( 16.48 KB )
/www/wwwroot/www.ic72.com/app/model/Cart.php ( 15.85 KB )
/www/wwwroot/www.ic72.com/app/model/Api.php ( 11.18 KB )
/www/wwwroot/www.ic72.com/app/controller/Index.php ( 25.20 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/think-orm/src/facade/Db.php ( 0.93 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/facade/View.php ( 1.70 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/View.php ( 4.33 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/think-view/src/Think.php ( 8.00 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/think-template/src/Template.php ( 46.61 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/think-template/src/template/driver/File.php ( 2.41 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/think-template/src/template/contract/DriverInterface.php ( 0.86 KB )
/www/wwwroot/www.ic72.com/runtime/temp/74795295d09f215cb811aa199c120a8d.php ( 39.52 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/Response.php ( 8.65 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/framework/src/think/response/Html.php ( 0.97 KB )
/www/wwwroot/www.ic72.com/vendor/topthink/think-trace/src/Html.php ( 4.49 KB )
