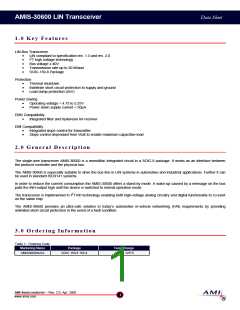

AMIS-30600 LIN Transceiver
Data Sheet
1. 0 Key Features
LIN-Bus Transceiver
•
•
•
•
•
LIN compliant to specification rev. 1.3 and rev. 2.0
I2T high voltage technology
Bus voltage ± 40V
Transmission rate up to 20 kBaud
SOIC-150-8 Package
Protection
•
•
•
Thermal shutdown
Indefinite short circuit protection to supply and ground
Load dump protection (45V)
Power Saving
•
•
Operating voltage = 4.75 to 5.25V
Power down supply current < 50µA
EMS Compatibility
•
Integrated filter and hysteresis for receiver
EMI Compatibility
•
•
Integrated slope control for transmitter
Slope control dependant from Vbat to enable maximum capacitive-load
2. 0 General Description
The single-wire transceiver AMIS-30600 is a monolithic integrated circuit in a SOIC-8 package. It works as an interface between
the protocol controller and the physical bus.
The AMIS-30600 is especially suitable to drive the bus line in LIN systems in automotive and industrial applications. Further it can
be used in standard ISO9141 systems.
In order to reduce the current consumption the AMIS-30600 offers a stand-by mode. A wake-up caused by a message on the bus
pulls the INH-output high until the device is switched to normal operation mode.
The transceiver is implemented in I2T100 technology enabling both high-voltage analog circuitry and digital functionality to co-exist
on the same chip.
The AMIS-30600 provides an ultra-safe solution to today’s automotive in-vehicle networking (IVN) requirements by providing
unlimited short circuit protection in the event of a fault condition.
3. 0 Ordering Information
Table 1: Ordering Code
Marketing Name
Package
Temp. Range
AMIS30600AGA
SOIC 150 8 150 4
-40°C…125°C
AMI Semiconductor – Rev. 2.0, Apr. 2005
1
www.amis.com
AMIS-30600 LIN Transceiver
Data Sheet
4. 0 Block Diagram
VCC
VBB
3
7
Thermal
shutdown
8
State
INH
EN
&
Wake-up
Control
2
1
COMP
RxD
TxD
6
Filter
LIN
VCC
AMIS-30600
4
Slope
Control
5
PC20050113.3
GND
Figure 1: Block Diagram
5. 0 Typical Application
5.1 Application Schematic
Master Node
Slave Node
VBAT
IN
OUT
IN
OUT
VBAT
5V-reg
5V-reg
100 nF
10 µF
100 nF
10 µF
VBB INH
VBB INH
VCC
VCC
VCC
VCC
7
8
7
8
3
3
RxD
TxD
RxD
TxD
1
4
1
4
LIN
LIN
AMIS-
LIN
AMIS-
6
LIN
6
30600
controller
30600
controller
EN
EN
2
2
5
5
2
2
GND
GND
GND
GND
GND
GND
KL30
LIN-BUS
KL31
PC20050113.5
Figure 2: Application Diagram
AMI Semiconductor – Rev. 2.0, Apr. 2005
2
www.amis.com
AMIS-30600 LIN Transceiver
Data Sheet
5.2 Pin Description
5.2.1 Pin Out (top view)
1
2
3
4
8
7
6
5
INH
VBB
RxD
EN
LIN
VCC
TxD
GND
PC20041204.3
Figure 3: Pin Configuration
5.2.2 Pin Description
Table 2: Pinout
Pin Name Description
1
2
3
4
5
6
7
8
RxD
EN
Receive data output; low in dominant state
Enable input; transceiver in normal operation mode when high
5V supply input
VCC
TxD
GND
LIN
Transmit data input; low in dominant state; internal 40 KΩ pull-up
Ground
LIN bus output/input; low in dominant state; internal 30 KΩ pull-up
Battery supply input
VBB
INH
Inhibit output; to control a voltage regulator; becomes high when wake-up via LIN bus occurs
5.3 Application Information
Start Up
Power Up
Normal Mode
Power-up
EN
INH
High
Vcc
On
High
EN Æ High
Stand-By Mode
EN Æ High
(Vcc Æ On)
EN
Low
INH
High
Vcc
On
EN Æ Low
Wake-up
t > twake
Sleep Mode
EN
INH
Vcc
Floating
Low
Off
PC20050113.1
Figure 4: State Diagram
AMI Semiconductor – Rev. 2.0, Apr. 2005
3
www.amis.com
AMIS-30600 LIN Transceiver
Data Sheet
For fail safe reasons the AMIS-30600 already has an internal pull up resistor of 30kꢀ implemented. To achieve the required
timings for the dominant to recessive transition of the bus signal an additional external termination resistor of 1kꢀ is required. It is
recommended to place this resistor in the master node. To avoid reverse currents from the bus line into the battery supply line in
case of an unpowered node, it is recommended to place a diode in series to the external pull up. For small systems (low bus
capacitance) the EMC performance of the system is supported by an additional capacitor of at least 1nF in the master node (see
Figure 2, Typical Application Diagram).
The AMIS-30600 has a slope which depends of the supply Vbat. This implementation guarantees biggest slope-time under all load
conditions. The rising slope has to be slower then the external RC-time-constant, otherwise the slope will be terminated by the RC-
time-constant and no longer by the internal slope-control. This would effect the symmetry of the bus-signal and would limit the
maximum allowed bus-speed.
A capacitor of 10µF at the supply voltage input VB buffers the input voltage. In combination with the required reverse polarity diode
this prevents the device from detecting power down conditions in case of negative transients on the supply line.
In order to reduce the current consumption, the AMIS-30600 offers a sleep operation mode. This mode is selected by switching the
enable input EN low (see Figure 4, State Diagram).
In the sleep mode a voltage regulator can be controlled via the INH output in order to minimize the current consumption of the
whole application. A wake-up caused by a message on the communication bus automatically enables the voltage regulator by
switching the INH output high. In case the voltage regulator control input is not connected to INH output or the micro-controller is
active respectively, the AMIS-30600 can be set in normal operation mode without a wake-up via the communication bus.
6. 0 Electrical Characteristics
6.1 Absolute Maximum Ratings
Maximum ratings are absolute ratings; exceeding any one of these values may cause irreversible damage to the integrated circuit.
Table 4: Absolute Maximum Ratings
Symbol
VCC
Parameter
Conditions
Min.
-0.3
-0.3
-40
Max.
+7
Unit
V
Supply voltage
VBB
Battery supply voltage
+40
V
VLIN
DC voltage at pin LIN
0 < VCC < 5.50V; note 1
0 < VCC < 5.50V
0 < VCC < 5.50V
0 < VCC < 5.50V
0 < VCC < 5.50V
Note 2
+40
V
VINH
DC voltage at pin INH
-0.3
-0.3
-0.3
-0.3
-4
VBB + 0.3
VCC + 0.3
VCC + 0.3
VCC + 0.3
+4
V
VTxD
DC voltage at pin TxD
V
VRxD
DC voltage at pin RxD
V
VEN
DC voltage at pin EN
V
Vesd(LIN)
Vesd
Electrostatic discharge voltage at LIN pin
Electrostatic discharge voltage at all other pins
Transient voltage at pin LIN
Transient voltage at pin VBB
Ambient temperature
kV
kV
V
Note 2
-4
+4
Vtran(LIN)
Vtran(VBB)
Tamb
Note 3
-150
-150
-40
+150
Note 4
+150
V
+150
°C
Notes:
1.
2.
3.
80V version available, contact sales for details.
Standardized human body model system ESD pulses in accordance to IEC 1000.4.2.
Applied transient waveforms in accordance with “ISO 7637 parts 1 & 3” capacitive coupled test pulses 1 (-100V),
2 (+100V), 3a (-150V), and 3b (+150V). See Figure 8.
4.
Applied transient waveforms in accordance with “ISO 7637 parts 1 & 3” direct coupled test pulses 1 (-100V), 2 (+75V),
3a (-150V), 3b (+150V), and 5 (+80V). See Figure 8.
AMI Semiconductor – Rev. 2.0, Apr. 2005
4
www.amis.com
AMIS-30600 LIN Transceiver
Data Sheet
6.2 Operating Range
Table 5: Operating Range
Symbol
VCC
Parameter
Min.
4.75
7.3
Typ.
Max.
+5.25
+18
Unit
V
Supply voltage
VBB
Battery supply voltage
V
Tjunc
Maximum junction temperature
Thermal shutdown temperature
Thermal resistance junction to ambient
-40
+150
+190
°C
Tjsd
+150
+170
185
°C
Rthj-a
°C/W
6.3 DC Electrical Characteristics
VCC = 4.75 to 5.25V; VBB = 7.3 to 18V; VEN > VEN,on ; Tamb = -40 to +125°C; RL = 500Ω unless specified otherwise. All voltages with
respect to ground; positive current flowing into pin; unless otherwise specified.
Table 6: DC Characteristics
Symbol
Parameter
Conditions
Min.
Typ.
Max.
Unit
Supply (pin VCC and pin VBB)
Dominant; VTxD =0V
Recessive; VTxD =VCC
Dominant; VTxD =0V
Recessive; VTxD =VCC
400
250
1
700
500
1.5
µA
µA
mA
µA
µA
µA
ICC
5V supply current
IBB
IBB
ICC
Battery supply current
100
200
Battery supply current
5V supply current
Sleep mode; VINH = 0V
Sleep mode; VINH = 0V
35
55
1
0.25
Transmitter Data Input (pin TxD)
VIH
High-level input voltage
Output recessive
Output dominant
0.7 x VCC
-
-
VCC
0.3 x VCC
60
V
V
VIL
Low-level input voltage
Pull-up resistor to Vcc
0
RTxD,pu
24
kΩ
Receiver Data Output (pin RxD)
VOH
VOL
High-level output voltage
Low-level output voltage
IRXD = -10mA
IRXD = 5mA
0.8 x VCC
0
VCC
V
V
0.2 x VCC
Enable Input (pin EN)
VEN,on
VEN,off
REN,pd
High-level input voltage
Normal mode
0.7 x VCC
-
-
VCC
0.3 x VCC
15
V
V
Low-level input voltage
Low power mode
0
6
Pull-down resistor to GND
10
kΩ
Inhibit Output (pin INH)
VINH,d High-level voltage drop: VINH,d = VBB - VINH
IINH,lk Leakage current
Bus Line (pin LIN)
IINH = - 0.15mA
0.5
-
1.0
5.0
V
Sleep mode; VINH = 0V
-5.0
µA
Vbus,rec
Vbus,dom
Ibus,sc
Recessive bus voltage at pin LIN
VTxD =VCC
0.9 x VBB
0
-
-
VBB
V
VTxD = 0V
VTxD = 0V; Ibus = 40mA
0.15 x VBB
1.4
V
V
Dominant output voltage at pin LIN
Bus short circuit current
Vbus,short = 18V
40
85
130
mA
VCC=VBB=0V; Vbus=8V
VCC=VBB=0V; Vbus=20V
-400
-200
5
Ibus,lk
Bus leakage current
µA
20
47
Rbus
Bus pull-up resistance
VTxD = 0V
20
30
kΩ
V
Vbus,rd
Vbus,dr
Vq
Receiver threshold: recessive to dominant
Receiver threshold: dominant to recessive
Receiver hysteresis
0.4 x VBB
0.4 x VBB
0.05 x VBB
0.4 x VBB
0.48 x VBB
0.52 x VBB
0.04 x VBB
0.6 x VBB
0.6 x VBB
V
Vbus,hys=Vbus,rec-Vbus,dom
0.175 x VBB
0.6 x VBB
V
VWAKE
Wake-up threshold voltage
V
AMI Semiconductor – Rev. 2.0, Apr. 2005
5
www.amis.com
AMIS-30600 LIN Transceiver
Data Sheet
6.4 AC Electrical Characteristics
VCC = 4.75 to 5.25V; VBB = 7.3 to 18V; VEN > VEN,on ; Tamb = -40 to +125°C; RL = 500Ω unless specified otherwise.
Load for slope definitions (typical loads) = [L1] 1nF 1kΩ / [L2] 6.8nF 600Ω / [L3] 10nF 500Ω.
Table 7: AC Characteristics According to LIN V1.3
Symbol
Parameter
Conditions
Min.
Typ.
Max.
Unit
Dynamic Transceiver Characteristics According to LIN v1.3
t _slope_F
Slope time falling edge
Slope time rising edge
Slope time symmetry
See Figure 6
4
4
-
-
-
24
24
+8
µs
µs
µs
t _slope_R
See Figure 6
t _slope _Sym
t _slope_F - t _slope_R
-8
Propagation delay Bus dominant
to RxD = low; note 1
Propagation delay Bus recessive
to RxD = high; note 1
T_rec_F
See Figure 5, 6
See Figure 5, 6
2
6
µs
T_rec_R
tWAKE
2
6
µs
µs
Wake-up delay time
30
100
200
Notes:
1.
Not measured on ATE.
VCC = 4.75 to 5.25V; VBB = 7.3 to 18V; VEN > VEN,on ; Tamb = -40 to +125°C; RL = 500Ω unless specified otherwise.
Load for slope definitions (typical loads) = [L1] 1nF 1kΩ / [L2] 6.8nF 600Ω / [L3] 10nF 500Ω.
Table 8: AC Characteristics According to LIN V2.0
Symbol
Parameter
Conditions
Min.
Typ.
Max.
Unit
Dynamic Receiver Characteristics according to LIN v2.0
Propagation delay bus dominant
to RxD = low; note 1
trx_pdr
See Figure 7
6
µs
Propagation delay Bus recessive
to RxD = high; note 1
trx_pdf
See Figure 7
6
µs
µs
trx_sym
Symmetry of receiver propagation delay
trx_pdr - trx_pdf
-2
-
+2
Dynamic Transmitter Characteristics according to LIN v2.0
THRec(max)= 0.744 x Vbat
;
Duty cycle 1 = tBus_rec(min)/(2 x tBit);
See Figure 7
D1
THDom(max)= 0.581 x Vbat
Vbat = 7.0V ... 18V; tBit= 50µs
THRec(max)= 0.744 x Vbat
THDom(max)= 0.581 x Vbat
bat = 7.0V; tBit= 50µs;
;
0.396
0.366
0.5
0.5
0.5
;
Duty cycle 1 = tBus_rec(min)/(2 x tBit);
See Figure 7
;
D1
V
tamb = -40°C
THRec(min)= 0.284 x Vbat
THDom(min)= 0.422 x Vbat
Vbat = 7.6V ... 18V; tBit= 50µs;
;
Duty cycle 2 = tBus_rec(max)/(2 x tBit);
See Figure 7
D2
;
0.581
Notes:
1.
Not measured on ATE.
AMI Semiconductor – Rev. 2.0, Apr. 2005
6
www.amis.com
AMIS-30600 LIN Transceiver
Data Sheet
Vbat
VBB
100 nF
7
RL
+5 V
3
100 nF
AMIS-
30600
LIN
6
CL
Load
L1
RL
4
1
TxD
RxD
CL
1 kΩ
1 nF
INH
3
L2
L3
600 Ω 6.8 nF
5
2
10 nF
500 Ω
20 pF
GND
EN
PC20041207.1
Figure 5: Test Circuit for Timing Characteristics
LIN
50%
t
T_rec_F
T_rec_R
RxD
LIN
50%
50%
t
PC20041206.1
60%
40%
60%
PC20041204.1
40%
t
T_slope_F
T_slope_R
PC20041206.2
Figure 6: Timing Diagram for AC Characteristics According to LIN 1.3
AMI Semiconductor – Rev. 2.0, Apr. 2005
www.amis.com
AMIS-30600 LIN Transceiver
Data Sheet
TxD
tBIT
tBIT
50%
t
tBUS_dom(max)
tBUS_rec(min)
LIN
THRec(max)
THDom(max)
Thresholds
receiver 1
THRec(min)
THDom(min)
Thresholds
receiver 2
t
t
tBUS_dom(min)
tBUS_rec(max)
RxD
( receiver 2)
50%
trx_pdr
trx_pdf
PC20041206.3
Figure 7: Timing Diagram for AC Characteristics According to LIN 2.0
+13.5 V
+5.25 V
VBB
100 nF
100 nF
7
VCC
3
Transient
Generator
1 kΩ
AMIS-
30600
LIN
INH
6
TxD
EN
4
1 nF
1 nF
2
3
1
5
RxD
GND
20 pF
PC20050113.2
Figure 8: Test Circuit for Transient Measurements
AMI Semiconductor – Rev. 2.0, Apr. 2005
www.amis.com
8
AMIS-30600 LIN Transceiver
Data Sheet
7. 0 Package Outline
SOIC-8: Plastic small outline; 8 leads; body width 150 mil; JEDEC: MS-012. AMIS reference: SOIC150 8 150 G
AMI Semiconductor – Rev. 2.0, Apr. 2005
www.amis.com
9
AMIS-30600 LIN Transceiver
Data Sheet
8. 0 Soldering
8.1 Introduction to Soldering Surface Mount Packages
This text gives a very brief insight to a complex technology. A more in-depth account of soldering ICs can be found in the AMIS
“Data Handbook IC26; Integrated Circuit Packages” (document order number 9398 652 90011).
There is no soldering method that is ideal for all surface mount IC packages. Wave soldering is not always suitable for surface
mount ICs, or for printed-circuit boards with high population densities. In these situations reflow soldering is often used.
8.2 Re-flow Soldering
Re-flow soldering requires solder paste (a suspension of fine solder particles, flux and binding agent) to be applied to the printed-
circuit board by screen printing, stencilling or pressure-syringe dispensing before package placement. Several methods exist for
reflowing; for example, infrared/convection heating in a conveyor type oven.
Throughput times (preheating, soldering and cooling) vary between 100 and 200 seconds depending on heating method.
Typical re-flow peak temperatures range from 215 to 250°C. The top-surface temperature of the packages should preferably be
kept below 230°C.
8.3 Wave Soldering
Conventional single wave soldering is not recommended for surface mount devices (SMDs) or printed-circuit boards with a high
component density, as solder bridging and non-wetting can present major problems. To overcome these problems the double-
wave soldering method was specifically developed.
If wave soldering is used the following conditions must be observed for optimal results:
•
Use a double-wave soldering method comprising a turbulent wave with high upward pressure followed by a smooth
laminar wave.
•
For packages with leads on two sides and a pitch (e):
o
Larger than or equal to 1.27mm, the footprint longitudinal axis is preferred to be parallel to the transport direction
of the printed-circuit board;
o
Smaller than 1.27mm, the footprint longitudinal axis must be parallel to the transport direction of the printed-
circuit board. The footprint must incorporate solder thieves at the downstream end.
•
For packages with leads on four sides, the footprint must be placed at a 45º angle to the transport direction of the printed-
circuit board. The footprint must incorporate solder thieves downstream and at the side corners.
During placement and before soldering, the package must be fixed with a droplet of adhesive. The adhesive can be applied by
screen printing, pin transfer or syringe dispensing. The package can be soldered after the adhesive is cured.
Typical dwell time is four seconds at 250°C. A mildly-activated flux will eliminate the need for removal of corrosive residues in most
applications.
8.4 Manual Soldering
Fix the component by first soldering two diagonally-opposite end leads. Use a low voltage (24V or less) soldering iron applied to
the flat part of the lead. Contact time must be limited to 10 seconds at up to 300°C.
When using a dedicated tool, all other leads can be soldered in one operation within two to five seconds between 270 and 320°C.
Table 9: Soldering Process
Soldering Method
Package
Wave
Reflow(1)
Suitable
Suitable
Suitable
BGA, SQFP
Not suitable
Not suitable (2)
Suitable
HLQFP, HSQFP, HSOP, HTSSOP, SMS
PLCC (3) , SO, SOJ
LQFP, QFP, TQFP
Not recommended (3)(4) Suitable
Not recommended (5) Suitable
SSOP, TSSOP, VSO
Notes:
1.
All surface mount (SMD) packages are moisture sensitive. Depending upon the moisture content, the maximum temperature (with respect to time) and body size
of the package, there is a risk that internal or external package cracks may occur due to vaporization of the moisture in them (the so called popcorn effect). For
details, refer to the drypack information in the “Data Handbook IC26; Integrated Circuit Packages; Section: Packing Methods.”
These packages are not suitable for wave soldering as a solder joint between the printed-circuit board and heatsink (at bottom version) can not be achieved, and
as solder may stick to the heatsink (on top version).
If wave soldering is considered, then the package must be placed at a 45° angle to the solder wave direction. The package footprint must incorporate solder
thieves downstream and at the side corners.
Wave soldering is only suitable for LQFP, TQFP and QFP packages with a pitch (e) equal to or larger than 0.8mm; it is definitely not suitable for packages with a
pitch (e) equal to or smaller than 0.65mm.
Wave soldering is only suitable for SSOP and TSSOP packages with a pitch (e) equal to or larger than 0.65mm; it is definitely not suitable for packages with a
pitch (e) equal to or smaller than 0.5mm.
2.
3.
4.
5.
AMI Semiconductor – Rev. 2.0, Apr. 2005
www.amis.com
10
AMIS-30600 LIN Transceiver
Data Sheet
9. 0 Company or Product Inquiries
For more information about AMI Semiconductor, our technology and our product, visit our website at: http://www.amis.com
North America
Tel: +1.208.233.4690
Fax: +1.208.234.6795
Europe
Tel: +32 (0) 55.33.22.11
Fax: +32 (0) 55.31.81.12
Devices sold by AMIS are covered by the warranty and patent indemnification provisions appearing in its Terms of Sale only. AMIS makes no warranty, express,
statutory, implied or by description, regarding the information set forth herein or regarding the freedom of the described devices from patent infringement. AMIS
makes no warranty of merchantability or fitness for any purposes. AMIS reserves the right to discontinue production and change specifications and prices at any
time and without notice. AMI Semiconductor's products are intended for use in commercial applications. Applications requiring extended temperature range,
unusual environmental requirements, or high reliability applications, such as military, medical life-support or life-sustaining equipment, are specifically not
recommended without additional processing by AMIS for such applications. Copyright ©2005 AMI Semiconductor, Inc.
AMI Semiconductor – Rev. 2.0, Apr. 2005
www.amis.com
11
厂商 型号 描述 页数 下载

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.158159s
