2W005M

型号：

2W005M

描述：

2.0A桥式整流器[ 2.0A Bridge Rectifiers ]

品牌：

TAITRON[ TAITRON COMPONENTS INCORPORATED ]

页数：

4 页

PDF大小：

190 K

下载PDF手册

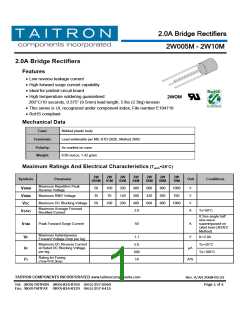

2.0A Bridge Rectifiers
2W005M – 2W10M
2.0A Bridge Rectifiers
Features
• Low reverse leakage current
• High forward surge current capability
• Ideal for printed circuit board
• High temperature soldering guaranteed:
260°C/10 seconds, 0.375" (9.5mm) lead length, 5 lbs (2.3kg) tension
2WOM
• This series is UL recognized under component index, File number E194718
• RoHS compliant
Mechanical Data
Case:
Molded plastic body
Terminals:
Lead solderable per MIL-STD-202E, Method 208C
Polarity:
Weight:
As marked on case
0.05 ounce, 1.42 gram
Maximum Ratings And Electrical Characteristics (Tamb=25˚C)
2W
005M
2W
01M
2W
02M
2W
04M
2W
06M
2W
08M
2W
10M
Symbols
Parameter
Unit
Conditions
Maximum Repetitive Peak
Reverse Voltage
50
35
50
100
70
200
140
200
400
280
400
2.0
600
420
600
800
560
800
1000
700
V
V
V
A
VRRM
VRMS
VDC
Maximum RMS Voltage
Maximum DC Blocking Voltage
100
1000
Maximum Average Forward
Rectified Current
TA=50˚C
IF(AV)
8.3ms single half
sine-wave
Peak Forward Surge Current
50
A
superimposed on
rated load (JEDEC
Method)
IFSM
Maximum Instantaneous
Forward Voltage Drop per leg
1.1
5.0
500
10
V
IF=2.0A
VF
IR
Maximum DC Reverse Current
at Rated DC Blocking Voltage
per leg
TA=25°C
TA=100°C
µA
A²S
Rating for Fusing
(1ms<t<8.3ms)
I²t
TAITRON COMPONENTS INCORPORATED www.taitroncomponents.com
Rev. A/AH 2008-05-22
Page 1 of 4
Tel: (800)-TAITRON (800)-824-8766 (661)-257-6060
Fax: (800)-TAITFAX (800)-824-8329 (661)-257-6415
2.0A Bridge Rectifiers
2W005M – 2W10M
2W
005M
2W
01M
2W
02M
2W
04M
2W
06M
2W
08M
2W
10M
Symbols
Parameter
Unit
Conditions
Typical Junction Capacitance
15
40
pF
VR=4V, f=1MHz
CJ
Typical Thermal Resistance
per leg
˚C/W Note 1
RθJA
Operating Temperature Range
Storage Temperature Range
-55 to +125
-55 to +150
V
TJ
˚C
TSTG
Note: 1. Unit mounted on P.C. board with 0.22 x 0.22" (5.5 x 5.5mm) copper pads, .375" (9.5mm)
lead length.
2. Single Phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Rating and characteristic curves
Fig.1- Derating Curve Output Rectified Current
Fig.2-Max Non-Repetitive Peak Forward Surge Current
Number of Cycles at 60Hz
Ambient Temperature (°C)
Rev. A/AH 2008-05-22
Page 2 of 4
www.taitroncomponents.com
2.0A Bridge Rectifiers
2W005M – 2W10M
Fig.4-Typical Reverse Leakage Characteristics
per leg
Fig.3- Typical Instantaneous Forward Characteristics,
per leg
Instantaneous Forward Voltage (V)
Percent of Rated Peak Reverse Voltage (%)
Fig.5-Typical Junction Capacitance per leg
Reverse Voltage (V)
Rev. A/AH 2008-05-22
Page 3 of 4
www.taitroncomponents.com
2.0A Bridge Rectifiers
2W005M – 2W10M
Dimensions in inch (mm)
2WOM
How to contact us
US HEADQUARTERS
28040 WEST HARRISON PARKWAY, VALENCIA, CA 91355-4162
Tel: (800) TAITRON (800) 824-8766 (661) 257-6060
Fax: (800) TAITFAX (800) 824-8329 (661) 257-6415
Email: taitron@taitroncomponents.com
Http://www.taitroncomponents.com
TAITRON COMPONENTS MEXICO, S.A .DE C.V.
BOULEVARD CENTRAL 5000 INTERIOR 5 PARQUE INDUSTRIAL ATITALAQUIA, HIDALGO C.P.
42970 MEXICO
Tel: +52-55-5560-1519
Fax: +52-55-5560-2190
TAITRON COMPONENTS INCORPORATED REPRESENTAÇÕES DO BRASIL LTDA
RUA DOMINGOS DE MORAIS, 2777, 2.ANDAR, SALA 24 SAÚDE - SÃO PAULO-SP 04035-001 BRAZIL
Tel: +55-11-5574-7949
Fax: +55-11-5572-0052
TAITRON COMPONENTS INCORPORATED, SHANGHAI REPRESENTATIVE OFFICE
METROBANK PLAZA, 1160 WEST YAN’ AN ROAD, SUITE 1503, SHANGHAI, 200052, CHINA
Tel: +86-21-5424-9942
Fax: +86-21-5424-9931
Rev. A/AH 2008-05-22
Page 4 of 4
www.taitroncomponents.com
