2W02G

型号：

2W02G

描述：

2A玻璃钝化整流桥[ 2A Glass Passivated Bridge Rectifier ]

品牌：

TAITRON[ TAITRON COMPONENTS INCORPORATED ]

页数：

5 页

PDF大小：

204 K

下载PDF手册

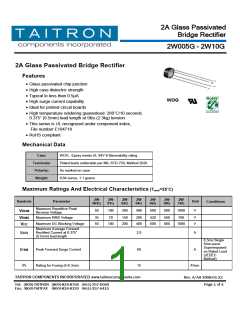

2A Glass Passivated
Bridge Rectifier
2W005G – 2W10G
2A Glass Passivated Bridge Rectifier
Features
• Glass passivated chip junction
• High case dielectric strength
• Typical IR less than 0.5µA
• High surge current capability
• Ideal for printed circuit boards
WOG
• High temperature soldering guaranteed: 260˚C/10 seconds
0.375” (9.5mm) lead length at 5lbs.(2.3kg) tension
• This series is UL recognized under component index,
File number E194718
• RoHS compliant
Mechanical Data
Case:
Terminals:
Polarity:
Weight:
WOG, Epoxy meets UL 94V-0 flammability rating
Plated leads solderable per MIL-STD-750, Method 2026
As marked on case
0.04 ounce, 1.1 grams
Maximum Ratings And Electrical Characteristics (Tamb=25˚C)
2W
005G
2W
01G
2W
02G
2W
04G
2W
06G
2W
08G
2W
10G
Symbols
Parameter
Unit
Conditions
Maximum Repetitive Peak
Reverse Voltage
50
100
200
400
600
800
1000
V
VRRM
Maximum RMS Voltage
35
50
70
140
200
280
400
420
600
560
800
700
V
V
VRMS
VDC
Maximum DC Blocking Voltage
100
1000
Maximum Average Forward
Rectified Current at 0.375”
(9.5mm) lead length
2.0
A
I(AV)
8.3ms Single
Sine-wave
Superimposed
on Rated Load
(JEDEC
Peak Forward Surge Current
Rating for Fusing (t<8.3ms)
60
15
A
IFSM
I²t
Method)
A²sec
TAITRON COMPONENTS INCORPORATED www.taitroncomponents.com
Rev. A/AH 2008-01-22
Page 1 of 4
Tel: (800)-TAITRON (800)-824-8766 (661)-257-6060
Fax: (800)-TAITFAX (800)-824-8329 (661)-257-6415
2A Glass Passivated Bridge Rectifier
2W005G – 2W10G
2W
005G
2W
01G
2W
02G
2W
04G
2W
06G
2W
08G
2W
10G
Symbols
Parameter
Unit
V
Conditions
Maximum Instantaneous
Forward Voltage Drop per leg
1.1
IF=2.0A
VF
IR
Maximum DC Reverse Current
at Rated DC Blocking Voltage
per leg
5.0
TA=25°C
µA
500
TA=125°C
Typical Junction Capacitance
per leg
40
20
pF
VR=4V, f=1MHz
CJ
40
15
RθJA
RθJL
Typical Thermal Resistance per
leg
˚C/W Note 1
˚C
Operating Junction and Storage
Temperature Range
-55 to 150
TJ,TSTG
Note: 1. Thermal resistance from junction to ambient and from junction to lead at 0.375” (9.5mm) lead
length P.C.B. mounting.
Rating and Characteristic Curves
Fig.1- Derating Curve Output
Rectified Current
Fig.2-Maximum Non-Repetitive Peak
Forward Surge Current per leg
Number of Cycles at 60 Hz
Ambient Temperature (°C)
Rev. A/AH 2008-01-22
Page 2 of 5
www.taitroncomponents.com
2A Glass Passivated Bridge Rectifier
2W005G – 2W10G
Fig.3-Typical Forward Characteristics
per leg
Fig.4-Typical Reverse Leakage Characteristics
per leg
Percent of Rated Peak Reverse Voltage (%)
VF, Instantaneous Forward Voltage (V)
Fig.5-Typical Junction Capacitance
per leg
VR, Reverse Voltage (V)
Rev. A/AH 2008-01-22
Page 3 of 5
www.taitroncomponents.com
2A Glass Passivated Bridge Rectifier
2W005G – 2W10G
Dimensions in inch (mm)
Case Style WOG
Rev. A/AH 2008-01-22
Page 4 of 5
www.taitroncomponents.com
2A Glass Passivated Bridge Rectifier
2W005G – 2W10G
How to contact us
US HEADQUARTERS
28040 WEST HARRISON PARKWAY, VALENCIA, CA 91355-4162
Tel: (800) TAITRON (800) 247-2232 (661) 257-6060
Fax: (800) TAITFAX (800) 824-8329 (661) 257-6415
Email: taitron@taitroncomponents.com
Http://www.taitroncomponents.com
TAITRON COMPONENTS MEXICO, S.A .DE C.V.
BOULEVARD CENTRAL 5000 INTERIOR 5 PARQUE INDUSTRIAL ATITALAQUIA, HIDALGO C.P.
42970 MEXICO
Tel: +52-55-5560-1519
Fax: +52-55-5560-2190
TAITRON COMPONENTS INCORPORATED REPRESENTAÇÕES DO BRASIL LTDA
RUA DOMINGOS DE MORAIS, 2777, 2.ANDAR, SALA 24 SAÚDE - SÃO PAULO-SP 04035-001 BRAZIL
Tel: +55-11-5574-7949
Fax: +55-11-5572-0052
TAITRON COMPONENTS INCORPORATED, SHANGHAI REPRESENTATIVE OFFICE
METROBANK PLAZA, 1160 WEST YAN’ AN ROAD, SUITE 1503, SHANGHAI, 200052, CHINA
Tel: +86-21-5424-9942
Fax: +86-21-5424-9931
Rev. A/AH 2008-01-22
Page 5 of 5
www.taitroncomponents.com
