4N33M(TB)-V

型号：

4N33M(TB)-V

描述：

6 PIN PHOTODARLINGTON PHOTOCOUPLER[ 6 PIN PHOTODARLINGTON PHOTOCOUPLER ]

品牌：

EVERLIGHT[ EVERLIGHT ELECTRONICS CO., LTD ]

页数：

13 页

PDF大小：

302 K

下载PDF手册

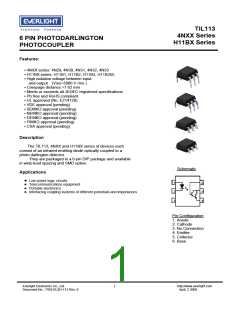

TIL113
4NXX Series
H11BX Series
6 PIN PHOTODARLINGTON
PHOTOCOUPLER
Features:
• 4NXX series: 4N29, 4N30, 4N31, 4N32, 4N33
• H11BX series: H11B1, H11B2, H11B3, H11B255
• High isolation voltage between input
and output (Viso=5000 V rms )
• Creepage distance >7.62 mm
• Meets or exceeds all JEDEC registered specifications
• Pb free and RoHS compliant.
• UL approved (No. E214129)
• VDE approval (pending)
• SEMKO approval (pending)
• NEMKO approval (pending)
• DEMKO approval (pending)
• FIMKO approval (pending)
• CSA approval (pending)
Description
The TIL113, 4NXX and H11BX series of devices each
consist of an infrared emitting diode optically coupled to a
photo darlington detector.
They are packaged in a 6-pin DIP package and available
in wide-lead spacing and SMD option.
Schematic
Applications
z Low power logic circuits
z Telecommunications equipment
z Portable electronics
z Interfacing coupling systems of different potentials and impedances
1
2
6
5
3
4
Pin Configuration
1. Anode
2. Cathode
3. No Connection
4. Emitter
5. Collector
6. Base
Everlight Electronics Co., Ltd.
Document No：PDS-ELSD-113 Rev. 0
1
http://www.everlight.com
April, 2 2008
TIL113
4NXX Series
H11BX Series
6 PIN PHOTODARLINGTON
PHOTOCOUPLER
Absolute Maximum Ratings (Ta=25°C)
Parameter
Symbol
IF
Rating
Unit
mA
A
Forward current
60
IFM
Peak forward current (t = 10µs)
1
Input
V
VR
Reverse voltage
6
120
mW
mW
V
PD
Power dissipation
Power dissipation
PC
150
VCEO
VCBO
VECO
VEBO
Ptot
Collector-Emitter voltage
Output
55
V
Collector-Base voltage
55
V
Emitter-Collector voltage
Emitter-Base voltage
7
V
7
Total power dissipation
Isolation voltage *1
200
mW
V rms
°C
Viso
Topr
Tstg
Tsol
5000
-55~+100
-55~+125
260
Operating temperature
Storage temperature
°C
Soldering temperature *2
°C
Notes
*1 AC for 1 minute, R.H.= 40 ~ 60% R.H. In this test, pins 1, 2 & 3 are shorted together, and pins 4, 5 & 6
are shorted together.
*2 For 10 seconds.
Everlight Electronics Co., Ltd.
Document No：PDS-ELSD-113 Rev. 0
2
http://www.everlight.com
April, 2 2008
TIL113
4NXX Series
H11BX Series
6 PIN PHOTODARLINGTON
PHOTOCOUPLER
Electrical Characteristics (Ta=25°C unless specified otherwise)
Input
Parameter
Forward voltage
Symbol
VF
Min.
-
Typ.*
1.2
Max.
1.5
Unit
V
Condition
IF = 10mA
IF = 50mA for H11B3
Reverse current
-
-
-
10
-
µA
pF
IR
VR = 6V
Input capacitance
50
V = 0, f = 1MHz
Cin
Output
Parameter
Symbol
ICEO
Min.
-
Typ.*
-
Max.
100
Unit
nA
Condition
VCE = 10V
Collector-Emitter dark
current
Collector-Emitter
breakdown voltage
55
55
7
-
-
-
Ic=1mA
BVCEO
BVCBO
V
V
Collector-Base
breakdown voltage
IC=0.1mA
IE=0.1mA
Emitter-Collector
breakdown voltage
-
V
BVECO
* Typical values at Ta = 25°C
Everlight Electronics Co., Ltd.
Document No：PDS-ELSD-113 Rev. 0
3
http://www.everlight.com
April, 2 2008
TIL113
4NXX Series
H11BX Series
6 PIN PHOTODARLINGTON
PHOTOCOUPLER
Transfer Characteristics (Ta=25°C unless specified otherwise)
Parameter
Symbol
Min.
500
Typ.*
-
Max.
-
Unit
Condition
4N32
4N33
4N29
4N30
IF = 10mA ,VCE = 10V
100
50
-
-
4N31
H11B1
H11B2
-
-
Current
transfer
ratio
CTR
%
500
200
IF = 1mA ,VCE = 5V
H11B3
100
100
300
IF = 10mA ,VCE = 5V
IF = 10mA ,VCE = 1V
H11B255
TIL113
4N29
4N30
4N32
4N33
-
-
1.0
IF = 8mA ,Ic = 2mA
Collector-emitter
saturation
4N31
TIL113
-
-
-
-
1.2
1.0
IF = 8mA ,Ic = 2mA
IF = 1mA ,Ic = 1mA
VCE(sat)
V
H11B1
H11B2
H11B3
voltage
H11B255
IF = 50mA ,Ic = 50mA
VIO = 500Vdc
1.0
Isolation resistance
1011
-
-
-
-
RIO
CIO
Ω
Input-output capacitance
0.8
pF
VIO = 0, f = 1MHz
Transfer Characteristics
Everlight Electronics Co., Ltd.
4
http://www.everlight.com
April, 2 2008
Document No：PDS-ELSD-113 Rev. 0
TIL113
4NXX Series
H11BX Series
6 PIN PHOTODARLINGTON
PHOTOCOUPLER
Parameter
Symbol
Min.
-
Typ.*
25
Max.
Unit
µs
Condition
H11B1
H11B2
H11B3
VCC = 10V, IF = 10mA,
RL = 100Ω
H11B255
Turn-on time
Ton
4N29
4N30
4N31
4N32
4N33
TIL113
VCC = 10V, IC = 50mA,
IF=200mA
-
-
5
H11B1
H11B2
H11B3
VCC = 10V, IF = 10mA,
RL = 100Ω
-
-
18
-
H11B255
4N32
4N33
TIL113
Turn-off time
Toff
µs
100
40
VCC = 10V, IC = 50mA,
IF=200mA
4N29
4N30
4N31
* Typical values at Ta = 25°C
Everlight Electronics Co., Ltd.
Document No：PDS-ELSD-113 Rev. 0
5
http://www.everlight.com
April, 2 2008
TIL113
4NXX Series
H11BX Series
6 PIN PHOTODARLINGTON
PHOTOCOUPLER
Typical Performance Curves
Everlight Electronics Co., Ltd.
Document No：PDS-ELSD-113 Rev. 0
6
http://www.everlight.com
April, 2 2008
TIL113
4NXX Series
H11BX Series
6 PIN PHOTODARLINGTON
PHOTOCOUPLER
VCC
Input
Pulse
IF
IC
RL
Output
10%
90%
Output
Pulse
Input
tr
RIN
tf
ton
toff
Figure 7. Switching Time Test Circuit & Waveforms
Order Information
Part Number
4NXXY(Z)-V
or H11BXY(Z)-V
or TIL113Y(Z)-V
Note
XX = Part No. for 4NX series (29, 30, 31, 32 or 33)
X
Y
Z
V
= Part No. for H11BX series (1, 2, 3 or 255)
= Lead form option (S, S1, M or none)
= Tape and reel option (TA, TB or none).
= VDE safety (optional)
Option
None
Description
Packing quantity
65 units per tube
65 units per tube
1000 units per reel
1000 units per reel
1000 units per reel
1000 units per reel
Standard DIP-6
M
Wide lead bend (0.4 inch spacing)
S (TA)
S (TB)
S1 (TA)
S1 (TB)
Surface mount lead form + TA tape & reel option
Surface mount lead form + TB tape & reel option
Surface mount lead form (low profile) + TA tape & reel option
Surface mount lead form (low profile) + TB tape & reel option
Everlight Electronics Co., Ltd.
Document No：PDS-ELSD-113 Rev. 0
7
http://www.everlight.com
April, 2 2008
TIL113
4NXX Series
H11BX Series
6 PIN PHOTODARLINGTON
PHOTOCOUPLER
Package Drawings
(Dimensions in mm)
Standard DIP Type
Option M Type
Everlight Electronics Co., Ltd.
Document No：PDS-ELSD-113 Rev. 0
8
http://www.everlight.com
April, 2 2008
TIL113
4NXX Series
H11BX Series
6 PIN PHOTODARLINGTON
PHOTOCOUPLER
Option S Type
Option S1 Type
Everlight Electronics Co., Ltd.
Document No：PDS-ELSD-113 Rev. 0
9
http://www.everlight.com
April, 2 2008
TIL113
4NXX Series
H11BX Series
6 PIN PHOTODARLINGTON
PHOTOCOUPLER
Recommended pad layout for surface mount leadform
Device Marking
EL
EL
H11B
4N3
YWWV
YWWV
Notes
EL
denotes Everlight
4N33
H11B1
Y
WW
V
denotes Part Number
denotes 1 digit Year code
denotes 2 digit Week code
denotes VDE safety (optional)
Everlight Electronics Co., Ltd.
Document No：PDS-ELSD-113 Rev. 0
10
http://www.everlight.com
April, 2 2008
TIL113
4NXX Series
H11BX Series
6 PIN PHOTODARLINGTON
PHOTOCOUPLER
Tape & Reel Packing Specifications
Option TA
Option TB
Direction of feed from reel
Direction of feed from reel
Tape dimensions
Dimension No.
A
B
Do
D1
E
F
10.4±0.1
7.52±0.1
1.5±0.1
1.5+0.1/-0
1.75±0.1
7.5±0.1
Dimension (mm)
Po
P1
P2
t
W
K
Dimension No.
4.0±0.15
16.0±0.1
2.0±0.1
0.35±0.03
16.0±0.2
4.5±0.1
Dimension (mm)
Everlight Electronics Co., Ltd.
Document No：PDS-ELSD-113 Rev. 0
11
http://www.everlight.com
April, 2 2008
TIL113
4NXX Series
H11BX Series
6 PIN PHOTODARLINGTON
PHOTOCOUPLER
Solder Reflow Temperature Profile
260 °C (peak)
>255 °C (30s Min)
217°C
200°C
1-3 °C/Sec Max
60 – 140 Sec
150°C
70 – 170 Sec
1-3 °C/Sec Max
TIME (S)
Everlight Electronics Co., Ltd.
Document No：PDS-ELSD-113 Rev. 0
12
http://www.everlight.com
April, 2 2008
TIL113
4NXX Series
H11BX Series
6 PIN PHOTODARLINGTON
PHOTOCOUPLER
DISCLAIMER
1. Above specification may be changed without notice. EVERLIGHT will reserve authority on material change
for above specification.
2. When using this product, please observe the absolute maximum ratings and the instructions for use
outlined in these specification sheets. EVERLIGHT assumes no responsibility for any damage resulting
from use of the product which does not comply with the absolute maximum ratings and the instructions
included in these specification sheets.
3. These specification sheets include materials protected under copyright of EVERLIGHT. Reproduction in
any from is prohibited without the specific consent of EVERLIGHT.
Everlight Electronics Co., Ltd.
Document No：PDS-ELSD-113 Rev. 0
13
http://www.everlight.com
April, 2 2008
厂商 型号 描述 页数 下载

MOTOROLA

 		4N30 标准通孔CASE 730A -04[ STANDARD THRU HOLE CASE 730A-04 ] 6 页

TOSHIBA

 		4N30 光电晶体管（ AC LINE /数字逻辑隔离器）[ PHOTO TRANSISTOR (AC LINE/DIGITAL LOGIC ISOLATOR) ] 5 页

QT

 		4N30 通用6 -PIN PHOTODARLINGTON光耦合器[ GENERAL PURPOSE 6-PIN PHOTODARLINGTON OPTOCOUPLERS ] 6 页

EVERLIGHT

 		4N30 6 PIN PHOTODARLINGTON PHOTOCOUPLER[ 6 PIN PHOTODARLINGTON PHOTOCOUPLER ] 13 页

ISOCOM

 		4N30 光耦合隔离器PHOTODARLINGTON输出[ OPTICALLY COUPLED ISOLATOR PHOTODARLINGTON OUTPUT ] 3 页

FAIRCHILD

 		4N30 通用6引脚光电复合光耦[ General Purpose 6-Pin Photodarlington Optocoupler ] 13 页

NJSEMI

 		4N30 光子耦合型隔离器[ Photon Coupled Isolator ] 1 页

TOSHIBA

 		4N30(TP1) [ Optocoupler - Transistor Output, 1 CHANNEL DARLINGTON OUTPUT OPTOCOUPLER, DIP-6 ] 5 页

TOSHIBA

 		4N30(TP4) [ Optocoupler - Transistor Output, 1 CHANNEL DARLINGTON OUTPUT OPTOCOUPLER, DIP-6 ] 5 页

TOSHIBA

 		4N30(TP5) [ Optocoupler - Transistor Output, 1 CHANNEL DARLINGTON OUTPUT OPTOCOUPLER, DIP-6 ] 5 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

代理产品

代理品牌

代理器件

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.521705s
