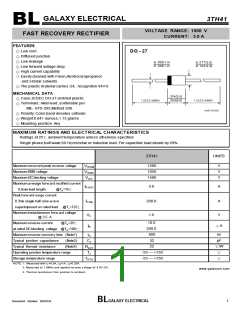

GALAXY ELECTRICAL
3TH41
BL
VOLTAGE RANGE: 1500 V
CURRENT: 3.0 A
FAST RECOVERY RECTIFIER
FEATURES
Low cost
DO - 27
Diffused junction
Low leakage
Low forward voltage drop
High current capability
Easily cleaned with Freon,Alcohol,Isopropanol
and similar solvents
The plastic material carries U/L recognition 94V-0
MECHANICAL DATA
Case:JEDEC DO-27,molded plastic
Terminals: Axial lead ,solderable per
MIL- STD-202,Method 208
Polarity: Color band denotes cathode
Weight:0.041 ounces,1.15 grams
Mounting position: Any
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 ambient temperature unless otherwise specified.
Single phase,half wave,60 Hz,resistive or inductive load. For capacitive load,derate by 20%.
3TH41
UNITS
Maximum recurrent peak reverse voltage
Maximum RMS voltage
1500
1050
1500
V
V
V
VRRM
VRMS
VDC
Maximum DC blocking voltage
Maximum average forw ard rectified current
3.0
A
IF(AV)
9.5mm lead length,
@TA=75
Peak forw ard surge current
8.3ms single half-sine-w ave
IFSM
200.0
1.5
A
superimposed on rated load @TJ=125
Maximum instantaneous forw ard voltage
@ 3.5 A
V
A
VF
IR
Maximum reverse current
@TA=25
10.0
200.0
at rated DC blocking voltage @TA=100
Maximum reverse recovery time (Note1)
800
ns
pF
/W
trr
Typical junction capacitance
Typical thermal resistance
(Note2)
(Note3)
32
CJ
22
Rθ
JA
Operating junction temperature range
- 55---- +150
- 55---- +150
TJ
Storage temperature range
TSTG
NOTE: 1. Measured with IF=0.5A, IR=1A, Irr=0.25A.
2. Measured at 1.0MHz and applied rev erse v oltage of 4.0V DC.
3. Thermal resistance f rom junction to ambient.
www.galaxycn.com
1.
Document Number 0261034
