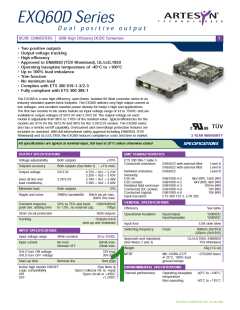

EXQ60D Series
D u a l p o s i t i v e o u t p u t
DC/DC CONVERTERS 60W High Efficiency DC/DC Converters
1
• Two positive outputs
• Output voltage tracking
• High efficiency
• Approved to EN60950 (TÜV Rheinland), UL/cUL1950
• Operating baseplate temperature of -40°C to +100°C
• Up to 100% load imbalance
• Trim function
• No minimum load
• Complies with ETS 300 019-1-3/2-3
• Fully compliant with ETS 300 386-1
The EXQ60 is a new high efficiency, open frame, isolated 60 Watt converter series in an
industry standard quarter-brick footprint. The EXQ60 delivers very high output current at
low voltages, and excellent useable power density for today's high end applications.
The first two models in the series feature an input voltage range of 33 to 75VDC and are
available in output voltages of 5V/3.3V and 3.3V/2.5V. The output voltage on each
model is adjustable from 90% to 110% of the nominal value. Typical efficiencies for the
models are 91% for the 5V/3.3V and 90% for the 3.3V/2.5V version. The EXQ60 series
also has a remote on/off capability. Overcurrent and overvoltage protection features are
included as standard. With full international safety approval including EN60950, (TÜV
Rheinland) and UL/cUL1950, the EXQ60 reduces compliance costs and time to market.
TÜV
2 YEAR WARRANTY
All specifications are typical at nominal input, full load at 25°C unless otherwise stated
SPECIFICATIONS
OUTPUT SPECIFICATIONS
EMC CHARACTERISTICS
Voltage adjustability
Setpoint accuracy
Output voltage
Both outputs
Both outputs (See Note 1)
±10%
ETS 300 386-1 table 5
Conducted emissions
EN55022 with external filter
EN55022 with external filter
EN55022
Level A
Level B
Level B
±1% max.
Radiated emissions
Immunity:
ESD air
ESD contact
Radiated field enclosure EN61000-4-3
Conducted (DC power) EN61000-4-6
5V/3.3V
4.75V < Vo1 < 5.23V
3.20V < Vo2 < 3.43V
3.18V < Vo1 < 3.48V
2.39V < Vo2 < 2.60V
EN61000-4-2
EN61000-4-2
8kV (NP), 15kV (RP)
6kV (NP), 8kV (RP)
10V/m (NP)
(over all line and
load conditions)
3.3V/2.5V
Minimum load
Both outputs
0%
10V (NP)
Conducted (signal)
Input transients
EN61000-4-6
ETS 300 132-2, ETR 283
10V (NP)
Ripple and noise
20MHz bandwidth
60mV pk-pk max.,
20mV rms max.
GENERAL SPECIFICATIONS
Transient response
peak dev. settling time
50% to 75% and back
to 1.0% , no external cap.
120mV/80mV
100µs
Efficiency
See table
Short circuit protection
Tracking
Both outputs
Outputs track
Operational insulation
Input/output
Input/baseplate
1500VDC
1500VDC
start-up and shutdown
Input fuse
5.0A slow blow
Switching frequency
Fixed
400kHz (5V/3V3)
325kHz (3V3/2V5)
INPUT SPECIFICATIONS
Input voltage range
Input current
48Vin nominal
33 to 75VDC
Approvals and standards
(See Notes 2 and 3)
UL/cUL1950, EN60950
TÜV Rheinland
No load
Remote OFF
60mA max.
20mA max.
Weight
MTBF
45g (1.6 oz)
UVLO turn ON voltage
UVLO turn OFF voltage
33V (typ)
30V (typ)
MIL-HDBK-217F
@ 25°C, 100% load
ground benign
>270,000 hours
Start-up time
Nominal line
8ms (typ)
Active high remote ON/OFF
Logic compatibility
ON
OFF
(See Note 4)
Open Collector ref. to -input
Open circuit or >4VDC
<1.2VDC
ENVIRONMENTAL SPECIFICATIONS
Thermal performance Operating baseplate
-40°C to +100°C
-40°C to +125°C
temperature
Non-operating
File Name: EXQ60D.PDF Rev: 24 July 2002
