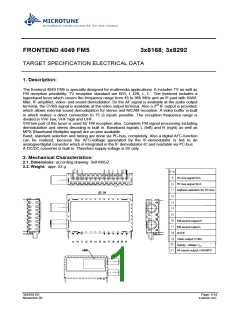

FRONTEND 4049 FM5
3x8168; 3x8292
TARGET SPECIFICATION ELECTRICAL DATA
1. Description:
The frontend 4049 FM5 is specially designed for multimedia applications. It includes TV as well as
FM reception possibility. TV reception standard are B/G; I, D/K, L, L`. The frontend includes a
hyperband tuner which covers the frequency range from 45 to 865 MHz and an IF-part with SAW-
filter, IF-amplifier, video- and sound demodulator. So the AF signal is available at the audio output
terminal, the CVBS signal is available at the video output terminal. Also a 2nd IF output is provided,
which allows external sound demodulation for stereo and NICAM reception. A video buffer is built
in which makes a direct connection to 75 Ω inputs possible. The reception frequency range is
divided in VHF low, VHF high and UHF.
VHFlow part of the tuner is used for FM reception also. Complete FM signal processing including
demodulation and stereo decoding is built in. Baseband signals L (left) and R (right) as well as
MPX (Baseband Multiplex signal) are on pins available.
Band, standard selection and tuning are done via I²C-bus, completely. Also a digital AFC-function
can be realized, because the AFC-voltage generated by the IF-demodulator is fed to an
analogue/digital converter which is integrated in the IF demodulator-IC and readable via I²C-bus.
A DC/DC converter is built in. Therefore supply voltage is 5V only.
2. Mechanical Characteristics:
2.1. Dimensions: according drawing 3x8168GZ
2.2. Weight: appr. 52 g
I²C bus signal SCL
I²C bus signal SDA
Address selection for I²C bus
FM sound output R
FM sound output L
2nd IF
Video output CVBS
Supply voltage VS1
AF sound output / FM MPX
3X8168 ED
Page: 1/14
November 02
8168ED01.DOC
2.3. Types
Tunertype
Sockettype
3x8168
3x8292
IEC connectors
Phono sockets
Socketlength 14.4 mm
10.3 mm
Height
28.55/10.25 mm
28.55/10.25 mm
3. Working Data:
3.1. Reception Standard:
B/G, I, D/K, L, L`
3. 2. Frequency Range:
VHF low
VHF high
UHF
ch IA ...S6
ch S7 ...S41
ch 21 ...69
45.75 MHz ... 140.25 MHz
147.25 MHz ... 463.25 MHz
471.25 MHz ... 855.25 MHz
87.50 MHz … 108.10 MHz
FM
Margin:
VHF low
VHF high
UHF
ch IA ...
ch S7...
ch 21 ...
S6
+0.5 MHz/-0.25 MHz
+1 MHz/-6 MHz
+3 MHz/-6 MHz
+/- 0.5 MHz
S41
69
FM
Recommened take over frequencies:
VHF low / VHF high
VHF high/ UHF
141 MHz
464 MHz
Frequency referred to picture carrier.
IF:
B, G
I
L
L`
D/K
38.9
32.4
picture carrier
sound carrier 1
38.9
33.4
38.9
32.9
38.9
32.4
33.90
40.40
sound carrier 2
33.16
33.05
NICAM sound carrier
32.348
33.05
33.05
all frequencies in MHz
Oscillator operates above received frequency.
3X8168 ED
Page: 2/14
November 02
8168ED01.DOC
3.3. Supply voltage:
Supply voltage V
5 V +/- 5%
max. 230 mA
S1
3.4. Input impedance:
VHF/UHF and FM
75 Ω, unbalanced
3.5. Temperature:
Operating temperature:
0 ... 60 °C
Storage temperature:
-25 ... 60 °C
( measured in slowly moved air )
4. Test conditions:
If not otherwise noticed all data are hold under following conditions:
Measurement tolerance:
Ambient temperature:
Supply voltage:
10 % or 1 dB
25 °C +/- 3°
S1
V
+/- 5%
5. TV Tuner Data:
5.1. VSWR:
min.
typ.
max.
unit
VHF low
5.0
5.0
5.0
VHF high
UHF
Referred to channel center frequency.
5.2. AGC-Range:
VHF low
VHF high
UHF
40
40
35
40
dB
dB
dB
dB
FM
5.3. IF-Rejection:
VHF low
VHF high
UHF
50
60
60
50
dB
dB
dB
dB
FM
5.4. Image-Rejection:
VHF low
60
60
55
50
50
dB
dB
dB
dB
dB
VHF high
VHF high
UHF
ch S7 .... ch S20
ch S21 .... ch S41
FM
3X8168 ED
Page: 3/14
November 02
8168ED01.DOC
6. TV Output parameter:
6.1. Video output:
min.
typ.
max.
unit
Conditions:
Standard B/G; Ant. input level 66 dBµV
CVBS - Output level (B/G, D/K, L/L`):
(Standard I):
1
Vpp
Vpp
Ω
0.9
75
Load impedance
Video S/N (unweighted):
Flat Field
VHF
UHF
46
47
dB
dB
Video sensitivity (Off Air Channels)
45
dBµV
Video S/N = 30 dB
Frequency response:
(sin x)/x Ref.: 0.2 MHz
1 MHz
2 MHz
3 MHz
4 MHz
4.43 MHz
5 MHz
-1.5
-2
2
3
3
4
3
dB
dB
dB
dB
dB
dB
-4
-4
-5
-12
sound carrier rejection
B/G
30
26
dB
I, D/K, L/L´
dB
Differential gain
modulated 5 step staircase
3
5
%pp
°pp
Differential phase modulated 5 step staircase
3X8168 ED
Page: 4/14
November 02
8168ED01.DOC
6.2 TV Sound output:
Pin 21
min.
typ.
2.3
max.
unit
Load
DC
AC
DC
100
10
kΩ
kΩ
V
Output level:
6.2.1 TV FM sound
Conditions:
Ant.input level 66 dBµV; Video signal: color bar
Audio signal 1kHz, 27 kHz deviation; 50 µs preemphasis
Measurements with 50 µs deemphasis:
AF - level:
400
-1
540
50
680
0.5
mVrms
%
THD:
S/N:
dB
Frequency response: 40 Hz ... 15 kHz
1
dB
(6 kHz deviation)
6.2.2 TV AM sound
input level 66 dBµV, video signal: color bar
audio signal 1kHz AM 54% modulation
AF - level:
400
500
45
600
1.0
mVrms
%
THD:
S/N:
dB
6.3. 2nd IF output
AC level of SC1 5.5, 6.0, 6.5 MHz:
(PC/ sound carrier SC1: 7, 10, 13 dB)
(sound carrier SC2 off )
400
400
125
mVpp
mVpp
mVpp
kΩ
AC level of SC1 6.5 MHz:
(PC/ sound carrier: 10 dB)
(L standard, without modulation)
AC level of SC2 5.74, 6.55 MHz:
(PC/ sound carrier SC1: 10 dB)
(PC/ sound carrier SC2: 20dB)
Load impedance
0.5
3X8168 ED
Page: 5/14
November 02
8168ED01.DOC
7. FM part
7.1 FM output
min.
87.5
typ.
max.
unit
7.1.1 Frequency range
7.1.2 Output levels
108.1
MHz
AF = 1 kHz, 75 kHz deviation
MPX
AC
810
2.3
mVrms
V
DC
Load impedance
L, R resp.
100
kΩ
AC
DC
255
1.0
mVrms
V
Load impedance
100
kΩ
7.1.3 Frequency response
40 Hz to 15 kHz
-2
2
dB
7.1.4 Usable sensivity
30 dB S/N
5
dBµV
dBµV
50 dB S/N
15
1 kHz 75 kHz deviation
7.1.5 S/N at high input level
65
dB
Vin = 60 dBµV, Mod. = 1kHz
75 kHz deviation
measured at MPX output with 50 µs deemphasis
7.1.6 Distortion at high input level
0.2
%
22.5 kHz deviation
7.1.7 Stereo channel separation
30
60
dB
dB
7.1.8 AM suppression
Vin 60 dBµV 75 kHz dev. AM 30%
7.1.9 Image rejection
53
50
80
dB
dB
unwanted signal 66.6 MHz above wanted signal
7.1.10 IF rejection
referred to 33.3 MHz unwanted signal
3X8168 ED
Page: 6/14
November 02
8168ED01.DOC
8. I²C bus
There are two different I²C bus used one I²C Tuner to control tuning and one I²C IF to control IF
demodulation and baseband processing. With port P0 of control byte 2 the slave address of I2C IF can be
controlled.
8.1 I²C Tuner
8.1.1 Write data format
MSB
1
LSB
R/W
n8
Address byte
Divider byte 1
Divider byte 2
Control byte 1
Control byte 2
1
n14
n6
0
n13
n5
0
n12
n4
0
n11
n3
MA1
n10
n2
MA0
n9
A
A
A
A
A
0
n7
1
n1
n0
CP
P6
T2
P5
T1
P4
T0
P3
RSA
P2
RSB
P1
OS
P0
P7
A = Acknowledge
R/W = 0 : Write mode
CP = 1 : charge pump current high
T2, T1, T0 = test bits, normal operation: T2 = 0, T1 = 0, T0 = 1
RSA, RSB bits for minimum step size, see 8.1.2
OS = tuning voltage switch, normal operation: OS = 0
8.1.2 Address selection
MA1
MA0
Address
C0
Voltage at Pin 11
0
0
1
1
0
1
0
1
( 0 to 0.1 ) * VS1
C2
(0.2 to 0.3) * VS1 or open
( 0.4 to 0.6 ) * VS1
C4
C6
( 0.9 to 1 ) * VS1
8.1.3 Oscillator frequency and divider byte calculation:
RSA
RSB
Reference divider
Min. tuning step [kHz]
f
[kHz]
ref
1
X
0
1
0
1
512
62.5
50.0
31.25
7.8125
6.25
640
1024
3.90625
for FM recption we recommend 50 kHz minimum step size
fOSC= fD + fIF
fIF = 38.9 MHz at B/G, D/K, I, L
fIF = 33.9 MHz at L’
fIF = 33.3 MHz at FM
fOSC : Local oscillator frequency
fD
: Desired frequency
fOSC = fREF * 8 * SF
fREF : Crystal reference frequency / 640 = 4 MHz / 640 = 6.25 kHz, ( RSA =X, RSB = 0)
SF : Programmable scaling factor
Scaling factor
SF= 16384* n14 + 8192 * n13 * 4096 * n12 + 2048 * n11 + 1024 * n10 + 512 * n9 + 256* n8 + 128 * n7 +
64 * n6 + 32 * n5 + 16 * n4 + 8 * n3 + 4 * n2 + 2 * n1 + n0
3X8168 ED
Page: 7/14
November 02
8168ED01.DOC
8.1.4 Control byte 1 settings (default)
MSB
LSB
0
Control byte 1
1
0
0
0
1
X
0
A
8.1.5 Control byte 2 (Bandselection)
Band
Active port
P7, P5
P7
1
P6
0
P5
1
P4
0
P3
0
P2
0
P1
0
P0
VHF low
VHF high
UHF
MAD
MAD
MAD
MAD
P7,P4
1
0
0
1
0
0
0
P5,P4
0
0
1
1
0
0
0
FM
P7, P5, P2
1
0
1
0
0
1
MS
MAD:
Programmable module address I2C IF
0 = Slave address I2C IF = 43[hex]
1 = Slave address I2C IF = 42[hex]
Forced Mono at FM mode:
MS:
0 = Stereo Mode with capability of stereo indication
1 = Forced Mono Mode
8.1.6 Read data format
MSB
LSB
R/W
A0
Address byte
Status byte
1
1
0
0
0
MA1
A2
MA0
A1
A
A
POR
FL
I2
I1
I0
R/W :
POR :
FL :
1 = Read mode
Power on reset flag ( POR =1 at power on)
In lock flag (FL= 1 when PLL is locked)
I2, I1, I0: Digital levels for I/O ports P2, P1 and P0 respect.
In case of FM I1 = 1: Stereo indication
I2, I0 not defined
A2, A1, A0:
FM-AFC or FM-AGC or SIF-AGC radio output detection
A2 A1
A0
0
1
0
1
SIF-AGC radio output *1)
FM-AGC radio output *2)
not defined
FM-AFC radio output *3)
-100 kHz
1
0
0
0
0
0
1
1
0
0
not defined
> 20dBµV
5dBµV … 20dBµV
<5dBµV
normal signal
weak signal
very weak signal
not defined
-35 kHz
Correct tuning
+35 kHz
0
not defined
+100 kHz
*1) typical values, peak level detection within a bandwith of appr. 2MHz
*2) only valid if FM-carrier exist and SIF-AGC radio output = (A2=0, A1=1, A0=1)
*3) typical values, only valid if CARRDET = high, see section 8.3.2
3X8168 ED
Page: 8/14
November 02
8168ED01.DOC
8.2. I²C IF
8.2.1. I²C-bus sequence write
Start
Slave addr.
R/W =0
Ack
subaddress
Ack
data
Ack
Stop
Start
start condition.
Slave addr
R/W
Slave address (7bit) = 42[hex] or 43[hex] in respect of MAD.
Read/Write bit: 0 = write to component; 1 = master reads from component.
byte which indicates register of component which the are data for.
Subaddress
“switching register”
“adjust register”
“data register”
00[hex]
01[hex]
02[hex]
Ack
acknowledge generated by the component
stop condition
Stop
If more than one byte of data is transmitted, then auto-increment of subaddress is performed.
i.e. transmit 3 bytes starting with data for switch register
mode
Slave addr + R/W =0
MAD=0 / MAD=1
Subaddress
switch reg.
adjust reg.
data reg.
B/G
86
86
86
86
86
86
86
86
86
/
/
/
/
/
/
/
/
/
84
84
84
84
84
84
84
84
84
00
00
00
00
00
00
00
00
00
D4
D4
D4
C4
84
70
70
70
10
10
70
70
70
10
09
0A
0B
0B
13
1D
9D
81
1D
I
D/K
L
L`
FM - AFC
FM - AGC
SIF - AGC
FM - AFC
stereo
FM - AGC
stereo
SIF – AGC
stereo
DC
DC
DC
DC
86
86
/
/
84
84
00
00
DC
DC
10
10
9D
81
all bytes in [hex]
3X8168 ED
Page: 9/14
November 02
8168ED01.DOC
8.2.2 switch register
acc. Chapter 8.2.1 switch register is addressed by subaddress 00 [hex]
switch register
B7
B6
B5
B4
B3
B2
B1
B0
Video mode
Sound bypass off
Sound bypass on
0
1
Audio mute FM
0
1
Inactive
active
Carrier mode
0
1
intercarrier
QSS
Modulation
0
1
x
0
Positive AM TV
Negative TV
FM Radio
0
1
Forced mute audio
0
1
off
on
Output port 1 (Audio-SAW switch)
0
1
L’
B/G, D/K, I, L
Output port 2 (not used)
0
1
Low ohmic active
High ohmic disabled
Recommended settings switch register
mode
B/G
I
B7
1
B6
1
B5
0
B4
1
B3
0
B2
1
B1
B0
0
=[hex]
D4
0
0
0
0
0
0
1
1
0
1
0
1
0
D4
1
1
0
1
0
1
0
D/K
L
D4
1
1
1
0
0
0
0
0
1
0
C4
0
0
1
0
L`
84
1
1
0
1
1
1
0
FM
DC
3X8168 ED
10/14
Page:
November 02
8168ED01.DOC
8.2.3 Adjust register
acc. Chapter 8.2.1 adjust register is addressed by subaddress 01 [hex]
Adjust register
C7
C6
C5
C4
C3
C2
C1
C0
AGC adjustment
1
0
0
0
0
Deemphasis
0
1
De-emphasis off
De-emphasis on
Value of de-emphasis
0
1
75 us
50 us
Audio gain
0
0 dB
1
-6 dB
Recommended settings adjust register
mode
B/G
I
C7
0
C6
1
C5
1
C4
1
C3
0
C2
0
C1
0
C0
=[hex]
70
0
0
0
0
0
0
0
0
1
1
1
0
0
0
70
0
1
1
1
0
0
0
D/K
L
70
0
0
0
1
0
0
0
10
0
0
0
1
0
0
0
L`
10
0
1
1
1
0
0
0
FM
FM
stereo
70
0
0
0
1
0
0
0
10
3X8168 ED
11/14
Page:
November 02
8168ED01.DOC
8.2.3 data register
acc. Chapter 8.2.1 data register is addressed by subaddress 02 [hex]
data register
E7
E6
E5
E4
E3
E2
E1
E0
2nd IF
MHz
4.5
5.5
6.0
6.5
0
0
1
1
0
1
0
1
Video IF
TV Mode: B3=0
MHz
58.75
45.75
38.9
38.0
33.9
33.4
0
0
0
0
1
1
0
0
1
1
0
0
0
1
0
1
0
1
Radio Mode: B3=1
0
1
0
1
0
1
44
44
SIF-AGC radio output
FM-AGC radio output
VIF, SIF, tuner gain
0
1
Normal gain
Minimum gain
Gating (pos. AM)
0
1
0 %
36 %
VIF AGC output – TV Mode: B3=0
0
1
Normal port function (Output port2)
No port function
PIN 21 output – Radio Mode: B3=1
0
1
FM-AFC radio output
FM-AGC or SIF-AGC radio output acc. E2…E4
Recommended settings data register
mode
B/G
E7
0
E6
0
E5
0
E4
0
E3
1
E2
E1
E0
1
=[hex]
09
0
0
0
0
0
1
1
0
0
1
1
1
1
0
0
0
0
0
0
0
1
0
I
0A
0B
0B
13
0
0
0
0
1
1
D/K
0
0
0
0
1
1
L
0
0
0
1
0
1
L`
0
0
0
1
1
1
FM-AFC
FM-AGC
SIF-AGC
1D
9D
81
1
1
0
0
0
0
1
1
1
0
0
1
3X8168 ED
12/14
Page:
November 02
8168ED01.DOC
8.3.1. I²C-bus sequence read
Start Slave addr.
R/W =1
start condition.
Ack
data
Ack not
Stop
Start
Slave addr
R/W
Slave address = 43[hex].
Read/Write bit: 0 = write to component; 1 = master reads from component.
acknowledge, generated by the component
acknowledge, generated by the master
Ack
Ack not
Stop
stop condition
8.3.2 Read data format
Status register
Bit7
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
Power on reset
0
Normal
operation
1
Power on reset
AFC value
AFC4
AFC3
AFC2
AFC1
CARRDET – FM carrier detection
0
1
FM carrier not detected
FM carrier detected
VIFLEV - VIF level input
0
1
VIF low level
VIF high level
AFCWIN - AFC window (Note 1)
0
1
Tuning out of window (+/- 1.6 MHz)
Tuning in window (+/- 1.6 MHz)
Note1. If no IF input is applied, then bit AFCWIN = 1 due to the fact that the VCO is forced to the AFC window border for
fast load-in behaviour.
Automatic Frequency Control fVIF Versus f0
VIF ≤ f0 – 187.5 kHz
AFC4
AFC3
AFC2
AFC1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
f
fVIF = f0 – 162.5 kHz
fVIF = f0 – 137.5 kHz
fVIF = f0 – 112.5 kHz
fVIF = f0 – 87.5 kHz
fVIF = f0 – 62.5 kHz
fVIF = f0 – 37.5 kHz
fVIF = f0 – 12.5 kHz
fVIF = f0 + 12.5 kHz
fVIF = f0 + 37.5 kHz
fVIF = f0 + 62.5 kHz
fVIF = f0 + 87.5 kHz
fVIF = f0 + 112.5 kHz
fVIF = f0 + 137.5 kHz
fVIF = f0 + 162.5 kHz
f
VIF ≥ f0 + 187.5 kHz
3X8168 ED
13/14
Page:
November 02
8168ED01.DOC
9. ESD Protection
The frontend contains components that can be damaged by static discharge.
Observe these precautions:
Ground yourself before handling the frontend.
Do not touch the frontend connector pins without ESD protection.
NAME
J. Kreil
DATE
07.November 2002
01
REV.:
FÄM.- NO.
DATE
07.11.2002
J. Kreil
NAME
SIGNATURE
3X8168 ED
14/14
Page:
November 02
8168ED01.DOC
厂商 型号 描述 页数 下载

ETC

 		3X8168 目标规范电气数据[ TARGET SPECIFICATION ELECTRICAL DATA ] 14 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.215010s
