4N23U

型号:

4N23U

品牌:

MII[ Micropac Industries ]

页数:

2 页

PDF大小:

113 K

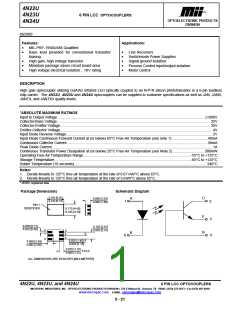

4N22U
4N23U
4N24U
6 PIN LCC OPTOCOUPLERS
OPTOELECTRONIC PRODUCTS
DIVISION
05/29/03
Features:
Applications:
MIL-PRF-19500/486 Qualified
Line Receivers
Base lead provided for conventional transistor
biasing
Switchmode Power Supplies
Signal ground isolation
High gain, high voltage transistor
Miniature package saves circuit board area
High voltage electrical isolation…1KV rating
Process Control input/output isolation
Motor control
DESCRIPTION
High gain optocoupler utilizing GaAIAs infrared LED optically coupled to an N-P-N silicon phototransistor in a 6-pin leadless
chip carrier. The 4N22U, 4N23U and 4N24U optocouplers can be supplied to customer specifications as well as JAN, JANS,
JANTX, and JANTXV quality levels.
*ABSOLUTE MAXIMUM RATINGS
Input to Output Voltage.................................................................................................................................................... ±1000V
Collector-Base Voltage...........................................................................................................................................................35V
Collector-Emitter Voltage........................................................................................................................................................35V
Emitter-Collector Voltage..........................................................................................................................................................4V
Input Diode Reverse Voltage....................................................................................................................................................2V
Input Diode Continuous Forward Current at (or below) 65°C Free-Air Temperature (see note 1)....................................40mA
Continuous Collector Current ..............................................................................................................................................50mA
Peak Diode Current ..................................................................................................................................................................1A
Continuous Transistor Power Dissipation at (or below) 25°C Free-Air Temperature (see Note 2) ................................300mW
Operating Free-Air Temperature Range ............................................................................................................-55°C to +125°C
Storage Temperature..........................................................................................................................................-65°C to +125°C
Solder Temperature (10 seconds)...................................................................................................................................... 240°C
Notes:
1. Derate linearly to 125°C free-air temperature at the rate of 0.67 mA/°C above 65°C.
2. Derate linearly to 125°C free-air temperature at the rate of 3 mW/°C above 65°C.
* JEDEC registered data
Package Dimensions
Schematic Diagram
0.250 [6.35]
C
A
0.080 [2.03]
0.066 [1.68]
0.240 [6.10]
1
3
PIN 1
IDENTIFIER
0.175 [4.45]
0.165 [4.19]
E
B
5
4
0.028 [0.71]
0.022 [0.56]
0.105 [2.67]
0.095 [2.41]
2
1
3
K
6
4
5
6
0.055 [1.40]
0.045 [1.14]
0.098 [2.49]
0.082 [2.08]
0.070 [1.78]
0.060 [1.52]
5 PLS
ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]
4N22U, 4N23U, and 4N24U
6 PIN LCC OPTOCOUPLERS
MICROPAC INDUSTRIES, INC. OPTOELECTRONIC PRODUCTS DIVISION 725 E.Walnut St., Garland, TX 75040 (972) 272-3571 Fax (972) 487-6918
www.micropac.com E-MAIL: optosales@micropac.com
5 - 21
05/29/03
ELECTRICAL CHARACTERISTICS INPUT LED
°
TA = 25 C Unless otherwise specified
PARAMETER
Input Diode Static Reverse Current
Input Diode Static Forward Voltage
SYMBOL MIN MAX
UNITS
TEST CONDITIONS
NOTE
I
R
100
1.5
1.3
1.2
µA
V
= 2V
R
°
-55 C
1.0
0.8
0.7
°
+25 C
V
F
V
I
F
= 10mA
°
+100 C
OUTPUT TRANSISTOR
°
TA = 25 C Unless otherwise specified
PARAMETER
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage
Emitter-Base Breakdown Voltage
SYMBOL MIN
(BR)CBO
(BR)CEO
(BR)EBO
MAX UNITS
TEST CONDITIONS
NOTE
NOTE
V
V
V
35
35
4
V
V
V
I = 100µA, I = 0, I = 0
C B F
I
= 1mA, I = 0, I = 0
C
B F
I = 0, I = 100µA, I = 0
C
E
F
COUPLED CHARACTERISTICS
°
TA = 25 C Unless otherwise specified
PARAMETER
SYMBOL MIN
MAX UNITS
TEST CONDITIONS
On State Collector Current
On State Collector Current
On State Collector Current
4N22U
0.15
mA
V = 5V, I = 0, I = 2mA
CE B F
4N23U
4N24U
4N22U
4N23U
4N24U
4N22U
4N23U
4N24U
4N22U
4N23U
4N24U
I
I
I
I
0.2
0.4
2.5
6.0
10.0
1.0
2.5
4.0
1.0
2.5
4.0
C(ON)
C(ON)
C(ON)
C(ON)
mA
mA
mA
V
CE
V
CE
V
CE
= 5V, I = 0, I = 10mA
B F
°
-55 C
= 5V, I = 0, I = 10mA
B F
On State Collector Current
°
+100 C
= 5V, I = 0, I = 10mA
B F
°
Off State Collector Current +25 C
I
100
100
0.3
0.3
0.3
nA
µA
V
V
V
V
V
= 20V, I = 0, I = 0mA
B F
C(OFF)
C(OFF)
CE(SAT)
CE(SAT)
CE(SAT)
CE
°
Off State Collector Current +100 C
I
V
V
V
= 20V, I = 0, I = 0mA
CE
B F
Collector-Emitter Saturation Voltage
4N22U
4N23U
4N24U
ALL
I
= 2.5mA, I = 0, I = 20mA
C
B
F
I = 5mA, I = 0, I = 20mA
C B F
I
= 10mA, I = 0, I = 20mA
C
B
F
11
Input to Output Resistance
Input to Output Capacitance
Rise Time
RI
-O
10
V
= 1kV
1
1
IN-OUT
ALL
C
5
pF
µs
µs
µs
µs
µs
µs
f = 1MHz, V
= 1kV
I-O
IN-OUT
4N22U
4N23U
4N24U
4N22U
4N23U
4N24U
t
t
t
15
15
20
15
15
20
r
r
r
V
V
= 10V, I = 10mA, R = 100Ω
CC
F
L
Fall Time
t
t
t
f
f
f
= 10V, I = 10mA, R = 100Ω
CC
F
L
NOTE: 1. These parameters are measured between all phototransistor leads shorted together and with both input diode leads shorted together.
SELECTION GUIDE
PART NUMBER
4N22U
PART DESCRIPTION
Commercial
4N23U
Commercial
4N24U
Commercial
JAN4N22U
JAN4N23U
JAN4N24U
JANTX4N22U
JANTX4N23U
JANTX4N24U
JANTXV4N22U
JANTXV4N23
JANTXV4N24U
JANS4N22U
JANS4N23U
JANS4N24U
JAN Screened
JAN Screened
JAN Screened
JANTX Screened
JANTX Screened
JANTX Screened
JANTXV Screened
JANTXV Screened
JANTXV Screened
JANS Screened
JANS Screened
JANS Screened
MICROPAC INDUSTRIES, INC. OPTOELECTRONIC PRODUCTS DIVISION 725 E.Walnut St., Garland, TX 75040 (972) 272-3571 Fax (972) 487-6918
www.micropac.com E-MAIL: optosales@micropac.com
5 - 21
