5SDD11D2800

型号：

5SDD11D2800

描述：

整流器器二极管[ Rectifier Diode ]

品牌：

ABB[ THE ABB GROUP ]

页数：

6 页

PDF大小：

110 K

下载PDF手册

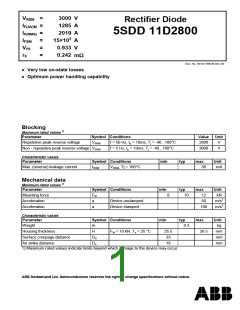

VRSM
IF(AV)M
IF(RMS)
IFSM
=
=
=
=
=
=
3000 V
1285 A
Rectifier Diode
5SDD 11D2800
2019 A
15×103 A
VF0
0.933 V
rF
0.242
mW
Doc. No. 5SYA1166-00 Okt. 03
· Very low on-state losses
· Optimum power handling capability
Blocking
Maximum rated values 1)
Parameter
Symbol Conditions
Value
2800
3000
Unit
V
Repetetive peak reverse voltage
VRRM
f = 50 Hz, tp = 10ms, Tj = -40...160°C
f = 5 Hz, tp = 10ms, Tj = -40...160°C
Non - repetetive peak reverse voltage VRSM
V
Characteristic values
Parameter
Symbol Conditions
IRRM VRRM, Tj = 160°C
min
typ
typ
max
30
Unit
Max. (reverse) leakage current
mA
Mechanical data
Maximum rated values 1)
Parameter
Symbol Conditions
min
max
Unit
kN
m/s2
m/s2
Mounting force
Acceleration
Acceleration
FM
8
10
12
50
a
a
Device unclamped
Device clamped
100
Characteristic values
Parameter
Symbol Conditions
min
25.5
typ
0.3
max
26.5
Unit
kg
Weight
m
Housing thickness
Surface creepage distance
Air strike distance
H
FM = 10 kN, Ta = 25 °C
mm
mm
mm
DS
Da
33
18
1) Maximum rated values indicate limits beyond which damage to the device may occur
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
5SDD 11D2800
On-state
Maximum rated values 1)
Parameter
Symbol Conditions
IF(AV)M 50 Hz, Half sine wave, TC = 85 °C
min
typ
max
1285
Unit
Max. average on-state
current
A
2019
15×103
Max. RMS on-state current IF(RMS)
A
A
Max. peak non-repetitive
surge current
IFSM
tp = 10 ms, Tj = 160°C,
VR = 0 V
1.125×106
16×103
Limiting load integral
I2t
A2s
A
Max. peak non-repetitive
surge current
IFSM
tp = 8.3 ms, Tj = 160°C,
VR = 0 V
1.066×106
Limiting load integral
I2t
A2s
Characteristic values
Parameter
Symbol Conditions
min
typ
max
Unit
V
1.3
On-state voltage
Threshold voltage
Slope resistance
VF
IF = 1500 A, Tj = 160°C
0.933
0.242
V(T0)
rT
Tj = 160°C
IT = 1500...4500 A
V
mW
Switching
Characteristic values
Parameter
Symbol Conditions
min
typ
max
Unit
Qrr
2200
3000
mAs
Recovery charge
diF/dt = -30 A/µs, VR = 100 V
IFRM = 1000 A, Tj = 160°C
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
Doc. No. 5SYA1166-00 Okt. 03
page 2 of 6
5SDD 11D2800
Thermal
Maximum rated values 1)
Parameter
Symbol Conditions
min
typ
typ
max
Unit
Operating junction
temperature range
Tvj
-40
160
°C
Storage temperature range Tstg
Characteristic values
Parameter
-40
175
°C
Symbol Conditions
min
max
Unit
Thermal resistance junction Rth(j-c)
to case
Double-side cooled
Fm = 8...12 kN
32
K/kW
Rth(j-c)A Anode-side cooled
Fm = 8...12 kN
50
88
8
K/kW
K/kW
K/kW
K/kW
Rth(j-c)C Cathode-side cooled
Fm = 8...12 kN
Thermal resistance case to Rth(c-h)
heatsink
Double-side cooled
Fm = 8...12 kN
Rth(c-h)
Single-side cooled
Fm = 8...12 kN
16
Analytical function for transient thermal
impedance:
n
-t/ti
Z
(t) = R (1-e )
å
th(j-c)
th i
i=1
i
1
2
3
4
Rth i(K/kW) 11.600
0.7033
10.110
0.2185
7.870
0.0588
2.410
0.0042
ti(s)
Fig. 1 Transient thermal impedance junction-to-
case.
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
Doc. No. 5SYA1166-00 Okt. 03
page 3 of 6
5SDD 11D2800
9000
8000
7000
6000
5000
4000
3000
2000
1000
0
30
25
20
15
10
5
3
I FSM
25°C
25 °C 160 °C
2,5
160°C
i2dt
25°C
2
160 °C
1,5
1
0,5
0
0
0
1
2
3
V F
( V )
1
10
100
t ( ms )
Fig. 2 Max. on-state characteristics.
Fig. 3 Surge forward current vs. pulse length. Half
sine wave, single pulse, VR = 0 V
2500
2500
60° 120° 180°
= 30° 60° 90° 120° 180°
y
270°
DC
DC
2000
1500
1000
500
0
2000
1500
1000
500
0
0
400
800
1200
1600
0
500
1000
1500
IFAV
I FAV
( A )
( A )
Fig. 4 Forward power loss vs. average forward
Fig. 5 Forward power loss vs. average forward
current, sine waveform, f = 50 Hz
current, square waveform, f = 50 Hz
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
Doc. No. 5SYA1166-00 Okt. 03
page 4 of 6
5SDD 11D2800
170
160
150
140
130
120
110
100
90
170
160
150
140
130
120
110
100
90
DC
DC
270°
80
80
70
70
180°
60
60
60°
120°180°
1600
( A )
= 30° 60° 90° 120°
y
0
400
800
1200
0
400
800
1200
1600
IFAV
( A )
IFAV
Fig. 6 Max. case temperature vs aver. forward
Fig. 7 Max. case temperature vs aver. forward
current, sine waveform, f = 50 Hz
current, square waveform, f = 50 Hz
1000
10000
1000
max
100
max
min
min
100
10
1
10 dIF/dt
100
( A/µs )
dIF /dt
( A/µs )
1
10
100
Fig. 8 Reverse recovery charge vs. dIF/dt,
Fig. 9 Peak reverse recovery current vs. diF/dt,
IF= 1000 A; Tj = Tjmax, limit values
IF = 1000 A; Tj = Tjmax, limit values
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
Doc. No. 5SYA1166-00 Okt. 03
page 5 of 6
5SDD 11D2800
Fig. 10 Outline drawing. All dimensions are in millimeters and represent nominal values unless stated otherwise.
Related application notes:
Doc. Nr
Titel
5SYA 2020
5SYA 2029
5SYA 2036
Design of RC-Snubbers for Phase Control Applications
Designing Large Rectifiers with High Power Diodes
Recommendations regarding mechanical clamping of Press Pack High Power Semiconductors
Please refer to http://www.abb.com/semiconductors for actual versions.
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
ABB Switzerland Ltd
Semiconductors
Doc. No. 5SYA1166-00 Okt. 03
Fabrikstrasse 3
CH-5600 Lenzburg, Switzerland
Telephone +41 (0)58 586 1419
Fax
+41 (0)58 586 1306
Email
Internet
abbsem@ch.abb.com
www.abb.com/semiconductors
