5SDD33L5500

型号：

5SDD33L5500

描述：

整流器器二极管[ Rectifier Diode ]

品牌：

ABB[ THE ABB GROUP ]

页数：

6 页

PDF大小：

829 K

下载PDF手册
VRSM
IF(AV)M
IF(RMS)
IFSM
=
=
=
=
=
=
5500 V
3480 A
5470 A
46×103 A
0.94 V

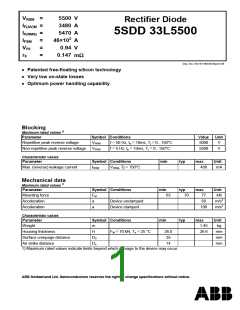

Rectifier Diode
5SDD 33L5500
VF0
rF
0.147
mW
Doc. No. 5SYA1168-00 March 05
· Patented free-floating silicon technology
· Very low on-state losses
· Optimum power handling capability
Blocking
Maximum rated values 1)
Parameter
Symbol Conditions
Value
5000
5500
Unit
V
Repetitive peak reverse voltage
Non-repetitive peak reverse voltage
VRRM
VRSM
f = 50 Hz, tp = 10ms, Tj = 0...150°C
f = 5 Hz, tp = 10ms, Tj = 0...150°C
V
Characteristic values
Parameter
Symbol Conditions
min
typ
typ
max
400
Unit
Max. (reverse) leakage current
IRRM
VRRM, Tj = 150°C
mA
Mechanical data
Maximum rated values 1)
Parameter
Symbol Conditions
min
max
Unit
kN
m/s2
m/s2
Mounting force
Acceleration
Acceleration
FM
63
70
77
50
a
a
Device unclamped
Device clamped
100
Characteristic values
Parameter
Symbol Conditions
min
26.0
typ
max
Unit
kg
Weight
m
1.45
26.6
Housing thickness
Surface creepage distance
Air strike distance
H
FM = 70 kN, Ta = 25 °C
mm
mm
mm
DS
Da
35
14
1) Maximum rated values indicate limits beyond which damage to the device may occur
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
5SDD 33L5500
On-state
Maximum rated values 1)
Parameter
Symbol Conditions
IF(AV)M 50 Hz, Half sine wave, TC = 90 °C
min
typ
max
3480
Unit
Max. average on-state
current
A
Max. RMS on-state current IF(RMS)
5470
46×103
A
A
Max. peak non-repetitive
surge current
IFSM
tp = 10 ms, Tj = 150°C,
VR = 0 V
Limiting load integral
I2t
10.6×106 A2s
49.2×103
Max. peak non-repetitive
surge current
IFSM
tp = 8.3 ms, Tj = 150°C,
VR = 0 V
A
Limiting load integral
I2t
10.06×106 A2s
Characteristic values
Parameter
Symbol Conditions
min
typ
max
1.68
Unit
V
On-state voltage
Threshold voltage
Slope resistance
VF
IF = 5000 A, Tj = 150°C
V(T0)
rT
Tj = 150°C
IT = 3000...8000 A
0.94
V
0.147
mW
Switching
Characteristic values
Parameter
Symbol Conditions
Qrr diF/dt = -10 A/µs, VR = 200 V
IFRM = 4000 A, Tj = 150°C
min
typ
max
Unit
10000
mAs
Recovery charge
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
Doc. No. 5SYA1168-00 March 05
page 2 of 6
5SDD 33L5500
Thermal
Maximum rated values 1)
Parameter
Symbol Conditions
min
typ
typ
max
Unit
Operating junction
temperature range
Tvj
0
150
°C
Storage temperature range Tstg
Characteristic values
Parameter
-40
150
°C
Symbol Conditions
min
max
Unit
Thermal resistance junction Rth(j-c)
to case
Double-side cooled
Fm = 63...77 kN
7
K/kW
Rth(j-c)A Anode-side cooled
Fm = 63...77 kN
14
14
1.5
3
K/kW
K/kW
K/kW
K/kW
Rth(j-c)C Cathode-side cooled
Fm = 63...77 kN
Thermal resistance case to Rth(c-h)
heatsink
Double-side cooled
Fm = 63...77 kN
Rth(c-h)
Single-side cooled
Fm = 63...77 kN
Analytical function for transient thermal
impedance:
n
-t/ti
Z
(t) = R (1-e )
å
th(j-c)
th i
i=1
i
1
2
3
4
Rth i(K/kW)
4.701
0.5463
1.401
0.0746
0.611
0.0087
0.298
0.0021
ti(s)
Fig. 1 Transient thermal impedance junction-to-
case.
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
Doc. No. 5SYA1168-00 March 05
page 3 of 6
5SDD 33L5500
Max. on-state characteristic model:
Max. on-state characteristic model:
= A + B ×I +C ×ln(I +1)+ D × I
F
VF150
= A + B ×I +C ×ln(I +1)+ D × I
Tvj
Tvj
F
Tvj
F
Tvj
VF25
Tvj
Tvj
F
Tvj
F
Tvj
F
Valid for IF = 300 – 70000 A
Valid for IF = 300 – 70000 A
A25
-352.00×10-6
B25
38.50×10-6
C25
127×10-3
D25
4.47×10-3
A150
B150
C150
D150
95.90×10-6
89.80×10-6
90.50×10-3
6.60×10-3
Fig. 2 Isothermal on-state characteristics
Fig. 3 Isothermal on-state characteristics
Fig. 4 On-state power losses vs average on-state
Fig. 5 Max. permissible case temperature vs
current.
average on-state current.
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
Doc. No. 5SYA1168-00 March 05
page 4 of 6
5SDD 33L5500
Fig. 6 Surge on-state current vs. number of pulses.
Fig. 7 Surge on-state current vs. number of pulses.
Half-sine wave, 10 ms, 50Hz.
Half-sine wave, 10 ms, 50Hz.
Fig. 8 Recovery charge vs. decay rate of on-state
Fig. 9 Peak reverse recovery current vs. decay rate
current.
of on-state current.
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
Doc. No. 5SYA1168-00 March 05
page 5 of 6
5SDD 33L5500
Fig. 10 Outline drawing. All dimensions are in millimeters and represent nominal values unless stated otherwise.
Related application notes:
Doc. Nr
Titel
5SYA 2020
5SYA 2029
5SYA 2036
Design of RC-Snubbers for Phase Control Applications
Designing Large Rectifiers with High Power Diodes
Recommendations regarding mechanical clamping of Press Pack High Power Semiconductors
Please refer to http://www.abb.com/semiconductors for actual versions.
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
ABB Switzerland Ltd
Semiconductors
Doc. No. 5SYA1168-00 March 05
Fabrikstrasse 3
CH-5600 Lenzburg, Switzerland
Telephone +41 (0)58 586 1419
Fax
+41 (0)58 586 1306
Email
Internet
abbsem@ch.abb.com
www.abb.com/semiconductors
