5STB17N5200

型号：

5STB17N5200

描述：

双向晶闸管控制[ Bi-Directional Control Thyristor ]

品牌：

ABB[ THE ABB GROUP ]

页数：

6 页

PDF大小：

221 K

下载PDF手册
VSM
ITAVM
ITRMS
ITSM
VT0
=
=
=
5200 V
1800 A
2830 A

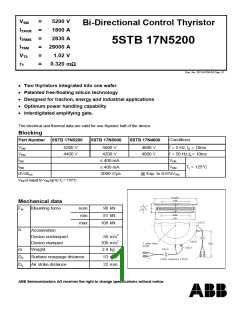

Bi-Directional Control Thyristor
5STB 17N5200
= 29000 A
=
=
1.02 V
0.320
rT
mΩ
Doc. No. 5SYA1036-03 Sep. 01
• Two thyristors integrated into one wafer
• Patented free-floating silicon technology
• Designed for traction, energy and industrial applications
• Optimum power handling capability
• Interdigitated amplifying gate.
The electrical and thermal data are valid for one thyristor half of the device.
Blocking
Conditions
Part Number
5STB 17N5200
5STB 17N5000
5STB 17N4600
VSM
VRM
ISM
IRM
dV/dtcrit
5200 V
4400 V
5000 V
4200 V
≤ 400 mA
≤ 400 mA
2000 V/µs
4600 V
4000 V
f = 5 Hz, tp = 10ms
f = 50 Hz,tp = 10ms
VSM
VRM
@ Exp. to 0.67xVSM
Tj = 125°C
VRM is equal to VSM up to Tj = 110°C
Mechanical data
FM
Mounting force
nom.
min.
90 kN
81 kN
max.
108 kN
a
Acceleration
Device unclamped
Device clamped
Weight
50 m/s2
100 m/s2
2.9 kg
m
DS
Da
Surface creepage distance
Air strike distance
53 mm
22 mm
ABB Semiconductors AG reserves the right to change specifications without notice.
5STB 17N5200
On-state
ITAVM
Max. average on-state
1800 A
2830 A
Half sine wave, TC = 70°C
t
ITRMS
Max. RMS on-state current
ITSM
Max. peak non-repetitive
surge current
29000 A
31000 A
4205 kA2s
3990 kA2s
1.68 V
tp
tp
tp
tp
IT
=
=
=
=
=
=
10 ms T
j
= 125°C
8.3 ms After surge:
10 ms VD = VR = 0V
8.3 ms
I2t
Limiting load integral
VT
VT0
rT
On-state voltage
Threshold voltage
Slope resistance
Holding current
2000 A
1.02 V
IT
1000 - 3000 A Tj = 125°C
0.320
mΩ
IH
50-250 mA
25-150 mA
100-500 mA
50-300 mA
Tj
Tj
Tj
Tj
= 25°C
= 125°C
= 25°C
= 125°C
IL
Latching current
Switching
di/dtcrit Critical rate of rise of on-state
current
250 A/µs Cont. f = 50 Hz
VD ≤ 0.67⋅VDRM , Tj = 125°C
ITRM = 3000 A
500 A/µs 60 sec.
f = 50Hz
IFG = 2 A, tr = 0.5 µs
IFG = 2 A, tr = 0.5 µs
ITRM = 3000 A, Tj = 125°C
td
tq
Delay time
3.0 µs
≤
≤
VD = 0.4⋅VDRM
VD ≤ 0.67⋅VDRM
Turn-off time
700 µs
dvD/dt = 20V/µs VR > 200 V, diT/dt = -1.5 A/µs
Qrr
Recovery charge
min
4000 µAs
5200 µAs
max
Triggering
VGT
IGT
Gate trigger voltage
Gate trigger current
2.6 V
Tj = 25°C
≤
≤
≥
≥
400 mA Tj = 25°C
VGD
IGD
Gate non-trigger voltage
Gate non-trigger current
Peak forward gate voltage
Peak forward gate current
Peak reverse gate voltage
Maximum gate power loss
0.3 V
10 mA
12 V
10 A
10 V
3 W
Tj = 125°C
Tj = 125°C
VD = 0.4⋅VRM
VD = 0.4⋅VRM
VFGM
IFGM
VRGM
PG
ABB Semiconductors AG reserves the right to change specifications without notice.
Doc. No. 5SYA1036-03 Sep. 01
page 2 of 6
5STB 17N5200
Thermal
Tj
Operating junction temperature range
-40…125 °C
-40…150 °C
22.8 K/kW
Tstg
RthJC
Storage temperature range
Thermal resistance
Anode side cooled
junction to case
22.8 K/kW
11.4 K/kW
4 K/kW
Cathode side cooled
Double side cooled
Single side cooled
Double side cooled
RthCH
Thermal resistance case to
heat sink
2 K/kW
Analytical function for transient thermal
impedance:
ZthJC [K/kW]
15
10
5
180° sine:
add 1 K/kW
180° rectangular: add 1 K/kW
120° rectangular: add 1 K/kW
60° rectangular: add 2 K/kW
n
(t) = åR
ZthJC
i
(1-e-t/τ i )
i=1
Fm = 81..108 kN
Double-side cooling
i
1
2
3
4
0
Ri(K/kW)
6.77
2.51
1.34
0.78
0.001
0.010
0.100
1.000
10.000
t [s]
0.8651
0.1558
0.0212
0.0075
τi(s)
Fig. 1 Transient thermal impedance junction to case.
On-state characteristic model:
VT = A+ B⋅iT +C⋅ln(iT +1)+ D⋅ IT
Valid for iT = 500 – 4000 A
A
B
C
D
1.309
0.00008
-0.125
0.026
Fig. 2 On-state characteristics.
Fig. 3 On-state characteristics.
ABB Semiconductors AG reserves the right to change specifications without notice.
Doc. No. 5SYA1036-03 Sep. 01
page 3 of 6
5STB 17N5200
Tcase (°C)
130
Double-sided cooling
125
120
115
110
105
100
95
DC
180° rectangular
180° sine
120° rectangular
90
85
80
75
70
0
500
1000
1500
2000
2500
3000
IT
A
V
(A)
Fig. 4 On-state power dissipation vs. mean on-
state current. Turn - on losses excluded.
Fig. 5 Max. permissible case temperature vs.
mean on-state current.
Fig. 6 Surge on-state current vs. pulse length.
Half-sine wave.
Fig. 7 Surge on-state current vs. number of
pulses. Half-sine wave, 10 ms, 50Hz.
ABB Semiconductors AG reserves the right to change specifications without notice.
Doc. No. 5SYA1036-03 Sep. 01
page 4 of 6
5STB 17N5200
Fig. 8 Gate trigger characteristics.
Fig. 9 Max. peak gate power loss.
Q
rr(µAs)
( )
RM A
I
103
30000
20000
800
700
ITRM = 3000 A
Tj = Tjmax
ITRM = 3000 A
Tj = Tjmax
600
500
400
300
104
8000
7000
200
6000
102
5000
80
70
4000
3000
60
20001
2
3
4
5
6
7
8 910
20
30
30
30
-diT/dt (A/µs)
1
2
3
4
5
6
7
8 910
20
-diT/dt (A/µs)
Fig. 10 Recovery charge vs. decay rate of on-
state current.
Fig. 11 Peak reverse recovery current vs. decay
rate of on-state current.
Turn - off time, typical parameter relationship.
f2 (-diT /dt)
1.3
1.2
1.1
1.0
0
4
8
12 16 20 24 28 32
di /dt (A/µs)
-
T
Fig. 12 tq/tq1 = f1(Tj)
Fig. 13 tq/tq1 = f2(-diT/dt)
Fig. 14 tq/tq1 = f3(dv/dt)
tq1 :at normalized values (see page 2)
tq : at varying conditions
tq = tq1 • f1(Tj) • f2(-diT/dt) • f3(dv/dt)
ABB Semiconductors AG reserves the right to change specifications without notice.
Doc. No. 5SYA1036-03 Sep. 01
page 5 of 6
5STB 17N5200
Turn-on and Turn-off losses
Won (Ws/pulse)
3.0
W
(Ws/pulse)
on
5
di/dt = 10 A/µs
tp
tp
tp
=
=
=
1 ms
2 ms
5 ms
di/dt = 5 A/µs
di/dt = 2 A/µs
di/dt = 1 A/µs
2.5
2.0
1.5
1.0
0.5
0.0
4
3
2
1
0
tp = 10 ms
0
1
2
3
4
5
6
8
7 IT (kA)
0
1
2
3
4
5
6
8
7 IT (kA)
Fig. 15Won = f(IT, tP), Tj = 125 °C.
Half sinusoidal waves.
Fig. 16Won = f(IT, di/dt), Tj = 125 °C.
Rectangular waves.
W
(Ws/pulse)
W
off (Ws/pulse)
off
18
10
9
8
7
6
5
4
3
2
1
0
di/dt = 10 A/µs
di/dt = 5 A/µs
di/dt = 2 A/µs
di/dt = 1 A/µs
16
14
12
10
8
ITRM = 8000 A
I
I
TRM = 6000 A
TRM = 4000 A
6
4
2
0
0.0
0.4
0.8
1.2
1.6
2.0
2.4
2.8
V0 (kV)
0.0
0.4
0.8
1.2
1.6
2.0
2.4
2.8
V0 (kV)
Fig. 17Woff = f(V0, IT), Tj = 125 °C.
Half sinusoidal waves. tP = 10 ms.
Fig. 18Woff = f(V0,di/dt), Tj = 125 °C.
Rectangular waves.
ABB Semiconductors AG reserves the right to change specifications without notice.
ABB Semiconductors AG
Fabrikstrasse 3
Doc. No. 5SYA1036-03 Sep. 01
CH-5600 Lenzburg, Switzerland
Telephone +41 (0)62 888 6419
Fax
+41 (0)62 888 6306
abbsem@ch.abb.com
www.abbsem.com
Email
Internet
