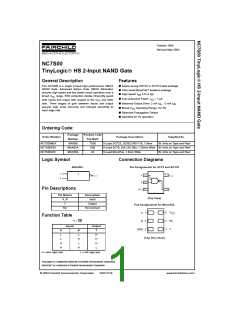

October 1995
Revised May 2003
NC7S00
TinyLogic HS 2-Input NAND Gate
General Description
Features
■ Space saving SOT23 or SC70 5-lead package
■ Ultra small MicroPak leadless package
■ High speed: tPD 3.5 ns typ
The NC7S00 is a single 2-Input high performance CMOS
NAND Gate. Advanced Silicon Gate CMOS fabrication
assures high speed and low power circuit operation over a
broad VCC range. ESD protection diodes inherently guard
■ Low Quiescent Power: ICC < 1 µA
both inputs and output with respect to the VCC and GND
■ Balanced Output Drive: 2 mA IOL, −2 mA IOH
■ Broad VCC Operating Range: 2V−6V
rails. Three stages of gain between inputs and output
assures high noise immunity and reduced sensitivity to
input edge rate.
■ Balanced Propagation Delays
■ Specified for 3V operation
Ordering Code:
Package
Number
MA05B
Product Code
Top Mark
7S00
Order Number
Package Description
Supplied As
3k Units on Tape and Reel
NC7S00M5X
NC7S00P5X
NC7S00L6X
5-Lead SOT23, JEDEC MO-178, 1.6mm
MAA05A
MAC06A
S00
5-Lead SC70, EIAJ SC-88a, 1.25mm Wide 3k Units on Tape and Reel
6-Lead MicroPak, 1.0mm Wide 5k Units on Tape and Reel
A3
Logic Symbol
Connection Diagrams
IEEE/IEC
Pin Assignments for SC70 and SOT23
Pin Descriptions
Pin Names
Description
Input
(Top View)
A, B
Y
Output
Pad Assignments for MicroPak
NC
No Connect
Function Table
Y = AB
Inputs
Output
A
L
B
L
Y
H
H
H
L
(Top Thru View)
L
H
L
H
H
H
H = HIGH Logic Level
L = LOW Logic Level
TinyLogic is a registered trademark of Fairchild Semiconductor Corporation.
MicroPak is a trademark of Fairchild Semiconductor Corporation.
© 2003 Fairchild Semiconductor Corporation
DS012138
www.fairchildsemi.com
Absolute Maximum Ratings(Note 1)
Recommended Operating
Conditions (Note 2)
Supply Voltage (VCC
)
−0.5V to +7.0V
DC Input Diode Current (IIK
@VIN ≤ −0.5V
)
Supply Voltage (VCC
Input Voltage (VIN
Output Voltage (VOUT
)
2.0V−6.0V
0V−VCC
−20 mA
+20 mA
)
@VIN ≥ VCC + 0.5V
)
0V−VCC
DC Input Voltage (VIN
)
−0.5V to VCC + 0.5V
Operating Temperature (TA)
Input Rise and Fall Time (tr, tf)
−40°C to +85°C
DC Output Diode Current (IOK
@VOUT < −0.5V
)
−20 mA
+20 mA
V
CC @ 2.0V
0−1000 ns
0−750 ns
0−500 ns
0−400 ns
@VOUT > VCC + 0.5V
VCC @ 3.0V
DC Output Voltage (VOUT
)
−0.5V to VCC+ 0.5V
V
V
CC @ 4.5V
CC @ 6.0V
DC Output Source
or Sink Current (IOUT
)
±12.5 mA
Thermal Resistance (θJA
)
DC VCC or Ground Current
per Output Pin (ICC or IGND
SOT23-5
300°C/W
425°C/W
)
±25 mA
−65°C to +150°C
150°C
SC70-5
Storage Temperature (TSTG
Junction Temperature (TJ)
Lead Temperature (TL);
(Soldering, 10 seconds)
)
Note 1: Absolute maximum ratings are those values beyond which damage
to the device may occur. The databook specifications should be met, with-
out exception, to ensure that the system design is reliable over its power
supply, temperature, and output/input loading variables. Fairchild does not
recommend operation of circuits outside the databook specifications.
260°C
Power Dissipation (PD) @ +85°C
Note 2: Unused inputs must be held HIGH or LOW. They may not float.
SOT23-5
SC70-5
200 mW
150 mW
DC Electrical Characteristics
VCC
T
A = +25°C
TA = −40°C to +85°C
Symbol
VIH
Parameter
Units
Conditions
(V)
2.0
Min
1.50
Typ
Max
Min
Max
HIGH Level Input Voltage
1.50
V
V
3.0 - 6.0
2.0
0.7 VCC
0.7VCC
VIL
LOW Level Input Voltage
HIGH Level Output Voltage
0.50
0.50
3.0 - 6.0
2.0
0.3VCC
0.3 VCC
VOH
1.90
2.90
4.40
5.90
2.0
3.0
4.5
6.0
1.90
2.90
4.40
5.90
3.0
IOH = −20 µA
V
V
V
V
4.5
V
IN = VIL
6.0
V
IN= VIL
3.0
4.5
6.0
2.0
3.0
4.5
6.0
2.68
4.18
5.68
2.85
4.35
5.85
0.0
2.63
4.13
5.63
I
I
I
OH = −1.3 mA
OH = −2 mA
OH = −2.6 mA
VOL
LOW Level Output Voltage
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.0
I
OL = 20 µA
0.0
V
IN = VIH
0.0
V
IN = VIH
3.0
4.5
6.0
6.0
6.0
0.1
0.1
0.1
0.26
0.26
0.26
±0.1
1.0
0.33
0.33
0.33
±1.0
10.0
I
I
I
OL = 1.3 mA
OL = 2 mA
OL = 2.6 mA
IIN
Input Leakage Current
µA
µA
V
V
IN = VCC, GND
IN = VCC, GND
ICC
Quiescent Supply Current
www.fairchildsemi.com
2
AC Electrical Characteristics
VCC
T
A = +25°C
TA = −40°C to +85°C
Figure
Symbol
Parameter
Units Conditions
(V)
5.0
2.0
3.0
4.5
6.0
5.0
2.0
3.0
4.5
6.0
Open
5.0
Min
Typ
3.5
19
10.5
7.5
6.5
3.0
25
16
11
Max
15
Min
Max
Number
tPLH
tPHL
,
Propagation Delay
ns
ns
ns
ns
CL = 15 pF
CL = 50 pF
CL = 15 pF
CL = 50 pF
100
27
125
35
Figures
1, 3
20
25
17
21
tTLH
,
Output Transition Time
10
tTHL
125
35
155
45
31
26
10
Figures
1, 3
25
9
21
CIN
Input Capacitance
2
10
pF
pF
CPD
Power Dissipation Capacitance
6
(Note 3)
Figure 2
Note 3: CPD is defined as the value of the internal equivalent capacitance which is derived from dynamic operating current consumption (ICCD) at no output
loading and operating at 50% duty cycle. (See Figure 2.) CPD is related to ICCD dynamic operating current by the expression:
ICCD = (CPD) (VCC) (fIN) + (ICCstatic).
AC Loading and Waveforms
CL includes load and stray capacitance
Input PRR = 1.0 MHz, tw = 500 ns
FIGURE 1. AC Test Circuit
FIGURE 3. AC Waveforms
Input = AC Waveform;
PRR = variable; Duty Cycle = 50%
FIGURE 2. ICCD Test Circuit
3
www.fairchildsemi.com
Tape and Reel Specification
TAPE FORMAT for SC70 and SOT23
Package
Tape
Number
Cavities
125 (typ)
3000
Cavity
Status
Empty
Filled
Cover Tape
Status
Designator
Section
Leader (Start End)
Carrier
Sealed
M5X, P5X
Sealed
Trailer (Hub End)
75 (typ)
Empty
Sealed
TAPE DIMENSIONS inches (millimeters)
Tape Size
DIM A
DIM B
DIM F
DIM Ko
DIM P1
DIM W
Package
0.093
(2.35)
0.130
(3.3)
0.096
(2.45)
0.130
(3.3)
0.138 ±0.004 0.053 ±0.004
(3.5 ±0.10) (1.35 ±0.10)
0.138 ±0.002 0.055 ±0.004
(3.5 ±0.05) (1.4 ±0.11)
0.157
(4)
0.315 ±0.004
(8 ±0.1)
SC70-5
8 mm
0.157
(4)
0.315 ±0.012
(8 ±0.3)
SOT23-5
8 mm
www.fairchildsemi.com
4
Tape and Reel Specification (Continued)
TAPE FORMAT for MicroPak
Package
Tape
Section
Number
Cavities
125 (typ)
5000
Cavity
Status
Empty
Filled
Cover Tape
Status
Designator
Leader (Start End)
Carrier
Sealed
L6X
Sealed
Trailer (Hub End)
75 (typ)
Empty
Sealed
REEL DIMENSIONS inches (millimeters)
Tape
Size
A
B
C
D
N
W1
W2
W3
7.0
0.059
0.512
0.795
2.165 0.331 +0.059/−0.000
0.567
W1 +0.078/−0.039
(W1 +2.00/−1.00)
8 mm
(177.8) (1.50) (13.00) (20.20) (55.00)
(8.40 +1.50/−0.00)
(14.40)
5
www.fairchildsemi.com
Physical Dimensions inches (millimeters) unless otherwise noted
5-Lead SOT23, JEDEC MO-178, 1.6mm
Package Number MA05B
www.fairchildsemi.com
6
Physical Dimensions inches (millimeters) unless otherwise noted (Continued)
5-Lead SC70, EIAJ SC-88a, 1.25mm Wide
Package Number MAA05A
7
www.fairchildsemi.com
Physical Dimensions inches (millimeters) unless otherwise noted (Continued)
6-Lead MicroPak, 1.0mm Wide
Package Number MAC06A
Fairchild does not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and
Fairchild reserves the right at any time without notice to change said circuitry and specifications.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF FAIRCHILD
SEMICONDUCTOR CORPORATION. As used herein:
1. Life support devices or systems are devices or systems
which, (a) are intended for surgical implant into the
body, or (b) support or sustain life, and (c) whose failure
to perform when properly used in accordance with
instructions for use provided in the labeling, can be rea-
sonably expected to result in a significant injury to the
user.
2. A critical component in any component of a life support
device or system whose failure to perform can be rea-
sonably expected to cause the failure of the life support
device or system, or to affect its safety or effectiveness.
www.fairchildsemi.com
www.fairchildsemi.com
8
