CYM-2B

型号:

CYM-2B

描述:

滤波线圈\u003c SMD型: CYM系列\u003e[ Filter Coils < SMD Type: CYM Series> ]

品牌:

SUMIDA[ SUMIDA CORPORATION ]

页数:

2 页

PDF大小:

74 K

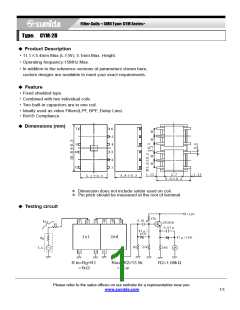

Filter Coils < SMD Type: CYM Series>
Type: CYM-2B
◆ Product Description
・11.1×5.4mm Max.(L×W), 5.1mm Max. Height.
・Operating frequency:15MHz Max.
・In addition to the reference versions of parameters shown here,
custom designs are available to meet your exact requirements.
◆ Feature
・Fixed shielded type.
・Combined with two individual coils
・Two built-in capacitors are in one coil.
・Ideally used as video Filters(LPF, BPF, Delay Line)
・RoHS Compliance
◆ Dimensions (mm)
7
6
5
4
3
2
1
※
※
9
10
※
※
12
1.15
1.15
3.7
6.0±0.3
4.8±0.3
5.1±0.3
* Dimension does not include solder used on coil.
* Pin pitch should be measured at the root of terminal
◆ Testing circuit
+12
27k
0.01μ
Rin
R1
4
5
1
3
6
2
2SC828
0.01μ
47μ/
16
1st
2nd
47μ/16
Rg
R2
27k
560
S.G.
~
10
9
7
12
R in=Rg+R1
Rout=R2//13.5k
R2=1.08kΩ
=1kΩ
=1Kω
Please refer to the sales offices on our website for a representative near you
www.sumida.com
1/1
Filter Coils < SMD Type: CYM Series>
Type: CYM-2B
◆ Specification (Part Number: 2565-T002)
Item
Specification
Input impedance
Output impedance
(R in)
(Rout)
3.5MHz
7~10MHz
0.2MHz
3.0MHz
0.1MHz
1.0kΩ
1.0kΩ
3dB±3.0dB Within
MIN.22dB
300ns±50ns Within
300ns±60ns Within
MAX.1.0dB
Attenuation
Group Delay time
Insertion Loss
Frequency Response (Attenuation 0dB at 0.1MHz)
FREQ. (MHz)
Please refer to the sales offices on our website for a representative near you
www.sumida.com
2/2
