LYE67B-U2AA-26-1

型号:

LYE67B-U2AA-26-1

描述:

功率TOPLED增强光功率LED( HOP2000 )[ Power TOPLED Enhanced optical Power LED (HOP2000) ]

品牌:

OSRAM[ OSRAM GMBH ]

页数:

14 页

PDF大小:

176 K

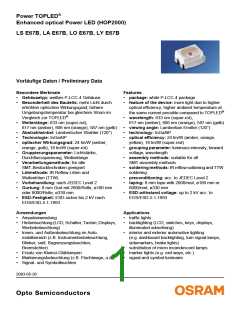

Power TOPLED®
Enhanced optical Power LED (HOP2000)
LS E67B, LA E67B, LO E67B, LY E67B
Vorläufige Daten / Preliminary Data
Besondere Merkmale
Features
Gehäusetyp: weißes P-LCC-4 Gehäuse
Besonderheit des Bauteils: mehr Licht durch
erhöhten optischen Wirkungsgrad; höhere
Umgebungstemperatur bei gleichem Strom im
Vergleich zur TOPLED®
Wellenlänge: 633 nm (super-rot),
617 nm (amber), 606 nm (orange), 587 nm (gelb)
Abstrahlwinkel: Lambertscher Strahler (120°)
Technologie: InGaAlP
optischer Wirkungsgrad: 24 lm/W (amber,
orange, gelb), 18 lm/W (super-rot)
Gruppierungsparameter: Lichtstärke,
Durchflussspannung, Wellenlänge
Verarbeitungsmethode: für alle
SMT-Bestücktechniken geeignet
package: white P-LCC-4 package
feature of the device: more light due to higher
optical efficiency, higher ambient temperature at
the same current possible compared to TOPLED®
wavelength: 633 nm (super-rot),
617 nm (amber), 606 nm (orange), 587 nm (gelb)
viewing angle: Lambertian Emitter (120°)
technology: InGaAlP
optical efficiency: 24 lm/W (amber, orange,
yellow), 18 lm/W (super-red)
grouping parameter: luminous intensity, forward
voltage, wavelength
assembly methods: suitable for all
SMT assembly methods
soldering methods: IR reflow soldering and TTW
soldering
preconditioning: acc. to JEDEC Level 2
taping: 8 mm tape with 2000/reel, ø180 mm or
8000/reel, ø330 mm
ESD-withstand voltage: up to 2 kV acc. to
EOS/ESD-5.1-1993
Lötmethode: IR Reflow Löten und
Wellenlöten (TTW)
Vorbehandlung: nach JEDEC Level 2
Gurtung: 8 mm Gurt mit 2000/Rolle, ø180 mm
oder 8000/Rolle, ø330 mm
ESD-Festigkeit: ESD-sicher bis 2 kV nach
EOS/ESD-5.1-1993
Anwendungen
Applications
Ampelanwendung
traffic lights
Hinterleuchtung (LCD, Schalter, Tasten, Displays,
Werbebeleuchtung)
backlighting (LCD, switches, keys, displays,
illuminated advertising)
Innen- und Außenbeleuchtung im Auto-
mobilbereich (z.B. Instrumentenbeleuchtung,
Blinker, seitl. Begrenzungsleuchten,
Bremslichter)
Ersatz von Kleinst-Glühlampen
Markierungsbeleuchtung (z.B. Fluchtwege, u.ä.)
Signal- und Symbolleuchten
interior and exterior automotive lighting
(e.g. dashboard backlighting, turn signal lamps,
sidemarkers, brake lights)
substitution of micro incandescent lamps
marker lights (e.g. exit ways, etc.)
signal and symbol luminaire
2003-05-26
1
LS E67B, LA E67B, LO E67B, LY E67B
Typ
Emissions- Farbe der
Lichtstärke
Lichtstrom Bestellnummer
farbe
Lichtaustritts-
fläche
Type
Color of
Emission
Color of the
LightEmitting Intensity
Luminous
Luminous
Flux
Ordering Code
Area
IF = 50 mA
IV (mcd)
IF = 50 mA
ΦV (mlm)
LS E67B-T2V1-1-1
super-red
colorless clear 355 ... 900
colorless clear 560 ... 1400
colorless clear 560 ... 1400
colorless clear 560 ... 1400
1900 (typ.)
2900 (typ.)
2900 (typ.)
2900 (typ.)
Q65110A0178
Q62703Q5965
Q62703Q6010
Q62703Q6329
LA E67B-U2AA-24-1 amber
LO E67B-U2AA-24-1 orange
LY E67B-U2AA-26-1 yellow
Anm.: -1-1 gesamter Farbbereich (siehe Seite 4)
-24-1 gesamter Farbbereich, Lieferung in Einzelgruppen (siehe Seite 5)
-26-1 gesamter Farbbereich, Lieferung in Einzelgruppen (siehe Seite 5)
-24-1 gesamter Durchlassspannungsbereich, Lieferung in Einzelgruppen (siehe Seite 5)
-26-1 gesamter Durchlassspannungsbereich, Lieferung in Einzelgruppen (siehe Seite 5)
Die Standardlieferform von Serientypen beinhaltet eine Familiengruppe, die aus
nur 4 Halbgruppen besteht. Einzelne Halbgruppen sind nicht erhältlich.
In einer Verpackungseinheit / Gurt ist immer nur eine Halbgruppe enthalten.
Dimmverhältnis im Gleichstrom-Betrieb max. 5:1
Note: -1-1 Total color tolerance range (please see page 4)
-24-1 Total color tolerance range, delivery in single groups (please see page 5)
-26-1 Total color tolerance range, delivery in single groups (please see page 5)
-24-1 Total forward voltage tolerance, delivery in single groups (see page 5)
-26-1 Total forward voltage tolerance, delivery in single groups (see page 5)
The standard shipping format for serial types includes a group of only 4 individual groups.
Individual half groups are not available.
No packing unit / tape ever contains more than one luminous intensity half group.
Dimming range for direct current mode max. 5:1
2003-05-26
2
LS E67B, LA E67B, LO E67B, LY E67B
Grenzwerte
Maximum Ratings
Bezeichnung
Parameter
Symbol
Symbol
Wert
Value
Einheit
Unit
Betriebstemperatur
Operating temperature range
Top
Tstg
Tj
40 + 100
40 + 100
+ 125
°C
°C
°C
mA
A
Lagertemperatur
Storage temperature range
Sperrschichttemperatur
Junction temperature
Durchlassstrom
Forward current
IF
70
Stoßstrom
IFM
0.1
Surge current
t 10 µs, D = 0.1
Sperrspannung1)
Reverse voltage
VR
12
V
Leistungsaufnahme
Power consumption
Ptot
180
mW
Wärmewiderstand
Thermal resistance
Sperrschicht/Umgebung
Junction/ambient
Sperrschicht/Lötpad
Rth JA
Rth JS
300
130
K/W
K/W
Junction/soldering point
Montage auf PC-Board FR 4 (Padgröße 16 mm2)
mounted on PC board FR 4 (pad size 16 mm 2)
1)
für kurzzeitigen Betrieb geeignet / suitable for short term application
2003-05-26
3
LS E67B, LA E67B, LO E67B, LY E67B
Kennwerte (TA = 25 °C)
Characteristics
Bezeichnung
Parameter
Symbol
Symbol
Werte
Values
Einheit
Unit
LS
LA
LO
LY
Wellenlänge des emittierten Lichtes
Wavelength at peak emission
IF = 50 mA
Dominantwellenlänge 1)
Dominant wavelength
IF = 50 mA
(typ.) λpeak
645
624
610
594
nm
nm
nm
(typ.) λdom
(typ.) ∆λ
(typ.) 2ϕ
633
± 6
617
606
587
5/+7 6/+3 7/+8
Spektrale Bandbreite bei 50 % Irel max
Spectral bandwidth at 50 % Irel max
IF = 50 mA
15
18
16
15
Abstrahlwinkel bei 50 % IV (Vollwinkel)
Viewing angle at 50 % IV
120
120
120
120
Grad
deg.
Durchlassspannung 2)
Forward voltage
IF = 50 mA
(min.) VF
(typ.) VF
(max.) VF
1.9 3) 1.9 4) 1.9
1.9 3)
2.2
2.5
V
V
V
2.2
2.5
2.2
2.5
2.2
2.5
Sperrstrom
Reverse current
VR = 12 V
(typ.) IR
(max.) IR
0.01 0.01 0.01 0.01 µA
10 10 10 10 µA
Temperaturkoeffizient von λpeak
Temperature coefficient of λpeak
IF = 50 mA; 10°C T 100°C
(typ.) TCλpeak
(typ.) TCλdom
(typ.) TCV
0.15 0.15 0.14 0.13 nm/K
0.05 0.07 0.08 0.10 nm/K
3.4 3.7 3.7 3.7 mV/K
Temperaturkoeffizient von λdom
Temperature coefficient of λdom
IF = 50 mA; 10°C T 100°C
Temperaturkoeffizient von VF
Temperature coefficient of VF
IF = 50 mA; 10°C T 100°C
Optischer Wirkungsgrad
Optical efficiency
IF = 50 mA
(typ.) ηopt
18
24
24
24
lm/W
1)
Wellenlängen werden mit einer Stromeinprägedauer von 25 ms und einer Genauigkeit von ±1 nm ermittelt.
Wavelengths are tested at a current pulse duration of 25 ms and a tolerance of ±1 nm.
2)
Durchlassspannungsgruppen werden mit einer Stromeinprägedauer von 1 ms und einer Genauigkeit von ±0,05 V ermittelt.
Forward voltage groups are tested at a current pulse duration of 1 ms and a tolerance of ±0.05 V.
2003-05-26
4
LS E67B, LA E67B, LO E67B, LY E67B
1) Wellenlängengruppen
Wavelength groups
Gruppe
Group
amber
orange
yellow
min. max.
Einheit
Unit
min.
max.
616
620
624
min.
max.
603
606
609
2
3
4
5
6
612
616
620
600
603
606
580
583
586
589
592
583
586
589
592
595
nm
nm
nm
nm
nm
3) Durchlassspannungsgruppen für
super-rot / orange / gelb
4) Durchlassspannungsgruppen für amber
Forward voltage groups for amber
Forward voltage groups for
super-red / orange / yellow
Gruppe
Group
Durchlassspannung
Forward voltage
Einheit
Unit
Gruppe
Group
Durchlassspannung
Forward voltage
Einheit
Unit
min.
max.
2.2
min.
max.
2.05
2.20
2.35
2.50
3
4
1.9
2.2
V
V
3A
3B
4A
4B
1.90
2.05
2.20
2.35
V
V
V
V
2.5
Helligkeits-Gruppierungsschema
Luminous Intensity Groups
Lichtgruppe
Luminous Intensity Group
Lichtstärke
Luminous Intensity
IV (mcd)
Lichtstrom
Luminous Flux
ΦV (mlm)
T2
U1
U2
V1
V2
AA
355 ... 450
450 ... 560
560 ... 710
710 ... 900
900 ... 1120
1120 ... 1400
1200 (typ.)
1500 (typ.)
1900 (typ.)
2400 (typ.)
3000 (typ.)
3750 (typ.)
Helligkeitswerte werden mit einer Stromeinprägedauer von 25 ms und einer Genauigkeit von ±11 % ermittelt.
Luminous intensity is tested at a current pulse duration of 25 ms and a tolerance of ±11 %.
Gruppenbezeichnung auf Etikett
Group Name on Label
Beispiel: AA-3-4A
Example: AA-3-4A
Lichtgruppe
Luminous Intensity Group
Halbgruppe
Half Group
Wellenlänge
Wavelength
Durchlassspannung
Forward Voltage
A
A
3
4A
2003-05-26
5
LS E67B, LA E67B, LO E67B, LY E67B
Relative spektrale Emission Irel = f (λ), TA = 25 °C, IF = 50 mA
Relative Spectral Emission
V(λ) = spektrale Augenempfindlichkeit
Standard eye response curve
OHL00589
100
%
Irel
80
60
40
20
0
V
λ
yellow
orange
amber
super-red
400
450
500
550
600
650
nm
700
λ
Abstrahlcharakteristik Irel = f (ϕ)
Radiation Characteristic
OHL01660
40˚
30˚
20˚
10˚
0˚
ϕ
1.0
50˚
0.8
0.6
0.4
0.2
0
60˚
70˚
80˚
90˚
100˚
1.0
0.8
0.6
0.4
0˚
20˚
40˚
60˚
80˚
100˚
120˚
2003-05-26
6
LS E67B, LA E67B, LO E67B, LY E67B
Durchlassstrom IF = f (VF)
Forward Current
TA = 25 °C
Relative Lichtstärke IV/IV(50 mA) = f (IF)
Relative Luminous Intensity
TA = 25 °C
OHL00590
102
OHL00595
10 1
mA
IV
IV (50 mA)
IF
101
100
10 0
5
10-1
5
10-1
yellow
10-2
super-red,
amber,
5
orange
10-2
10-3
10 -1
10 0
5
10 1
10 2
1.3 1.5 1.7 1.9 2.1 2.3 V 2.5
mA
5
VF
IF
Maximal zulässiger Durchlassstrom IF = f (T)
Max. Permissible Forward Current
Relative Lichtstärke IV/IV(25 °C) = f (TA)
Relative Luminous Intensity
IF = 50 mA
OHL00740
OHL01413
2.0
80
IV
IV(25 ˚C)
mA
IF
70
60
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
T
T
S
A
50
40
30
20
10
0
ΤA temp. ambient
ΤS temp. solder point
0
20
40
60
80 ˚C 100
-40 -20
0
20 40 60
˚C 100
T
T
2003-05-26
7
LS E67B, LA E67B, LO E67B, LY E67B
Zulässige Impulsbelastbarkeit IF = f (tp)
Permissible Pulse Handling Capability
Duty cycle D = parameter, TA = 25 °C
Zulässige Impulsbelastbarkeit IF = f (tp)
Permissible Pulse Handling Capability
Duty cycle D = parameter, TA = 85 °C
OHL01506
OHL01505
0.12
0.12
A
A
F 0.10
IF
I
0.1
0.005
0.05
0.5
0.08
0.06
0.04
0.02
0
0.08
0.005
0.05
0.5
0.06
0.04
0.02
0
10-5 10-4 10-3 10-2 10-1 100 101 s 102
10-5 10-4 10-3 10-2 10-1 100 101 s 102
tp
tp
2003-05-26
8
LS E67B, LA E67B, LO E67B, LY E67B
Maßzeichnung
Package Outlines
3.0 (0.118)
2.6 (0.102)
2.3 (0.091)
2.1 (0.083)
1.7 (0.067)
0.9 (0.035)
2.1 (0.083)
0.8 (0.031)
0.6 (0.024)
C
0.7 (0.028)
A
0.1 (0.004) typ
C
C
0.6 (0.024)
0.4 (0.016)
Package
marking
0.18 (0.007)
0.12 (0.005)
GPLY6991
Maße werden wie folgt angegeben: mm (inch) / Dimensions are specified as follows: mm (inch).
Gewicht / Approx. weight: 35 mg
2003-05-26
9
LS E67B, LA E67B, LO E67B, LY E67B
Lötbedingungen
Vorbehandlung nach JEDEC Level 2
Soldering Conditions Preconditioning acc. to JEDEC Level 2
IR-Reflow Lötprofil
(nach IPC 9501)
IR Reflow Soldering Profile (acc. to IPC 9501)
OHLY0597
300
˚C
250
200
150
100
50
T
240-245 ˚C
10-40 s
183 ˚C
120 to 180 s
Ramp-down rate up to 6 K/s
Defined for Preconditioning: up to 6 K/s
Ramp-up rate up to 6 K/s
Defined for Preconditioning: 2-3 K/s
0
0
50
100
150
200
s
250
t
2003-05-26
10
LS E67B, LA E67B, LO E67B, LY E67B
Wellenlöten (TTW) (nach CECC 00802)
TTW Soldering
(acc. to CECC 00802)
OHLY0598
300
C
10 s
Normalkurve
standard curve
250
200
150
100
50
T
235 C ... 260 C
Grenzkurven
limit curves
2. Welle
2. wave
1. Welle
1. wave
ca 200 K/s
2 K/s
5 K/s
100 C ... 130 C
Zwangskühlung
2 K/s
forced cooling
0
0
50
100
150
200
s
250
t
2003-05-26
11
LS E67B, LA E67B, LO E67B, LY E67B
Empfohlenes Lötpaddesign IR Reflow Löten
Recommended Solder Pad
IR Reflow Soldering
Fläche darf elektrisch nicht beschaltet werden.
Do not use this area for electrical contact.
Padgeometrie für
verbesserte Wärmeableitung
3.3 (0.130)
3.3 (0.130)
Paddesign for
improved heat dissipation
Anode
2.3 (0.091)
0.8 (0.031)
0.7 (0.028)
Kathode/
Cathode
Cu Fläche / 16 mm2 per pad
_
<
Fläche darf elektrisch nicht beschaltet werden.
Do not use this area for electrical contact.
Cu-area
Lötstoplack
Solder resist
OHLPY440
Maße werden wie folgt angegeben: mm (inch) / Dimensions are specified as follows: mm (inch).
2003-05-26
12
LS E67B, LA E67B, LO E67B, LY E67B
Empfohlenes Lötpaddesign Wellenlöten (TTW)
Recommended Solder Pad TTW Soldering
Fläche darf elektrisch nicht beschaltet werden.
Do not use this area for electrical contact.
Anode
6.1 (0.240)
2.8 (0.110)
Kathode/
Cathode
2.8 (0.110)
0.5 (0.020)
Padgeometrie für
verbesserte Wärmeableitung
Fläche darf elektrisch nicht beschaltet werden.
Do not use this area for electrical contact.
Cu Fläche / > 16 mm2 per pad
Cu-area
Paddesign for
improved heat dissipation
Lötstoplack
Solder resist
OHAY1583
Maße werden wie folgt angegeben: mm (inch) / Dimensions are specified as follows: mm (inch).
Gurtung / Polarität und Lage
Verpackungseinheit 2000/Rolle, ø180 mm
oder 8000/Rolle, ø330 mm
Method of Taping / Polarity and Orientation Packing unit 2000/reel, ø180 mm
or 8000/reel, ø330 mm
1.5 (0.059)
4 (0.157)
2 (0.079)
C
C
C
A
4 (0.157)
2.9 (0.114)
OHAY0536
Maße werden wie folgt angegeben: mm (inch) / Dimensions are specified as follows: mm (inch).
2003-05-26 13
LS E67B, LA E67B, LO E67B, LY E67B
Revision History: 2003-05-26
Date of change
Previous Version: 2003-03-04
Page
2
Subjects (major changes since last revision)
wavelength grouping for yellow, amber and orange
2
forward voltage grouping for yellow, amber and super-red
change of diagram rel. lum. intensity (TA) from OHL00569 to OHL00740
value (orange; temperature coefficient of VF from -1.8 to -3.7 mV/K)
annotations
7
4
2002-06-14
2002-07-25
2002-07-25
2002-08-05
2002-09-18
2002-10-25
2003-02-11
2003-05-26
14
4
value (TCλdom from 0.04 to 0.05 nm/K)
12
3, 4
5
new IR solder pad (OHLPY439 to OHLPY440)
value (reverse voltage from 5 V to 12 V)
forward voltage groups for orange
2
ordering code for super-red
13
new recommended solder pad
Published by OSRAM Opto Semiconductors GmbH
Wernerwerkstrasse 2, D-93049 Regensburg
© All Rights Reserved.
Attention please!
The information describes the type of component and shall not be considered as assured characteristics.
All typical data and graphs are basing on representative samples, but dont represent the production range. If requested,
e.g. because of technical improvements, these typ. data will be changed without any further notice.
Terms of delivery and rights to change design reserved. Due to technical requirements components may contain
dangerous substances. For information on the types in question please contact our Sales Organization.
If printed or downloaded, please find the latest version in the Internet.
Packing
Please use the recycling operators known to you. We can also help you get in touch with your nearest sales office.
By agreement we will take packing material back, if it is sorted. You must bear the costs of transport. For packing
material that is returned to us unsorted or which we are not obliged to accept, we shall have to invoice you for any costs
incurred.
Components used in life-support devices or systems must be expressly authorized for such purpose! Critical
components 1 may only be used in life-support devices or systems 2 with the express written approval of OSRAM OS.
1 A critical component is a component used in a life-support device or system whose failure can reasonably be expected
to cause the failure of that life-support device or system, or to affect its safety or the effectiveness of that device or
system.
2 Life support devices or systems are intended (a) to be implanted in the human body, or (b) to support and/or maintain
and sustain human life. If they fail, it is reasonable to assume that the health of the user may be endangered.
2003-05-26
14
厂商 型号 描述 页数 下载

UTC

LYE05AF-25 LED灯[ LED LAMP ] 4 页

OSRAM

LYE63B [ Automotive Lighting Interior and Exterior ] 21 页

OSRAM

LYE63B-CBEA-26-1 [ Automotive Lighting Interior and Exterior ] 21 页

OSRAM

LYE63F [ Power TOPLED Lens ] 22 页

OSRAM

LYE63F-EBGA-36-3B5A [ Power TOPLED Lens ] 22 页

LIGITEK

LYE65062-L15-PF 双极型LED灯[ BIPOLAR TYPE LED LAMPS ] 7 页

LIGITEK

LYE65062/L15-PF 双极型LED灯[ BIPOLAR TYPE LED LAMPS ] 7 页

INFINEON

LYE655-ABCA-26-1 [ Optoelectronic Device, ] 15 页

OSRAM

LYE65B [ Signal and Symbol Luminary ] 20 页

OSRAM

LYE65B-AACA-26-1 [ Signal and Symbol Luminary ] 20 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.201596s
