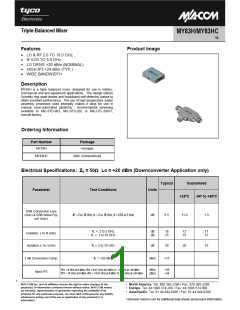

Triple-B a la n c ed M ix er
M Y 8 3 H /M Y 8 3 H C
V 2
Features
Product Image
ñ
ñ
ñ
ñ
ñ
LO & RF 2.0 TO 18.0 GHz
IF 0.03 TO 5.0 GHz
LO DRIVE +20 dBm (NOMINAL)
HIGH IP3 +24 dBm (TYP.)
W IDE BANDW IDTH
Description
MY83H is a triple balanced mixer, designed for use in military,
commercial and test equipment applications. The design utilizes
Schottky ring quad diodes and broadband soft dielectric baluns to
attain excellent performance. The use of high temperature solder
assembly processes used internally makes it ideal for use in
manual, semi-automated assembly. Environmental screening
available to MIL-STD-883, MIL-STD-202 or MIL-DTL-28837,
consult factory.
Ordering Information
Part Number
Package
MY83H
Versapac
MY83HC
SMA Connectorized
Electrical Specifications: Z0 = 50W Lo = +20 dBm (Downconverter Application only)
Typical
Guaranteed
Parameter
Test Conditions
Units
+25ºC
-54º to +85ºC
SSB Conversion Loss
(max) & SSB Noise Fig-
ure (max)
fR = 2 to 18 GHz, fL = 2 to 18 GHz, fI = 0.03 to 5 GHz
dB
8.5
11.0
1.3
fL = 2 to 3 GHz
fL = 3 to 18 GHz
dB
dB
16
25
12
16
11
15
Isolation, L to R (min)
Isolation, L to I (min)
1 dB Conversion Comp.
fL = 2 to 18 GHz
fL = +20 dBm
dB
30
20
19
dBm
+17
fR1 = 6 GHz a t 0 d B m , fR2 = 6 .01 GHz a t 0 d B m , fL = 8 GHz a t + 20 d B m
fR1 = 14 GHz a t 0 d B m , fR2 = 14 .01 GHz a t 0 d B m , fL =18 GHz a t + 20 d B m
dBm
dBm
+26
+24
Input IP3
1
