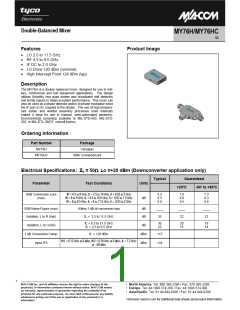

Double-B a la n c ed M ix er
M Y 7 6 H /M Y 7 6 H C
V 3
Features
Product Image
ñ
ñ
ñ
ñ
ñ
LO 2.5 to 11.5 GHz
RF 4.5 to 9.5 GHz
IF DC to 2.0 GHz
LO Drive +20 dBm (nominal)
High Intercept Point +24 dBm (typ)
Description
The MY76H is a double balanced mixer, designed for use in mili-
tary, commercial and test equipment applications. The design
utilizes Schottky ring quad diodes and broadband soft dielectric
and ferrite baluns to attain excellent performance. This mixer can
also be used as a phase detector and/or bi-phase modulator since
the IF port is DC coupled to the diodes. The use of high tempera-
ture solder and welded assembly processes used internally
makes it ideal for use in manual, semi-automated assembly.
Environmental screening available to MIL-STD-883, MIL-STD-
202, or MIL-DTL-28837, consult factory.
Ordering Information
Part Number
MY76H
Package
Versapac
MY76HC
SMA Connectorized
Electrical Specifications: Z0 = 50W Lo =+20 dBm (Downconverter application only)
Typical
Guaranteed
Parameter
Test Conditions
Units
+25ºC
-54º to +85ºC
SSB Conversion Loss
(max)
fR = 4.5 to 8 GHz, fL = 2.5 to 10 GHz, fI = 0.03 to 2 GHz
fR = 8 to 9 GHz, fL = 6 .5 to 10.5 GHz, fI = 0.03 to 1.5 GHz
fR = 8 to 9 .5 GHz, fL = 6 to 11.5 GHz, fI = 0.03 to 2 GHz
5.5
6.5
8.0
7.0
8.0
9.5
7.3
8.3
9.8
dB
SSB Noise Figure (max)
Isolation, L to R (min)
W ithin 1 dB of conversion loss
fL = 2.5 to 11.5 GHz
dB
dB
____
35
____
22
____
21
fL = 6.5 to 11.5 GHz
fL = 2.5 to 6.5 GHz
30
22
20
15
19
14
Isolation, L to I (min)
1 dB Conversion Comp.
Input IP3
dB
fL = +20 dBm
dBm
dBm
+15
+24
fR1 = 6 .12 GHz a t 0 d B m , fR2 = 6 .18 GHz a t 0 d B m , fL = 7 .2 GHz
a t + 20 d B m
1
