XTNETE2101PZ

型号：

XTNETE2101PZ

描述：

10BASE -T / 100BASE - TX / 100BASE -FX低功耗物理层接口[ 10BASE-T/100BASE-TX/100BASE-FX LOW-POWER PHYSICAL-LAYER INTERFACE ]

品牌：

TI[ TEXAS INSTRUMENTS ]

页数：

39 页

PDF大小：

497 K

下载PDF手册

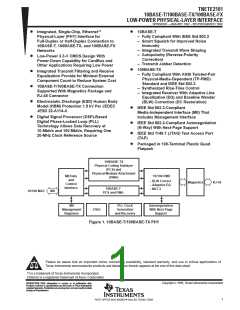

TNETE2101
10BASE-T/100BASE-TX/100BASE-FX
LOW-POWER PHYSICAL-LAYER INTERFACE
SPWS032D – JANUARY 1997 – REVISED MARCH 1999
Integrated, Single-Chip, Ethernet
Physical-Layer (PHY) Interface for
Full-Duplex or Half-Duplex Connection to
10BASE-T, 100BASE-TX, and 100BASE-FX
Networks
10BASE-T
– Fully Compliant With IEEE Std 802.3
– Smart Squelch for Improved Noise
Immunity
– Integrated Transmit Wave Shaping
– Autopolarity (Reverse-Polarity
Correction)
Low-Power 3.3-V CMOS Design With
Power-Down Capability for CardBus and
Other Applications Requiring Low Power
– Transmit Jabber Detection
100BASE-TX
Integrated Transmit Filtering and Receive
Equalization Provide for Minimal External
Component Count to Reduce System Cost
– Fully Compliant With ANSI Twisted-Pair
Physical-Media-Dependent (TP-PMD)
Standard and IEEE Std 802.3
– Synthesized Rise-Time Control
– Integrated Receiver With Adaptive Line
Equalization (EQ) and Baseline Wander
(BLW) Correction (DC Restoration)
10BASE-T/100BASE-TX Connection
Supported With Magnetics Package and
RJ-45 Connector
Electrostatic Discharge (ESD) Human Body
Model (HBM) Protection 1.5 kV Per JEDEC
JESD 22-A114-A
IEEE Std 802.3-Compliant
Media-Independent Interface (MII) That
Includes Management Interface
Digital Signal Processor (DSP)-Based
Digital Phase-Locked Loop (PLL)
Technology Allows Data Recovery at
10 Mbit/s and 100 Mbit/s, Requiring One
20-MHz Clock Reference Source
IEEE Std 802.3-Compliant Autonegotiation
(N-Way) With Next-Page Support
IEEE Std 1149.1 (JTAG) Test Access Port
(TAP)
Packaged in 100-Terminal Plastic Quad
Flatpack
100BASE-TX
Physical Coding Sublayer
(PCS) and
Physical Medium Attachment
(PMA)
MII Data
and
Control
Interface
10/100 PMD
– BLW Correct
– Adaptive EQ
– MLT-3
Magnetics
RJ-45
10BASE-T
10/100 MAC
MII
PCS and PMA
MII
PLL Clock
Generation
and Recovery
Autonegotiation
With Next-Page
Support
Management
Registers
JTAG
Figure 1. 10BASE-T/100BASE-TX PHY
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
TI is a trademark of Texas Instruments Incorporated.
Ethernet is a registered trademark of Xerox Corporation.
Copyright 1999, Texas Instruments Incorporated
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
1
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TNETE2101
10BASE-T/100BASE-TX/100BASE-FX
LOW-POWER PHYSICAL-LAYER INTERFACE
SPWS032D – JANUARY 1997 – REVISED MARCH 1999
description
The TNETE2101 physical-layer (PHY) device from Texas Instruments (TI ) is a single-chip, high-performance
solution for a range of 10BASE-T, 100BASE-TX, and 100BASE-FX networking systems (see Figure 1). The
highly integrated TNETE2101 includes an on-board media-independent interface (MII) for simple connection
to IEEE Std 802.3-compliant media-access controls (MACs). The device integrates all filtering and rise-time
control functions for a cost-effective and space-saving PHY solution. Built-in autonegotiation allows automatic
selection of half-/full-duplex 10BASE-T or 100BASE-TX, with an autopolarity-correction feature for immunity
to receive-pair reversal.
PZ PACKAGE
(TOP VIEW)
ACPLL
ACBLW
ACAGC
V
SS
1
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
NC
JTDI
V
2
3
V
4
DDA
DD5
V
DDA
JTDO
5
AIREF
V
SS
6
V
JTCLK
7
SSA
ATXREF
JTMS
JTRST
MTCLK
8
V
9
SSA
V
SSA
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
XTAL1
V
NC
DD
XTAL2
V
MTXD0
MTXD1
MTXD2
MTXD3
DDA
V
DDA
NC
V
SSA
NC
CDEVSEL0
CDEVSEL1
CDEVSEL2
CREPEATER
CFIBER
V
SS
MTXEN
MTXER
MCOL (CDEVSEL4)
MCRS
MRCLK
V
DD
V
DD
LACTIVITY
MRXD0
LDUPCOL
V
DD5
NC – No connection (no external connection allowed)
2
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TNETE2101
10BASE-T/100BASE-TX/100BASE-FX
LOW-POWER PHYSICAL-LAYER INTERFACE
SPWS032D – JANUARY 1997 – REVISED MARCH 1999
Terminal Functions
analog function
TERMINAL
†
DESCRIPTION
TYPE
I/O
NAME
ACAGC
ACBLW
ACPLL
NO.
3
A
A
A
I
I
I
Automatic gain control (AGC) capacitor for the AGC loop
Baseline wander (BLW) capacitor for the BLW correction loop
PLL capacitor required for an internal PLL
2
1
Analog current reference. An external resistor between AIREF and analog ground sets the bias
current for internal analog circuits.
AIREF
6
8
A
A
I
I
100BASE-TX transmit reference. An external resistor between ATXREF and analog ground sets the
100BASE-TX transmit amplitude.
ATXREF
†
A = analog
configuration
TERMINAL
NAME
DESCRIPTION
TYPE
I/O
NO.
Autonegotiationenable. CAUTONEG enables (active high) or disables autonegotiation within the
PHY. When CAUTONEG is low, the current values of CSPEED and CDUPLEX determine the
speed and duplex of the PHY. On the rising edge of CAUTONEG, the values of CSPEED and
CDUPLEXsettheadvertisedcapabilitiesofthePHYforautonegotiate. Thisalsooccursonpower
up or on the rising edge of MRST if CAUTONEG is high. When CAUTONEG is high, the
autonegotiation process also can be controlled with the PHY register bit AUTOENB (register 0,
bit 12). See 10BASE-T/100BASE-TX PHY operation for details.
CAUTONEG
33
TTL
I
CDEVSEL2
CDEVSEL1
CDEVSEL0
20
19
18
MII device-select address. The values of CDEVSEL2–CDEVSEL0, SLINK (CDEVSEL3), and
MCOL (CDEVSEL4) are latched into the MII on the rising edge of MRST. This allows a unique
address to be assigned to the PHY in applications in which multiple PHYs are in use.
TTL
TTL
I
Duplex configuration. When CAUTONEG is low, CDUPLEX sets the PHY duplex to either
half-duplex(low)orfull-duplex(high).WhenCAUTONEGishighandautonegotiationiscomplete,
CDUPLEX is driven low if half-duplex mode was selected, or set to the high-impedance state if
full-duplex mode was selected. The PHY duplex also can be controlled and read at PHY register
0, bit 8, DUPLEX.
CDUPLEX
CFIBER
36
22
I/O
100BASE-FX fiber-mode enable. In 100BASE-FX fiber mode, the fiber interface is enabled, and
unshielded twisted pair (UTP) interface and autonegotiation are disabled. Selecting 10BASE-T
mode with this mode enabled causes the PHY to power down. This function can be controlled by
PHY register 0x11 bit 10, FIBER, if CFIBER is high.
TTL
TTL
I
I
MII-isolate enable. CISOLATE causes the PHY to raise all its MII outputs to a high-impedance
state and ignore the MII inputs. In normal mode (CREPEATER is high), the PHY raises MTCLK,
MRCLK, MRXD0–MRXD3, MRXDV, MRXER, MCRS, and MCOL to a high-impedance state and
does not respond to MTXEN. In repeater mode, only MRCLK, MRXD0–MRXD3, MRXDV, and
MRXER are raised to high impedance and, consequently, CISOLATE performs an active-high
receive-enable function. This function can be controlled by PHY register 0, bit 10, ISOLATE, if
CISOLATE is low.
38
CISOLATE
Loopback enable. When CLOOPBK is low, transmit is looped back to receive. This function can
be controlled by PHY register 0, bit 14, LOOPBK, if CLOOPBK is high.
30
37
TTL
TTL
CLOOPBK
CPASS5B
I
I
Pass-through mode enable. CPASS5B when set low, configures the PHY to bypass the internal
5B4B encoder and decoder. The 5B-encoded data is transmitted on MTXD0–MTXD3 and
MTXER with the most significant data bit on MTXER. The 5B-encoded data is received on
MRXD0–MRXD3 and MRXER, with the most significant bit on MRXER. This function can be
controlled by PHY register 0x11, bit 8, NOENDEC, if CPASS5B is high.
3
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TNETE2101
10BASE-T/100BASE-TX/100BASE-FX
LOW-POWER PHYSICAL-LAYER INTERFACE
SPWS032D – JANUARY 1997 – REVISED MARCH 1999
Terminal Functions (Continued)
configuration (continued)
TERMINAL
TYPE
DESCRIPTION
I/O
NAME
NO.
Power-down enable. When CPWRDOWN is low, the PHY is placed in a low power-consumption
state. This function can be controlled by PHY register 0, bit 11, PDOWN, if CPWRDOWN is high.
32
TTL
TTL
CPWRDOWN
I
Repeater-mode enable. When CREPEATER is low, the repeater mode is enabled and the PHY
does not assert MCRS in response to transmit activity. This function can be controlled by PHY
register 0x11, bit 5, REPEATER, if CREPEATER is high.
21
34
CREPEATER
CSPEED
I
Speed configuration. When CAUTONEG is low, CSPEED sets the PHY speed to either
10BASE-T (low) or 100BASE-TX (high). When CAUTONEG is high and autonegotiation is
complete,CSPEEDisdrivenlowif10BASE-Tmodewasselected, orsetathigh-impedancestate
if 100BASE-TX mode was selected. The PHY speed also can be controlled and read at PHY
register 0, bit 13, SPEED.
TTL
I/O
fiber interface
TERMINAL
†
DESCRIPTION
TYPE
I/O
NAME
NO.
FRCVN
FRCVP
79
80
100BASE-FXserial data input pair. Differential3.3-Vpseudo-emitter-coupledlogic(PECL)125-Mbit/s
receive-data input for fiber mode.
PECL
PECL
PECL
I
I
FSDN
FSDP
82
83
100BASE-FX serial data detect pair. Differential 3.3-V PECL 125-Mbit/s signal-detect input.
FXMTN
FXMTP
76
77
100BASE-FX serial data output pair. Differential 3.3-V PECL 125-Mbit/s serialized transmit-data
output for fiber mode.
O
†
PECL = pseudo-emitter-coupled-logic
IEEE Std 1149.1 JTAG interface
TERMINAL
‡
DESCRIPTION
TYPE
I/O
NAME
NO.
Test clock. JTCLK is used to clock state information and test data into and out of the device during
operation of the test port.
JTCLK
69
5-V TTL
5-V TTL
5-V TTL
I
I
Test data input. JTDI is used to serially shift test data and test instructions into the device during
operation of the test port.
JTDI
73
71
Test data output. JTDO is used to serially shift test data and test instructions out of the device during
operation of the test port.
JTDO
O
JTMS
68
67
5-V TTL
5-V TTL
I
I
Test-mode select. JTMS is used to control the state of the test-port controller within the PHY.
TAP reset. JTRST is used to reset the TAP controller (optional).
JTRST
‡
5-V TTL terminals are 5-V tolerant if V
DD5
is connected to 5 V.
4
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TNETE2101
10BASE-T/100BASE-TX/100BASE-FX
LOW-POWER PHYSICAL-LAYER INTERFACE
SPWS032D – JANUARY 1997 – REVISED MARCH 1999
Terminal Functions (Continued)
LED status
TERMINAL
DESCRIPTION
TYPE
I/O
NAME
NO.
Activity indicator. LACTIVITY lights an attached LED in response to receive and transmit activity
within the PHY.
24
LED
LACTIVITY
O
Duplex/collisionindicator. LDUPCOL lights an attached LED in response to a network collision when
the PHY is in half-duplex mode of operation. The LED is illuminated continuously when the PHY is
in full-duplex mode.
25
LED
LDUPCOL
LLINK
O
Link status indicator. LLINK lights an attached LED when the PHY has established a valid link with
its partner. If autonegotiation is enabled, the driver flashes the LED during negotiation to indicate that
it is attempting to establish a link. This is useful because a negotiation takes a minimum of 3 seconds
(considerablylongerifnext-pageinformationalsoisbeingexchanged), andtheusermaybetempted
to remove the cable if the link light does not illuminate immediately. The user also is alerted to a
network misconfiguration (where no common ability exists between the two link partners) by a
continuously flashing LED.
27
28
LED
LED
O
O
Link speed indicator. LSPEED lights an attached LED when the PHY has established a valid
100BASE-TX link with its partner.
LSPEED
MII interface
TERMINAL
NAME
†
DESCRIPTION
TYPE
I/O
NO.
Collision detect. MCOL indicates that the PHY is receiving data while simultaneously
transmitting. MCOL does not assert in full-duplex mode. The value of MCOL is latched on the
rising edge of MRST for use as CDEVSEL4, bit 4, of the MII device-select address.
MCOL
(CDEVSEL4)
56
5-V TTL
I/O
Management data clock. MDCLK clocks serial management interface to the
physical-media-dependent (PMD) chip.
MDCLK
43
42
54
5-V TTL
5-V TTL
5-V TTL
I
Management data I/O. MDIO is serial management interface to the PMD chip. MDIO is
synchronous to MDCLK.
MDIO
I/O
O
Receive clock. Receive clock source from the PHY. MRCLK is 2.5 MHz in 10BASE-T mode and
25 MHz in 100BASE-TX mode.
MRCLK
MCRS
MRST
55
41
5-V TTL
5-V TTL
O
I
Carrier sense. MCRS asserts when the PHY initiates a frame reception.
MII reset. MRST is the reset signal to the PMD front end (active low).
MRXD3
MRXD2
MRXD1
MRXD0
47
48
50
52
Receive data. MRXD3–MRXD0 are nibble receive data bits 3–0 from the PHY. Data is
synchronous to MRCLK.
5-V TTL
O
Receive data valid. MRXDV indicates that data on MRXD0–MRXD3 is valid. MRXDV is
synchronous to MRCLK.
MRXDV
MRXER
MTCLK
46
45
66
5-V TTL
5-V TTL
5-V TTL
O
O
O
Receive error. MRXER indicates reception of a coding error on received data. MRXER is
synchronous to MRCLK.
Transmit clock. MTCLK is the transmit clock source from the PHY. This clock is 2.5 MHz in
10BASE-T mode and 25 MHz in 100BASE-TX mode.
MTXD3
MTXD2
MTXD1
MTXD0
60
61
62
63
Transmit data. MTXD3–MTXD0 are nibble transmit data bits 3–0 from the MAC. Data is
synchronous to MTCLK.
5-V TTL
I
†
5-V TTL terminals are 5-V tolerant if V
is connected to 5 V.
DD5
5
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TNETE2101
10BASE-T/100BASE-TX/100BASE-FX
LOW-POWER PHYSICAL-LAYER INTERFACE
SPWS032D – JANUARY 1997 – REVISED MARCH 1999
Terminal Functions (Continued)
MII interface (continued)
TERMINAL
†
TYPE
I/O
DESCRIPTION
NAME
MTXEN
MTXER
NO.
Transmit enable. MTXEN indicates valid transmit data on MTXD0–MTXD3. MTXEN is
58
5-V TTL
5-V TTL
I
synchronous to MTCLK.
Transmit error. MTXER allows coding errors to be propagated across the MII. MTXER is
synchronous to MTCLK.
57
I
†
5-V TTL terminals are 5-V tolerant if V
is connected to 5 V.
DD5
miscellaneous
TERMINAL
‡
DESCRIPTION
TYPE
I/O
NAME
NO.
Link status. When asserted high, SLINK indicates that a good link has been established with
the link partner. When autonegotiation is enabled, SLINK also indicates that the CSPEED and
CDUPLEX terminals are being driven with the negotiated speed and duplex configuration. The
value of SLINK is latched on the rising edge of MRST for use as CDEVSEL3, bit 3, of the MII
device-select address.
SLINK
39
TTL
I/O
(CDEVSEL3)
XTAL1
Clock input. XTAL1 is the main 20-MHz reference clock input for the TNETE2101. A 20-MHz
clock oscillator can be connected to XTAL1, or a crystal with a capacitor network can be
connected across XTAL1 and XTAL2.
11
12
A
A
I
XTAL2
O
Output for external crystal circuit. See XTAL1.
‡
A = analog
network interface
TERMINAL
‡
DESCRIPTION
TYPE
I/O
O
I
NAME
ACT
NO.
85
A
A
Center tap. ACT is the connection to the primary center tap of the transmit transformer.
ARCVP
ARCVN
91
92
Receive pair. ARCVP and ARCVN are the differential line inputs to the device from the transformer
and termination components.
AXMTP
AXMTN
87
88
Transmit pair. AXMTN and AXMTP are the differential line outputs from the device to the transformer
and termination components.
A
O
‡
A = analog
no connection
TERMINAL
NO.
15, 17, 64, 74, 94, 95, 97, 98
DESCRIPTION
NAME
NC
No connection (no external connection allowed).
6
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TNETE2101
10BASE-T/100BASE-TX/100BASE-FX
LOW-POWER PHYSICAL-LAYER INTERFACE
SPWS032D – JANUARY 1997 – REVISED MARCH 1999
Terminal Functions (Continued)
power
TERMINAL
NAME
POWER
DOMAIN
DESCRIPTION
Power. Analog 3.3-V supply connection.
†
NO.
V
5, 13, 14, 96
84
V
DDA
XMT_V
DDA
XMT_AV
Power. Analog 3.3-V supply connection for transmit.
Power. Analog 3.3-V supply connection for receive.
DDA
DD
DDA
or
V
4, 93
V
DDA
DD5
V
DD
Power. Power for digital I/O that connects to 3.3 V for 3.3-V I/O operations and to 5 V for 5-V
I/O operations. Used for I/O on MII and JTAG interface.
V
31, 51, 72
V
DD5
23, 35, 44, 53,
65, 78
V
V
V
V
Power. Digital 3.3-V supply connection for core logic and I/O.
Ground. Analog ground connection.
DD
DDD
7, 9, 10, 16,
86, 89, 90, 99,
100
GND
GND
SSA
26, 29, 40, 49,
59, 70, 75, 81
Ground. Digital ground connection.
SS
†
Denotes suggested power-plane connection for layout
7
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TNETE2101
10BASE-T/100BASE-TX/100BASE-FX
LOW-POWER PHYSICAL-LAYER INTERFACE
SPWS032D – JANUARY 1997 – REVISED MARCH 1999
functional block diagram for UTP interface
BLW
Correction
100BASE-TX
Digital
Clock
Recovery
MRXD0
MRXD1
MRXD2
MRXD3
MCRS
MRXDV
MRXER
MRCLK
Adaptive
Equalization
5B4B
Decode
Descrambler
Align
Align
Digital
Clock
Recovery
RCVP
RCVN
Smart
Squelch
Manchester
Decode
10BASE-T
Collision
Detect
MCOL
100BASE-TX
MTXD0
MTXD1
MTXD2
MTXD3
MTXEN
MTXER
MTCLK
Rise-Time
Control
5B4B
Encode
Serialize
Serialize
Scramble
Line
Driver
XMTP
XMTN
Manchester
Encode
Wave Shape
10BASE-T
Autonegotiation and
Link Status Monitor
LED
Controller
JTAG
LED Terminals
8
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TNETE2101
10BASE-T/100BASE-TX/100BASE-FX
LOW-POWER PHYSICAL-LAYER INTERFACE
SPWS032D – JANUARY 1997 – REVISED MARCH 1999
functional description
10BASE-T/100BASE-TX differential line transmitter function
The TNETE2101 differential line drivers are designed to drive at least 100 m of CAT5 cable in 100BASE-TX
mode and in excess of 100 m of CAT3 (or CAT5) cable in 10BASE-T mode. Three transmitter-output terminals
(including a center-tap connection) interface to a single transformer for both operating modes. This simplifies
the external connection to a single RJ-45 socket connected directly to the transformer secondary winding (see
Figure 2).
The TNETE2101 incorporates on-chip wave shaping for 10BASE-T transmission and rise-time control for
100BASE-TX transmission, which enables the device to interface directly to the magnetics without using
external components, other than two termination resistors. The functional block diagram illustrates the
TNETE2101 transmitter function for a single 10BASE-T/100BASE-TX PHY channel.
10BASE-T/100BASE-TX differential line receiver function
The two receiver-input terminals of the TNETE2101 must be connected to the physical-media interface (PMI)
through an external isolation transformer. The receiver circuitry establishes its own common-mode input bias
voltage, therefore, no external resistor divider-biasing network is required. A simple termination network
consisting of two resistors and one capacitor is recommended (see Figure 2). Data received from the network
is output on the MRXD data nibble of the MII and synchronized to the rising edge of the corresponding MRCLK
signal. The MRCLK frequency automatically adjusts to 2.5 MHz in 10BASE-T mode or 25 MHz in 100BASE-TX
mode.
A single receiver-input pair supports both speed modes, with all multiplexing functions performed internally to
the device.
The 10BASE-T receiver smart-squelch function allows incoming data to pass only if the input amplitude is
greater than a minimum signal threshold and a specific pulse sequence is received. This prevents input data
being affected by impulse line noise that is mistaken for signal or link activity. The squelch circuits quickly
deactivate if received pulses exceed the specifications; therefore, long pulses are not mistaken as link pulses.
The 100BASE-TX receiver decodes the MLT-3 waveform and provides a data nibble on MRXD0–MRXD3. After
MLT-3 signal is received, the signal is immediately amplified and equalized. This allows reception over a
minimum of 100 m of CAT5 cable. The low-frequency component of the MLT-3 signal, often referred to as BLW,
is removed. BLW can be a consequence of long periods without data transitions in transformer-coupled circuits.
The ideal MLT-3 then is internally converted to non-return-to-zero information (NRZI), then resynchronized to
its own recovered clock using a digital phase-locked-loop (PLL) technique. The reclocked data then is
deserialized into 5-bit code groups, descrambled, and 5B4B decoded. When a start-of-stream delimiter is
detected in the 5B data stream, the next frame is output on the MII. The functional block diagram illustrates the
TNETE2101 receiver function for a single 10BASE-T/100BASE-TX PHY channel.
9
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TNETE2101
10BASE-T/100BASE-TX/100BASE-FX
LOW-POWER PHYSICAL-LAYER INTERFACE
SPWS032D – JANUARY 1997 – REVISED MARCH 1999
XMT_V
DDA
50 Ω
50 Ω
Valor ST6118
or Equivalent
MTCLK
MTXD0–MTXD3
MTXEN
AXMTP
ACT
AXMTN
+1
+2
+3
+4
+5
+6
+7
+8
MTXER
MRCLK
MRXD0–MRXD3
MRXDV
Ethernet
Controller
ARCVP
MRXER
50 Ω
MCOL
MCRS
MDIO
MDCLK
MRST
SLINK
0.1 µF
1:1
Transformer
RJ-45C
50 Ω
ARCVN
AIREF
7.5 K Ω
2.5 K Ω
TNETE2101
ATXREF
V
DD
LACTIVITY
LDUPCOL
LSPEED
LLINK
20-MHz
3.3-V
XTAL1
Oscillator
ACAGC ACPLL
ACBLW
0.001 µF
270 pF
6.8 K Ω
470 pF
4700 pF
Figure 2. External Components for the TNETE2101
10
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TNETE2101
10BASE-T/100BASE-TX/100BASE-FX
LOW-POWER PHYSICAL-LAYER INTERFACE
SPWS032D – JANUARY 1997 – REVISED MARCH 1999
link-integrity test and reverse-polarity and correction
When autonegotiation is disabled and the TNETE2101 is configured for 10BASE-T only, the transmitter sends
a normal link pulse through the data-out (DO) circuit every 16 ms.
The receiver looks for valid link pulses on the input pair. If a link pulse is not received within a given time interval,
the device enters a link-fail state. In this state, link pulses continue to be generated, and the receiver
continuously looks for the link pulse pattern. The device remains in this state until a valid receive packet or
multiple legal-link test pulses are received.
Link pulses of the opposite polarity (received and qualified in the same manner as normal link pulses) are an
indication that the receive-pair connections are reversed and that an automatic internal reconfiguration has
occurred to correct this problem. Reverse-polarity correction is not required in 100BASE-TX mode, where the
data is MLT-3-encoded.
autonegotiation
The TNETE2101 fully supports IEEE Std 802.3 autonegotiation, including next-page transfer. When enabled,
this feature allows the TNETE2101 to negotiate with any other autonegotiation-capable PHYs on its link
segment to establish their highest common protocol. Until a PHY has completed its negotiation, it cannot assert
LINK.
More information on the link partner abilities can be obtained by reading the TNETE2101 registers.
loopback test mode
By asserting the CLOOPBK terminal on the device or by setting the LOOPBK bit in the GEN_ctl register, the
transmit circuit of the PHY is looped back to the corresponding receive circuit located closest to the twisted-pair
I/O terminals.
In 10BASE-T mode and loopback mode, all receive activities (other than link test pulses) are ignored. However,
squelch information is still processed, allowing the link status to be maintained under momentary loopback
self-test.
LED status indication
The TNETE2101 has four terminals that drive LEDs, indicating activity, duplex/collision, link, and speed. The
circuitry contains an open-drain N-channel MOS (NMOS) device for the LED driver, and the LEDs should be
connected to digital 3.3 V through a current-limiting resistor. The value of the resistor depends on the LED type.
In 10BASE-T mode, the link LED illuminates when the PHY has established a valid link. In 100BASE-TX mode,
the link LED indicates that the descrambler has locked onto the data and the TNETE2101 is in a state to transmit
and receive data. The link LED flashes during the autonegotiation process to indicate link activity to the user,
since autonegotiation can take several seconds. During loopback test, the LED is not illuminated.
The activity LED illuminates when the PHY is transmitting or receiving data; it remains illuminated for a minimum
of 20 ms for each activity. Its operation is the same in both speed modes. The activity LED illuminates on any
attempt to transmit data, including those made in loopback mode and in link-fail state.
The duplex/collision LED illuminates continuously when the PHY is in full-duplex mode and for a minimum of
20 ms when collisions occur in half-duplex mode. If continuous or frequent collisions occur, it flashes at 10 Hz.
test access port (TAP)
To be compliant with IEEE Std 1149.1 and for boundary-scan testing, the TAP includes five terminals that are
used to interface serially with the device and the board on which it is installed.
11
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TNETE2101
10BASE-T/100BASE-TX/100BASE-FX
LOW-POWER PHYSICAL-LAYER INTERFACE
SPWS032D – JANUARY 1997 – REVISED MARCH 1999
100BASE-FX differential PECL interface
The PHY provides three pairs of differential PECL terminals for connection to external fiber-optic transceivers.
The data streams are 125-Mbit/s NRZI encoded, with the receive data stream routed to the digital PLL for data
recovery. To maintain a reliable lock on the digital PLL, the receive data stream must be jitter free.
The FSDP/FSDN serial data-detect pair must be differentially positive to enable data recovery. While this pair
is differentially negative, MRCLK is inactive, and no attempt is made to process any receive data appearing on
FRCVP/FRCVN.
Differential PECL signals should be terminated with a standard emitter-coupled logic (ECL) load of 50 Ω to a
voltage source of V
– 2 V (that is, 1.3 V) or to an equivalent circuit.
DD
reset and power up timing
Atinitialpowerup, thePHYperformsaninternalreset. Noexternalresetcircuitryisrequired;however, operation
of the TNETE2101 is not specified for 50 ms after power up (V
stable).
DD
During operation, a full reset of the device can be performed by taking MRST low for not less than 50 s. Correct
operation of the device is not certain until 50 ms after MRST is deasserted high.
10BASE-T/100BASE-TX PHY operation
PHY link establishment
The PHY implements the full autonegotiation standard, including next-page capability. CAUTONEG, CSPEED,
and CDUPLEX are used to directly configure the link speed or to set and report autonegotiated speeds.
When CAUTONEG is deasserted low, CSPEED and CDUPLEX determine the link configuration. CSPEED and
CDUPLEX have weak pullups, giving a default configuration of full-duplex 100BASE-TX when not connected.
The rising edge of CAUTONEG latches the values of CSPEED and CDUPLEX into the autonegotiation
advertisement (AN_adv) register as shown in Table 1. This advertises to the link partner during negotiation of
the capabilities of PHY and the highest common link is determined. CSPEED and CDUPLEX then are driven
with the negotiated speed and duplex.
Table 1. External-Link Configuration Speeds
CSPEED CDUPLEX AN_adv
ADVERTISED TECHNOLOGIES
0
0
0
1
0x0021 Half-duplex 10BASE-T
0x0061 Half-/full-duplex 10BASE-T
Half-duplex 10BASE-T
0x00A1
1
1
0
1
Half-duplex 100BASE-TX
Half-/full-duplex 10BASE-T
0x00E1
Half-/full-duplex 100BASE-TX
For external controlling and reading of CAUTONEG, CSPEED, and CDUPLEX, timing to be considered is
shown in Figure 3. CSPEED and CDUPLEX must not be driven externally for 1200 ms (maximum) after
CAUTONEG is asserted high. The PHY begins negotiation when CAUTONEG is asserted. In the final 750 ms
(minimum) of autonegotiation, the PHY drives CSPEED and CDUPLEX to indicate the link configuration. The
values of these two terminals can be latched on the rising edge of SLINK.
12
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TNETE2101
10BASE-T/100BASE-TX/100BASE-FX
LOW-POWER PHYSICAL-LAYER INTERFACE
SPWS032D – JANUARY 1997 – REVISED MARCH 1999
PHY link establishment (continued)
CAUTONEG
CSPEED
CDUPLEX
SLINK
1200 ms MAX
750 ms MIN
Figure 3. External Autonegotiation Configuration and Status
Autonegotiation, duplex, and speed also can be controlled through the PHY register 0, GEN_ctl. These bits,
AUTOENB (bit 12), SPEED (bit 13), and DUPLEX (bit 8), are similar to and work with CAUTONEG, CSPEED,
and CDUPLEX, respectively. These bits can be written and read.
When CAUTONEG is low, the AUTOENB bit remains set to a 0 and cannot be set to a 1; therefore,
autonegotiation cannot be enabled. In this case, the values read from SPEED and DUPLEX reflect the values
driven on the terminals CSPEED and CDUPLEX, respectively.
When CAUTONEG is high, AUTOENB can be set to a 1 (enabled) or a 0 (disabled). When AUTOENB is
enabled, autonegotiation is started and the SPEED and DUPLEX bits are updated to reflect the negotiated
values. When AUTOENB is disabled, autonegotiation is disabled and speed and duplex are forced to the values
written in the SPEED and DUPLEX bits.
PHY configuration
The TNETE2101 can be configured externally through the terminals or internally through the PHY registers
much like the autonegotiation terminals and register bits. Each external terminal has an equivalent PHY register
bit. Table 2 correlates the terminal with the register bit.
Table 2. External Configuration Terminal/Register Bit Correlation
TERMINAL
CISOLATE
CPWRDOWN
CLOOPBK
CREPEATER
CPASS5B
PIN NO.
38
BIT
REGISTER
0x0
BIT NO.
FUNCTION
Sets MII interface to high-impedance state
Places PHY in power-down state
Enables loopback
ISOLATE
PDOWN
LOOPBK
REPEATER
NOENDEC
FIBER
10
11
14
5
32
0x0
30
0x0
21
0x11
Enables repeater mode
37
0x11
8
Disables 5B4B encoder/decoder
Enables fiber interface
CFIBER
22
0x11
10
Alloftheterminalsareactivelowandtheregisterbitsareactivewhensettoa1. Alltheregisterbitscanbewritten
and read. The value read from the register bit reflects the internal configuration setting of the PHY and is derived
from the external terminal setting and the internal register bit value.
13
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TNETE2101
10BASE-T/100BASE-TX/100BASE-FX
LOW-POWER PHYSICAL-LAYER INTERFACE
SPWS032D – JANUARY 1997 – REVISED MARCH 1999
PHY configuration (continued)
Table 3 shows the external configuration terminal, register value, and the result, except for the isolate function.
Table 3. Terminal and Register Values
TERMINAL
VALUE
REGISTER
VALUE
REGISTER
VALUE
RESULT
(LOW = ACTIVE)
WRITTEN
READ
Low
High
High
X
0
1
1
0
1
Enabled
Disabled
Enabled
Table 4 shows the operation for the isolate function and the resulting control of the isolate function.
Table 4. Isolate-Function Operation
TERMINAL
VALUE
REGISTER
VALUE
REGISTER
VALUE
RESULT
(LOW = ACTIVE)
WRITTEN
READ
Low
Low
High
0
1
0
1
0
Disabled
Enabled
Disabled
X
The terminal can be set to a value that disables control of the function through the internal PHY registers.
14
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TNETE2101
10BASE-T/100BASE-TX/100BASE-FX
LOW-POWER PHYSICAL-LAYER INTERFACE
SPWS032D – JANUARY 1997 – REVISED MARCH 1999
10BASE-T/100BASE-TX PHY registers
The IEEE Std 802.3 MII serial protocol allows for up to 32 different PMD devices, with up to 32 (16-bit-wide)
internal registers in each device. The 10BASE-T/100BASE-TX PHY implements 11 internal registers, three of
which are hardwired. Figure 4 shows the device register map. Most of the registers are the generic registers
mandated by the MII specification. The three registers (TXPHY_X) in Figure 4 are TI-specific registers. All other
registers are read as 0s.
REGISTER
GEN_ctl
ADDRESS
0x00h
0x01h
0x02h
0x03h
0x04h
0x05h
0x06h
0x07h
DESCRIPTION
Generic control (see Figure 7 and Table 6)
GEN_sts
GEN_id_hi
GEN_id_lo
AN_adv
Generic status (see Figure 8 and Table 7)
Generic identifier (high) hardwired (see Figure 9)
Generic identifier (low) hardwired (see Figure 10)
Autonegotiation advertisement (see Figure 11 and Table 8)
Autonegotiation link partner ability (see Figure 12 and Table 9)
Autonegotiation expansion (see Figure 15 and Table 13)
Autonegotiation next-page transmit (see Figure 16 and Table 14)
AN_lpa
AN_exp
AN_np
Reserved
Reserved
Reserved
TXPHY_id
TXPHY_ctl
TXPHY_sts
0x08h
•
•
•
Reserved by IEEE Std 802.3
0x0Fh
†
0x10h
0x11h
0x12h
PHY identifier
PHY control (see Figure 17 and Table 15)
PHY status (see Figure 18 and Table 16)
†
TI-specific register
Figure 4. Register Map
15
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TNETE2101
10BASE-T/100BASE-TX/100BASE-FX
LOW-POWER PHYSICAL-LAYER INTERFACE
SPWS032D – JANUARY 1997 – REVISED MARCH 1999
MII frame format
The default or IDLE state of the MII is a logic 1. All 3-state drivers are disabled and the PHY pullup resistor pulls
the management data input/output (MDIO) line to a logic 1. Before initiating any other transaction, the station
management entity sends a preamble sequence of contiguous logic-1 bits on MDIO with 32 corresponding
cycles on MDCLK. This sequence provides the PHY a pattern to use to establish synchronization. A PHY
observes the sequence of 32 contiguous 1 bits on MDIO with 32 corresponding cycles on MDCLK before
responding to any other transactions. See Figures 5 and 6 for MII frame formats.
Start Delimiter
Operation Code
PHY Address
Register Address
Turnaround
Data
01
10
AAAAA
RRRRR
10
DDDD.DDDD.DDDD.DDDD
Figure 5. MII Read Frame Format
Start Delimiter
Operation Code
PHY Address
Register Address
Turnaround
Data
01
01
AAAAA
RRRRR
10
DDDD.DDDD.DDDD.DDDD
Figure 6. MII Write Frame Format
start delimiter
The start of a frame is indicated by a 01 pattern. This pattern specifies transitions from the default logic-1 line
state to 0 and then back to 1.
operation code
The operation code for a read is 10, and the code for a write is 01.
PHY address
The PHY address is five bits, providing 32 unique PHY addresses. The first PHY address bit transmitted and
received is the most significant bit of the address. The TNETE2101 address is set using
CDEVSEL0–CDEVSEL2, CDEVSEL 3 (SLINK), and CDEVSEL4 (MCOL).
register address
The register address is 5 bits, providing 32 individual registers to be addressed within each PHY. See Figure 4
for the addresses of individual registers.
turnaround
An idle-bit time, during which no device actively drives the MDIO signal, is inserted between the register address
field and the data field of a read frame to avoid contention. During a read frame, the PHY drives a 0 bit onto MDIO
for the bit time that follows the idle bit and precedes the data field. During a write frame, this field consists of
a 1 bit followed by a 0 bit.
data
The data field is 16 bits. The first data bit transmitted and received is the most significant bit of the data payload.
16
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TNETE2101
10BASE-T/100BASE-TX/100BASE-FX
LOW-POWER PHYSICAL-LAYER INTERFACE
SPWS032D – JANUARY 1997 – REVISED MARCH 1999
MII interrupt operation
TheTNETE2101canprovideaninterruptbasedoncertainPHYeventsthroughtheMIIMDIOsignal. Thisallows
software to receive an interrupt on events, such as a change in link, without periodically polling the device.
Interrupt is indicated by driving the MDIO terminal low after the quiescent cycle and while MDCLK is high. The
quiescent cycle is the cycle following the data transfer, during which neither the MACs nor the PHYs drive
the MDIO.
The interrupt feature is controlled by register bits, MINT, INTEN, and TINT. MINT is the MII-interrupt bit
(register 0x12, bit 15) and is set to a 1 when one or more interrupt events have occurred. INTEN is the
interrupt-enable bit (register 0x11, bit 1) which allows MINT to generate an interrupt on the MDIO terminal.
Additionally, to test interrupt operation (TINT), test interrupt (register 0x11, bit 0) can be set to a 1 which
generates an interrupt, regardless of the value of MINT and INTEN.
Once an interrupt has occurred, MINT can be set to a 0 again by reading the register that contains the event
status. Table 5 shows all the events that can cause MINT to be set and the register location.
Table 5. Interrupt Causes and Register Location
EVENT
JABBER
LINK
CAUSE
REGISTER
0x01
BIT
1
When set to a 1
Change in state or is different from either the last read value of current state of LINK
When set to a 1
0x01
2
RFAULT
0x01
4
AUTOCMPLT When set to a 1
0x01
5
PAGERX
FEFI
When set to a 1
0x06
1
When set to a 1
0x12
10
11
12
13
14
SYNCLOSS
TPENERGY
PLOK
When set to a 1
0x12
When set to a 1 and MANCONF is enabled
Change in state and MANCONF is enabled
When set to a 1
0x12
0x12
PHOK
0x12
details of an interrupt on MDIO
The first MII frame exchanged after power up on MDCLK/MDIO synchronizes the internal MII-state
machine. (After the first MII frame, the TNETE2101 does not require the 32 contiguous 1s before the start
of frame for synchronization.)
A complete clock cycle (high and low) must occur after the last data bit. This clock cycle, or quiescent cycle,
allows the device driving MDIO to set its output to a high-impedance state. After reaching the
high-impedance state, MDIO goes high due to the required external pullup on the MDIO signal.
Clock brought high again enables the interrupt to be driven on the MDIO line (MDIO = low). For as long as
the clock is held high, if an interrupt occurs, MDIO is driven low. The interrupt occurring is not contingent
on seeing another rising edge on the MDCLK, instead, it is clocked through, based on the internal PHY
clock.
On every rising edge thereafter, PHY samples the MDIO line to see if the management entity is outputing
a low, signifying the start of frame. If the MDIO line is high, there is no start of frame and the PHY again drives
the MDIO line low, if there is an interrupt. If start of frame is recognized, the PHY inhibits driving the interrupt
onto the MDIO line until after the MII frame has completed.
17
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TNETE2101
10BASE-T/100BASE-TX/100BASE-FX
LOW-POWER PHYSICAL-LAYER INTERFACE
SPWS032D – JANUARY 1997 – REVISED MARCH 1999
PHY generic control register – GEN_ctl at 0x00
BIT
15
BIT
0
14
13
12
11
10
9
8
7
6
5
4
3
2
1
R
E
S
E
T
L
O
O
P
B
K
S
P
E
E
D
A
U
T
O
E
N
B
P
D
O
W
N
I
A
U
T
O
R
S
R
T
D
U
P
L
E
X
C
O
L
T
E
S
T
S
O
L
A
T
E
Reserved
Figure 7. PHY Generic Control Register
18
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TNETE2101
10BASE-T/100BASE-TX/100BASE-FX
LOW-POWER PHYSICAL-LAYER INTERFACE
SPWS032D – JANUARY 1997 – REVISED MARCH 1999
Table 6. PHY Generic Control Register Bit Functions
BIT
NAME
FUNCTION
NO.
PHY reset. Writing a 1 to RESET causes the PHY to be reset and all registers (except GEN_ctl) to be reset to their
default values. RESET is self-clearing–it returns a value of 1 when read, until the internal reset is complete (which
takes no longer than 500 ms). Writing a 0 to RESET (default) has no effect. This operation can interrupt data
communications.
RESET
15
Loopback. LOOPBK enables or disables internal loopback within the PHY device. When LOOPBK is set to 1, data
is wrapped internally within the PHY and does not appear on the network. When LOOPBK is cleared to 0 (default),
data is transmitted to and received from the network. While the PHY is in loopback, all network lines are placed in
a noncontentious state. If CLOOPBK is asserted low, loopback is enabled and this bit cannot be set to 0 but is read
as 1.
LOOPBK
SPEED
14
13
Speed select. Link speed is determined by way of either autonegotiation or manual setting. There are three methods
by which the PHY speed can be determined:
– Autonegotiation enabled. Speed determined by negotiation.
– Autonegotiation disabled by CAUTONEG being low . Speed determined by CSPEED setting.
– Autonegotiation disabled by register bit AUTOENB set to a 0. Speed determined by register bit SPEED setting.
When SPEED is set to a 1 (default) the PHY speed is 100 Mbit/s and when set to a 0 the PHY speed is 10 Mbit/s.
The value read from the SPEED bit always reflects the current PHY speed, regardless of which method is used to
select the speed (as described previously).
Autonegotiate enable. AUTOENB enables or disables the autonegotiation process if CAUTONEG is high. When
AUTOENB is 0, the link is configured by way of the DUPLEX and SPEED bits, and the PHY implements the
appropriate link-integrity test.
AUTOENB
12
When AUTOENB is set to 1 (default), autonegotiation is enabled and the PHY engages in the autonegotiation
process when a LINK FAIL condition is detected or the AUTORSRT bit is set. The link must not be treated as valid
until the AUTOCMPLT bit and LINK bit are set to 1. If CAUTONEG terminal is low, autonegotiation is disabled, and
AUTOENB cannot be set to 1 but is read as 0.
Power down. When PDOWN is set to 1, the PHY is placed in a low power-consumption state. The time required for
the PHY to power up after PDOWN is cleared can vary considerably. It is good practice to set RESET after this time
to make certain that the PHY is in a valid state. If CPWRDOWN is asserted low, the PHY is powered down, and this
bit cannot be set to 0 but is read as 1.
PDOWN
11
10
9
Isolate. The function of ISOLATE depends on whether the PHY is in repeater mode or node mode (determined by
the REPEATER bit in TXPHY_ctl). In node mode, when ISOLATE is set to 1 (default), the PHY electrically isolates
its data paths from the MII. In this state, it does not respond to MTXD0–MTXD3, MTXEN, and MTXER inputs, but
presents a high impedance on its MTCLK, MRCLK, MRXDV, MRXER, MRXD0–MRXD3, and MCOL outputs. It still
responds to management frames on MDIO and MDCLK. In repeater mode, when ISOLATE is set to 1, the PHY
presents a high impedance on its MRCLK, MRXDV, MRXER, and MRXD0–MRXD3 outputs only. If CISOLATE is
deasserted high, the ISOLATE function is disabled, and this bit cannot be set to 1 but is read as 0.
ISOLATE
AUTORSRT
Restartautonegotiation. If autonegotiation has been enabled by setting AUTOENB to 1, the autonegotiation process
can be restarted by setting AUTORSRT to 1. AUTORSRT is self clearing, and the PHY returns a value of 1 in this
bit until autonegotiation fast-link pulse (FLP) data-burst transmission has been initiated. When AUTOENB is cleared
to 0, AUTORSRT is read as 0. The default value of AUTORSRT is 0.
Duplex mode. Duplex mode is determined by way of either autonegotiation or normal setting. There are three ways
the PHY speed can be determined:
– Autonegotiation enabled. Duplex determined by negotiation.
– Autonegotiation disabled by CAUTONEG being low. Duplex determined by CDUPLEX setting.
– Autonegotiation disabled by register bit AUTOENB set to a 0. Duplex determined by register bit DUPLEX setting.
DUPLEX
8
When DUPLEX is set to 1 (default), the PHY is in full duplex. When DUPLEX is set to 0, the PHY is in half duplex.
The value read from the DUPLEX bit always reflects the current PHY duplex, regardless of which is used to select
the duplex, (as described previously).
Collision test mode. When COLTEST is set to 1 and LOOPBK is set to 1, the PHY asserts the collision-detect signal
MCOL when transmit enable MTXEN is asserted. The default value of COLTEST is 0.
COLTEST
Reserved
7
6–0
Reserved. Read and write as 0.
19
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TNETE2101
10BASE-T/100BASE-TX/100BASE-FX
LOW-POWER PHYSICAL-LAYER INTERFACE
SPWS032D – JANUARY 1997 – REVISED MARCH 1999
PHY generic status register – GEN_sts at 0x01
BIT
15
BIT
0
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
1
1
1
1
Reserved
1
AUTOCMPLT RFAULT
1
LINK
JABBER
1
Figure 8. PHY Generic Status Register
Table 7. PHY Generic Status Register Bit Functions
BIT
FUNCTION
NO.
NAME
0
15
14
100BASE-T4 ability. Not supported.
1
1
1
1
100BASE-TX full-duplex ability. Supported by this PHY.
100BASE-TX half-duplex ability. Supported by this PHY.
10BASE-T full-duplex ability. Supported by this PHY.
10BASE-T half-duplex ability. Supported by this PHY.
Reserved. Read and write as 0.
13
12
11
Reserved
10–7
Management frame preamble suppression. This PHY accepts management frames with the preamble suppressed.
Management frames sent over MDIO do not need to be preceded by the preamble pattern of 32 1s.
1
6
5
Autoconfiguration complete. When AUTOCMPLT is read as 1, it indicates that the autonegotiation process has
completed and the values of registers AN_adv, AN_lpa, AN_exp, and AN_np are valid. If autonegotiation is in
progress, or has been restarted and AUTORSRT is still set to 1, or has been disabled by clearing AUTOENB to 0,
the AUTOCMPLT bit reads as 0.
AUTOCMPLT
Remote fault. The RFAULT bit is set to 1 during autonegotiation if an error in the protocol is detected and negotiation
is restarted. If the negotiation involved the exchange of multiple next pages, this bit indicates that the first of those
pages needs to be reloaded into AN_np due to the restart. RFAULT is latched as 1 until the register is read. The
default value of RFAULT is 0.
RFAULT
1
4
3
Autonegotiation ability. Supported by this PHY.
Link status. In general, when LINK is set to 1, the PHY is reporting that a good link is available to the link partner for
exchange of data. The value of LINK is latched until the register is read. The default value of LINK is 1.
In 10BASE-T mode, LINK is set to 1 when the PHY has determined that a valid 10BASE-T link is established. LINK
read as a 0 indicates that the link is not valid. The PHY implements the standard 10BASE-T link integrity test state
machine. To maintain a good link, link pulses are expected every 8–24 ms. If no link pulses are seen for over 100 ms,
the link invalid state is entered, and this bit is cleared. If AUTOENB is not set, then the bit is set again after seven
consecutive, correctly timed link pulses are received.
LINK
2
In 100BASE-TX mode, the LINK bit is set when the descrambler has locked onto the incoming data stream and has
remained locked for a minimum of 330 s.
If AUTONEG is set, then the link is becoming invalid, which causes the autonegotiation process to restart.
Jabber detect. The jabber function is not specified for 100BASE-TX PHYs, so JABBER always reads as 0 (default)
when the PHY is operating in the 100-Mbit/s mode.
When JABBER is read as 1, it indicates that a 10BASE-T jabber condition has been detected. JABBER is latched
as 1 until the register is read or PHY is reset.
JABBER
1
0
The jabber condition occurs when a single packet transmission exceeds 20 ms. In the jabber condition, all transmit
requests are ignored, MCOL is asserted high, and collision detection is disabled, as is the internal loopback of
transmitdata (when in half-duplex mode). The jabber condition persists for 576–628 ms after deassertion of MTXEN
before packet transmission can restart.
1
Extended capability. This PHY implements an extended register set.
20
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TNETE2101
10BASE-T/100BASE-TX/100BASE-FX
LOW-POWER PHYSICAL-LAYER INTERFACE
SPWS032D – JANUARY 1997 – REVISED MARCH 1999
PHY generic identifier – GEN_id_hi/GEN_id_lo at 0x02/03
These two hardwired 16-bit registers contain an identifier code for the 10BASE-T/100BASE-TX PHY.
GEN_id_hi contains 0x4000, and GEN_id_lo contains 0x503X.
The PHY ID is composed of bits 3–24 of the 25-bit organizationally unique identifier (OUI) assigned to TI by
IEEE. Bit 3 of the OUI maps to bit 15 of GEN_id_hi, bit 4 of the OUI to bit 14 of the GEN_id_hi, and so on.
Figures 9 and 10 show the bit layout of GEN_id_hi and GEN_id_lo.
BIT
15
BIT
0
14
13
12
11
10
9
8
7
6
5
4
3
2
1
OUI
Bits 3–18
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
Figure 9. PHY Generic Identifier – GEN_id_hi at 0x02
BIT
15
BIT
0
14
13
12
11
10
9
8
7
6
5
4
3
2
1
OUI
Bits 19–24
Manufacturer Model Number
Manufacturer Revision Number
0
1
0
1
0
0
0
0
0
0
1
1
X
X
X
X
Figure 10. PHY Generic Identifier – GEN_id_lo at 0x03
21
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TNETE2101
10BASE-T/100BASE-TX/100BASE-FX
LOW-POWER PHYSICAL-LAYER INTERFACE
SPWS032D – JANUARY 1997 – REVISED MARCH 1999
autonegotiation advertisement register – an_adv at 0x04
BIT
15
BIT
0
14
13
12
11
10
9
8
7
6
5
4
3
2
1
NP
ACK
RF
Technology Ability Field
Selector Field
Figure 11. Autonegotiation Advertisement Register
Table 8. Autonegotiation Advertisement Register Bit Functions
BIT
FUNCTION
NO.
NAME
Autonegotiation next page. When NP is set to 1, the autonegotiation process indicates to the link partner that the
PHY wishes to exchange next pages. The capability of the link partner to exchange next pages can be determined
by the value of the LPNPABLE bit in the AN_exp register. When the link partner is capable of next-page exchange,
it requests an exchange by setting the LPNP bit to 1 in the AN_lpa register. Then, the autonegotiation process waits
untilthenextpageiswrittentotheAN_npregister,andthelinkpartnerhashaditsnextpageloaded.Thelinkpartner’s
next page then is received into the AN_lpa register.
NP
15
A consequence of this process is that the PHY fails to complete autonegotiation if the PHY and its link partner agree
to exchange next pages, but the link partner never sends its next page. A software timeout, which forces
renegotiation with NP cleared to 0, should be implemented to avoid this situation.
The default value of NP is 0.
ACK
RF
14
13
Acknowledge. Reserved for internal use of the autonegotiation process. Write as 0, ignore during read.
Remote fault. When RF is set to 1, the PHY indicates a remote fault condition to its link partner. The type of fault,
as well as the criteria and method of fault detection, is PHY specific. The default value of RF is 0.
Autonegotiation advertised technology ability. Bits 12–5 represent an 8-bit value sent to the link partner to indicate
the abilities of the PHY. Once negotiated, the values of the bits are reflected in bits 12–5 in register 0×05 of the link
partner.
12,11
Bits 11 and 12 are set to 0 by default. These bits are reserved for future use according to IEEE 802.3u. These bits
can be changed and are sent to the link partner during autonegotiation.
Pause operation of full duplex links. Defined for use at the MAC level and when set to a 1 signifies that the MAC is
capable of performing the pause function. The pause capability is exchanged between the PHYs during the
autonegotiationbut does not change the PHY’s mode of operation. The pause function is valid only during full-duplex
operation regardless of the medium. The default value of this bit is 0.
Technology
Ability
Field
10
9
8
7
6
5
100BASE-T4. Default value is a 0 and should not be set to a 1 since the TNETE2101 does not support this medium.
100BASE-TX full duplex. Set to 1 to advertise availability to the link partner.
100BASE-TX half duplex. Set to 1 to advertise availability to the link partner.
10BASE-T full duplex. Set to 1 to advertise availability to the link partner.
10BASE-T half duplex. Set to 1 to advertise availability to the link partner.
Autonegotiationselector field code. This field has a default value of 0001, meaning that the PHY supports only IEEE
Std 802.3 format link code words.
Selector Field
4–0
22
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TNETE2101
10BASE-T/100BASE-TX/100BASE-FX
LOW-POWER PHYSICAL-LAYER INTERFACE
SPWS032D – JANUARY 1997 – REVISED MARCH 1999
autonegotiation link partner ability register – an_lpa at 0x05
The link partner ability register, AN_lpa, has three different formats, depending on when the page is received.
The first page received from the link partner always is in the base-page encoding and is used by the PHY for
autoconfiguration. If the link partner supports next-page exchange, subsequently received pages can be in
either message-page or unformatted-page encoding, as determined by the value of the LPNP bit (in AN_lpa).
The use of next pages is summarized as:
Both the PHY and the link partner must indicate next-page ability before either can commence exchange
of next pages.
If both devices are next-page able, then both devices must send at least one next page.
Next-page exchange continues until neither device on a link has more pages to transmit [as indicated by
the LPNP bit (in AN_lpa) and the NP bit (in AN_adv)]. A message page with a null-message code field value
is sent if the device has no other information to transmit.
A message code can carry a specific message or information that defines how subsequent unformatted
page(s) should be interpreted.
If a message code references unformatted pages, the unformatted pages immediately follow the
referencing message code in the order specified by the message code.
Unformatted page users are responsible for controlling the format and sequencing of their unformatted
pages.
base-page encoding
BIT
15
BIT
0
14
13
12
11
10
9
8
7
6
5
4
3
2
1
LPNP
ACK
LPRF
Link Partner Technology Ability Field
Link Partner Selector Field
Figure 12. Autonegotiation Link Partner Ability Register
Table 9. Autonegotiation Link Partner Ability Register Bit Functions
BIT
NAME
FUNCTION
NO.
Link partner next page. When LPNP is set to 1, the link partner is indicating that it wishes to exchange a next
page. See the description of NP in register AN_adv for more information on next-page exchange.
LPNP
15
ACK
14
13
Acknowledge. Reserved for internal use of the autonegotiation process. Write as 0, ignore during read.
Link partner remote fault. When LPRF is set to 1, the link partner is reporting a remote fault condition.
LPRF
Link partner technology ability field. Bits 12–5 are updated during autonegotiate with the 8-bit values received
from the link partner’s PHY advertisement register. Bits 9–5 are examined to determine the highest
common-link capability between the two PHYs.
12, 11
10
Bit values for 12–11 are updated but to do so affects the PHY’s mode of operation.
Pause operation for full duplex links. Defined for use at the MAC level and when set to a 1 after autonegotiation,
signifies that the link partner’s MAC is capable of performing the pause function. The pause capability is
exchanged between the PHYs during the autonegotiation but does not change the PHY’s mode of operation.
The pause function is only valid during full-duplex operation, regardless of the medium.
Link Partner
Technology
Ability
Field
9
8
7
6
5
100BASE-T4. Set to a 1 if link partner supports 100BASE-T4. The TNETE2101 does not support this capability.
100BASE-TX full duplex. Set to 1 if supported by the link partner.
100BASE-TX half duplex. Set to 1 if supported by the link partner.
10BASE-T full duplex. Set to 1 if supported by the link partner.
10BASE-T half duplex. Set to 1 if supported by the link partner.
Link partner selector field. This 5-bit value encodes the format of this register. The PHY supports only IEEE
Std 802.3 format fields (see description of bits 12–5), code 00001. (The only other currently specified IEEE
value is 00010 for IEEE Std 802.9a multimedia frames).
Link Partner
Selector Field
4–0
23
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TNETE2101
10BASE-T/100BASE-TX/100BASE-FX
LOW-POWER PHYSICAL-LAYER INTERFACE
SPWS032D – JANUARY 1997 – REVISED MARCH 1999
message-page encoding (LPMP = 1)
BIT
15
BIT
0
14
13
12
11
10
9
8
7
6
5
4
3
2
1
LPNP
ACK
LPMP ACK2
T
Message Code Field
Figure 13. Message-Page-Encoding Register
Table 10. Message-Page-Encoding Register Bit Functions
BIT
NAME
FUNCTION
NO.
Link partner next page. When LPNP is set to 1, the link partner is ready to exchange an extra next page.
See the description of NP in register AN_adv for more information on next-page exchange.
LPNP
15
ACK
LPMP
ACK2
T
14
13
12
11
Acknowledge. Reserved for internal use of the autonegotiation process. Ignore during read.
Link partner message page. When LPMP is set to 1, register AN_lpa contains a message page.
Acknowledge 2. Reserved for internal use of the autonegotiation process. Ignore during read.
Toggle. Reserved for internal use of the autonegotiation process. Ignore during read.
Message code. An 11-bit message code. See Table 11 for descriptions of the currently defined IEEE
message codes.
Message Code Field
10–0
message-code field values
Table 11 summarizes the message-code field values specified in IEEE Std 802.3. All message codes not
specified are reserved for future IEEE use or allocation.
Table 11. Message-Code Field Values
MESSAGE
CODE
BIT 10–0
MESSAGE-CODE DESCRIPTION
Reserved for future autonegotiation use
0
1
00000000000
00000000001
Null message. The null-message code is transmitted during next-page exchange when the local device has
no further messages to transmit and the link partner is still transmitting valid next pages.
Technology ability extension code 1 [one unformatted page (UP) with technology ability field to follow]. This
message code is reserved for future expansion of the technology ability field and indicates that a defined user
code with a specific technology ability field encoding follows.
2
3
00000000010
00000000011
Technology ability extension code 2 (two UPs with technology ability fields to follow). This message code is
reserved for future expansion of the technology ability field and indicates that two defined user codes with
specific technology ability field encoding follow.
Remote-fault number code (one UP with binary-coded remote fault follows). This message code is followed
by a single user code whose encoding specifies the type of fault that has occurred. The following user codes
are defined:
4
00000000100
0 – RF test. Used to test remote-fault operation.
1 – Link loss
2 – Jabber
3 – Parallel detection fault. Sent to identify when PDFAULT (in AN_exp) is set.
24
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TNETE2101
10BASE-T/100BASE-TX/100BASE-FX
LOW-POWER PHYSICAL-LAYER INTERFACE
SPWS032D – JANUARY 1997 – REVISED MARCH 1999
Table 11. Message-Code Field Values (Continued)
MESSAGE
CODE
BIT 10–0
MESSAGE CODE DESCRIPTION
OUI-tagged message. The OUI-tagged message consists of a single message code of 0000.0000.0101,
followed by four user codes defined in the following chart. The numbers indicate where each bit of the 24-bit
OUI should be stored in the 11-bit user code. Bits 8–0 of the third user code and the fourth (and final) user code
contain a user-defined user-code value that is specific to the OUI transmitted.
Bit
10
Bit
0
User-Code Encoding of OUI
5
00000000101
1st
2nd
3rd
4th
23
12
1
22
11
0
21
10
20
9
19
8
18
7
17
6
16
5
15
4
14
3
13
2
User-defined user code specific to OUI
User-defined user code specific to OUI
PHY identifier tag code. The PHY ID tag code message consists of a single message code of 0000.0000.0110
followed by four user codes defined in the following chart. The numbers indicate where each bit of the 32-bit
PHY ID (stored in GEN_id_hi register 0x2:15–0 and GEN_id_lo register 0x3:15–0) should be stored in the
11-bit user code. Bit 0 of the third user code and the fourth (and final) user code contain a user-defined
user-code value that is specific to the PHY ID transmitted.
Bit
10
Bit
0
User-Code Encoding of PHY ID
6
00000000110
0x2
15
0x2
14
0x2
13
0x2
12
0x2
11
0x2
10
0x2
9
0x2
8
0x2
7
0x2
6
0x2
5
1st
0x2
4
0x2
3
0x2
2
0x2
1
0x2
0
0x3
15
0x3
14
0x3
13
0x3
12
0x3
11
0x3
10
2nd
0x3
9
0x3
8
0x3
7
0x3
6
0x3
5
0x3
4
0x3
3
0x3
2
0x3
1
0x3
0
UD
UC
3rd
4th
User-defined user code specific to PHY ID
2047
11111111111
Reserved for future autonegotiation use
25
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TNETE2101
10BASE-T/100BASE-TX/100BASE-FX
LOW-POWER PHYSICAL-LAYER INTERFACE
SPWS032D – JANUARY 1997 – REVISED MARCH 1999
unformatted-page encoding (LPMP = 0)
BIT
15
BIT
0
14
13
12
11
10
9
8
7
6
5
4
3
2
1
LPNP
ACK
LPMP ACK2
T
Unformatted Code Field
Figure 14. Unformatted-Page Encoding Register
Table 12. Unformatted-Page Encoding Register Bit Functions
BIT
NAME
FUNCTION
NO.
Link partner next page. When LPNP is set to 1, the link partner is indicating that it wishes to exchange
an extra next page. Refer to the description of NP in register AN_adv for more information on next-page
exchange.
LPNP
15
ACK
LPMP
ACK2
T
14
13
12
11
Acknowledge. Reserved for internal use of the autonegotiation process. Ignore during read.
Link partner message page. When LPMP is cleared to 0, register AN_lpa contains an unformatted page.
Acknowledge 2. Reserved for internal use of the autonegotiation process. Ignore during read.
Toggle. Reserved for internal use of the autonegotiation process. Ignore during read.
Unformatted code. 11-bit user code. The format of this code is determined by the message code (see
Table 11).
Unformatted Code Field
10–0
autonegotiation expansion register – AN_exp at 0x06
BIT
15
BIT
0
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Reserved
PDFAULT
LPNPABLE
1
PAGERX LPANABLE
Figure 15. Autonegotiation Expansion Register
Table 13. Autonegotiation Expansion-Register Bit Functions
BIT
NAME
FUNCTION
NO.
Reserved
15–5
Reserved. Read and write as 0.
Parallel detection fault. The PDFAULT bit is set to 1 during autonegotiation if the PHY detects a valid 10BASE-T or
100BASE-TXlinkthatfailswithin500–1000msorifboththe10BASE-Tand100BASE-TXlinkmonitorsreportagood
link. PDFAULT is latched until this register is read, then it is cleared to 0 (default).
PDFAULT
4
Link-partner next-page able. When LPNPABLE is set to 1, the link partner is indicating that it is implementing the
autonegotiation next-page ability. The default value of LPNPABLE is 0.
LPNPABLE
1
3
2
1
Next-page able. This PHY supports autonegotiation next-page exchange.
Page received. The PAGERX bit is set to 1 when a new link code word has been received and stored in the AN_lpa
register. PAGERX is latched until this register is read, then it is cleared to 0 (default).
PAGERX
Link-partner autonegotiation enable. When LPANABLE is set to 1, the PHY has received link code word(s) from the
link partner during autonegotiation. The value of LPANABLE is retained after autonegotiation completes, and is
re-evaluated only during a subsequent renegotiation (whether caused by a LINK FAIL condition or a forced restart)
or PHY reset. The default value of LPANABLE is 0.
LPANABLE
0
26
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TNETE2101
10BASE-T/100BASE-TX/100BASE-FX
LOW-POWER PHYSICAL-LAYER INTERFACE
SPWS032D – JANUARY 1997 – REVISED MARCH 1999
autonegotiation next-page transmit register – AN_np at 0x07
BIT
15
BIT
0
14
13
12
11
10
9
8
7
6
5
4
3
2
1
NP
ACK
MP
ACK2
T
Message or Unformatted Code Field
Figure 16. Autonegotiation Next-Page Transmit Register
Table 14. Autonegotiation Next-Page Transmit-Register Bit Functions
BIT
FUNCTION
NO.
15
NAME
Next page. When a next page with NP set to 1 is transmitted, the link partner is informed that another next page
is to be transmitted (see Table 11). The default value of NP is 0.
NP
ACK
MP
14
Acknowledge. Reserved for internal use of the autonegotiation process. Write as 0, ignore during read.
Messagepage. When MP is set to 1, AN_np contains a message-page code field. When MP is cleared to 0, AN_np
contains an unformatted-page code field (see Table 11). The default value of MP is 1.
13
ACK2
T
12
11
Acknowledge 2. Reserved for internal use of the autonegotiation process. Write as 0, ignore during read.
Toggle. Reserved for internal use of the autonegotiation process. Write as 0, ignore during read.
Message or
Unformatted
Code Field
Message or unformatted code field (see Table 11). The default value of the code field is 000.0000.0001, the null
message code.
10–0
PHY identifier high/low – TXPHY_id at 0x10
This hardwired 16-bit register contains a TI-assigned identifier code for the PHY PMIs. An additional identifier
is required to identify non-IEEE Std 802.3 PHY/PMIs, which are not otherwise supported by the IEEE Std 802.3
MII specification. The identifier code for the internal 10BASE-T/100BASE-TX PHY is 0x0003.
PHY control register – TXPHY_ctl at 0x11
BIT
15
BIT
0
14
13
12
11
10
9
8
7
6
5
4
3
2
1
I
S
W
A
P
O
L
M
A
N
C
O
N
F
S
Q
E
E
N
M
T
E
S
T
F
I
B
E
R
F
E
F
E
N
N
O
E
N
D
E
C
N
O
A
L
I
G
N
D
U
P
O
N
L
R
E
P
E
A
T
R
X
R
E
S
E
T
N
O
L
N
F
E
I
T
I
N
T
G
L
I
N
K
N
T
E
N
I
W
N
K
P
Y
E
R
Figure 17. PHY Control Register
Table 15. PHY Control-Register Bit Functions
BIT
NAME
FUNCTION
NO.
Ignore link. When IGLINK is cleared to 0 (default), the 10BASE-T PHY expects to receive link pulses from the link
partner (hub, switch, and so on) and clears the LINK bit in the GEN_sts register to 0 if they are not present. When
IGLINK is set to 1, the internal link-integrity-test state machine is forced to stay in the LINK GOOD state even when
no link pulses are being received, and it also causes the LINK bit to stay set to 1.
IGLINK
15
14
Swappolarity. Allows swapping the receive polarity when the MANCONF bit is set to 1. Writing a 1 to SWAPOLcauses
the PHY to use the reverse of the IEEE Std 802.3 standard polarity for the ARCVP/ARCVN 10BASE-T receiver-input
pair. This is used to compensate for a cable in which the receive pair has been wired incorrectly.
SWAPOL
See the PLOK bit description in register 0×12 for a detailed explanation.
27
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TNETE2101
10BASE-T/100BASE-TX/100BASE-FX
LOW-POWER PHYSICAL-LAYER INTERFACE
SPWS032D – JANUARY 1997 – REVISED MARCH 1999
Table 15. PHY Control Register Bit Functions (Continued)
BIT
NAME
FUNCTION
NO.
Manualconfiguration. Writing a 1 to MANCONF enables manual configuration of the PHY polarity using the SWAPOL
bit. Thedefaultvalueofthisbitis0whichenablesautomaticdetectionofpolaritybymonitoringlinkpulsesforinversion.
See the PLOK bit description in register 0×12 for a detailed explanation.
MANCONF
13
Signal quality error (SQE) enable. When SQEEN is set to 1, the 10BASE-T PHY (when selected) performs the SQE
test function at the end-of-packet transmission. The default value of SQEEN is 1.
SQEEN
12
The SQE test provides an internal simulated collision to test collision-detect circuit integrity after a transmission. In
10BASE-T mode, the SQE test asserts MCOL between 600–1600 ns after the last positive edge of a frame is
transmitted, with the collision event lasting between 500–1500 ns.
Manufacturingtest. When MTEST is set to 1, the PHY is placed in manufacturing test mode. Manufacturing test mode
is reserved for TI manufacturing test only. The default value of MTEST is 0. Operation of the PHY and MII registers
is undefined when this bit is set.
MTEST
FIBER
11
10
100BASE-FX mode. When FIBER is set to 1, PHY disables its cipher-stream scrambler and descrambler. The UTP
interface terminals are placed in a nonfunctional low-power state and the differential PECL fiber-interface terminals
are activated. The default value of FIBER is 0. If CFIBER is asserted low, the fiber interface is enabled and this bit
cannot be set to 0 but is read as 1.
Far-end fault indication enable. When both FEFEN and FIBER are set to 1, the PHY transmits the far-end fault
indication (FEFI) symbol stream (consisting of 84 1s and 0) when the 100BASE-FX signal detect is deasserted. Also,
atthistimetheFEFIbitinTXPHY_stsissetto1.TheFEFIsystemisspecifiedforusein100BASE-FXfiberapplications
only. The default value of FEFEN is 0.
FEFEN
9
8
No encode/decode. When NOENDEC is set to 1, the 100BASE-TX PHY bypasses its 5B4B encoder and decoder.
Instead, it takes the 5-bit code presented on MTXD0–MTXD3 and MTXER (most significant bit) as transmit data, and
presents the received 5B code groups on MRXD0–MRXD3 and MRXER (most significant bit). The default value of
NOENDEC is 0. This mode of operation is provided for applications test purposes.
NOENDEC
If CPASS5B terminal is asserted low, the NOENDEC mode is enabled and this bit cannot be set to 0 but is read as 1.
No symbol alignment. When NOALIGN is set to 1, the 100BASE-TX receive-symbol-alignment block is bypassed and
the 5-bit descrambled receive symbols are passed directly to the 5B4B decoder.
NOALIGN
DUPONLY
7
6
Duplex LED. When DUPONLY is set to 1, the LDUPCOL LED driver indicates the duplex mode in which the PHY is
operating and does not indicate network collisions. The default value of DUPONLY is 0.
Repeater-modeenable. When REPEATER is set to 1, the PHY does not assert MCRS in response to transmit activity
in100BASE-TXmode. Also, theISOLATE bit in the GEN_ctl register causes only MRCLK, MRXD0–MRXD3, MRXDV,
and MRXER to resort to a high-impedance state. The default value of REPEATER is 0. If CREPEATER is asserted
low, the repeater mode is enabled and this bit cannot be set to 0 but is read as 1.
REPEATER
RXRESET
5
4
100BASE-TX receive reset. Writing a 1 to this self-clearing bit allows the 100BASE-TX receive logic (descrambler,
aligner, and 5B4B decoder) to be reset without affecting other parts of the PHY. The default value of RXRESET is 0.
Disable link-pulse transmission. When NOLINKP is set to 1 and IGLINK is set to 1, the PHY does not transmit any
form of link pulses. In 10BASE-T applications, the link partner does not detect a good link and does not transmit any
data, unless it is not implementing the link-integrity test (for example, a PHY with IGLINK set to 1). Autonegotiation
shouldbedisabledbyclearingAUTOENBto0whenNOLINKPissetbecausenoautonegotiationFLPsaretransmitted
to the link partner. NOLINKP has no effect on the PHY if IGLINK is cleared to 0. The default value of NOLINKP is 0.
This mode of operation is provided for application-test purposes.
NOLINKP
NFEW
3
2
Not far end wrap. NFEW has meaning only when the LOOPBK bit of GEN_ctl is set to 1. Writing a 1 to NFEW causes
the PHY to wrap the MTXD input data to the MRXD output just after the MII interface. Writing a 0 to NFEW causes
thePMItowraptheTXdatatotheRXjustbeforethenetworktransceiverinterface(either10BASE-Tor100BASE-TX).
When NFEW is set to 1, preamble is wrapped without degradation (in normal operation, the PHY may lose some
preamble bits during initial clock-recovery synchronization). The default value of NFEW is 0.
Interrupt enable. Writing a 1 to INTEN allows the PHY to generate interrupts on the MII when the MINT bit is set to 1.
Writing a 0 to INTEN prevents the PHY from generating any MII interrupts. INTEN does not disable test interrupts. The
default value of INTEN is 0.
INTEN
TINT
1
0
Test interrupt. When TINT is set to 1, the PHY generates interrupts on the MII, regardless of the value of the MINT
and INTEN bits. TINT is to be used for diagnostic test of the MII-interrupt function. The default value of TINT is 0.
28
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TNETE2101
10BASE-T/100BASE-TX/100BASE-FX
LOW-POWER PHYSICAL-LAYER INTERFACE
SPWS032D – JANUARY 1997 – REVISED MARCH 1999
PHY status register – TXPHY_sts at 0x12
BIT
BIT
15
0
14
13
12
11
10
9
8
7
6
5
4
3
2
1
MINT
PHOK
PLOK
TPENERGY SYNCLOSS
FEFI
Reserved
Figure 18. PHY Status Register
Table 16. PHY Status-Register Bit Functions
BIT
NAME
FUNCTION
NO.
MII Interrupt. MINT indicates an MII-interrupt condition. The MII-interrupt request is activated and latched until this
register is read. Writing to MINT has no effect. MINT is set to 1 when:
– JABBER (register 0x0, bit 1) is set to 1.
– LINK (register 0x0, bit 2) changes state or is different from either the last read value or the current state of the link.
– RFAULT (register 0x1, bit 4) is set to 1.
– AUTOCMPLT (register 0x1, bit 5) is set to 1.
– PAGERX (register 0x6, bit 1) is set to 1.
– FEFI (register 0x12, bit 10) is set to 1.
†
MINT
15
– SYNCLOSS (register 0x12, bit 11) is set to 1.
– PHOK (register 0x12, bit 14) is set to 1.
Additional interrupt sources are active only when the MANCONF bit (register 0x11, bit 13) is set to 1. MINT is set
to a 1 when:
– TPENERGY (register 0x12, bit 12) is set to 1.
– PLOK (register 0x12, bit 13) changes state.
Power high OK. When PHOK is set to 1, it indicates that the oscillator circuit connected to XTAL1 has begun to
oscillate (and perform around 75 cycles). PHY-sourced clocks (MRCLK and MTCLK) are not valid until PHOK is
asserted. The clocks can take up to 50 ms to become stable and the PHY requires the RESET bit to be set to make
certain it is in a valid state. When PHOK is 0, the PHY is not in a fully operational state.
PHOK
PLOK
14
13
Polarity OK. PLOK set to a 1 (default) signifies that the 10BASE-T PHY is receiving valid (noninverted) link pulses.
PLOK always is set to a 1 when MANCONF is set to a 0, since the PHY automatically corrects polarity. If MANCONF
is set to a 1 for manual polarity configuration, PLOK is cleared to a 0 if a sequence of seven consecutive inverted
link pulses is detected. PLOK can be set to a 1 again only if the SWAPOL bit is toggled and then 1 noninverted link
pulse is received.
If MANCONF is a 1 and then cleared to a 0 when PLOK is still a 0, PLOK is not set to a 1 until SWAPOL is toggled.
This reenables the autopolarity detection and PLOK remains a 1.
10BASE-T polarity is determined strictly from link pulses and not from received data or TP idles.
Twisted-pair energy detect. When TPENERGY is set to 1, it indicates that the PHY is receiving impulses on
ARCVP/ARCVN.
TPENERGY
SYNCLOSS
12
11
100BASE-TX receive descrambler synchronization loss. The 100BASE-TX descrambler expects to receive at least
12 consecutive IDLE symbols every 722 µs. If these are not seen, then SYNCLOSS is set to 1, and the descrambler
attempts to resynchronize itself to the incoming scrambled data stream. The value of SYNCLOSS is latched high
until this register is read.
Far-end fault indication. When enabled via the FEFEN bit in TXPHY_ctl, this bit is set to 1 if the FEFI signaling
sequence is being transmitted by the link partner. The value of FEFI is latched (held) high until this register is read.
FEFI
10
Reserved
9–0
Reserved. Read and write as 0.
†
Useful for switching applications (TI patented)
29
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TNETE2101
10BASE-T/100BASE-TX/100BASE-FX
LOW-POWER PHYSICAL-LAYER INTERFACE
SPWS032D – JANUARY 1997 – REVISED MARCH 1999
†
absolute maximum ratings
Supply voltage range: V
V
Input voltage range:TTL, V –0.5 V to V
5-V tolerant TTL, V –0.5 V to V
PECL, V (<4.6 V max) V
Output voltage range: TTL, V –0.5 V to V
5-V tolerant TTL, V –0.5 V to V
PECL, V (<4.6 V max) V
Thermal impedance, junction-to-ambient package, Z
V
, XMT_V
, (see Notes 1 and 2)–0.5 V to 4.6 V
DD, DDA
DDA
(see Notes 1 and 2)–0.5 V to 5.5 V
DD5
+ 0.5 V
I
DD
+ 0.5 V
I
DD5
–2.02 V to V
+ 0.5 V
+ 0.5 V
I
DD
DD
O
DD
O
+ 0.5 V
DD5
–2.02 V to V
+ 0.5 V
O
DD
DD
: Airflow = 068.40°C/W
θJA
Airflow = 150 ft/min57.45°C/W
Thermal impedance, junction-to-case package, Z
1.95°C/W
θJC
Operating case temperature range, T 0°C to 95°C
C
Storage temperature range, T –65°C to 150°C
stg
†
Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 1. All voltage values are with respect to GND.
2. Turning power supplies on and off (cycling sequence) within a mixed 5-V/3.3-V system is an important consideration. The designer
must observe a few rules to avoid damaging the TNETE2101. Check with the manufacturers of all components used in the 3.3-V
to 5-V interface to ensure that no unique device characteristics exist that would lead to rules more restrictive than the TNETE2101
requires.
•
The optimum solution to power-supply sequencing in a mixed-voltage system is to ramp up the 3.3-V supply first. A power-on
reset component operating from this supply forces all 5-V-tolerant outputs into the high-impedance state. Then, the 5-V supply
is ramped up. On power down, the 5-V rail deenergizes first, followed by the 3.3-V rail.
•
The second-best solution is to ramp both the 3.3-V and the 5-V rails at the same time, making sure that no more than 3.6 V exists
between these two rails during the ramp up or down. If the 3.3 V is derived from the 5 V, then the 3.3 V rises as the 5 V rises,
sothe5-Vrailneverexceedsthe3.3-Vrailbymorethan3.6V. Boththeoptimumandsecond-bestalgorithmsforpowerupprevent
device damage. If it is impractical to implement ramping, follow these rules:
–
When turning on the power supply, all 3.3-V and 5-V supplies should start ramping from 0 V and reach 95 percent of their
end-point values within 25 ms. All bus contention between the device and external devices is eliminated by the end of 25 ms.
When turning off the power supply, 3.3-V and 5-V supplies should start ramping from steady-state values and reach 5 percent
of their final values within 25 ms. All bus contention between devices and external devices is eliminated by the end of 25 ms.
There is a 250-s lifetime maximum at greater than 3.6-V difference between the supply rails. Holding the ramp-up/ramp-down
period to 25 ms per power-on/off cycle should not significantly contribute to mean-time-between-failure (MTBF) shifts during
product lifetimes.
–
30
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TNETE2101
10BASE-T/100BASE-TX/100BASE-FX
LOW-POWER PHYSICAL-LAYER INTERFACE
SPWS032D – JANUARY 1997 – REVISED MARCH 1999
recommended operating conditions
MIN
3
NOM
3.3
5
MAX
3.6
UNIT
V
V
V
, V
, XMT_V
Supply voltage
DD DDA
DDA
Reference voltage
4.5
0
5.5
V
DD5
TTL
V
DD
5.5
V
V
V
Input voltage
5-V TTL
PECL
0
V
V
I
V
V
V
V
– 0.5
TTP
0
DD
TTL, 5-V TTL
PECL
V
DD
– 0.5
Output voltage
O
TTP
0
DD
LED
V
V
DD
TTL
2
2
DD
5.5
High-level input voltage
Low-level input voltage
5-V TTL
PECL
V
V
IH
V
– 1.35
0
V
DD
– 0.70
0.8
DD
TTL, 5-V TTL
PECL
V
V
IL
V
– 2
V
DD
– 1.55
DD
Termination voltage
PECL
V
– 2
50
V
TTP
DD
R
Differential-termination resistance
PECL
Ω
t
electrical characteristics over recommended operating conditions
PARAMETERS
TEST CONDITIONS
TTL, 5-V TTL
PECL
MIN
2.4
TYP
MAX
UNIT
I
= –4 mA
OH
V
OH
High-level output voltage
V
50 Ω to V –2
1.50
2.30
0.8
DD
= min, T = max
V
LEDs (see Note 3)
PECL
DD
C
V
V
Low-level output voltage
50 Ω to V –2
0.20
1.20
0.30
0.4
V
OL
DD
= 4 mA
I
TTL, 5-VTTL
PECL
OL
Differential input voltage
2.10
20
V
ID
I
I
I
Low-level input current
V = V
TTL, 5-V TTL, PECL
µA
µA
µA
IL
I
IL(min)
High-level input current
V = V
TTL, PECL
–20
–20
IH
I
IH(max)
High-impedance-state output current
TTL, LED, PECL
Full duplex
OZ
100BASE-TX,
Power down
200
20
6
I
Supply current, 3.3 V (see Note 4)
mA
DD
C
C
Capacitive input
Capacitive output
pF
pF
i
6
o
NOTES: 3. LACTIVITY, LDUPCOL, LLINK, LSPEED
4. Typical values measured at 25°C without LEDs connected
oscillator requirements
PARAMETERS
MIN
TYP
MAX
UNIT
MHz
ppm
%
Clock frequency
20
Clock frequency error
Clock duty cycle
–50
40
50
60
V
V
2.85
V
V
OH
DD
–0.50
0.80
5
V
OL
t , t (see Note 5)
r f
ns
NOTE 5: Measured at 20%–80% transition low-to-high or high-to-low points
31
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TNETE2101
10BASE-T/100BASE-TX/100BASE-FX
LOW-POWER PHYSICAL-LAYER INTERFACE
SPWS032D – JANUARY 1997 – REVISED MARCH 1999
MDIO timing requirements (see Figure 19)
NO.
1
PARAMETERS
MIN
10
MAX
UNIT
ns
t
t
Setup time, MDIO valid to MDCLK high (see Note 6)
Hold time, MDCLK high to MDIO changing (see Note 6)
su(MDIO)
2
10
ns
h(MDIO)
NOTE 6: MDIO is a bidirectional signal that can be sourced by the TNETE2101 or the PMI/PHY. When the TNET2101 sources the MDIO signal,
TNETE2101 asserts MDIO synchronous to the rising edge of MDCLK.
MDCLK
(input)
1
2
2 V
MDIO
(I/O)
0.8 V
Figure 19. MDIO Sourced by External Controller
MDIO timing requirements (see Figure 20)
NO.
MIN
MAX
300
UNIT
1
2
t
t
Access time, MDIO valid to MDCLK high (see Note 7)
Cycle time
0
ns
a(MDIO)
400
c(MDCLK)
NOTE 7: When the MDIO signal is sourced by the PMI/PHY, it is sampled by the TNETE2101 synchronous to the rising edge of MDCLK.
MDCLK
(input)
2 V
2
1
2 V
MDIO
(I/O)
0.8 V
Figure 20. MDIO Sourced by the TNETE2101
32
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TNETE2101
10BASE-T/100BASE-TX/100BASE-FX
LOW-POWER PHYSICAL-LAYER INTERFACE
SPWS032D – JANUARY 1997 – REVISED MARCH 1999
MII transmit timing requirements (see Figure 21)
10BASE-T, 100BASE-TX, 100BASE-FX
NO.
1
PARAMETER
MIN
10
10
10
0
TYP
MAX
UNIT
ns
t
t
t
t
t
t
t
t
Setup time, MTXD3–MTXD0 valid to MTCLK↑
Setup time, MTXEN valid to MTCLK↑
Setup time, MTXER valid to MTCLK↑
Hold time, MTCLK↑ to MTXD3–MTXD0 invalid
Hold time, MTCLK↑ to MTXEN↓
su(MTXD3–MTXD0)
1
ns
su(MTXEN)
1
ns
su(MTXER)
2
ns
h(MTXD3–MTXD0)
h(MTXEN)
2
0
ns
2
Hold time, MTCLK↑ to MTXER↓
0
ns
h(MTXER)
3
Cycle time, 10BASE-T
400
40
ns
c(MTCLK)
3
Cycle time, 100BASE-TX, 100BASE-FX
ns
c(MTCLK)
3
2
1
MTCLK
(output)
2 V
MTXD3–MTXD0
MTXEN
MTXER
(inputs)
2 V
0.8 V
Figure 21. MII Transmit
MII receive timing requirements (see Figure 22)
10BASE-T, 100BASE-TX, 100BASE-FX
NO.
1
PARAMETER
MIN
TYP
MAX
20
UNIT
ns
t
t
t
t
t
t
Delay time, MRXD3–MRXD0 valid to MRCLK↑
Delay time, MRXDV valid to MRCLK↑
Delay time, MRXER valid to MRCLK↑
Delay time, MCOL valid to MRCLK↑
Cycle time, 10BASE-T
10
10
10
10
d(MRXD3–MRXD0)
d(MRXDV)
d(MRXER)
d(MCOL)
1
20
ns
1
20
ns
1
20
ns
2
400
40
ns
c(MRCLK)
2
Cycle time, 100BASE-TX, 100BASE-FX
ns
c(MRCLK)
2
MRCLK
(output)
2 V
1
MRXD3–MRXD0
MRXDV
MRXER
MCOL
2 V
0.8 V
(outputs)
Figure 22. MII Receive
33
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TNETE2101
10BASE-T/100BASE-TX/100BASE-FX
LOW-POWER PHYSICAL-LAYER INTERFACE
SPWS032D – JANUARY 1997 – REVISED MARCH 1999
reset timing requirements (see Figure 23)
NO.
1
PARAMETER
MIN
TYP
MAX
UNIT
ns
t
t
t
t
t
Cycle time, XTAL1
Pulse duration
50
c(XTALI)
2
50
10
5
µs
w(MRSTL)
su(MRSTL)
h(MRSTL)
d(XTALI)
3
Setup time, MRST low before XTAL1↑
Hold time, MRST low after XTAL1↑
ns
4
ns
5
Delay time, XTAL1 invalid to XTAL1 valid (stable)
25
ms
V
DD
(input)
XTAL1
(input)
5
MRST*
(input)
3
4
2
1
Figure 23. Reset
At initial power up, the TNETE2101 performs an internal reset. No external reset circuit is required, however,
operation of the TNETE2101 is not specified for 50 ms after power up (V is stable).
DD
During operation, a full reset of the device can be performed by taking MRST terminal low for at least 50 µs.
Correct operation of the devices is not assured for a duration of 50 ms after MRST terminal is deasserted high.
100BASE-TX parameters
PARAMETER
DESCRIPTION
level on transmit waveform (see Figure 24)
out+
MIN
MAX
UNIT
V
V
out+
V
0.95
1.05
V
out–
V
out–
level on transmit waveform (see Figure 24)
–1.05 –0.95
V
V
V
V
/V
symmetry (see Figure 24)
98
0
102
5
%
TX(sym)
TX(os)
r1(TX)
r2(TX)
f1(TX)
out+ out–
V
/V
voltage overshoot (see Figure 24)
%
out+ out–
t
t
t
t
Rise time, t (0 –> V
transition) (see Figure 25)
transition) (see Figure 25)
3
5
ns
ns
ns
ns
1
out+
Rise time, t (0 –> V
3
5
4
out–
Fall time, t (V
transition –> 0) (see Figure 25)
transition –> 0) (see Figure 25)
3
5
2
out+
Fall time, t (V
3
5
f2(TX)
3
out–
Maximum t
Maximum t
– Minimum t
– Minimum t
Maximum t
Maximum t
– Minimum t
r2(Tx)
– Minimum t
f2(Tx)
(see Figure 25),
r1(Tx)
f1(Tx)
r1(Tx),
f1(Tx),
r2(Tx)
f2(Tx)
t
0
0
0.5
0.5
ns
ns
∆(TX)
t
Duty-cycle distortion (see Figure 26)
DCD(TX)
34
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TNETE2101
10BASE-T/100BASE-TX/100BASE-FX
LOW-POWER PHYSICAL-LAYER INTERFACE
SPWS032D – JANUARY 1997 – REVISED MARCH 1999
≤0.05 V
out+
V
out+
0
≤0.05 V
out–
V
out–
Figure 24. 100BASE-TX Transmit Amplitude
t
3
t
1
V
out+
90% V
out+
10% V
10% V
out+
0
out–
t
2
t
4
90% V
out–
V
out–
NOTES: A.
t
occurs at 10% of V
.
.
.
.
1
2
3
4
out+
out+
B.
C.
D.
t
t
t
occurs at 90% of V
occurs at 10% of V
occurs at 90% of V
out–
out–
Figure 25. 100BASE-TX Transmit Rise/Fall
V
out+
0.5 ns
50% V
out+
0.5 ns
0
0.5 ns
50% V
V
out–
0.5 ns
out–
Figure 26. 100BASE-TX Transmit Duty-Cycle Distortion
35
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TNETE2101
10BASE-T/100BASE-TX/100BASE-FX
LOW-POWER PHYSICAL-LAYER INTERFACE
SPWS032D – JANUARY 1997 – REVISED MARCH 1999
receiver squelch parameters
10BASE-T
PARAMETER
DESCRIPTION
Positive-squelch receiver threshold voltage
MIN
MIN
TYP
250
–250
75
MAX
MAX
UNIT
mV
V
thp
V
thn
V
thd
Negative-squelch receiver threshold voltage
Data receiver threshold voltage
mV
mV
100BASE-TX
PARAMETER
DESCRIPTION
Receiver differential voltage to maintain link
TYP
UNIT
V
th
200
mV
PARAMETER MEASUREMENT INFORMATION
Outputs are driven to a minimum high-logic level of 2.4 V and to a maximum low-logic level of 0.6 V.
Output transition times are specified as follows: For a high-to-low transition on either an input or output signal, the
level at which the signal is said to be no longer high is 2 V and the level at which the signal is said to be low is 0.8 V.
For a low-to-high transition, the level at which the signal is no longer said to be low is 0.8 V and the level at which
the signal is said to be high is 2 V, as shown in the following diagram.
2 V (high)
0.8 V (low)
The rise and fall times are not specified, but are assumed to be those of standard TTL devices, which are typically
1.5 ns.
test measurement
The test and load circuit shown in Figure 27 represents the programmable load of the tester-terminal electronics
used to verify timing parameters of the TNETE2101 output signals.
I
OL
Test
Point
TTL
Output
Under
Test
V
LOAD
C
L
I
OH
TTL OUTPUT TEST LOAD
Where: I
I
=
=
=
Refer to I
Refer to I
1.5 V, typical dc-level verification or
1.5 V, typical timing verification
in recommended operating conditions.
in recommended operating conditions.
OL
OH
LOAD
OL
OH
V
C
=
45 pF, typical load-circuit capacitance
L
Figure 27. Test and Load Circuit
36
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
TNETE2101
10BASE-T/100BASE-TX/100BASE-FX
LOW-POWER PHYSICAL-LAYER INTERFACE
SPWS032D – JANUARY 1997 – REVISED MARCH 1999
MECHANICAL DATA
PZ (S-PQFP-G100)
PLASTIC QUAD FLATPACK
0,27
0,17
0,50
75
M
0,08
51
50
76
26
100
0,13 NOM
1
25
12,00 TYP
Gage Plane
14,20
SQ
13,80
0,25
16,20
SQ
0,05 MIN
0°–7°
15,80
1,45
1,35
0,75
0,45
Seating Plane
0,08
1,60 MAX
4040149/B 11/96
NOTES: A. All linear dimensions are in millimeters.
B. This drawing is subject to change without notice.
C. Falls within JEDEC MS-026
37
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
PACKAGE OPTION ADDENDUM
www.ti.com
24-Jun-2005
PACKAGING INFORMATION
Orderable Device
Status (1)
Package Package
Pins Package Eco Plan (2) Lead/Ball Finish MSL Peak Temp (3)
Qty
Type
LQFP
LQFP
LQFP
LQFP
Drawing
TNETE2101APZ
TNETE2101PZ
TNETE2101PZ-R
XTNETE2101PZ
OBSOLETE
OBSOLETE
OBSOLETE
OBSOLETE
PZ
100
100
100
100
TBD
TBD
TBD
TBD
Call TI
Call TI
Call TI
Call TI
Call TI
Call TI
Call TI
Call TI
PZ
PZ
PZ
(1) The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in
a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
Eco Plan
-
The planned eco-friendly classification: Pb-Free (RoHS) or Green (RoHS
&
no Sb/Br)
-
please check
http://www.ti.com/productcontent for the latest availability information and additional product content details.
TBD: The Pb-Free/Green conversion plan has not been defined.
Pb-Free (RoHS): TI's terms "Lead-Free" or "Pb-Free" mean semiconductor products that are compatible with the current RoHS requirements
for all 6 substances, including the requirement that lead not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered
at high temperatures, TI Pb-Free products are suitable for use in specified lead-free processes.
Green (RoHS & no Sb/Br): TI defines "Green" to mean Pb-Free (RoHS compatible), and free of Bromine (Br) and Antimony (Sb) based flame
retardants (Br or Sb do not exceed 0.1% by weight in homogeneous material)
(3)
MSL, Peak Temp. -- The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder
temperature.
Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is
provided. TI bases its knowledge and belief on information provided by third parties, and makes no representation or warranty as to the
accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and continues to take
reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on
incoming materials and chemicals. TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited
information may not be available for release.
In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI
to Customer on an annual basis.
Addendum-Page 1
IMPORTANT NOTICE
Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications,
enhancements, improvements, and other changes to its products and services at any time and to discontinue
any product or service without notice. Customers should obtain the latest relevant information before placing
orders and should verify that such information is current and complete. All products are sold subject to TI’s terms
and conditions of sale supplied at the time of order acknowledgment.
TI warrants performance of its hardware products to the specifications applicable at the time of sale in
accordance with TI’s standard warranty. Testing and other quality control techniques are used to the extent TI
deems necessary to support this warranty. Except where mandated by government requirements, testing of all
parameters of each product is not necessarily performed.
TI assumes no liability for applications assistance or customer product design. Customers are responsible for
their products and applications using TI components. To minimize the risks associated with customer products
and applications, customers should provide adequate design and operating safeguards.
TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right,
copyright, mask work right, or other TI intellectual property right relating to any combination, machine, or process
in which TI products or services are used. Information published by TI regarding third-party products or services
does not constitute a license from TI to use such products or services or a warranty or endorsement thereof.
Use of such information may require a license from a third party under the patents or other intellectual property
of the third party, or a license from TI under the patents or other intellectual property of TI.
Reproduction of information in TI data books or data sheets is permissible only if reproduction is without
alteration and is accompanied by all associated warranties, conditions, limitations, and notices. Reproduction
of this information with alteration is an unfair and deceptive business practice. TI is not responsible or liable for
such altered documentation.
Resale of TI products or services with statements different from or beyond the parameters stated by TI for that
product or service voids all express and any implied warranties for the associated TI product or service and
is an unfair and deceptive business practice. TI is not responsible or liable for any such statements.
Following are URLs where you can obtain information on other Texas Instruments products and application
solutions:
Products
Applications
Audio
Amplifiers
amplifier.ti.com
www.ti.com/audio
Data Converters
dataconverter.ti.com
Automotive
www.ti.com/automotive
DSP
dsp.ti.com
Broadband
Digital Control
Military
www.ti.com/broadband
www.ti.com/digitalcontrol
www.ti.com/military
Interface
Logic
interface.ti.com
logic.ti.com
Power Mgmt
Microcontrollers
power.ti.com
Optical Networking
Security
www.ti.com/opticalnetwork
www.ti.com/security
www.ti.com/telephony
www.ti.com/video
microcontroller.ti.com
Telephony
Video & Imaging
Wireless
www.ti.com/wireless
Mailing Address:
Texas Instruments
Post Office Box 655303 Dallas, Texas 75265
Copyright 2005, Texas Instruments Incorporated
厂商 型号 描述 页数 下载

TI

 		XTNETA1570MFP [ ATM SEGMENTATION AND REASSEMBLY DEVICE, PQFP240, MQFP-240 ] 68 页

TI

 		XTNETA1622DW [ 622.08-MHz Clock-Recovery Device 20-SOIC -40 to 85 ] 6 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.237038s
