IXDA20N120AS

型号:

IXDA20N120AS

描述:

高压IGBT[ High Voltage IGBT ]

品牌:

IXYS[ IXYS CORPORATION ]

页数:

4 页

PDF大小:

54 K

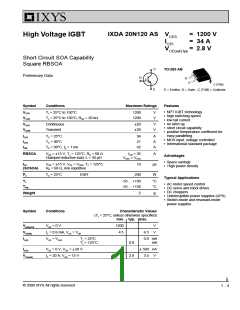

IXDA 20N120 AS VCES
IC25
= 1200 V
= 34 A
High Voltage IGBT
VCE(sat) typ = 2.8 V
Short Circuit SOA Capability
Square RBSOA
C
E
TO-263 AB
Preliminary Data
G
G
E
C (TAB)
E = Emitter, G = Gate , C (TAB) = Collector
Symbol
Conditions
Maximum Ratings
Features
NPT IGBT technology
high switching speed
low tail current
no latch up
short circuit capability
positive temperature coefficient for
VCES
VCGR
TJ = 25°C to 150°C
1200
1200
V
V
TJ = 25°C to 150°C; RGE = 20 kW
VGES
VGEM
Continuous
Transient
±20
±30
V
V
easy paralleling
MOS input, voltage controlled
International standard package
IC25
IC90
ICM
TC = 25°C
34
21
42
A
A
A
TC = 90°C
TC = 90°C, tp = 1 ms
RBSOA
VGE = ±15 V, TJ = 125°C, RG = 68 W
Clamped inductive load, L = 30 µH
ICM = 35
VCEK < VCES
A
µs
W
Advantages
Space savings
High power density
tSC
(SCSOA)
VGE = ±15 V, VCE = VCES, TJ = 125°C
RG = 68 W, non repetitive
10
PC
TC = 25°C
IGBT
200
Typical Applications
TJ
-55 ... +150
-55 ... +150
°C
°C
AC motor speed control
DC servo and robot drives
DC choppers
Uninteruptible power supplies (UPS)
Tstg
Weight
2
g
Switch-mode and resonant-mode
power supplies
Symbol
Conditions
Characteristic Values
(TJ = 25°C, unless otherwise specified)
min. typ. max.
V(BR)CES
VGE(th)
ICES
VGE = 0 V
1200
4.5
V
V
IC = 0.6 mA, VCE = VGE
6.5
VCE = VCES TJ = 25°C
0.8 mA
mA
TJ = 125°C
0.8
2.8
IGES
VCE = 0 V, VGE = ± 20 V
IC = 20 A, VGE = 15 V
± 500 nA
VCE(sat)
3.4
V
© 2000 IXYS All rights reserved
1 - 4
IXDA 20N120 AS
Symbol
Conditions
Characteristic Values
(TJ = 25°C, unless otherwise specified)
min. typ. max.
TO-263 AB
Cies
Coes
Cres
1000
150
70
pF
pF
pF
VCE = 25 V, VGE = 0 V, f = 1 MHz
Qg
IC = 20 A, VGE = 15 V, VCE = 0.5 VCES
70
nC
td(on)
tr
td(off)
tf
60
60
ns
ns
Inductive load, TJ = 125°C
1. Gate
400
50
ns
2. Collector
3. Emitter
4. Collector
Botton Side
IC = 20 A, VGE = ±15 V,
VCE = 600 V, RG = 68 W
ns
Eon
Eoff
3.5
2.1
mJ
mJ
RthJC
0.63 K/W
Dim.
Millimeter
Inches
Min.
Max.
Min. Max.
A
A1
4.06
2.03
4.83
2.79
.160
.080
.190
.110
b
b2
0.51
1.14
0.99
1.40
.020
.045
.039
.055
c
c2
0.46
1.14
0.74
1.40
.018
.045
.029
.055
D
D1
8.64
8.00
9.65
8.89
.340
.315
.380
.350
E
E1
e
9.65
6.22
2.54 BSC
10.29
8.13
.380
.245
.100 BSC
.405
.320
L
14.61
2.29
1.02
1.27
0
15.88
2.79
1.40
1.78
0.20
.575
.090
.040
.050
0
.625
L1
L2
L3
L4
.110
.055
.070
.008
R
0.46
0.74
.018
.029
© 2000 IXYS All rights reserved
2 - 4
IXDA 20N120 AS
40
A
30
25
20
15
10
5
40
VGE=17V
15V
TJ = 125°C
VGE=17V
15V
TJ = 25°C
A
13V
13V
IC
IC
30
25
20
15
10
5
11V
11V
9V
9V
0
0
V
V
0
1
2
3
4
5
0
1
2
3
4
VCE
VCE
Fig. 1 Typ. output characteristics
Fig. 2 Typ. output characteristics
40
VCE = 20V
TJ = 25°C
A
30
25
20
15
10
5
IC
0
5
6
7
8
9
10
VGE
11 V
Fig. 3 Typ. transfer characteristics
20
V
VCE = 600V
IC
= 25A
15
10
5
VGE
0
0
10 20 30 40 50 60 70 80 nC
QG
Fig. 4 Typ. turn on gate charge
© 2000 IXYS All rights reserved
3 - 4
IXDA 20N120 AS
7
140
ns
100
80
5
mJ
4
500
td(off)
ns
mJ
Eoff
400
Eoff
5
4
3
2
1
0
Eon
t
t
3
2
1
0
300
VCE = 600V
td(on)
tr
VCE = 600V
VGE = ±15V
RG = 68
V
GE = ±15V
60
200
100
0
RG = 68
TJ = 125°C
40
TJ = 125°C
Eon
20
tf
0
40
A
A
0
10
20
30
40
0
10
20
30
IC
IC
Fig. 5 Typ. turn on energy and switching
times versus collector current
Fig. 6 Typ. turn off energy and switching
times versus collector current
12
240
4
1600
VCE = 600V
GE = ±15V
Eoff
VCE = 600V
VGE = ±15V
IC = 20A
TJ = 125°C
td(on)
mJ
ns
V
ns
mJ
td(off)
IC = 20A
tr
3
2
1
0
1200
Eoff
Eon
TJ = 125°C
t
t
8
4
0
160
Eon
800
400
0
80
tf
0
0
50 100 150 200 250 300 350
RG
0
50
100 150 200 250 300 350
RG
Fig. 7 Typ. turn on energy and switching
times versus gate resistor
Fig. 8 Typ. turn off energy and switching
times versus gate resistor
40
10
A
K/W
1
30
25
20
15
10
5
ICM
ZthJC
0.1
diode
IGBT
RG = 68
TJ = 125°C
VCEK < VCES
0.01
0.001
single pulse
IXDH20N120AU1
0
0.0001
0.00001 0.0001
0.001
0.01
0.1
1
0
200 400 600 800 1000 1200
VCE
V
s
t
Fig. 9 Reverse biased safe operating area
RBSOA
Fig. 10 Typ. transient thermal impedance
© 2000 IXYS All rights reserved
4 - 4
