OXCFU950

型号:

OXCFU950

描述:

USB / UART多功能16位PC卡设备[ USB/UART multi-function 16-bit PC Card device ]

品牌:

OXFORD[ OXFORD SEMICONDUCTOR ]

页数:

11 页

PDF大小:

100 K

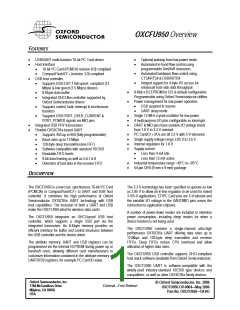

OXCFU950 Overview
FEATURES
USB/UART multi-function 16-bit PC Card device
Host interface
Optional wakeup from low-power mode
Automated in-band flow control using
programmable Xon/Xoff characters
Automated hardware flow control using
CTS#/RTS# & DSR#/DTR#
16-bit PC Card (PCMCIA revision 8.0) compliant
CompactFlash/CF+ (revision 3.0) compliant
USB host controller
Integral support for 4-byte I/O access for
enhanced host-side data throughput
Supports USB 2.0/1.1 full-speed compliant (12
Mbps) & low speed (1.5 Mbps) devices
8-Kbit x 8 EEPROM for CIS & default configuration.
Programmable using Oxford Semiconductor utilities
Power management for low-power operation
8-Kbyte data buffer
Integrated OHCI-like controller supported by
Oxford Semiconductor drivers
Supports control, bulk, interrupt & isochronous
transfers
Supports USB PORT_OVER_CURRENT &
PORT_POWER signals via MIO pins
USB suspend & resume
UART sleep mode
Single 12-MHz crystal oscillator for low power
4 multi-purpose I/O pins configurable as interrupts
UART & MIO pins have variable I/O voltage levels
from 1.8 V to 3.3 V nominal
Integrated USB PHY transceivers
Flexible OX16C95x-based UART
PC Card/CF+ I/Os are all 3.3 V with 5-V tolerance
Single supply voltage range 2.85 V to 3.6 V
Internal regulation for 1.8 V
Supports 450 up to 950 (fully programmable)
Baud rates up to 12 Mbps
128-byte deep transmit/receive FIFO
Software-compatible with standard 16C550
Readable FIFO levels
Supply current
Less than 4 mA idle
Less than 13 mA active
9-bit data framing as well as 5,6,7 & 8
Detection of bad data in the receiver FIFO
Industrial temperature range –40°C to +85°C
64-pin QFN (9 mm x 9 mm) package
DESCRIPTION
The OXCFU950 is a low-cost, synchronous 16-bit PC Card
(PCMCIA) or CompactFlash/CF+ to UART and USB host
controller. It combines the high performance of Oxford
Semiconductor OX16C95x UART technology with USB
host capabilities. The inclusion of both a UART and USB
make the OXCFU950 ideal for wireless data cards.
The 3.3-V technology has been specified to operate as low
as 2.85 V to allow an in-line regulator to be used for mixed
3-V/5-V applications. CF/PC Card pins are 5-V tolerant and
the variable I/O voltage to the UART/MIO pins eases the
connection to application chipsets.
A number of power-down modes are included to minimize
power consumption, including sleep modes for when a
device function is not being used.
The OXCFU950 integrates an OHCI-based USB host
controller, which supports a single USB port via the
integrated transceiver. An 8-Kbyte memory provides an
efficient interface for buffer and control structures between
the USB controller and the device driver.
The OXCFU950 contains a single-channel ultra-high
performance OX16C95x UART offering data rates up to
12 Mbps and 128-byte deep transmitter and receiver
FIFOs. Deep FIFOs reduce CPU overhead and allow
utilization of higher data rates.
The attribute memory, UART and USB registers can be
programmed via the internal EEPROM during power up or
hard/soft reset, allowing different card manufacturers to
customize information contained in the attribute memory or
UART/USB registers, for example PC Card ID value.
The OXCFU950 USB controller supports OHCI-compliant
host stack software (available from Oxford Semiconductor).
The OXCFU950 UART is software-compatible with the
widely-used industry-standard 16C550 type devices and
compatibles, as well as other OX16C95x family devices.
Oxford Semiconductor, Inc.
© Oxford Semiconductor, Inc. 2006
OXCFU950 OV-0004—May 2006
Part No. OXCFU950—QFAG
External—Free Release
1768 McCandless Drive
Milpitas, CA 95035
USA
OXCFU950 Overview
OXFORD SEMICONDUCTOR, INC.
The addition of software resets enable the device to
recover from unforeseen error conditions, allowing drivers
to restart gracefully.
The OXCFU950 includes four user I/O pins to enhance
external device control. These I/O pins can also be
configured as interrupt inputs.
For simplicity, the host interface is referred to as the
CompactFlash interface throughout this specification.
Unless otherwise stated, this should be taken to include
PCMCIA 16-bit Card operation as well as
CompactFlash/CF+.
OV-0004 May 06
External—Free Release
Page 2 of 11
OXCFU950 OVERVIEW
OXFORD SEMICONDUCTOR, INC.
BLOCK DIAGRAM
SOUT
SIN
A[10:0]
D[15:0]
CIS &
Configuration
Registers
RTS#
DTR#
CTS#
DSR#
DCD#
RI#
CE[2:1]#
REG#
UART
OE#
PC Card
Interface
WE#
& Control
IREQ#
IORD#
IOWR#
RESET
IOIS16#
STSCHG#
Interrupt
Logic
XTLI
Clock &
PLL
Baudrate
MIO pins
MIO[3:0]
Generator
XTLO
128-byte
EEPROM
USB_DP
USB
Controller
USB
PHY
USB_DM
USB_OTHER
Figure 1: Block Diagram
OV-0004 May 06
External—Free Release
Page 3 of 11
OXCFU950 OVERVIEW
OXFORD SEMICONDUCTOR, INC.
PIN INFORMATION
Figure 2: OXCFU950 Pin Information (QFN64)
OV-0004 May 06
External—Free Release
Page 4 of 11
OXCFU950 OVERVIEW
OXFORD SEMICONDUCTOR, INC.
PIN DESCRIPTIONS
Pin Number
Pad TypeNote 1
Pin Name
Description
PC Card/Compact Flash Interface & ControlNote 2
14,16,17,18,21,22,23,
25,29,31, 34
13,11,9,46,44,42,40,38 B_T_33_5_N_2_ D[15:0]
,10,8,6,45,43,41,39,37
I_C_33_5_N_
A[10:0]
PC Card/CompactFlash address bus, bits [10:0]
PC Card/CompactFlash data bidirectional bus.
15
35,36
33
I_C_33_5_N_
I_C_33_5_N_
I_C_33_5_N_
REG#
CE[2:1]#
OE#
Register select and I/O enable.
Active-low card enable.
Active-low output enable used to gate memory read data (attribute
memory). Host must negate the OE# signal during write operations.
Active-low write enable used for strobing memory write data (attribute
memory).
26
I_C_33_5_N_
WE#
32
30
7
I_C_33_5_N_
I_C_33_5_N_
O_T_33_1
IORD#
IOWR#
WP
Active-low I/O read enable.
Active-low I/O write enable.
Write protect (in memory-only mode).
IOIS16#
RESET
Data is 16-bit (in I/O & memory mode).
PC Card/CompactFlash reset.
Note : This pin requires an external reset pulse generator (RC network)
to allow for the startup time for the internal oscillator and PLL.
Device ready (in memory-only mode).
19
24
I_C_33_5_S_
O_T_33_2
READY
IREQ#
Active-low Interrupt request (in I/O & memory mode). Indicates to the
host system that the PC Card/CF requires host software service. Note:
interrupt can support level or pulsed types.
12
O_T_33_2
BVD1
Battery voltage detect 1 (in memory-only mode). Not supported so held
static.
STSCHG#
Active-low status-changed pin (in memory & I/O mode). Used to alert the
host system that the card status has changed. In this case it means that
a function’s ready state has changed. The host should check this by
considering each function’s PRR.
5,28,47
P_33
PCMCIA_VDD3V3 Connected internally.
UART (MODEM) FunctionNote3
58
O_T_33_1
SOUT
UART serial data output.
IrDA_Out
SIN
UART IrDA data output when MCR[6] is set in enhanced mode.
UART serial data input.
53
I_C_33_5_N_
IrDA_In
DCD#
DTR#
UART IrDA data input when IrDA mode is enabled (see above).
Active-low modem data-carrier-detect input.
Active-low modem data-terminal-ready output. If automated DTR# flow
control is enabled, the DTR# pin is asserted & deasserted if the receiver
FIFO reaches or falls below the programmed thresholds.
56
60
I_C_33_5_N_
O_T_33_1
485_En
RTS#
In RS485 half-duplex mode, the DTR# pin may be programmed to reflect
the state of the transmitter empty bit to control the direction of the RS485
transceiver buffer automatically (see register ACR[4:3]).
59
54
O_T_33_1
Active–low modem request-to-send output. If automated RTS# flow
control is enabled, the RTS# pin is de-asserted & reasserted when the
receiver FIFO reaches or falls below the programmed thresholds.
Active-low modem clear-to-send input. If automated CTS# flow control is
enabled, upon de-assertion of the CTS# pin the transmitter completes
the current character & enters idle mode until the CTS# pin is
reasserted. Note: flow control characters are transmitted regardless of
the state of the CTS# pin.
I_C_33_5_N_
CTS#
OV-0004 May 06
External—Free Release
Page 5 of 11
OXCFU950 OVERVIEW
OXFORD SEMICONDUCTOR, INC.
Pin Number
Pad TypeNote 1
Pin Name
Description
55
I_C_33_5_N_
DSR#
Active-low modem data-set-ready input. If automated DSR# flow control
is enabled, upon de-assertion of the DSR# pin, the transmitter completes
the current character & enters idle mode until the DSR# pin is
reasserted. Note: flow control characters are transmitted regardless of
the state of the DSR# pin.
57
1
I_C_33_5_N_
P_33
RI#
Active-low modem ring-indicator input.
Power supply to UART and MIO I/O interfaces. Voltage on these pins
should be tied to 1.8 V to 3.3 V supply (depending on requirement).
UART_VDD3V3
Crystal Oscillator / PLL pinsNote4
51
50
A_18
A_18
XTLO
XTLI
Crystal oscillator output.
Crystal oscillator input. Frequency = 12 MHz.
Note : a pull-down resistor of 500 KΩ is required on this pin.
Ground (0 Volts) for PLL & oscillator cells. This pin should be tied to
ground.
Power supply for PLL & oscillator cells. This pin should be tied to 1.8
volts (i.e. tied to REG_VDD1V8 pin).
49
48
P_18
P_18
PLL_VSS1V8
PLL_VDD1V8
USBNote 5
2
3
4
A_33
A_33
P_33
USB_DP
USB_DM
USB_VDD3V3
USB data plus.
USB data minus.
Power supply to USB I/O interface. This pin should be tied to 3.3 volts.
Multi-Purpose I/ONote 3
64,63,62,61
B_T_33_5_N_1_ MIO[3:0]
Multipurpose IO pins.
Note: if enabled, MIO[3:0] can be used as an interrupt inputs.
MIO[3:2] can be configured to act as the USB power management
control signals PORT_OVER_CURRENT & PORT_POWER
Miscellaneous Pins/PadsNote2
52
20
I_C_33_5_N_U
I_C_33_5_N_D
CIS_MODE
TEST
Test mode select pin/default CIS select
Test pin. This pin should be tied to VSS for normal operation.
Additional Power and Ground
65 (Thermal bonding P_00
pad)
VSS
Main digital ground pin. The VSS pin should be tied to ground. Note this
is the thermal bonding pin underneath the 64-pin QFN package
Output supply from internal voltage regulator at 1.8 V. Can be used as
power supply to PLL (i.e. pin #48).
27
P_18
REG_VDD1V8
Table 1: Pin Descriptions
Note 1 : Pad syntax description
Pad type
Syntax
Digital Input pad
Digital Output pad
Digital Tristate output pad
Digital Bidirectional pad
Analogue pad
t_a_xy_h_i_p
t_a_xy_d
t_a_xy_d
t_a_xy_h_i_d_p
t_xy
t_xy
Power Pad
Table 2: Pad Type Syntax
OV-0004 May 06
External—Free Release
Page 6 of 11
OXCFU950 OVERVIEW
OXFORD SEMICONDUCTOR, INC.
Symbol
Description
Values
t
Pad type
I—input pad
O—output pad
T—Tri-state output pad
B—Bidirectional pad
A—Analogue pad
P—Power pad
C—cmos
a
Logic type
T—TTL
xy
Operating voltage
33—3V3
18—1V8
00—0 V (i.e. VSS Ground)
h
i
Tolerant input voltage level
Input type
5—5 V
N—same as operating voltage
N—normal
S—Schmitt
d
Output drive strength
1—x1 drive strength
2—x2 drive strength
3—x3 drive strength
U—pull up resistor
D—pull down resistor
p
Pull up/down resistor
Table 3: Pad Type Syntax Symbol Descriptions
Note 2 : PC Card/CompactFlash Power Domain Group
This group of signals is in the PC Card/CompactFlash power domain group.
Supply voltage range is specified from 2.85 V to 3.6 V.
This is also the internally connected supply to the internal regulator. Hence pin #28 should be connected to the PC
Card/CompactFlash supply source.
Note 3 : Modem Power Domain Group
This group of I/O signals is in the MODEM power domain group.
Supply voltage range is specified from 1.8 V to 3.6 V.
Note 4 : Analogue Power Domain Group
This group of I/O signals is in the analogue power domain group (which supplies the oscillator and PLL).
Note 5 : USB Power Domain Group
This group signals is in the USB power domain group.
Supply voltage range is specified from 2.85 V to 3.6 V.
OV-0004 May 06
External—Free Release
Page 7 of 11
OXCFU950 OVERVIEW
OXFORD SEMICONDUCTOR, INC.
APPLICATION
Power from CF / PCMCIA connector
3v3 Reg
(if required)
1v8 / 2v5 / 3v3
Card
side I/O
supply
1v8
output
CS Power
Supply
CF / PCMCIA
Connector
3v3
USB
16-bit
UART / Serial
MIO / IRQ
Wireless Modem Chipset
OXCFU950-QFAG
12 MHz
crystal
Figure 3: Sample Application
OV-0004 May 06
External—Free Release
Page 8 of 11
OXCFU950 OVERVIEW
OXFORD SEMICONDUCTOR, INC.
PACKAGE DETAILS
ccc A
A
A2
aaa C A
D
A3
A1
0.10
A
bbb C B
SEATING
PLANE
B
C
LASER MARK FOR PIN 1
IDENTIFICATION IN THIS AREA
TOP VIEW
SIDE VIEW
D2
0.55
R
Pin 1 ID
0.20 R
b
e
L
0.10 M C A B
BOTTOM VIEW
OV-0004 May 06
External—Free Release
Page 9 of 11
OXCFU950 OVERVIEW
OXFORD SEMICONDUCTOR, INC.
Package Dimensions
Symbol
Millimeter
Inch
Nom
---
---
0.026
Min
---
---
Nom
---
---
Max
0.90
0.05
0.70
Min
---
---
Max
0.035
0.001
0.028
A
A1
A2
A3
b
D
D2
E
---
0.65
0.20 REF.
0.25
9.00 bsc
7.10
9.00 bsc
7.10
---
0.008 REF.
0.010
0.354 bsc
0.280
0.354 bsc
0.280
0.016
0.23
6.95
0.28
7.25
0.009
0.274
0.011
0.285
E2
L
6.95
0.35
7.25
0.45
0.274
0.014
0.285
0.018
0.40
e
R
0.50 bsc
---
0.020 bsc
---
0.125
---
0.005
---
Tolerances of Form and Position
aaa
bbb
ccc
0.10
0.10
0.05
0.004
0.004
0.002
ORDERING INFORMATION
The following conventions are used to identify Oxford Semiconductor products:
OXCFU950 - QF A G
Green (RoHS compliant)
Revision:
A
Package Type: QF 64-pin QFN
Part Number
OV-0004 May 06
External—Free Release
Page 10 of 11
OXCFU950 OVERVIEW
OXFORD SEMICONDUCTOR, INC.
CONTACT DETAILS
Oxford Semiconductor, Inc.
1768 McCandless Drive
Milpitas, CA 95035
USA
Sales e-mail:
Web site:
sales@oxsemi.com
http://www.oxsemi.com
DISCLAIMER
Oxford Semiconductor, Inc. believes the information contained in this document to be accurate and reliable. However, it is
subject to change without notice. No responsibility is assumed by Oxford Semiconductor, Inc. for its use, nor for infringement of
patents or other rights of third parties. No part of this publication may be reproduced, or transmitted in any form or by any means
without the prior consent of Oxford Semiconductor, Inc. Oxford Semiconductor terms and conditions of sale apply at all times.
OV-0004 May 06
External—Free Release
Page 11 of 11
厂商 型号 描述 页数 下载

OXFORD

OXCB950 集成的高性能UART的Cardbus / 3.3V PCI接口[ Integrated High Performance UART Cardbus / 3.3v PCI interface ] 67 页

PLX

OXCB950 32位PC卡桥接串口[ 32-bit PC card bridge to serial port ] 2 页

OXFORD

OXCB950-TQAG 集成的高性能UART的Cardbus / 3.3V PCI接口[ Integrated High Performance UART Cardbus / 3.3v PCI interface ] 67 页

OXFORD

OXCB950-TQC60-A 集成的高性能UART的Cardbus / 3.3V PCI接口[ Integrated High Performance UART Cardbus / 3.3v PCI interface ] 67 页

OXFORD

OXCB950-TQC60A [ Telecom IC ] 67 页

OXFORD

OXCF950 单个全双工异步信道128字节深度的发送器/接收FIFO中[ Single full-duplex asynchronous channel 128-byte deep transmitter / receiver FIFO ] 66 页

OXFORD

OXCF950-TB-B 单个全双工异步信道128字节深度的发送器/接收FIFO中[ Single full-duplex asynchronous channel 128-byte deep transmitter / receiver FIFO ] 66 页

OXFORD

OXCF950-TBBG 低成本异步16位PC卡或CF卡UART设备[ low cost asynchronous 16-bit PC card or Compact Flash UART device ] 66 页

OXFORD

OXCF950-TQ-B 单个全双工异步信道128字节深度的发送器/接收FIFO中[ Single full-duplex asynchronous channel 128-byte deep transmitter / receiver FIFO ] 66 页

OXFORD

OXCF950-TQBG 低成本异步16位PC卡或CF卡UART设备[ low cost asynchronous 16-bit PC card or Compact Flash UART device ] 66 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.252888s
