DWW-SJD-TU2-1

型号：

DWW-SJD-TU2-1

描述：

大功率LED的InGaN白色[ Power LED InGaN White ]

品牌：

DOMINANT[ DOMINANT SEMICONDUCTORS ]

页数：

13 页

PDF大小：

875 K

下载PDF手册
TM

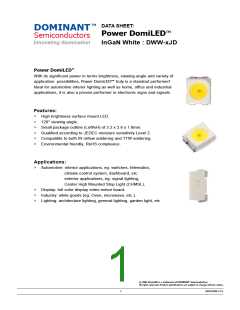

DATA SHEET:
DOMINANT
TM
Power DomiLED
Semiconductors
Innovating Illumination
InGaN White : DWW-xJD
TM
Power DomiLED
With its significant power in terms brightness, viewing angle and variety of
application possibilities, Power DomiLED™ truly is a standout performer!
Ideal for automotive interior lighting as well as home, office and industrial
applications, it is also a proven performer in electronic signs and signals.
Features:
>
>
>
>
>
>
High brightness surface mount LED.
120° viewing angle.
Small package outline (LxWxH) of 3.2 x 2.8 x 1.8mm.
Qualified according to JEDEC moisture sensitivity Level 2.
Compatible to both IR reflow soldering and TTW soldering.
Environmental friendly; RoHS compliance.
Applications:
>
Automotive: interior applications, eg: switches, telematics,
climate control system, dashboard, etc.
exterior applications, eg: signal lighting,
Center High Mounted Stop Light (CHMSL),
>
>
>
Display: full color display video notice board.
Industry: white goods (eg: Oven, microwave, etc.).
Lighting: architecture lighting, general lighting, garden light, etc
© 2005 DomiLED is a trademark of DOMINANT Semiconductors.
All rights reserved. Product specifications are subject to change without notice.
20/02/2006 V1.0
1
TM
DOMINANT
InGaN White : DWW-xJD
Semiconductors
Innovating Illumination
Total Flux @
IF=30mA, mlm (typ)
Part Ordering
Number
Luminous Intensity @
IF = 30mA IV (mcd)
Chip Technology
/ Color
Viewing
Angle˚
InGaN
White
DWW-SJD-TU2-1*
• DWW-SJD-T1
• DWW-SJD-T2
• DWW-SJD-U1
• DWW-SJD-U2
120
285.0 - 715.0
285.0 - 355.0
355.0 - 450.0
450.0 - 560.0
560.0 - 715.0
1350
2000
3000
DWW-UJD-UV2-1*
• DWW-UJD-U1
• DWW-UJD-U2
• DWW-UJD-V1
• DWW-UJD-V2
450.0 - 1125.0
450.0 - 560.0
560.0 - 715.0
715.0 - 900.0
900.0 - 1125.0
DWW-UJD-VW1-1
• DWW-UJD-V1
• DWW-UJD-V2
• DWW-UJD-W1
* Not for new design
715.0 - 1400.0
715.0 - 900.0
900.0 - 1125.0
1125.0 - 1400.0
NOTE
1. All part number above comes in a quantity of 2000 units per reel.
2. Other luminous intensity groups may also be available upon request.
3. Luminous intensity is measured with an accuracy of ± 11%.
4. Wavelength binning is carried for all units as per the wavelength-binning table. Only one wavelength group is allowed for each reel.
5. InGaN wavelength is very sensitive to drive current. Operating at lower current is not recommended and may yield unpredictable performance
current pulsing should is used for dimming purposes.
6. An optional Vf bining is also available upon request. Bining scheme is as per following table.
20/02/2006 V1.0
2
TM
DOMINANT
InGaN White : DWW-xJD
Semiconductors
Innovating Illumination
Electrical Characteristics at Ta=25˚C
Vf @ If = 30mA
Typ. (V)
V @ I = 10uA
r
r
Part Number
Min. (V)
Max. (V)
Min. (V)
DWW
5
3.40
4.00
3.05
Forward voltages are measure using a current pulse of 1 ms and with an accuracy of ± 0.1V.
Vf Bining (Optional)
Vf @ If = 30mA
Forward Voltage (V)
3A
3.05 ... 3.35
30
31
3.35 ... 3.65
3.65 ... 3.95
3.95 ... 4.25
32
Forward voltage, Vf is measured with an accuracy of ± 0.1V.
Please consult sales and marketing to incorporate special part number to incorporate Vf binning.
Absolute Maximum Ratings
Maximum Value
Unit
DC forward current
30
mA
Peak pulse current; (tp ≤ 10µs, Duty cycle = 0.1)
Reverse voltage; Ir (max) = 10µA
ESD Thereshold (HBM)
200
mA
V
5
2
kV
˚C
LED juction temperature
125
Operating temperature
-40 … +100
-40 … +100
135
˚C
Storage temperature
˚C
Power dissipation (at room temperature)
mW
20/02/2006 V1.0
3
TM
DOMINANT
InGaN White : DWW-xJD
Semiconductors
Innovating Illumination
DDW, White Color Grouping
Dominant White Bin Structure
0.44
0.42
0.40
0.38
0.36
0.34
0.32
•
•
•
E3
E4
•
•
•
E1
•
C3
C4
E2
•
•
•
•
•
C1
C2
•
•
•
A3
A4
•
0.30
0.28
A1
A2
•
•
•
•
•
0.26
0.24
0.27
0.28
0.29
0.30
0.31
0.32
0.33
0.34
0.35
0.36
Chromaticity coordinate groups are measured with an accuracy of ± 0.01.
W
Bin
0.2900
0.2939
0.2900
0.2764
0.3025
0.3146
0.3025
0.2971
0.2900
0.2775
0.2907
0.2775
0.2732
0.2900
0.3114
0.2900
0.2939
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
0.2775
0.2732
0.2775
0.2557
0.2900
0.2939
0.2900
0.2764
0.3025
0.3146
0.3025
0.2971
0.3150
0.3354
0.3150
0.3179
A1
A2
A3
A4
C1
C2
C3
C4
0.3114
0.2900
0.2939
0.3025
0.3321
0.3025
0.3146
0.3150
0.3529
0.3150
0.3354
0.3275
0.3736
0.3275
0.3561
0.3150
0.3354
0.3150
0.3179
0.3275
0.3561
0.3275
0.3386
0.3025
0.3321
0.3025
0.3146
0.3150
0.3529
0.3150
0.3354
X
Bin
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
0.3275
0.3561
0.3275
0.3386
0.3400
0.3768
0.3400
0.3593
0.3400
0.3768
0.3400
0.3593
0.3525
0.3975
0.3525
0.3800
0.3400
0.3943
0.3400
0.3768
0.3525
0.4150
0.3525
0.3975
0.3275
0.3736
0.3275
0.3561
0.3400
0.3943
0.3400
0.3768
E1
E2
E3
E4
Dominant color coordinate is measured with an accuracy of ± 0.01.
20/02/2006 V1.0
4
TM
DOMINANT
InGaN White : DWW-xJD
Semiconductors
Innovating Illumination
Relative Intensity Vs Forward Current
Forward Current Vs Forward Voltage
2.5
2
60
50
40
30
20
10
0
1.5
1
0.5
0
0
20
40
60
80
100
2.5
3
3.5
4
4.5
Forward Current, mA
Forward Voltage, V
Maximum Current Vs Temperature
Wavelength Vs Forward Current
35
30
25
20
15
10
5
1
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
0
0
10 20 30 40 50 60 70 80 90 100
400 450 500 550 600 650 700 750 800
Ambient Temperature
Wavelength, nm
Radiation Pattern
30°
20°
10°
0°
1.0
40°
0.8
0.6
0.4
0.2
50°
60°
70°
80°
90°
0
20/02/2006 V1.0
5
TM
DOMINANT
InGaN White : DWW-xJD
Semiconductors
Innovating Illumination
TM
Power DomiLED • InGaN White : DWW-xJD Package Outlines
20/02/2006 V1.0
6
TM
DOMINANT
InGaN White : DWW-xJD
Semiconductors
Innovating Illumination
Recommended Solder Pad
20/02/2006 V1.0
7
TM
DOMINANT
InGaN White : DWW-xJD
Semiconductors
Innovating Illumination
Taping and orientation
• Reels come in quantity of 2000 units.
• Reel diameter is 180 mm.
20/02/2006 V1.0
8
TM
DOMINANT
InGaN White : DWW-xJD
Semiconductors
Innovating Illumination
Packaging Specification
20/02/2006 V1.0
9
TM
DOMINANT
Semiconductors
Innovating Illumination
InGaN White : DWW-xJD
Packaging Specification
Moisture sensitivity level
Barcode label
DOMINANT Semiconductors
LOT NO : lotno
ROHS Compliant
PB Free
PART NO : partno
QTY : qty
S/N : xxx
D/C: xxxx
GROUP : group
Reel
Moisture absorbent material +
Moisture indicator
The reel, moisture absorbent material and moisture indicator are
sealed inside the moisture proof foil bag
1 completed bag (2000pcs)
Average 1pc Power DomiLED
Weight (gram)
Weight (gram)
0.034
0.034
190 ± 10
190 ± 10
Cardboard
Box
TM
DOMINANT
Semiconductors
TM
For Power DomiLED
Cardboard Box
Size
Dimensions (mm)
Empty Box
Weight (kg)
Reel / Box
Quantity / Box (pcs)
Small
Large
300 x 250 x 250
416 x 516 x 476
0.58
1.74
15 reels MAX
55 reels MAX
30,000 MAX
110,000 MAX
20/02/2006 V1.0
10
TM
DOMINANT
InGaN White : DWW-xJD
Semiconductors
Innovating Illumination
Recommended Sn-Pb IR-Reflow Soldering Profile
Classification Reflow Profile (JEDEC J-STD-020C)
275
250
225
200
175
150
125
100
235-240˚C
10-30s
Ramp-up
3˚C/sec max.
183˚C
60-150s
Ramp-
down
6˚C/sec
max.
75
Preheat 60-120s
360s max
50
25
0
50
100
150
200
Recommended Pb-free Soldering Profile
Classification Reflow Profile (JEDEC J-STD-020C)
300
275
255-260˚C
10-30s
250
225
200
Ramp-up
3˚C/sec max.
217˚C
60-150s
175
150
125
100
75
Ramp-
down
6˚C/sec
max.
Preheat 60-180s
480s max
50
25
0
50
100
150
200
Time (sec)
20/02/2006 V1.0
11
TM
DOMINANT
InGaN White : DWW-xJD
Semiconductors
Innovating Illumination
Revision History
Page
Date of Modification
Subjects
-
20 Feb 2006
New Format
NOTE
All the information contained in this document is considered to be reliable at the time of publishing. However, DOMINANT
Semiconductors does not assume any liability arising out of the application or use of any product described herein.
DOMINANT Semiconductors reserves the right to make changes at any time without prior notice to any products in order
to improve reliability, function or design.
DOMINANT Semiconductors products are not authorized for use as critical components in life support devices or systems
without the express written approval from the Managing Director of DOMINANT Semiconductors.
20/02/2006 V1.0
12
TM
DOMINANT
InGaN White : DWW-xJD
Semiconductors
Innovating Illumination
About Us
DOMINANT Semiconductors is a dynamic Malaysian Corporation that is among the world’s leading SMT LED
Manufacturers. An excellence – driven organization, it offers a comprehensive product range for diverse industries
and applications. Featuring an internationally certified quality assurance acclaim, DOMINANT’s extra bright LEDs
are perfectly suited for various lighting applications in the automotive, consumer and communications as well as in-
dustrial sectors. With extensive industry experience and relentless pursuit of innovation, DOMINANT’s state-of-art
manufacturing, research and testing capabilities have become a trusted and reliable brand across the globe. More
information about DOMINANT Semiconductors can be found on the Internet at http://www.dominant-semi.com.
Please contact us for more information:
Head Quarter
DOMINANT Semiconductors Sdn. Bhd.
Lot 6, Batu Berendam, FTZ Phase III, 75350 Melaka, Malaysia
Tel: (606) 283 3566 Fax: (606) 283 0566
E-mail: sales@dominant-semi.com
DOMINANT China Sales Office
DOMINANT Semiconductors (Shenzhen) Co. Ltd.
24BC Newbaohui Building, No. 1007 West Nanhai Blvd., Nanshan, Shenzhen, China P.C. 518054
Tel: +86 (755) 86031785 / +86 (755) 86031786 Fax: +86 (755) 86031789
E-mail: sales_china@dominant-semi.com
DOMINANT Korea Sales Office
DOMINANT Semiconductors Korea Inc.
902 Sunil Technopia, 440 Sangdaewon-dong, Jungwon-gu, Sungnam-si, Kyunggi-do, Korea 462726
Tel: 82-31-777-3978 Fax: 82-31-777-3976
E-mail: sales_korea@dominant-semi.com
TM
DOMINANT
Semiconductors
Innovating Illumination
厂商 型号 描述 页数 下载

DOMINANT

 		DWW-KZKG [ Power DomiLED ] 16 页

DOMINANT

 		DWW-KZKG-L1P2 [ Power DomiLED ] 15 页

DOMINANT

 		DWW-KZKG-Y2Z-1 [ Power DomiLED ] 16 页

DOMINANT

 		DWW-KZKG-Y2Z-L1P2 [ Power DomiLED ] 15 页

DOMINANT

 		DWW-KZKG_16 [ Power DomiLED ] 16 页

DOMINANT

 		DWW-SJD-T1 大功率LED的InGaN白色[ Power LED InGaN White ] 13 页

DOMINANT

 		DWW-SJD-T2 大功率LED的InGaN白色[ Power LED InGaN White ] 13 页

DOMINANT

 		DWW-SJD-U1 大功率LED的InGaN白色[ Power LED InGaN White ] 13 页

DOMINANT

 		DWW-SJD-U2 大功率LED的InGaN白色[ Power LED InGaN White ] 13 页

DOMINANT

 		DWW-UJD-U1 大功率LED的InGaN白色[ Power LED InGaN White ] 13 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.246929s
