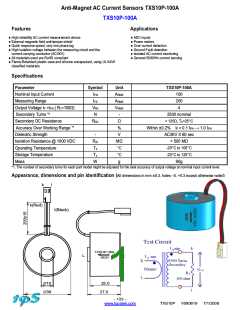

Anti-Magnet AC Current Sensors TXS10P-100A
TXS10P-100A
Features
Applications
ꢀHigh reliability AC current measurement device
ꢀExternal magnetic field anti-tamper shield
ꢀQuick response speed, very low phase lag
ꢀHigh isolation voltage between the measuring circuit and the
current-carrying conductor (AC3KV)
ꢀADC inputs
ꢀPower meters
ꢀOver current detection
ꢀGround Fault detection
ꢀIsolated AC current monitoring
ꢀGeneral 50/60Hz current sensing
ꢀAll materials used are RoHS compliant
ꢀFlame-Retardant plastic case and silicone encapsulant, using UL 94V0
classified materials.
Specifications
Parameter
Nominal Input Current
Measuring Range
Output Voltage IF =IFN ( RL=100ꢀ)
Secondary Turns *1
Secondary DC Resistance
Accuracy Over Working Range *1
Dielectric Strength
Isolation Resistance @ 1000 VDC
Operating Temperature
Storage Temperature
Mass
Symbol
IFN
Unit
ARMS
ARMS
VRMS
-
ꢀ
%
V
Mꢀ
°C
TXS10P-100A
100
200
4
IFS
VFN
N
2500 nominal
< 125ꢀ, TA=25°C
Within 0.2% IF = 0.1 IFN ꢁ 1.0 IFN
AC3KV X 60 sec
> 500 Mꢀ
RDC
-
RIS
Ta
Ts
W
-20°C to 100°C
-20°C to 125°C
90g
°C
g
*1. The number of secondary turns for each part model might be adjusted for the best accuracy of output voltage at nominal input current level.
Appearance, dimensions and pin identification (All dimensions in mm 0.3, holes –0, +0.3 except otherwise noted)
N
O
Nꢆ5HGꢇ
Oꢆ%ODFNꢇ
7;6ꢀꢁ3ꢈꢀꢁꢁ$
ꢁꢉꢂꢃꢀ
/
.
ꢀꢁ
ꢂꢃꢄꢁ
ꢂꢅꢄꢁ
- 123 -
www.topstek.com
TXS10P V080619 7/1/2008
