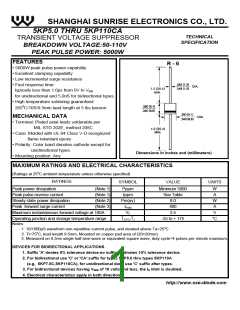

SHANGHAI SUNRISE ELECTRONICS CO., LTD.
5KP5.0 THRU 5KP110CA
TECHNICAL
SPECIFICATION
TRANSIENT VOLTAGE SUPPRESSOR
BREAKDOWN VOLTAGE:50-110V
PEAK PULSE POWER: 5000W
FEATURES
• 5000W peak pulse power capability
R - 6
• Excellent clamping capability
• Low incremental surge resistance
• Fast response time:
typically less than 1.0ps from 0V to VBR
for unidirectional and 5.0nS for bidirectional types.
• High temperature soldering guaranteed:
265oC/10S/9.5mm lead length at 5 lbs tension
MECHANICAL DATA
• Terminal: Plated axial leads solderable per
MIL-STD 202E, method 208C
• Case: Molded with UL-94 Class V-O recognized
flame retardant epoxy
• Polarity: Color band denotes cathode except for
unidirectional types.
Dimensions in inches and (millimeters)
• Mounting position: Any
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(Ratings at 25oC ambient temperature unless otherwise specified)
RATINGS
Peak power dissipation
SYMBOL
VALUE
UNITS
(Note 1)
(Note 1)
(Note 2)
(Note 3)
Pppm
Ippm
Pm(av)
IFSM
Minimum 5000
See Table
8.0
W
A
Peak pulse reverse current
Steady state power dissipation
Peak forward surge current
W
A
400
VF
Maximum instantaneous forward voltage at 100A
3.5
V
oC
T
STG,TJ
Operating junction and storage temperature range
Notes:
-55 to + 175
1. 10/1000µS waveform non-repetitive current pulse, and derated above Ta=25oC
2. Tl=75oC, lead length 9.5mm, Mounted on copper pad area of (20×20mm)
3. Measured on 8.3ms single half sine-wave or equivalent square wave, duty cycle=4 pulses per minute maximum.
DEVICES FOR BIDIRECTIONAL APPLICATIONS
1. Suffix 'A' dnotes 5% tolerance device,no suffix 'A' dnotes 10% tolerance device.
2. For bidirectional use 'C' or 'CA' suffix for types 5KP5.0 thru types 5KP110A
(e.g. 5KP7.5C,5KP110CA), for unidirectional don't use 'C' suffix after types.
3. For bidirectional devices having VWM of 10 volts and less, the ID limit is doubled.
4. Electrical characteristics apply in both directions.
