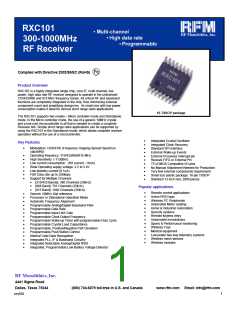

Complies with Directive 2002/95/EC (RoHS)

Product Overview

RXC101 is a highly integrated single chip, zero-IF, multi-channel, low

power, high data rate RF receiver designed to operate in the unlicensed

315/433/868 and 915 MHz frequency bands. All critical RF and baseband

functions are completely integrated in the chip, thus minimizing external

component count and simplifying design-ins. Its small size with low power

consumption makes it ideal for various short range radio applications.

16-TSSOP package

The RXC101 supports two modes – Micro controller mode and Standalone

mode. In the Micro controller mode, the use of a generic 10MHz crystal

and a low-cost microcontroller is all that is needed to create a complete

Receiver link. Simple short range radio applications can be supported by

using the RXC101 in the Standalone mode, which allows complete receiver

operation without the use of a microcontroller.

•

Integrated Crystal Oscillator

Integrated Clock Recovery

Standard SPI interface

External Wake-up Events

External Processor Interrupt pin

Receive FIFO or External Pin

TTL/CMOS Compatible I/O pins

No Manual Adjustment Needed for Production

Very few external components requirement

Small size plastic package: 16-pin TSSOP

Standard 13 inch reel, 2000 pieces.

Key Features

•

Modulation: OOK/FSK (Frequency Hopping Spread Spectrum

capability)

•

Operating frequency: 315/433/868/915 MHz

High Sensitivity: (-113dBm)

Low current consumption (RX current ~ 8mA)

Wide Operating supply voltage: 2.2 to 5.4V

Low standby current (0.1uA)

FSK Data rate up to 256kbps

Support for Multiple Channels

•

[315/433 Bands]: 380 Channels (25kHz)

[868 Band]: 761 Channels (25kHz)

[915 Band]: 1040 Channels (25kHz)

Popular applications

•

Remote control applications

Active RFID tags

•

Generic 10MHz Xtal reference

Processor or Standalone Operation Mode

Automatic Frequency Alignment

Programmable Analog/Digital Baseband Filter

Programmable Data Rate

Wireless PC Peripherals

Automated Meter reading

Home & Industrial Automation

Security systems

Remote keyless entry

Automobile Immobilizers

Sports & Performance monitoring

Wireless Toys

Programmable Input LNA Gain

Programmable Clock Output Frequency

Programmable Wake-up Timer with programmable Duty Cycle

Programmable Crystal Load Capacitance

Programmable, Positive/Negative FSK Deviation

Programmable Push Button Control

Medical equipment

Low power two way telemetry systems

Wireless mesh sensors

Wireless modules

Internal Valid Data Recognition

Integrated PLL, IF & Baseband Circuitry

Integrated Selectable Analog/Digital RSSI

Integrated, Programmable Low Battery Voltage Detector

RF Monolithics, Inc.

4441 Sigma Road

Dallas, Texas 75244

rev04

(800) 704-6079 toll-free in U.S. and Canada

www.rfm.com Email: info@rfm.com

1

Table of Contents

Table of Contents.......................................................................................................... 2

1. RXC101 Pin Description ........................................................................................... 3

1.1 Processor Mode Pin Configuration ...................................................................... 3

1.2 Simple Mode Pin Configuration............................................................................ 4

2. RXC101 Functional Description............................................................................... 5

2.1 RXC101 Typical Application Circuit ..................................................................... 5

Processor Mode .................................................................................................. 5

Antenna Design Considerations........................................................................... 6

PCB Layout Considerations................................................................................. 6

2.2 Simple Mode........................................................................................................ 9

Simple Mode Functional Block Diagram .............................................................. 9

Duty Cycle Mode............................................................................................... 11

3. RXC101 Functional Characteristics....................................................................... 12

Input Amplifier.......................................................................................................... 12

Baseband Data and Filtering ................................................................................... 12

Data Quality Detector (DQD) ................................................................................... 13

Valid Data Detector (DDET)..................................................................................... 13

Receiver FIFO.......................................................................................................... 13

Receive Signal Strength Indicator (RSSI)................................................................ 13

Automatic Frequency Adjustment (AFA).................................................................. 14

Crystal Oscillator...................................................................................................... 14

Frequency Control (PLL) and Frequency Synthesizer ............................................. 14

Wake-Up Mode........................................................................................................ 15

Low Battery Detector ............................................................................................... 15

SPI Interface............................................................................................................ 15

SPI Interface Timing.......................................................................................... 15

4. Control and Configuration Registers .................................................................... 16

Status Register ....................................................................................................... 16

Configuration Register [POR=893Ah]...................................................................... 17

Receiver Control Register [POR=C0C1h]................................................................ 19

FIFO Configuration Register [POR=CE89h] ............................................................ 21

Automatic Frequency Adjust Register [POR=C6F7h] .............................................. 22

Baseband Filter Register [POR=C42Ch].................................................................. 24

Frequency Setting Register [POR=A680h] .............................................................. 25

Data Rate Setup Register [POR=C823h]................................................................. 26

Wake-up Timer Period Register [POR=E196h]........................................................ 27

Duty Cycle Set Register [POR=CC0Eh] .................................................................. 28

Battery Detect Threshold and Clock Output Register [POR=C200h]....................... 29

5. Maximum Ratings.................................................................................................... 30

Recommended Operating Ratings........................................................................... 30

6. DC Electrical Characteristics ................................................................................ 30

7. AC Electrical Characteristics ................................................................................ 31

8. Package Information.............................................................................................. 33

2

1. Pin Description

Processor Mode

Pin Name

Description

SPI Data In

SPI Data Clock

1

2

SDI

SCK

Chip Select Input– Selects the chip for an SPI data transaction. The pin must be pulled ‘low’

for a 16-bit read or write function. See Figure 6 for timing specifications.

FIFO Interrupt Output (active low) – When the internal FIFO is enabled (Configuration

Register, Bit [6]), this pin acts as a FIFO Fill interrupt indicating that the FIFO has filled to its

pre-programmed limit (FIFO Configuration Register, Bit [7..4]).

SPI Serial Data Out – May be used to read out the Status Register contents.

Interrupt Request Output – Any of the following events will generate an external interrupt:

-Wake-up timer timeout

3

nCS

4

nFINT/SDO

-Low Battery Detect

5

6

nIRQ

-FIFO fill

-FIFO overflow

To determine the source of the interrupt, the processor may read the first four bits of the

Status Register.

Data Output – Received data can be taken from this pin when the FIFO is not used.

DATA/nFSEL FIFO Select Input – When the FIFO is used this pin selects the FIFO when data is to be read

out over the SDO pin.

Data Recovery Clock Output – Recovered Data clock Output (FIFO not used).

Filter Capacitor – When the analog filter is used this pin is the connection for the RC

DCLK/FCAP/

FINT

lowpass filter. The corner frequency should be set as close to the data rate as possible to

retain good sensitivity.

FIFO Interrupt Output (active high) – Indicates when there are remaining bits in the FIFO to

be read. Set the FIFO Fill level to 1 in the FIFO Configuration Register.

Optional host processor Clock Output. Frequency programmable through the Battery Detect

Threshold and Clock Output Register.

7

8

ClkOut

Xtal - Connects to a 10MHz series crystal or an external oscillator reference. The circuit

contains an integrated load capacitor (See Configuration Register) in order to minimize the

external component count. The crystal is used as the reference for the PLL, which generates

the local oscillator frequency. The accuracy requirements for production tolerance,

temperature drift and aging can be determined from the maximum allowable local oscillator

frequency error. Whenever a low frequency error is essential for the application, it is possible

to “pull” the crystal to the accurate frequency by changing the load capacitor value.

Ext Ref – An external reference, such as an oscillator, may be connected as a reference

source. Connect through a .01uF capacitor.

9

Xtal/Ref

10

11

12

13

14

nRST

GND

RF_P

RF_N

VDD

Reset Output (active Low)

System Ground

RF Diff I/O

Supply Voltage

Analog RSSI Output – This pin may be used as an input to an A/D for signal strength or may

be used as a baseband data output for OOK signaling. See Baseband Filter Register to

calculate the appropriate filter capacitor value.

15

16

RSSIA

DDET

Valid Data Detector Output - (See Receiver Control Register for output definition)

1.1 Processor Mode Pin Configuration

TOP V IEW

RXC101

SDI

SCK

nCS

DDET

RSSIA

VDD

RF_N

RF_P

GND

nRESET

Xtal/Ref

16

15

14

13

12

11

1

2

3

SDO/FINT

IRQ

DATA/nFSEL

CR/FINT/FCAP

CLKOUT

4

5

6

10

9

7

8

3

Simple Mode

Pin Name

Description

1

2

3

4

5

6

7

FS0

BS0

BS1

DO1

DO2

DO3

DO4

Frequency Select Bit 0

Band Select Bit 0

Band Select Bit 1

Digital Output 1 – May be connected to an LED or other device.

Digital Output 2 – May be connected to an LED or other device.

Digital Output 3 – May be connected to an LED or other device.

Digital Output 4 – May be connected to an LED or other device.

Mode Select – Sets the device in Processor or Simple Mode. When the chip powers

on it checks the state of this pin and determines what mode to select. When this pin

is connected to VDD, the chip enters Simple Mode.

(Low Power) Duty Cycle Mode -

Xtal – Connects to a 10MHz series crystal or an external oscillator reference.

Ext Ref – An external reference, such as an oscillator, may be connected as a

reference source. Connect through a .01uF capacitor.

Frequency Select Bit 1

System Ground

RF Signal Input

Supply Voltage

Frequency Select Bit 2

Frequency Select Bit 3

8

Mode/DCM

Xtal/Ref

9

10

11

12

13

14

15

16

FS1

GND

RF_P

RF_N

VDD

FS2

FS3

1.2 Simple Mode Pin Configuration

TOP VIEW

RXC101

FS0

BS0

BS1

DO1

DO2

DO3

DO4

FS3

FS2

VDD

RF_N

RF_P

GND

FS1

1

16

15

14

13

12

11

10

9

2

3

4

5

6

7

8

Mode/DCM

Xtal/Ref

4

2. Functional Description

The RXC101 is a low power, frequency agile, zero-IF, multi-channel FSK receiver for use in the 315, 433,

868, and 916 MHz bands. All RF and baseband functions are completely integrated requiring only a

single 10MHz crystal as a reference source and an external low-cost processor. Functions include:

•

PLL synthesizer

LNA, programmable gain

I/Q Mixers

I/Q Demodulators

Baseband Filters

Baseband Amplifiers

RSSI

Low Battery Detector

Wake-up Timer/Duty Cycle Mode

Valid Data Detection/Data Quality

The RXC101 is ideal for Frequency Hopping Spread Spectrum (FHSS) applications requiring frequency

agility to meet FCC requirements. The RXC101 supports use of a low-cost microcontroller, or may

operate as a single chip solution for simple applications. The RXC101 also incorporates different sleep

modes to reduce overall current consumption and extend battery life. It is ideal for applications operating

from typical lithium coin cells.

2.1 RXC101 Typical Application Circuit

Figure 1. Typical Processor Mode Application Circuit

Processor Mode (Application Circuit)

The RF pins are high impedance and differential. The optimum differential load for the RF port is 250

Ohms. Antennas ideally suited for this would be a Dipole, Folded Dipole, and Loop. A single ended 50

Ohm connection may also be used with the matching circuit given in Figure 1. Matching component

values for each band are given in Table 16.

5

The matching component values for each band are given in Table 1.

Table 1.

Band L1 C1=C2

315

433

868

916

56

36

15

9

7

3

Antenna Design Considerations

The RXC101 was designed to drive a differential output such as a Dipole antenna or a Loop. Most

compact application use the loop since it can be made small. The dipole is typically not an attractive

option for compact designs based on the fact of its inherent size at resonance and distance needed away

from a ground plane to be an efficient antenna. A monopole is possible with addition of a balun or using

the matching circuit in Figure 1.

PCB Layout Considerations

PCB layout is the most critical. For optimal transmit and receive performance, the trace lengths at the RF

pins must be kept as short as possible. Using small, surface mount components, like 0402, will yield the

best performance as well as keep the RF port compact. Make all RF connections short and direct. A

good rule of thumb to adhere to is for every 0.1” of trace length add 1nH of series inductance to the path.

The crystal oscillator is also affected by additional trace length in that it adds parasitic capacitance to the

overall load of the crystal. To minimize this effect place the crystal as close as possible to the chip and

make all connections short and direct. This will minimize the effects of “frequency pulling” that stray

capacitance may introduce and allow the internal load capacitance of the chip to be more effective in

properly loading the crystal oscillator circuit.

If using an external processor, the RXC101 provides an on-chip clock for that purpose. Even though this

is an integrated function, long runs of the clock signal may radiate and cause interference, especially if

there is no ground plane run directly under the trace. This can degrade receiver performance as well as

add harmonics or unwanted modulation to the transmitter. Keep clock connections as short as possible

and surround the clock trace with an adjacent ground plane pour where needed. This will help in

reducing any radiation or crosstalk due to long runs of the clock signal.

Good power supply bypassing is also essential. Large decoupling capacitors should be placed at the

point where power is applied to the PCB. Smaller value decoupling capacitors should then be placed at

each power point of the chip as well as bias nodes for the RF port. Poor bypassing lends itself to

conducted interference which can cause noise and spurious signals to couple into the RF sections,

significantly reducing performance.

6

Assembly View

Top Side

Bottom Side

7

Silkscreen

8

2.2 Simple Mode

The RXC101 can be configured for Simple Mode which does not require the use of a processor. All

values on for internal registers are the default values assumed during POR. Even though the device is in

this mode, the SPI bus, pins 1, 2 and 3, are still available to change internal configurations yet remain in

simple mode operation.

Figure 2. Typical Simple Mode Application Circuit

M

o d e / DCM

F S K

+

-

A S K

I/ Q

L NA

0 /9 0

F S 0

F S 3

DE M OD

RS S I

CONTROL

LOGIC

RF _ P

RF _ N

B S 0

B S 1

DO1

DO2

DO3

V CO

P L L

OS C CK T

DO4

/N

B A T T DE T

M

UX

R

F S 2

F S 1

V DD GND

X T A L / RE F

Figure 3. Simple Mode Functional Block Diagram

9

At power-up the chip samples the state of pin 8. If the pin is logic ‘1’ then it enters simple mode. If pin 8

is GND or left unconnected it enters processor mode. In simple mode, 6 pins select the band and

frequency within that band of operation. A seventh pin is available to operate the chip in duty cycle mode.

Table 2 shows the 6-pin setup configuration.

Table 2.

315MHz

433MHz

868MHz

916MHz

Address FS3 FS2 FS1 FS0

BS[1,0]=00 BS[1,0]=01 BS[1,0]=10 BS[1,0]=11

310.320

310.960

311.600

312.240

312.880

313.520

314.160

314.800

315.440

316.080

316.720

317.360

318.000

318.640

319.280

319.920

4330360

433.440

433.520

433.600

433.680

433.760

433.840

433.920

434.000

434.080

434.160

434.240

434.320

434.400

434.480

434.560

*867.680

*867.840

*868.000

868.160

868.320

868.480

868.640

868.800

868.960

869.120

869.280

869.440

869.600

869.760

869.920

*870.080

*900.960

902.880

904.800

906.720

908.640

910.560

912.480

914.400

916.320

918.240

920.160

922.080

924.000

925.920

927.840

*929.760

D4h

D2h

B4h

B2h

D4h

D2h

B4h

B2h

D4h

D2h

B4h

B2h

D4h

D2h

B4h

B2h

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

*Out of Band Frequencies

NOTE: Setting FS0=’1’ will change the DRSSI threshold from -103dBm to -97dBm.

For simple mode a predefined data sequence is defined in order to toggle the four outputs available. The

sequence includes a 16-bit preamble, synch word, address, and control bytes. The following is the

sequence flow:

Output Control Byte Output Control Byte

Preamble (AAh) Synch Word (2Dh) Address (D4h, etc..)

Output Control Byte

1’s Complement

(Transmit Order)

DO3

CB(1)

DO3

CB(0)

DO2

CB(1)

DO2

CB(0)

DO1

CB(1)

DO1

CB(0)

DO0

CB(1)

DO0

CB(0)

(Transmit Order)

10

The Control Byte function is defined as follows:

Table 3.

Output Function

NOP

Set to Logic ‘0’

Toggle

CB(1) CB(0)

0

1

0

1

0

1

Set to logic ‘1’ for 100ms

The data section of the packet must be sent as indicated. The 1’s complement of the data is internally

verified against the actual incoming data to ensure it is receiving the correct data and not spurious

transmission from noise or a nearby interferer. By sending the data twice, once before and once after the

1’s complement, this confirms to the receiver that it is receiving valid data.

Duty Cycle Mode

After power-up, connecting pin 8 to VDD will enable duty cycle mode. In this mode the chip will wake up

every 300ms to sample the signal strength of the incoming signal. If there is none detected then it goes

back into sleep until the next 300ms window arrives. When operating in Duty Cycle Mode, the chip

consumes less than 500uA of average current.

From start to finish, when the wake-up timer expires and the chip comes out of sleep, it switches on the

oscillator and waits 2ms for the oscillator to stabilize then it switches on the synthesizer. The receiver

then monitors the incoming signal strength for 6ms. If it detects a signal within that 6ms the synthesizer

remains on for 30ms and waits for the preamble and the rest of the packet. If it does not detect a strong

enough signal within the 6ms, it goes back into sleep mode until the next wake-up time. If it detects a

strong signal, but incorrect data, at the end of the 30ms it will re-enter sleep mode until the next wake-up

time. It should be noted that when the receiver is checking for signal strength, the state of the FS0 pin

will determine the threshold limit. See NOTE after Table 1. Figure 4 shows the timing for Duty Cycle

Mode.

Figure 4. Duty Cycle Mode Wake-up Timing

11

3. RXC101 Functional Characteristics

FS K

ASK

+

-

SDI

LNA

SDO/FFIT

I/Q

DEMOD

SCK

nCS

0

/ 9 0

RSSI

nIRQ

DATA / nFSEL

RF_P

RF_N

CONTROL

LOGIC

CR/FINT/FCAP

VCO

PLL

/N

OSC

CLKOUT

DDET

BATT

DET

R

XTAL/REF

RSSIA

VDD GND

nRE S E T

Figure 5. Functional Block Diagram

Input Amplifier (LNA)

The LNA has selectable gain (0dB, -6dB, -14dB, -20dB) which may be useful in an environment with

strong interferers. The LNA has a 250ΩOhm differential input impedance (0dB, -14dB) which requires a

matching circuit when connected to 50 Ohm devices. Registers common to the LNA are:

•

Power Management Register

Receiver Control Register

Baseband Data and Filtering

The baseband receiver has several programmable options that optimize the data link for a wide range of

applications. The programmable functions include:

•

Receive bandwidth

Receive data rate

Baseband Analog Filter

Baseband Digital Filter

Clock Recovery (CR)

Receive FIFO

Data Quality Detector

The receive bandwidth is programmable from 67 kHz to 400 kHz to accommodate various FSK

modulation deviations as well as fast data rates. If the deviation is known for a given transmitter, the best

results are obtained with a bandwidth at least twice the transmitter FSK deviation.

The receive data rate is programmable from 337bps to 344kbps. An internal prescaler is used to give

better resolution when setting up the receive data rate. The prescaler is optional and may be disabled

through the Data Rate Setup Register.

The type of baseband filtering is selectable between an Analog filter and a Digital filter. The analog filter

is a simple RC lowpass filter. An external capacitor may be chosen depending on the actual data rate.

The chip has an integrated 10KOhm resistor in series that makes the RC lowpass network. With the

analog filter selected, a maximum data rate of 256kbps can be achieved. The digital filter is used with a

clock frequency of 29X data rate. In this mode a clock recovery (CR) circuit is used to provide for a

synchronized clock source to recover the data using an external processor. The CR has three modes of

12

operation: fast, slow, and automatic, all configurable through the Baseband Filter Register. The CR

circuit works by sampling the preamble on the incoming data. The preamble must contain a series of 1’s

and 0’s in order for the CR circuit to properly extract the data timing. In slow mode the CR circuit requires

more sampling (12 to 16 bits) and thus has a longer settling time before locking. In fast mode the CR

circuit takes fewer samples (6 to 8 bits) before locking so settling time is not as long and timing accuracy

is not critical. In automatic mode the CR circuit begins in fast mode to coarsely acquire the timing period

with fewer samples then changes to slow mode after locking. Further details of the CR and data rate

clock are provided in the Baseband Filter Register. CR is only used with the digital filter and data rate

clock. These are not used when configured for the analog filter.

The Data Quality Detector looks at the unfiltered incoming data and counts the “spikes” for a given period.

The higher the “spike” count, the lower the data quality. The data quality threshold may be set, restricting

when the chip may report “Good Signal Quality”.

Data Quality Detector(DQD)

The DQD is a unique function of the TRC101. The DQD circuit looks at the prefiltered incoming and

counts the “spikes” of noise for a predetermined period of time to get an idea of the quality of the link.

This parameter is programmable through the Data Filter Command Register. The DQD count threshold is

programmable from 0 to 7 counts. The higher the count the lower the quality of the data link. This means

the higher the content of noise spikes in the data stream the more difficult it will be to recover clock

information as well as data.

Valid Data Detector(VDI)

The VDI is an extension of the DQD. When incoming data is detected, it uses the DQD signal, the Clock

Recovery Lock signal, and the Digital RSSI signal to determine if the incoming data is valid. The VDI

signal is valid when using either the internal receive FIFO or an external pin to capture baseband data.

The VDI has three modes of operation: slow, medium, fast. Each mode is dependent on what signals it

uses to determine valid data as well as the number of incoming preamble bits present at the beginning of

the packet.

Receiver FIFO

The receive FIFO is configured as one 16-bit register. The FIFO can be configured to generate an

interrupt after a predefined number of bits have been received. This threshold is programmable from 1 to

15 bits. It is recommended to set the threshold to at least half the length of the register (8 bits) to insure

the external host processor has time to set up.

The receive FIFO may also be configured to fill only when valid data has been identified. The RXC101

has a synchronous pattern detector that watches incoming data for a particular pattern. When it sees this

pattern it begins to store any data that follows. At the same time, if pin 16 is configured for Valid Data

Indicator output (See Receiver Control Register), this pin will go ‘high’ signaling valid data. This can be

used to prepare a host processor for retrieving data. The internal synchronous pattern is set to 2DD4h

and is not configurable.

The FIFO can be read out through the SDO pin only by toggling the nFSEL pin (6) which selects the FIFO

for read and reading out data on the next clock. The FINT pin (7) will stay active (logic ‘1’) until the last bit

has been read out, and it will then go ‘low’. This pin may also be polled to watch for valid data. When the

number of bits received in the FIFO match the pre-programmed limit, this pin will go active (logic ‘1’) and

stay active until the last bit is read out as above. An alternative method of reading the FIFO is through an

SPI bus Status Register read. The drawback to this is that all interrupt and status bits must be read first

before the FIFO bits appear on the bus. This could pose a problem for receiving large amounts of data.

The best method is using the SDO pin and the associated FIFO function pins.

Receive Signal Strength Indicator (RSSI)

The RXC101 provides an analog RSSI and a digital RSSI. The digital RSSI threshold is programmable

through the Receiver Control Register and is readable through the Status Register only. When an

incoming signal is stronger than the preprogrammed threshold, the digital RSSI bit in the Status Register

is set.

13

The analog RSSI is available through and external pin (15). This pin requires an external capacitor which

sets the settling time. The analog RSSI may be used to recover ASK modulated data at a low rate on the

order of a few thousand bits per sec. The external capacitor value will control the received ASK data rate

allowed so choosing a lower value capacitor enables recovery of faster data at the expense of amplitude.

Using pin (15) with a sensitive comparator will yield good results.

Automatic Frequency Adjustment (AFA)

The PLL has the capability to do fine adjustment of the carrier frequency automatically. In this way, the

receiver can minimize the offset between the transmit and receive frequency. This function may be

enabled or disabled through the Automatic Frequency Adjustment Register. The range of offset can be

programmed as well as the offset value calculated and added to the frequency control word within the

PLL to incrementally change the carrier frequency. The chip can be programmed to automatically

perform an adjustment or may be manually activated by a strobe signal. This function has the advantage

of allowing:

•

Cheaper, lower accuracy crystals to be used

Increased receiver sensitivity by narrowing the receive bandwidth

Achieving higher data rates

Crystal Oscillator

The RXC101 incorporates an internal crystal oscillator circuit that provides a 10MHz reference, as well as

internal load capacitors. This significantly reduces the component count required. The internal load

capacitance is programmable from 8.5pF to 16pF in 0.5pF steps. This has the advantage of accepting a

wide range of crystals from many different manufacturers having different load capacitance requirements.

Being able to vary the load capacitance also helps with fine tuning the final carrier frequency since the

crystal is the PLL reference for the carrier. When the shunt capacitance, Co, is worst case 7pF and the

ESR is 300 Ohms max, the oscillator can be expected to meet the start-up times as defined in the AC

Characteristics. Crystals with less than 7pF shunt capacitance and lower ESR guarantee much faster

start-up times.

An external clock signal is also provided that may be used to run an external processor. This also has

the advantage of reducing component count by eliminating an additional crystal for the host processor.

The clock frequency is also programmable from eight pre-defined frequencies, each a pre-scaled value of

the 10MHz crystal reference. These values are programmable through the Battery Detect Threshold and

Clock Output Register. The internal clock oscillator may be disabled which also disables the output clock

signal to the host processor. When the oscillator is disabled, the chip provides an additional 196 clock

cycles before releasing the output, which may be used by the host processor to setup any functions

before going to sleep.

Frequency Control (PLL) and Frequency Synthesizer

The PLL synthesizer is the heart of the operating frequency. It is programmable and completely

integrated, providing all functions required to generate the carriers and tunability for each band. The PLL

requires only a single 10MHz crystal reference source. RF stability is controlled by choosing a crystal

with the particular specifications to satisfy the application. This gives the designer the maximum flexibility

in performance.

The PLL is able to perform manual and automatic calibration to compensate for changes in temperature

or operating voltage. When changing band frequencies, re-calibration must be performed. This can be

done by disabling the synthesizer and re-enabling again through the Power Management Register.

Registers common to the PLL are:

•

Power Management Register

Configuration Register

Frequency Setting Register

Automatic Frequency Adjust Register

Transmit Configuration Register

14

Wake-Up Mode

The RXC101 has an internal wake-up timer that has very low current consumption (1.5uA typical) and

may be programmed from 1msec to several days. A calibration is performed to the crystal at startup and

every 30 sec thereafter, even if in sleep mode. If the oscillator circuit is disabled the calibration circuit will

turn it on briefly to perform a calibration to maintain accurate timing and return to sleep.

The RXC101 also incorporates other power saving modes aside from the wake-up timer. Return to active

mode may be initiated from several external events:

•

Logic ‘0’ applied to nINT pin (16)

Low Supply Voltage Detect

FIFO Fill

SPI request

If any of these wake-up events occur, including the wake-up timer, the RXC101 generates an external

interrupt which may be used as a wake-up signal to a host processor. The source of the interrupt may be

read out from the Status Register over the SPI bus.

Low Battery Detect

The integrated low battery detector monitors the voltage supply against a preprogrammed value and

generates an interrupt when the supply voltage falls below the programmed value. The detector circuit

has 50mV of hysteresis built in.

SPI Interface

The RXC101 is equipped with a standard SPI bus that is compatible to most any SPI device. All

functions and status of the chip are accessible through the SPI bus. Typical SPI devices are configured

for byte write operations. The TRC101 uses word writes so the nCS pin should be pulled low for 16 bits.

nCS

Figure 6. SPI Interface Timing

15

4. Control and Configuration Registers

Status Register (Read Only)

Bit

15

Bit

14

Bit

13

Bit

12

Bit

11

Bit

10

Bit

9

Bit

8

Bit

7

Bit

6

Bit

5

Bit

4

Bit

3

Bit

2

Bit

1

Bit

0

FIFOIT

FIFOV

WKINT

LB

FIFEMP RSSI GDQD

CRLCK

AFATGL

AFA

OFFSGN

OFF4

OFF3

OFF2

OFF1

OFF0

The Status Register provides feedback for:

•

FIFO overwrite

FIFO fill interrupt

Low Battery

Data Quality

Digital RSSI signal level

Clock Recovery

Frequency Offset value and sign

AFA

Note: The Status Register read command begins with a logic ‘0’ where all other register commands begin

with a logic ‘1’.

Bit [15]:FIFOIT – When set, indicates that the number of data bits received by the FIFO has reached it

programmed limit. See FIFO Fill Bit Count Bits[7..4] of the FIFO Configuration

Register.

Bit [14]:FIFOV – When set, indicates receive FIFO overflow. (Cleared after Status Reg read).

Bit [13]:WKINT – When set, indicates a Wake-up timer overflow. (Cleared after Status Reg read).

Bit [12]:LB – When set, indicates the supply voltage is below the preprogrammed limit. See Battery

Detect Threshold and Clock Output Register.

Bit [11]:FIFEMP – When set, indicates receive FIFO is empty.

Bit [10]:RSSI – When set, this bit indicates that the incoming RF signal is above the preprogrammed

Digital RSSI limit.

Bit [9]:GDQD – When set, indicates good data quality.

Bit [8]:CRLCK – When set, indicates Clock Recovery is locked.

Bit [7]:AFATGL – For each AFA cycle run, this bit will toggle between logic ‘1’ and logic ‘0’.

Bit [6]:AFA – When set, indicates that the frequency adjust has detected the same offset value for two

consecutive measurements and thus the frequency is stabilized.

Bit [5]:OFFSGN – Indicates the difference in frequency is higher (logic ‘1’) or lower (logic ‘0’) than the chip

frequency.

Bit [4..0]:OFF[4..0] – The offset value to be added to the frequency control word (internal PLL).

16

Configuration Register [POR=893Ah]

Bit Bit Bit

15 14 13

Bit

12

Bit

11

Bit

10

Bit

9

Bit

8

Bit

7

Bit

6

Bit

5

Bit

4

Bit

3

Bit

2

Bit

1

Bit

0

BAND1

BAND0

LBDEN

WKUPEN

OSCEN

CAP3

CAP2

CAP1

CAP0

BB2

BB1

BB0

CLKEN

1

0

The configuration register sets up the following:

•

Internal Data Register

Internal FIFO

Frequency Band in use

Crystal Load capacitance

Bit [15..13] – Command Code: These bits are the command code that is sent serially to the processor

that identifies the bits to be written to the configuration register.

Bit [12..11] – Band Select: These bits set the frequency band to be used. There are four (4) bands that

are supported. See Table 4 for Band configuration.

TABLE 4.

Frequency Band BAND1 BAND0

315

433

868

916

0

1

0

1

0

1

Bit [10] – Low Battery Detector: This bit enables the battery voltage detect circuit when set. The battery

detector can be programmed to 32 different threshold levels. See Battery Detect Threshold and

Clock Output Register section for programming.

Bit [9] – Wake-up Timer Enable: This bit enables the wake-up timer when set. See Wake-up Timer

Period Register section for programming the wake-up timer interval value.

Bit [8] – Crystal Oscillator: This bit enables the oscillator circuit when set. The oscillator provides the

reference signal for the synthesizer when setting the transmit or receive frequency of use.

Bit [7..4] – Load Capacitance Select: These bits set the load capacitance for the crystal reference. The

internal load capacitance can be varied from 8.5pF to 16pF in .5pF steps to accommodate a wide

range of crystal vendors as well as adjust the reference frequency and compensate for stray

capacitance that may be introduced due to PCB layout. See Table 5 for load capacitance

configuration.

TABLE 5.

Crystal Load

CAP3 CAP2 CAP1 CAP0

Capacitance

0

1

0

1

0

1

8.5

9

9.5

10

0

……

1

……

15.5

16

1

0

1

17

Configuration Register (continued)

Bit [3..1] – Receiver Baseband Bandwidth: These bits set the baseband bandwidth of the demodulated

data. The bandwidth can accommodate different FSK deviations and data rates. See Table 6 for

bandwidth configuration.

Table 6.

Baseband BW (kHz) BB2 BB1 BB0

Resvd

400

340

270

200

134

67

Resvd

0

1

0

1

0

1

0

1

0

1

0

1

0

1

Bit [0] – Clock Output Disable: This bit disables the oscillator clock output when set. On chip reset or

power up, clock output is on so that a processor may begin execution of any special setup

sequences as required by the designer. See Battery Detect Threshold and Clock Output Register

section for programming details.

18

Receiver Control Register [POR=C0C1h]

Bit

15

1

Bit

14

1

Bit

13

0

Bit

12

0

Bit

11

0

Bit

10

0

Bit

9

Bit

8

Bit

7

Bit

6

Bit

5

Bit

4

Bit

3

Bit

2

Bit

1

Bit

0

VDI1

VDI0

GAIN1

GAIN0

RSSI2

RSSI1

RSSI0

RXEN

The Receiver Control Register configures the following:

•

Receiver LNA gain

Digital RSSI threshold

Receive baseband bandwidth

Valid Data Indicator response time

Function of pin 16

Bit [15..8] – Command Code: These bits are the command code that is sent serially to the processor that

identifies the bits to be written to the Receiver Control Register.

Bit [7..6] – Pin 16 Func: Selects the function of Pin 16. See Table 7 below.

Table 7.

Pin 16 Function

Digital RSSI Out

DQD Out

Clock Recovery Lock

Valid Data Output

VDI1 VDI0

0

1

0

1

0

1

Bit [5..4] – Receiver LNA Gain: These bits set the receiver LNA gain, which can be changed to

accommodate environments with high interferers. The LNA gain also affects the true RSSI value.

Refer to Bit [2..0] for RSSI. See Table 8 below for gain configuration.

Table 8.

LNA GAIN (dB) GAIN1 GAIN0

0

-14

-6

0

1

0

1

0

1

-20

Bit [3..1] – Digital RSSI Threshold: The digital receive signal strength indicator threshold may be set to

indicate that the incoming signal strength is above a preset limit. The result is stored in bit 7 of

the status register. There are eight (8) predefined thresholds that can be set. See Table 9 below

for settings.

Table 9.

RSSI Thresh RSSI2 RSSI1 RSSI0

-103

-97

-91

-85

-79

-73

-67

-61

0

1

0

1

0

1

0

1

0

1

0

1

0

1

19

Receiver Control Register (continued)

The RSSI threshold is affected by the LNA gain set value. Calculate the true RSSI set threshold when

the LNA gain is set to a value other than 0 dB as:

RSSI = RSSIthres + |GainLNA|

Bit [0] – Receiver Chain Enable: This bit enables the entire receiver chain when set. The receiver chain

comprises the baseband circuit, synthesizer, and crystal oscillator. When using this bit to control

the receive chain, the clock pulses produced when the crystal oscillator is shut down is disabled.

When this bit is cleared, the clock output signal stops abruptly.

20

FIFO Configuration Register [POR=CE89h]

Bit

15

1

Bit

14

1

Bit

13

0

Bit

12

0

Bit

11

1

Bit

10

1

Bit

9

Bit

8

Bit

7

Bit

6

Bit

5

Bit

4

Bit

3

Bit

2

Bit

1

Bit

0

FINT3

FINT2

FINT1

FINT0

FIFST1

FIFST0

FILLEN

FIFEN

1

0

The Data FIFO Configuration Register configures:

•

FIFO fill interrupt condition

FIFO fill start condition

FIFO fill on synchronous pattern

FIFO Enable

Bit [15..8] - Command Code: These bits are the command code that is sent serially to the processor that

identifies the bits to be written to the Data FIFO Configuration Register.

Bit [7..4] – FIFO Fill Bit Count: This sets the number of bits that are received before generating an

external interrupt to the host processor that the receive FIFO data is ready to be read out. It is

possible to set the maximum fill level to 15 (16-bits), but the designer must account for the

processing time it will take to read out the data before a register overrun occurs, at which data

will be lost. It is recommended to set the fill value to half of the desired number of bits to be read

to ensure enough time for additional processing. See Status Register for description of FIFO

status bits that may be read and FIFO Read Register for polling and interrupt-driven FIFO reads

from the SPI bus.

Bit [3..2] – FIFO Fill Start Condition: These bits set the condition at which the FIFO begins filling with

data. Table 10 describes the start conditions. See Valid Data configuration in Receiver Control

Register.

Table 10.

Fill Start Condition

Valid Data

Synch Word

Valid Data and Sync Word

Continuous Fill

FIFST1 FIFST0

0

1

0

1

0

1

Bit [1] – Synchronous Pattern FIFO Fill Enable: When set, the FIFO will begin filling with data when it

detects the FIFO Fill Start Condition as defined in bits[3..2] above. The FIFO fill stops and the

FIFO is reset when this bit is cleared. To restart simply clear the bit and set again.

Bit [0] – FIFO Enable: This bit enables the internal data FIFO when set. The FIFO is used to store data

during receive. If the FIFO is enabled by setting this bit, pin 6 becomes nFSEL and pin 7 becomes

FINT. See Data Buffer Setup Register section for details on the FIFO configuration.

21

Automatic Frequency Adjust Register [POR=C6F7h]

Bit

15

1

Bit

14

1

Bit

13

0

Bit

12

0

Bit

11

0

Bit

10

1

Bit

9

Bit

8

Bit

7

Bit

6

Bit

5

Bit

4

Bit

3

Bit

2

Bit

1

Bit

0

AUTO1 AUTO0 RNG1 RNG0 STRB ACCF OFFEN AFEN

1

0

The AFA (Automatic Frequency Adjust) Register configures:

•

Manual or Automatic frequency offset adjustment

Calculation of the offset value and write to the Status Register

Fine offset adjustment control

The AFA (Automatic Frequency Adjust) Register controls and configures the frequency adjustment range

and mode for keeping the transmitter and receiver frequency locked, providing for an optimal link. The

AFA may be manually controlled by an external processor by asserting a strobe signal to initiate a

sample, or may be setup for automatic operation. The AFA also calculates the offset of the transmit and

receive frequency. This offset value is included in the status register read and the AFA must be disabled

during the status read to ensure reporting good offset accuracy.

Bit [15..8] - Command Code: These bits are the command code that is sent serially to the processor that

identifies the bits to be written to the Automatic Frequency Adjust Register.

Bit [7..6] – Mode Selection: These bits select Automatic or manual operation. When set to Manual

operation, the RXC101 will take a sample when a strobe signal (See Bit [3]) is written to the

register. There are four modes of operation. See Table 11 below for configuration.

TABLE 11.

Automatic fOFFSET Mode

Mode Off

Run Once after Pwr-up

Keep offset during Rcv ONLY

Keep offset indep of VDI state

AUTO1 AUTO0

0

1

0

1

0

1

Mode Operation

Mode(0,1) – The circuit takes a measurement only once after power-up. This maximizes the distance

that can be achieved for a single link.

Mode(1,0) – When the Valid Data Indicator (VDI) pin is low, indicating poor receiving conditions, the

offset register is automatically cleared. Use this setting when receiving from several different

transmitters that are operating very close to the same frequencies.

Mode(1,1) – This setting is best used when receiving from a single transmitter. The measured offset

value is kept independent of the state of the VDI signal.

Bit [5..4] – Allowable Frequency Offset: These bits select the amount of offset allowable between

Transmitter and Receiver frequencies. The allowable range can be specified as in Table 12

below.

TABLE 12.

Freq Offset Range RNG1 RNG0

No Limit

0

1

0

1

0

1

+15*fres/-16*fres

+7*fres /-8*fres

+3*fres /-4*fres

22

Automatic Frequency Adjust Register (continued)

where fres is the tuning resolution for each band as follows:

fres: 315 MHz Band = 2.5kHz

433 MHz Band = 2.5kHz

868 MHz Band = 5kHz

916 MHz Band = 7.5kHz

Bit [3] – Manual Frequency Adjustment Strobe: This bit is the strobe signal that initiates a manual

frequency adjustment sample. When set, a sample of the received signal is compared to the

Receiver LO signal and an offset is calculated. If enabled, this value is written to the Offset

Register (See Bit [1]) and added to the frequency control word of the PLL. This bit MUST be reset

before initiating another sample.

Bit [2] – High Accuracy (Fine) Mode: This bit, when set, switches the frequency adjustment mode to

high accuracy. In this mode the processing time is twice the regular mode, but the uncertainty of

the measurement is significantly reduced.

Bit [1] – Frequency Offset Register Enable: This bit, when set, enables the offset value calculated by

the offset sample to be added to the frequency control word of the PLL that tunes the desired

carrier frequency.

Bit [0] – Offset Frequency Enable: This bit, when set, enables the RXC101 to calculate the offset

frequency by the sample taken from the Automatic Frequency Adjustment circuit.

23

Baseband Filter Register [POR=C42Ch]

Bit

15

1

Bit

14

1

Bit

13

0

Bit

12

0

Bit

11

0

Bit

10

1

Bit

9

Bit

8

Bit

7

Bit

6

Bit

5

Bit

4

Bit

3

Bit

2

Bit

1

Bit

0

CRLK CRLC

1

FILT

1

DQLVL2 DQLVL1 DQLVL0

The Baseband Filter Register configures:

•

Clock Recovery lock control

Baseband Filter type, Digital or Analog RC

Data Quality Detect Threshold parameter

Bit [15..8] - Command Code: These bits are the command code that is sent serially to the processor that

identifies the bits to be written to the Baseband Filter Register.

Bit [7] – Automatic Clock Recovery Lock: When set, this bit configures the CR (clock recovery) lock

control to automatic. In this setting the clock recovery will startup in “Fast” mode and automatically switch

to “Slow” mode after locking. See Bit [6] description for details of “Fast” and “Slow” modes.

Bit [6] – Manual Clock Recovery Lock Control: When set, this bit configures the CR lock to “Fast”

mode. “Fast” mode requires a preamble of at least 6 to 8 bits to determine the clock rate, then locks.

When cleared, this bit configures the CR lock to “Slow” mode. “Slow” mode takes a little longer in that it

requires a preamble of at least 12 to 16 bits to determine the clock rate, then locks. Use of the “Slow”

mode requires more accurate bit timing. See Data Rate Setup Register for the relationship of data rate

and CR.

Bit [5] – Not Used. Write a “1”.

Bit [4..3] – Filter Type:

Table 13.

Filter

RSSI for OOK

Digital

Not Used

Analog RC

FILT1 FILT0

0

1

0

1

0

1

RSSI for OOK: The Analog RSSI Output signal is used to receive the incoming data. The Digital RSSI is

used for data slicing. Set DRSSI parameter in the Receiver Control Register.

Digital Filter: The Digital filter is a digital version of a simple RC lowpass filter followed by a comparator

with hysteresis. The time constant for the Digital filter is automatically calculated internally based on the

bit rate as set in the Data Rate Setup Register.

Analog RC lowpass filter: The baseband signal is fed to pin 7 thru an internal 10K Ohm resistor. The

lowpass cutoff frequency is set by the external capacitor connected from pin 7 to GND. To calculate the

baseband capacitor value for a given data rate, use:

C^FILT= 1 / (30,000*Data Rate)

Bit [2..0] – Data Quality Detect Threshold: The threshold parameter should be set less than four (<4) in

order for the Data Quality Detector to report good signal quality in the case that the bit rate is close to the

deviation. As the data rate << deviation, a higher threshold parameter is permitted and may report good

signal quality.

24

Frequency Setting Register [POR=A680h]

Bit

15

1

Bit

14

0

Bit

13

1

Bit

12

0

Bit

11

Bit

10

Bit

9

Bit

8

Bit

7

Bit

6

Bit

5

Bit

4

Bit

3

Bit

2

Bit

1

Bit

0

Freq11 Freq10 Freq9 Freq8 Freq7 Freq6 Freq5 Freq4 Freq3 Freq2 Freq1 Freq0

The Frequency Setting Register sets the exact frequency within the selected band for transmit or receive.

Each band has a range of frequencies available for channelization or frequency hopping. The selectable

frequencies for each band are:

Frequency Band Min (MHz) Max (MHz) Tuning Resolution

300 MHz

400 MHz

800 MHz

900 MHz

310.24

430.24

860.48

900.72

319.75

439.75

879.51

929.27

2.5 kHz

5.0 kHz

7.5 kHz

Bit descriptions are as follows:

Bit [15..12] – Command Code: These bits are the command code that is sent serially to the processor

that identifies the bits to be written to the Frequency Setting register.

Bit [11..0] – Frequency Setting: These bits set the center frequency to be used during transmit or

receive. The value of bits[11..0] must be in the decimal range of 96 to 3903. Any value outside

of this range will cause the previous value to be kept and no frequency change will occur. To

calculate the center frequency fc, use Table 3 below and the following equation:

f_c= 10 * B1 * (B0 + f_VAL/4000) MHz

where f_VAL= decimal value of Freq[11..0] = 96<f_VAL<3903.

Use Table 14 to select the frequency band and substitute into the above equation to calculate the center

frequency of the desired band.

TABLE 14.

Range

B1

1

2

3

B0

31

43

30

315 MHz

433 MHz

868 MHz

916 MHz

25

Data Rate Setup Register [POR=C823h]

Bit

15

1

Bit

14

1

Bit

13

0

Bit

12

0

Bit

11

1

Bit

10

0

Bit

9

Bit

8

Bit

7

Bit

6

Bit

5

Bit

4

Bit

3

Bit

2

Bit

1

Bit

0

PRE BITR6 BITR5 BITR4 BITR3 BITR2 BITR1 BITR0

The Data Rate Setup Register configures:

•

the expected data rate for the receiver

the prescaler

the effects of the data rate on clock recovery

Bit [15..8] - Command Code: These bits are the command code that is sent serially to the processor that

identifies the bits to be written to the Data Rate Setup Register.

Bit [7] – Prescaler Enable: When set this bit enables the prescaler to obtain smaller values of expected

data rates. The prescaler value is approximately 1/8.

Bit [6..0] – Data Rate Parameter Value: These bits represent the decimal value of the 7-bit parameter

used to calculate the expected data rate. To calculate the expected data rate, use the following

formula:

DRexp(kbps) = 10000 / [29 * (BITR[6..0]+1) * (1+PRE*7)]

where BITR[6..0] is the decimal value 0 to 127 and the prescaler (PRE) is ‘1’ (on) or ‘0’ (off).

To calculate the BITR[6..0] decimal value for a given bit rate, use the following formula:

BITR[6..0] = 10000 / [29 * (1+PRE*7) * DRexp

where DRexp is the expected data rate and PRE is defined above.

Without the prescaler, the definable data rates range from 2.694kpbs to 344.828kbps. With the prescaler

enabled, the definable data rates range from 337 bps to 43.103kpbs.

The Slow clock recovery mode requires more accurate bit timing when setting the data rate. To calculate

the accuracy of the data rate for both Fast and Slow mode, use the following:

Slow mode Accuracy = ∆BR/BR < 1/(29 * N)

Fast mode Accuracy = ∆BR/BR < 3/(29 * N)

where N is the longest number of expected ones or zeros in the data stream, ∆BR is the difference in the

actual data rate vs. the set data rate in the transmitter, and BR is the expected data rate as set above

using BITR[6..0].

26

Wake-up Timer Period Register [POR=E196h]

Bit

15

1

Bit

14

1

Bit

13

1

Bit

12

R4

Bit

11

R3

Bit

10

R2

Bit

9

Bit

8

Bit

7

Bit

6

Bit

5

Bit

4

Bit

3

Bit

2

Bit

1

Bit

0

R1

R0

M7

M6

M5

M4

M3

M2

M1

M0

The Wake-up Timer Period register sets the wake-up interval for the RXC101. After setting the wake-up

interval, the WKUPEN (bit 1 of Power Management Register) should be cleared and set at the end of

every wake-up cycle. To calculate the wake-up interval desired, use the following:

T^WAKE= M[7..0] * 2 ^R[4..0]

where M[7..0] = decimal value 0 to 255 and R[4..0] = decimal value 0 to 31.

Bit [15..13] – Command Code: These bits are the command code that is sent serially to the processor

that identifies the bits to be written to the Wake-up Timer Period register.

Bit [12..8] – Exponential: These bits define the exponential value as used in the above equation. The

value used must be the decimal equivalent between 0 and 31.

Bit [7..0] – Multiplier: These bits define the multiplier value as used in the above equation. The value

used must be the decimal equivalent between 0 and 255.

27

Duty Cycle Set Register [POR=CC0Eh]

Bit

15

1

Bit

14

1

Bit

13

0

Bit

12

0

Bit

11

1

Bit

10

1

Bit

9

Bit

8

Bit

7

Bit

6

Bit

5

Bit

4

Bit

3

Bit

2

Bit

1

Bit

0

DC6

DC5

DC4

DC3

DC2

DC1

DC0

DCEN

The duty cycle register may be used in conjunction with the wake-up timer to reduce the average current

consumption of the receiver. The duty cycle register may be set up so that when the wake-up timer

brings the chip out of sleep mode the receiver is turned on for a short time to sample if a signal is present

and then goes back into sleep and the process starts over.

The duty cycle uses the Multiplier value of the wake-up timer in part for its calculation. To calculate the

duty cycle use:

Duty Cycle = ((D[6..0] * 2 )+ 1)/M * 100

where M is M[7..0] of the Wake-up Timer Period register.

Bit [15..8] – Command Code: These bits are the command code that is sent serially to the processor that

identifies the bits to be written to the Wake-up Timer Period register.

Bit [7..1] – Duty Cycle Multiplier: These bits are the decimal value used to calculate the Duty Cycle or

“On time” of the Receiver after the wake-up timer has brought the RXC101 out of sleep mode.

Bit [0] – Duty Cycle Mode Enable: This bit enables the duty cycle mode when set.

NOTE: The receiver must be disabled (RXEN bit 7 cleared in Power Management Register) and the

wake-up timer must be enabled (WKUPEN bit 1 set in Power Management Register) for operation in this

mode.

28

Battery Detect Threshold and Clock Output Register [POR=C200h]

Bit

15

1

Bit

14

1

Bit

13

0

Bit

12

0

Bit

11

0

Bit

10

0

Bit

9

Bit

8

Bit

7

Bit

6

Bit

5

Bit

4

Bit

3

Bit

2

Bit

1

Bit

0

1

0

CLK2 CLK1 CLK0 LBD4 LBD3 LBD2 LBD1 LBD0

The Battery Detect Threshold and Clock Output Register configures the following:

•

Low Battery Detect Threshold

Output Clock frequency

The Low Battery Threshold is programmable from 2.2V to 5.3V using the following equation:

V^T= (LBD[4..0] / 10) + 2.2 (V)

where LBD[4..0] is the decimal value 0 to 31.

Bit [15..8] - Command Code: These bits are the command code that is sent serially to the processor that

identifies the bits to be written to the Battery Detect Threshold and Clock Output Register.

Bit [7..5] – Clock Output Frequency: These bit set the output frequency of the on-board clock that may

be used to run an external host processor. See Table 15 below.

TABLE 15.

Output Clock Frequency (MHz) CLK2 CLK1 CLK0

1

1.25

1.66

2

2.5

3.33

5

0

1

0

1

0

1

0

1

0

1

0

1

0

1

10

Bit [4..0] – Low Battery Detect Value: These bits set the decimal value as used in the equation above to

calculate the battery detect threshold voltage value. When the battery level falls 50mV below this value,

the LBD bit (5) in the status register is set indicating that the battery level is below the programmed

threshold. This is useful in monitoring discharge sensitive batteries such as Lithium cells.

The Low Battery Detect can be enabled by setting the LBDEN bit (2) of the Power Management Register

and disabled by clearing the bit.

The Clock Output can be enabled by setting the CLKEN bit (0) of the Power Management Register and

disabled by clearing the bit.

29

5. Maximum Ratings

Absolute Maximum Ratings

Symbol Parameter

Notes

Min

-0.5

-25

Max

6

Units

V

Positive supply voltage

VDD

Voltage in on any pin

Vdd+0.5

25

V

Vin

Input current into any pin except VDD and VSS

Electrostatic discharge with human body model

Storage temperature

mA

Iin

ESD

1000

125

V

°C

-55

Tstg

Soldering Lead temperature (max 10 s)

260

°C

Tlead

Recommended Operation Ratings

Symbol Parameter

Notes

Min

2.2

Max

5.4

Units

V

Supply voltage

VDD

Operating temperature (Ambient environment)

-40

85

°C

Top

Note 1: At minimum, VDD - 1.5 V cannot be lower than 1.2 V.

Note 2: At maximum, VDD+1.5 V cannot be higher than 5.5 V.

6. DC Electrical Characteristics

(Min/max values are valid over the whole recommended operating range Vdd = 2.2-5.4V. Typical conditions: Top = 27°C; Vdd = 3.0 V)

Limit

Values

Sym

Notes

Unit

Test Conditions

Digital I/O

Parameter

min

typ

8

max

13

315MHz Band

8

14

433MHz Band

868MHz Band

916MHz Band

All blocks disabled

Supply current

Idd

mA

9

15

10

17

Sleep current

Idle current

IS

0.15

µA

Oscillator and baseband

enabled

IIDLE

3

3.5

mA

Low battery voltage detector

current consumption

IVD

IWUT

Vlb

0.5

1.5

µA

V

Wake-up timer current

Programmable in 0.1 V

steps

Low battery detect threshold

2.2

5.3

Low battery detection accuracy

Digital input low level

±75

mV

V

0.3*Vdd

Vil

Vih

Iil

0.7*Vdd

-1

Digital input high level

V

Digital input current low

Digital input current high

Digital output low level

Digital output high level

Digital input capacitance

Digital output rise/fall time

1

µA

V

Vil = 0 V

Iih

-1

Vih = Vdd, Vdd = 5.4 V

Iol = 2 mA

Vol

Voh

0.4

Vdd-0.4

V

Ioh = -2 mA

2

pF

ns

10

Load = 15 pF

30

7. AC Electrical Characteristics

(Min/max values are valid over the whole recommended operating range Vdd = 2.2-5.4V. Typical conditions: Top = 27°C; Vdd = 3.0 V)

Notes

Sym

Limit Values

typ

Unit

Test Conditions

Receiver

Parameter

min

0

max

LNA input power

dBm

LNA Max gain

-100

-113

-110

-109

250

1

315MHz Band

433MHz Band

Receiver Sensitivity

2

dBm

868MHz Band

916MHz Band

RF input impedance (real, differential)

RF input capacitance

Ohm

pF

LNA gain (0 dB, -14 dB)

Receiver bandwidth

67

400

115

256

kHz

Programmable

0.6

Digital filters

FSK bit rate

OOK bit rate

kbps

Analog filter

1

RSSIcap = 1000pF, ext comparator

-46

-51

-55

-15

-25

315MHz Band

433MHz Band

868MHz Band

916MHz Band

315MHz Band

433MHz Band

868MHz Band

916MHz Band

IIP3 In band interferers

(-85dBm carrier, 1MHz offset, CW)

3

dBm

IIP3 Out of band interferers

(-85dBm carrier, 10 MHz offset, CW)

-20

+/-5

46

RSSI accuracy

dB

RSSI dynamic range

RSSI programmable steps

6

RSSI signal goes high after input

signal exceeds programmed limit.

RSSIcap = 5 nF

Digital RSSI response time

500

us

315 MHz Band

433 MHz Band

Spurious emission (@ Pmax)

AFA lock range

<95

dBc

kHz

868 MHz Band

916 MHz Band

0.8*∆dev

∆dev = Signal FSK deviation

NOTES:

1- Other crystal frequencies may be used, but every function on chip, including wake-up timer, output clock, data rate, clock

recovery, etc…, is dependent on this reference frequency and everything will scale accordingly.

2- ^{BW=67 kHz, BR=1.2 kbps}, digital filter, BER=10^-3

3- FCC Class 2 Blocking.

31

AC Electrical Characteristics - continued

(Min/max values are valid over the whole recommended operating range Vdd = 2.2-5.4V. Typical conditions: Top = 27°C; Vdd = 3.0 V)

Sym

Notes

Limit Values

typ

Unit

Test Conditions

Timing

Parameter

min

max

Internal POR timeout

Wake-up timer clock period

100

ms

Vdd at 90% of final value

1

Calibrated every 30 seconds

Sym

Notes

Limit Values

Unit

Test Conditions

PLL Characteristics

Parameter

min

typ

10

max

PLL reference freq

PLL lock time

fREF

1

8

12

MHz

us

20

within 1kHz settle, 10MHz step

From sleep with Crystal running

PLL startup time

250

16

us

Programmable in 0.5 pF steps,

tolerance +/- 10%

Crystal load capacitance

Xtal oscillator startup time

CL

8.5

pF

5

ms

Crystal ESR < 100

310.24

430.24

860.48

900.72

318.75

439.75

879.51

929.27

315MHz Band (2.5kHz steps)

433MHz Band (2.5kHz steps)

868MHz Band (5.0kHz steps)

916MHz Band (7.5kHz steps)

Frequency Range (w/ 10MHz ref xtal)

MHz

32

8.0 Package Dimensions – 5x4.4mm 16-pin TSSOP Package

(all values in mm)

Detail

A

C

θ2

B

0.20

R1

F

G

R

Gauge Plane

D

E

θ1

L

θ3

0.25

L1

Detail

Dimensions in mm

Dimensions in Inches

Symbol

Min

4.30

4.90

Nom

4.40

5.00

Max

4.50

5.10

Min

Nom

Max

0.177

0.201

A

B

0.169 0.173

0.193 0.197

C

6.40 BSC.

0.252 BSC.

D

E

F

G

L

0.19

0.80

0.50

0.30

0.007

0.012

0.65 BSC.

0.90

0.026 BSC.

1.05

1.20

0.75

0.031 0.035

0.041

0.47

0.030

0.60

0.020 0.024

L1

R

R1

1.00 REF.

0.39 REF

0.09

0

0.004

0

8

θ1

4441 Sigma Road

Dallas, Texas 75244

(800) 704-6079 toll-free in U.S. and Canada

Email: info@rfm.com

12 REF.

θ2

θ3

www.rfm.com

www.wirelessis.com

RXC101 2006-03-01

rev04

33
