RX8000

型号：

RX8000

描述：

Synthesised无线通讯模块[ Synthesised Radio Modules ]

品牌：

RFSOLUTIONS[ RFSOLUTIONS.LTD ]

页数：

4 页

PDF大小：

371 K

下载PDF手册

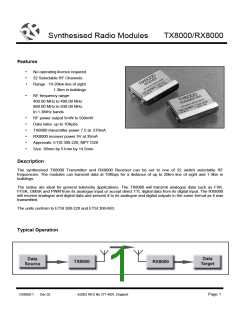

Synthesised Radio Modules
TX8000/RX8000
Features
•
•
No operating licence required.
32 Selectable RF Channels.
•
Range 10-20km line of sight
1-3km in buildings
•
RF frequency range:
400.00 MHz to 490.00 MHz
860.00 MHz to 930.00 MHz
In 1.3MHz bands
•
•
•
•
•
•
RF power output 5mW to 500mW
Data rates: up to 10Kpbs
TX8000 transmitter power 7.5 at 270mA
RX8000 receiver power 5V at 35mA
Approvals: ETSI 300-220, MPT1329
Size 36mm by 51mm by 14.5mm
Description
The synthesised TX8000 Transmitter and RX8000 Receiver can be set to one of 32 switch selectable RF
frequencies. The modules can transmit data at 10Kbps for a distance of up to 20km line of sight and 1-3km in
buildings.
The radios are ideal for general telemetry applications. The TX8000 will transmit analogue data such as FSK,
FFSK, GMSK and PWM from its analogue input or accept direct TTL digital data from its digital input. The RX8000
will receive analogue and digital data and present it to its analogue and digital outputs in the same format as it was
transmitted.
The units conform to ETSI 300-220 and ETSI 300-683.
Typical Operation
DS8000-1
Dec 02
©2002 REG No 277 4001, England.
Page 1
Synthesised Radio Modules
TX8000/RX8000
Specification
ABSOLUTE MAXIMUM RATINGS
Storage Temperature............................................... -30 to +85 Celsius
Operating Temperature ........................................... -25 to +55 Celsius
Dimensions
Length = 36mm
Width = 51mm
Height = 14.5mm
ELECTRICAL CHARACTERISTICS
MIN
TYPICAL
MAX
DIMENSION NOTE
Frequency Range
458.500
400.000
860.000
485.950
490.000
930.000
MHz
MHz
MHz
UK
World
World
Channels
1
Channel Separation
Start up Time
Modulation
12.5
3.0
25.0
5.0
F3D
25.0
7.0
KHz
mSecs
Factory
TRANSMITTER
RF Output Power
Analogue Input
Digital Input
5.0
500.0
mW
Vp-p
V
0.5
4.7
8
mod.
TTL
3.5
7.2
270.0
5.0
10.0
390.0
Power Supply
V
290.0
mAmps
RECEIVER
Sensitivity
10dBSIN
AD
-112
dBm
Analogue Output
Digital Output
Power Supply
2.0
5.0
5.5V
15.0
Vp-p
V
V
+/-5KHz
TTL
5.0
12.0
12
18.0
mAmps
Note: Switch mode power supplies can produce RF frequencies that will interfere with the receiver signal.
PART No.
DESCRIPTION
TX8000.XXX
RX8000.XXX
Transmitter XXX = RF Frequency Band
Receiver XXX = RF Frequency Band
RADIO PROPAGATION
ANTENNA
With any radio system there are a number of factors
which affect the system performance. These are:
Transmitter power output.
X603 Quarter Wave Antenna
Low cost, mobile, omni-directional, short range
approximately 2km
Height of transmitter and receiver antenna.
Length and type of coaxial feeder cable to the
antenna.
X604 Mast Mounted Dipole Antenna
Omni-directional, base station, range approximately
10km
Type and efficiency of the antenna.
Topography between transmitter and receiver.
The weather.
X605 High Gain Yagi Antenna
Directional beam of 40°, range approximately
10-20km, usually used on receivers only.
DS8000-1
Dec 02
©2002 REG No 277 4001, England.
Page 2
Synthesised Radio Modules
TX8000/RX8000
TRANSMITTER CONNECTIONS: Pins on underside of Module
PIN
1
DESCRIPTION
Ground
DIRECTION
Input
2
3
4
5
Digital Data Input (TTL)
Switched +5V
Input
Output
6
7
8
Regulated +5V
Transmitter ON
Output
Input
(Connected to Ground to start the Transmitter)
Supply Voltage to Module (7.2 - 10V)
Receiver RF Output
(for use in transceiver)
Ground
9
10
Input
Output
11
12
Input
Output
Antenna
RECEIVER CONNECTIONS: Pins on underside of Module
PIN
1
DESCRIPTION
Ground
DIRECTION
Input
2
3
Receiver Signal Strength Indicator (RSSI)
Demodulated Output
Output
Output
4
5
6
7
Power Supply
Digital Data Output
Power Supply (5 to 12V)
Input
Output
Input
8
Antenna
Output
MECHANICAL DETAILS
2.54
2.54
3.81
13.97
36
2.54
2.54
2.54
2.54
2.54
2.54
2.54
2.54
2
2
2
2
2
2
36
TX8000
RX8000
2.54
2
2.54
2.54
2.54
2.54
2.54
2
9
9
42
52
42
52
All Dimensions in mm
DS8000-1
Dec 02
©2002 REG No 277 4001, England.
Page 3
Synthesised Radio Modules
TX8000/RX8000
CIRCUIT CONNECTIONS
Note: On the standard RX8000, pins 4 & 5 are not present. Therefore the pins are numbered 1 to 7
RF FREQUENCY
An example of how the RF Frequency is set using the Programming Pins is shown below. The frequency band can
be factory set in the range 400.00MHz to 490.00MHz and 860.00MHz to 930.00MHz at 12.5KHz or 25KHz
spacing in bands of 1.3MHz.
Hex
Ch
RF Freq
MHz
Hex RF Freq
Ch MHz
PIN 1
PIN 2
PIN 3
PIN 4
PIN 5
PIN 1
PIN 2 PIN 3
PIN 4
PIN 5
00H 458.500
02H 458.525
04H 458.550
06H 458.575
08H 458.600
0AH 458.625
0CH 458.650
0EH 458.675
10H 458.700
12H 458.725
14H 458.750
16H 458.775
18H 458.800
1AH 458.825
1CH 458.850
1EH 458.875
LOW
HIGH
LOW
HIGH
LOW
HIGH
LOW
HIGH
LOW
HIGH
LOW
HIGH
LOW
HIGH
LOW
HIGH
LOW
LOW
HIGH
HIGH
LOW
LOW
HIGH
HIGH
LOW
LOW
HIGH
HIGH
LOW
LOW
HIGH
HIGH
LOW
LOW
LOW
LOW
HIGH
HIGH
HIGH
HIGH
LOW
LOW
LOW
LOW
HIGH
HIGH
HIGH
HIGH
LOW
LOW
LOW
LOW
LOW
LOW
LOW
LOW
HIGH
HIGH
HIGH
HIGH
HIGH
HIGH
HIGH
HIGH
LOW
LOW
LOW
LOW
LOW
LOW
LOW
LOW
LOW
LOW
LOW
LOW
LOW
LOW
LOW
LOW
20H 458.900
22H 458.925
24H 458.950
26H 458.975
28H 459.000
2AH 459.025
2CH 458.050
2EH 458.075
30H 458.100
32H 458.125
34H 458.150
36H 458.175
38H 458.200
3AH 458.225
3CH 458.250
3EH 458.275
LOW
HIGH
LOW
HIGH
LOW
HIGH
LOW
HIGH
LOW
HIGH
LOW
HIGH
LOW
HIGH
LOW
HIGH
LOW
LOW
HIGH
HIGH
LOW
LOW
HIGH
HIGH
LOW
LOW
HIGH
HIGH
LOW
LOW
HIGH
HIGH
LOW
LOW
LOW
LOW
LOW
LOW
LOW
LOW
LOW
HIGH
HIGH
HIGH
HIGH
HIGH
HIGH
HIGH
HIGH
HIGH
HIGH
HIGH
HIGH
HIGH
HIGH
HIGH
HIGH
HIGH
HIGH
HIGH
HIGH
HIGH
HIGH
HIGH
HIGH
LOW
LOW
LOW
HIGH
HIGH
HIGH
HIGH
LOW
LOW
LOW
LOW
HIGH
HIGH
HIGH
HIGH
Note: Each Country has different rules and regulations on the use of RF Spectrum.
R. F. Solutions Ltd.,
Information contained in this document is believed to be accurate, however no representation or warranty is given and RF Solutions Ltd. assumes no liability with respect to the accuracy of
such information. Use of RF Solutions’ products as critical components in life support systems is not authorised except with express written approval from RF Solutions Ltd.
Unit 21, Cliffe Industrial Estate,
Lewes, E Sussex, BN8 6JL, England
Tel +44 (0)1273 898 000
Fax +44 (0)1273 480 661
http://www.rfsolutions.co.uk
Email sales@rfsolutions.co.uk
R F Solutions is a member of the Low Power Radio Association.
DS8000-1
Dec 02
©2002 REG No 277 4001, England.
Page 4
