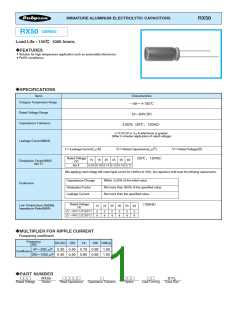

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS
RX50
SERIES
RX50
Load Life : 150℃ 1000 hours.
◆FEATURES
•
•
Solution for high temperature application such as automobile electronics.
RoHS compliance.
◆SPECIFICATIONS
Items
Characteristics
Category Temperature Range
－40～＋150℃
Rated Voltage Range
Capacitance Tolerance
10～63V.DC
±20％（20℃，120Hz）
I＝0.01CV or 3μA whichever is greater.
(After 5 minutes application of rated voltage)
Leakage Current(MAX)
I＝Leakage Current(μA) ꢀꢀꢀꢀC＝Rated Capacitance(μF) ꢀꢀꢀꢀV＝Rated Voltage(V)
Rated Voltage
(V)
（20℃，120Hz）
10 16 25 35 50 63
0.20 0.16 0.14 0.12 0.12 0.11
Dissipation Factor(MAX)
(tanδ)
tanδ
Afte applying rated voltage with rated ripple current for 1000hrs at 150℃, the capacitors shall meet the following requirements.
Capacitance Change
Dissipation Factor
Leakage Current
Within ±30％ of the initial value.
Endurance
Not more than 300％ of the specified value.
Not more than the specified value.
Rated Voltage
(V)
Z（－25℃）/Z（20℃）
Z（－40℃）/Z（20℃）
（120Hz）
Low Temperature Stability
Impedance Ratio(MAX)
10 16 25 35 50 63
2
4
2
4
2
4
2
4
2
4
2
4
◆MULTIPLIER FOR RIPPLE CURRENT
ꢀFrequency coefficient
Frequency
（Hz）
60（50） 120
1k
10k 100k≦
47～220μF 0.30 0.40 0.75 0.92 1.00
330～1000μF 0.40 0.50 0.80 0.95 1.00
Coefficient
◆PART NUMBER
□□□
RX50
□□□□□
□
□□□
□□
D×L
Rated Voltage
Series
Rated Capacitance
Capacitance Tolerance
Option
Lead Forming
Case Size
