Radiometrix
Hartcran House, 231 Kenton Lane, Harrow, HA3 8RP, England
Tel: +44 (0) 20 8909 9595, Fax: +44 (0) 20 8909 2233
Issue 1, 10 May 2006

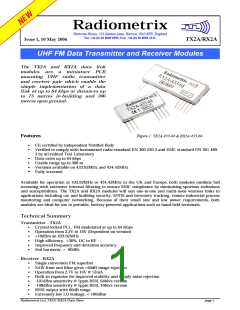

TX2A/RX2A
UHF FM Data Transmitter and Receiver Modules
The TX2A and RX2A data link
modules are
a
miniature PCB
mounting UHF radio transmitter
and receiver pair which enable the
simple implementation of a data
link at up to 64 kbps at distances up
to 75 metres in-building and 300
metres open ground.
Figure 1: TX2A-433-64 & RX2A-433-64
Features
ꢀ
ꢀ
CE certified by independent Notified Body
Verified to comply with harmonised radio standard EN 300 220-3 and EMC standard EN 301 489-
3 by accredited Test Laboratory
ꢀ
ꢀ
ꢀ
ꢀ
Data rates up to 64 kbps
Usable range up to 300 m
Versions available on 433.92MHz and 434.42MHz
Fully screened
Available for operation at 433.92MHz or 434.42MHz in the UK and Europe, both modules combine full
screening with extensive internal filtering to ensure EMC compliance by minimising spurious radiations
and susceptibilities. The TX2A and RX2A modules will suit one-to-one and multi-node wireless links in
applications including car and building security, EPOS and inventory tracking, remote industrial process
monitoring and computer networking. Because of their small size and low power requirements, both
modules are ideal for use in portable, battery-powered applications such as hand-held terminals.
Technical Summary
Transmitter - TX2A
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
Crystal-locked PLL, FM modulated at up to 64 Kbps
Operation from 2.2V to 16V (Dependent on version)
+10dBm on 433.92MHz
High efficiency, >30%, DC to RF
Improved frequency and deviation accuracy
2nd harmonic, > -60dBc
Receiver - RX2A
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
Single conversion FM superhet
SAW front end filter gives >50dB image rejection
Operation from 2.7V to 16V @ 12mA
Built-in regulator for improved stability and supply noise rejection
-101dBm sensitivity @ 1ppm BER, 64kb/s version
-108dBm sensitivity @ 1ppm BER, 10kb/s version
RSSI output with 60dB range
Extremely low LO leakage, <-100dBm
Radiometrix Ltd, TX2A/RX2A Data Sheet
page 1
Functional description
The TX2A transmitter module is a crystal based PLL controlled FM transmitter operating between 2.2V
and 16V and is available in 433.92MHz. The TX2A module is type approved to EN 300 220-3 for European
use and delivers nominally +10dBm at 11mA. The module measures 32 x 12 x 3.8 mm.
The RX2A module is a single conversion FM superhet receiver capable of handling data rates of up to
64kbps. It will operate from a supply of 2.7V to 16V and draws 10mA when receiving. The RX2A features
a fast power-up time for effective duty cycle power saving and a signal strength (RSSI) output with 60dB
of range. Full screening and a SAW front-end filter give good immunity to interference. The SIL style
RX2A measures 48 x 17.5 x 4.5 mm excluding the pins.
TX2A transmitter
supply
5
regulator
2.2 -- 16V
4
En
433.92 MHz
band pass
filter
ref
osc
35kHz
LPF
buffer
32
÷
φ
2
V C O
7
RF out
TXD
Loop
Filter
3
RF gnd
6
1
0V
Fig. 2: TX2A block diagram
3.8 mm
32 mm
Pin description:
RF GND
(pins 1&3)
12.0
mm
12.5
mm
RF ground, internally connected to the module
screen and pin 6 (0V). These pins should be
directly connected to the RF return path - e.g.
coax braid, main PCB ground plane etc.
Radiometrix
TX2A
PCB level
RF OUT
(pin 2)
1 = RF GND
2 = RF OUT
3 = RF GND
4 = En
15.24 mm
50Ω RF output to the antenna. Internally DC-
isolated. See antenna section of apps notes for
details of suitable antennas.
2
3
4
5
6
7
1
5 = Vcc
6 = 0V
7 = TXD
En
(pin 4)
7 holes, 0.7 mm dia, pin spacing 2.54 mm
Tx enable. <0.15V shuts down module (current
<1µA). >1.7V enables the transmitter.
Impedance ~1MΩ. Observe slew rate
requirements (see apps notes).
Fig 3: TX2A physical dimensions
Vcc
(pin 5)
+2.2V to +16V DC supply. Max ripple content 0.1VP-P. Decoupling is not generally required.
0V (pin 6)
DC supply ground. Internally connected to pins 1 & 3 and module screen.
TXD (pin 7)
DC-coupled modulation input. Accepts serial digital data at 0V to 2.5V levels.
See applications notes for suggested drive methods. Input is high impedance (>100kΩ).
Notes: 1. The 3V and 5V supply variant TX2As intended for direct replacement to our SAW based TX2
modules and do not have internal regulator. They also have identical pin out as of TX2, hence lack
pin 3 (GND) and pin 4 (Enable).
2. The TXD input of 3V and 5V versions require serial digital data at 0-Vcc levels. i.e. 0-3V and 0-
5V respectively
Radiometrix Ltd, TX2A/RX2A Data Sheet
page 2
RX2A receiver
3
433MHz
SAW BPF
10.7MHz IF filter
RSSI
MIXER
10.7MHz
ceramic
discriminator
IF2/Lim
10.7MHz
IF1
10.7MHz
LNA 2
LNA 1
1
RF in
Audio LPF
(fRF - 10.7MHz)
AF
buffer
6
AF out
CL
16
VCO
data
slicer
7
RXD
XTAL OSC.
RT
CT
10k
Ω
+2.8V
Low
Loop filter
regulated
to circuit
5
V
Crystal
26/28MHz detector
Phase
dropout
regulator
cc
(Fixed frequency PLL Osc.)
4
0V
2
RF gnd
Figure 4: RX2A Block diagram
48 mm
4.5 mm
Pin description:
RF IN
(pin 1)
50Ω input from the antenna, DC isolated
RX2A
Radiometrix
RF GND
(pin 2)
RF ground pin, internally connected to
the module screen and pin 4 (0V). This
pin should be connected to the RF return
path (coax braid, main PCB ground plane
etc.)
PCB level
30.48 mm
1 = RF IN
2 = RF GND
3 = RSSI
4 = 0V
1
2
3
4
5
6
7
5 = Vcc
6 = AF out
7 = RXD
7 holes of 0.7 mm dia. pin spacing 2.54mm
Figure 5: Physical dimensions
Received signal strength indicator with 60dB range. See page 4 for typical characteristics.
RSSI
(pin 3)
0V
(pin 4)
DC supply ground. Internally connected to pin 2 and module screen.
Vcc
(pin 5)
+2.7V to +16.0V DC supply. Max ripple content 0.1Vp-p. Decoupling is not generally required.
AF out(pin 6)
Buffered and filtered analogue output from the FM demodulator. Standing DC bias 1.1V approx. External
load should be >10k // <100pF.
RXD
(pin 7)
Digital output from the internal data slicer. The data is a squared version of the signal on pin 6 (AF) and
is true data, i.e. as fed to the transmitter. Output is “open-collector” format with internal 10k pull-up to
Vcc (pin 5).
Radiometrix Ltd, TX2A/RX2A Data Sheet
page 3
Absolute maximum ratings
Survival Maximums:
Exceeding the values given below may cause permanent damage to the module.
Operating temperature-
Storage temperature
-20°C to +70°C
-40°C to +100°C
TX2A, all variants
Vcc (pin 3)
Data input (pin 5)
-0.3V to +16.0V
+/- 7V
RF out (pin 2)
±50V DC 10dBm RF
RX2A all variants
Vcc (pin 5)
-0.V to +16V
RSSI, AF, RXD (pins 3,6,7)
-0.1V to + 3V
RF IN (pin 1)
±8V DC, +10dBm RF
Performance Specifications: TX2A transmitter.
(Temperature = 20C unless stated)
pin min.
typ.
max. units
notes
DC LEVELS
supply voltage
supply voltage
supply voltage
3
3
3
2.2
4.0
3
3.0
5.0
-
4.0
6.0
16
V
V
V
-3V version
-5V version
STD
CURRENT & RF POWER
TX2A-433-64-3V
supply current @ Vcc = 3V
3
2
9
+8
11
+10
13
+12
mA
dBm
RF power
@ Vcc = 3V
1
1
1
TX2A-433-64-5V
supply current @ Vcc = 5V
3
2
9
+8
11
+10
13
+12
mA
dBm
RF power
@ Vcc = 5V
TX2A-433-64-STD
supply current @ Vcc = 5V
3
2
9
+8
11
+10
13
+12
mA
dBm
RF power
@ Vcc = 5V
RF
2nd harmonic
harmonics @ > 1GHz
initial frequency accuracy
overall frequency accuracy
2
2
-
-
-
-70
-60
+/-10
+/-10
-54
-40
+20
+25
dBc
dBc
kHz
kHz
1
1
-20
-25
-
FM deviation (+/-)
Modulation bandwidth @ -3dB
-
-
20
DC
27
-
35
35
kHz
kHz
modulation distortion (THD)
power up time to full RF
-
-
-
-
5
1
10
1.5
%
ms
Note:
1. Measured into a 50Ω load.
Radiometrix Ltd, TX2A/RX2A Data Sheet
page 4
Performance specifications: RX2A
(Vcc = 5.0V / temperature = 20oC unless stated)
pin min.
typ.
max units
notes
DC supply
Supply voltage
Supply current
5
5
2.7
11
5.0
11.6
16.0
13
V
mA
1
RF/ IF
RF sensitivity for 10dB (S+N/N)
RF sensitivity for 10dB (S+N/N)
RF sensitivity for 1ppm BER
RF sensitivity for 1ppm BER
RSSI range
IF bandwidth
Image rejection
½-IF spurious rejection
1,6
1,6
1,7
1,7
1,3
-
-
-
-
-
-
-
50
-
-115
-108
-108
-101
60
180
53
94
-
-
-
-
-
-
-
-
dBm
dBm
dBm
dBm
dB
kHz
dB
dB
10kb/s version
64kb/s version
10kb/s version
64kb/s version
1
1
LO leakage, conducted
1
-
-120
-100
dBm
Baseband
Baseband bandwidth @ -3dB
Baseband bandwidth @ -3dB
AF level
DC offset on AF out
Distortion on recovered AF
Ultimate (S+N)/N
6
6
6
6
6
0
0
-
-
-
7.8
50
-
1.75
5
kHz
kHz
mVP-P
V
%
dB
10kb/s version
64kb/s version
500
1.1
1
40
-
2
3
3
0.45
-
-
-
6
6,7
-
Load capacitance, AFout/RXD
100
pF
DYNAMIC TIMING
Power up with signal present
Power up to valid RSSI
Power up to stable data
Power up to stable data
3,5
5,7
5,7
-
-
-
1
10
5
-
30
10
ms
ms
ms
3, 10kb/s version
3, 64kb/s version
Signal applied with supply on
RSSI response time (rise/fall)
Signal to stable data
µs
ms
ms
1,3
1,7
1,7
-
-
-
100
5
5
-
30
10
3, 10kb/s version
3, 64kb/s version
Signal to stable data
Time between data transitions
Time between data transitions
Mark:space ratio
7
7
7
0.1
15.6
20
-
-
50
15
1500
80
ms
µs
%
4, 10kb/s version
4, 64kb/s version
5
Notes: 1. Current increases at higher RF input levels (>-20dBm and above)
2. For received signal with ±40kHz FM deviation.
3. Typical figures are for signal at centre frequency, max. figures are for ±50kHz offset.
4. For 50:50 mark to space ratio (i.e. square wave).
5. Average over 30ms (10kb/s version) or 3ms (64kb/s version) at maximum data rate.
Radiometrix Ltd, TX2A/RX2A Data Sheet
page 5
Power supply requirement
The standard TX2A and the RX2A modules incorporate a built-in regulator which delivers a constant 2.8V
to the module circuitry when the external supply voltage is 2.85V or greater, with 40dB or more of supply
ripple rejection. This ensures constant performance up to the maximum permitted supply rail and
removes the need for external supply decoupling except in cases where the supply rail is extremely poor
(ripple/noise content >0.1Vp-p).
Note, however, that for supply voltages lower than 2.85V the regulator is effectively inoperative and
supply ripple rejection is considerably reduced. Under these conditions the ripple/noise on the supply rail
should be below 10mVp-p to avoid problems. If the quality of the supply is in doubt, it is recommended
that a 10µF low-ESR tantalum or similar capacitor be added between the module supply pin (Vcc) and
ground, together with a 10Ω series feed resistor between the Vcc pin and the supply rail.
The Enable pin allows the module to be turned on or off under logic control with a constant DC supply to
the Vcc pin. The module current in power-down mode is less than 1µA.
NOTE: If this facility is used, the logic control signal must have a slew rate of 40mV/ms or more. Slew
rates less than this value may cause erratic operation of the on-board regulator and therefore the module
itself.
The TX2A incorporates a low voltage shutoff circuit, which prevents any possibility of erratic operation by
disabling the RF output if the supply voltage drops below 2.2V (±5%). This feature is self-resetting, i.e.
restoring the supply to greater than 2.2V will immediately restore full RF output from the module.
TX2A modulation requirements
The module will produce the specified FM deviation with a TXD input to pin 7 of 2.5V amplitude, i.e. 0V
"low", 2.5V "high". Reducing the amplitude of the data input from this value (usually as a result of
reducing the supply voltage) reduces the transmitted FM deviation to typically ±25kHz at the lower
extreme of 2.2V. The receiver will cope with this quite happily and no significant degradation of link
performance should be observed as a result.
Where standard 2-level digital data is employed with a logic "low" level of 0V ±0.2V, the logic "high" level
applied to TXD may be any value between +2.5V and +3V for correct operation. However, if using multi-
level or analogue signalling the maximum positive excursion of the modulation applied to TXD must not
exceed +2.5V or waveform distortion will result. If the input waveform exceeds this level a resistive
potential divider should be used at the TXD input to reduce the waveform amplitude accordingly. This
input is high impedance (>100kΩ) and can usually be ignored when calculating required resistor values.
Received Signal Strength Indicator (RSSI)
The module incorporates a wide range RSSI which measures the strength of an incoming signal over a
range of approximately 60dB. This allows assessment of link quality and available margin and is useful
when performing range tests.
Please note that the actual RSSI voltage at any given RF input level varies somewhat between units. The
RSSI facility is intended as a relative indicator only - it is not designed to be, or suitable as, an accurate
and repeatable measure of absolute signal level or transmitter-receiver distance.
The output on pin 3 of the module has a standing DC bias of 0.15V-0.45V (0.25V typ.) with no signal,
rising to 0.9-1.3V (1.15V typ.) at maximum indication. The RSSI output source impedance is high (~50kΩ)
and external loading should therefore be kept to a minimum.
To ensure a fast response the RSSI has limited internal decoupling of 1nF to ground. This may result in a
small amount of ripple on the DC output at pin 3 of the module. If this is a problem further decoupling
may be added at the expense of response speed, in the form of a capacitor from pin 3 to ground. For
example, adding 10nF here will increase RSSI response time from 100µs to around 1ms. The value of this
capacitor may be increased without limit.
Radiometrix Ltd, TX2A/RX2A Data Sheet
page 6
Typical RSSI characteristic is shown below (this is for indicative purposes only and is not a guarantee of
actual RSSI characteristics):
1.2
1.1
1
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
-130 -120 -110 -100 -90 -80 -70 -60 -50
RF level (dBm)
Figure 6: Typical RSSI response
Module mounting considerations
The module may be mounted vertically or bent horizontal to the motherboard. Good RF layout practice
should be observed – in particular, any ground return required by the antenna or feed should be connected
directly to the RF GND pin at the antenna end of the module, and not to the OV pin which is intended as
a DC ground only. All connecting tracks should be kept as short as possible to avoid any problems with
stray RF pickup.
If the connection between module and antenna does not form part of the antenna itself, it should be made
using 50Ω microstrip line or coax or a combination of both. It is desirable (but not essential) to fill all
unused PCB area around the module with ground plane.
The module may be potted if required in a viscous compound which cannot enter the screen can
.
Warning: DO NOT wash the module. It is not hermetically sealed.
optional solder joint
for extra mechanical
strength
recommended horizotal mounting method
vertical mounting method
Figure 7: Module mounting options
Radiometrix Ltd, TX2A/RX2A Data Sheet
page 7
Antenna requirements
Three types of integral antenna are recommended and approved for use with the module:
0.5 mm enameled copper wire
close wound on 3.2 mm diameter former
RF
433 MHz = 24 turns
A. Helical antenna
Feed point 15% to 25% of total loop length
track width = 1mm
RF-GND
4 to 10 cm2 inside area
C2
C1
RF
C3
C4
B. Loop antenna
16.4cm
wire, rod, PCB-track or a combination
of these three
RF
433 MHz = 16.4 cm total from RF pin.
C. Whip antenna
Fig.8: Antenna
A
helical
**
**
***
**
B
loop
C
whip
***
***
*
Ultimate performance
Easy of design set-up
Size
Immunity proximity effects
Range open ground to similar antenna
(for TX2A-433-14-5V & RX2-433-14-5V)
*
*
**
***
100m
*
200m
300m
Antenna selection chart
A) Helical
Wire coil, connected directly to pin 2, open circuit at other end. This antenna
is
very
efficient given it's small size (20mm x 4mm dia.). The helical is a high Q antenna, trim the
wire length or expand the coil for optimum results. The helical de-tunes badly with
proximity to other conductive objects.
B) Loop
C) Whip
A loop of PCB track tuned by a fixed or variable capacitor to ground at the 'hot' end and fed
from pin 2 at a point 20% from the ground end. Loops have high immunity to proximity de-
tuning.
This is a wire, rod, PCB track or combination connected directly to pin 2 of the module.
Optimum total length is 15.5cm (1/4 wave @ 433MHz). Keep the open circuit (hot) end well
away from metal components to prevent serious de-tuning. Whips are ground plane
sensitive and will benefit from internal 1/4 wave earthed radial(s) if the product is small
and plastic cased
The antenna choice and position directly controls the system range. Keep it clear of other metal in the
system, particularly the 'hot' end. The best position by far, is sticking out the top of the product. This is
often not desirable for practical/ergonomic reasons thus a compromise may need to be reached. If an
internal antenna must be used try to keep it away from other metal components, particularly large ones
like transformers, batteries and PCB tracks/earth plane. The space around the antenna is as important as
the antenna itself
Radiometrix Ltd, TX2A/RX2A Data Sheet
page 8
Duty Cycle requirements
The duty cycle is defined as the ratio, expressed as a percentage, of the maximum transmitter “on” time on
one or more carrier frequencies, relative to a one hour period. Where an acknowledgement message is
required, the additional transmitter “on” time shall be included.
There is a 10% duty cycle restriction on 433.050-434.790 MHz band in most of the EU member states.
The TX2A-433 is a RF module intended to be incorporated into a wide variety of applications and finished
products, Radiometrix has no control over the end use of the TX2A-433.The harmonised band 433.050 to
434.790 MHz as detailed in Annex 1 Band E of CEPT/ERC Recommendation 70-03 (which can be
downloaded at http://www.ero.dk/scripts/docmanag98/dm.dll/QueryDoc?Cat=Recommendation)
has list of countries where Duty Cycle restriction apply.
Module users should, therefore, ensure that they comply with the stated Duty Cycle requirements of the
version of CEPT/ERC Recommendation 70-03 in place at the time of incorporation of the TX2A-433 into
their product. It should be noted that the stated Duty Cycle must not be exceeded otherwise any approval
granted for the TX2A-433 will be invalidated.
Radiometrix Ltd, TX2A/RX2A Data Sheet
page 9
Variants and ordering information
The TX2A is manufactured in several variants depending on their supply voltage and operating
frequency:
Supply voltage: 3V version: TX2A-433-64-3V
5V version: TX2A-433-64-5V
Direct replacement for the TX2-433-40-3V
Direct replacement for the TX2-433-40-5V
Different frequency replacement for TX3A
Standard: TX2A-433-64
The standard frequency is 433.92MHz, for other frequency variants, please contact sales
department.
The RX2A receiver is manufactured in several variants:
Data rate:
Slower version:
(suffix -10)
Faster version:
(suffix -64)
7.8kHz baseband B/W,
50kHz baseband B/W,
data rate up to 10kb/s
data rate up to 64kb/s
Frequency:
433.92MHz (suffix -433)
434.42MHz (suffix -434)
The following variants are standard:
RX2A-433-10
RX2A-433-64
433.92MHz, 10kbps
433.92MHz, 64kbps
For other variants please contact Sales department.
Radiometrix Ltd, TX2A/RX2A Data Sheet
page 10
Radiometrix Ltd
Hartcran House
231 Kenton Lane
Harrow, Middlesex
HA3 8RP
ENGLAND
Tel: +44 (0) 20 8909 9595
Fax: +44 (0) 20 8909 2233
sales@radiometrix.com
www.radiometrix.com
Copyright notice
This product data sheet is the original work and copyrighted property of Radiometrix Ltd. Reproduction in whole or
in part must give clear acknowledgement to the copyright owner.
Limitation of liability
The information furnished by Radiometrix Ltd is believed to be accurate and reliable. Radiometrix Ltd reserves the
right to make changes or improvements in the design, specification or manufacture of its subassembly products
without notice. Radiometrix Ltd does not assume any liability arising from the application or use of any product or
circuit described herein, nor for any infringements of patents or other rights of third parties which may result from
the use of its products. This data sheet neither states nor implies warranty of any kind, including fitness for any
particular application. These radio devices may be subject to radio interference and may not function as intended if
interference is present. We do NOT recommend their use for life critical applications.
The Intrastat commodity code for all our modules is: 8542 6000
R&TTE Directive
After 7 April 2001 the manufacturer can only place finished product on the market under the provisions of the
R&TTE Directive. Equipment within the scope of the R&TTE Directive may demonstrate compliance to the
essential requirements specified in Article 3 of the Directive, as appropriate to the particular equipment.
Further details are available on The Office of Communications (Ofcom) web site:
http://www.ofcom.org.uk/radiocomms/ifi/
Information Requests
Ofcom
European Radiocommunications Office (ERO)
Peblingehus
Riverside House
Nansensgade 19
2a Southwark Bridge Road
London SE1 9HA
Tel: +44 (0)845 456 3000 or 020 7981 3040
Fax: +44 (0)20 7783 4033
information.requests@ofcom.org.uk
DK 1366 Copenhagen
Tel. +45 33896300
Fax +45 33896330
ero@ero.dk
www.ero.dk
厂商 型号 描述 页数 下载

TE

 		RX2 电源PCB继电器[ Power PCB Relay ] 3 页

RADIOMETRIX

 		RX2-433 UHF FM数据发送器和接收器模块[ UHF FM Data Transmitter and Receiver Modules ] 15 页

RADIOMETRIX

 		RX2-433-14-3V UHF FM数据发送器和接收器模块[ UHF FM Data Transmitter and Receiver Modules ] 15 页

RADIOMETRIX

 		RX2-433-14-5V 超高频无线电遥测发射模块[ UHF Radio Telemetry Transmit Module ] 11 页

RADIOMETRIX

 		RX2-433-160-3V UHF FM数据发送器和接收器模块[ UHF FM Data Transmitter and Receiver Modules ] 15 页

RADIOMETRIX

 		RX2-433-160-5V UHF FM数据发送器和接收器模块[ UHF FM Data Transmitter and Receiver Modules ] 15 页

RADIOMETRIX

 		RX2-433-40-3V UHF FM数据发送器和接收器模块[ UHF FM Data Transmitter and Receiver Modules ] 15 页

RADIOMETRIX

 		RX2-433-40-5V 超高频无线电遥测发射模块[ UHF Radio Telemetry Transmit Module ] 11 页

RADIOMETRIX

 		RX2-433-40-B UHF FM数据发送器和接收器模块[ UHF FM Data Transmitter and Receiver Modules ] 15 页

RADIOMETRIX

 		RX2-433-40-TR UHF FM数据发送器和接收器模块[ UHF FM Data Transmitter and Receiver Modules ] 15 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.175265s
