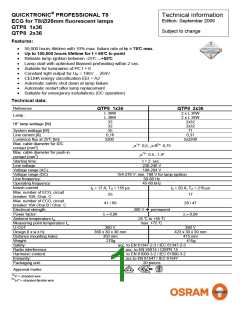

QUICKTRONIC PROFESSIONAL T8
ECG for T8/ 26mm fluorescent lamps
QTP8 1x36
Technical information
Edition: September 2006
Subject to change
QTP8 2x36
Features:
•
•
•
•
•
•
•
•
•
•
50,000 hours lifetime with 10% max. failure rate at tc = 75°C max.
Up to 100,000 hours lifetime for t = 65°C tc-point
Reliable lamp ignition between -25°C ...+55°C
Lamp start with optimised filament preheating within 2 sec.
Suitable for luminaires of PC I + II
Constant light output for UN = 198V ... 264V
CELMA energy classification EEI = A2
Automatic safety shut down at lamp failure
Automatic restart after lamp replacement
Suitable for emergency installations (DC operation)
Technical data:
Reference
Lamp :
QTP8 1x36
QTP8 2x36
2 x L 36W
2 x L 38W
2x32
L 36W
L 38W
32
HF lamp wattage [W]
32
2x32
System wattage [W]
Line current [A]
Luminous flux at 25°C [lm]
Max. cable diameter für IDC
contact [mm2]
35
0,16
3200
71
0,31
2x3200
„s1)“: 0,5; „s-ff2)“: 0,75
Max. cable diameter for push-in
„s1)“: 0.5...1.0*
contact [mm2]
Starting time:
Line voltage:
Voltage range (AC):
Voltage range (DC)
Line frequency:
t < 2 sec..
230-240 V
198-264 V
154-276 V; min. 198 V for lamp ignition
50-60 Hz
Operating frequency:
Inrush current
45-60 kHz
Ip = 17 A; TH = 155 µs
Ip = 20 A; TH = 210 µs
Max. number of ECG, circuit
breaker 10A, Char. C
Max. number of ECG, circuit
breaker 16A Char.B / Char. C
Electrical strength:
Power factor:
25
17
41 / 69
28 / 47
300 V ꢀ permanent
λ = 0,96
λ = 0,98
Ambient temperature ta:
Measuring point temperature tc:
U-OUT
Design (l x w x h):
Distance mounting holes:
Weight:
-25 °C to +55 °C
max. +75 °C
380 V
360 x 30 x 30 mm
350 mm
380 V
423 x 30 x 30 mm
415 mm
270g
415g
Safety:
acc. to EN 61347-2-3 / IEC 61347-2-3
acc. to EN 55015 / CISPR 15
acc. to EN 61000-3-2 / IEC 61000-3-2
acc.to EN 61547 / IEC 61547
20 pieces
Radio interference:
Harmonic content:
Immunity:
Packaging unit:
Approval marks:
1)
“s” = stranded wire
2)
“s-f” = stranded-flexible wire
