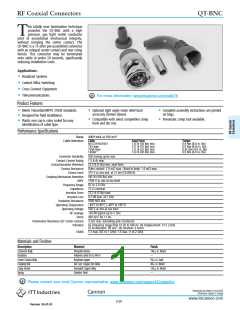

RF Coaxial Connectors
QT-BNC
his totally new termination technique
provides the QT-BNC with a high
T
pressure, gas tight center conductor
joint of exceptional mechanical integrity,
without crimping the center contact. The
QT-BNC is a 75 ohm pre-assembled connector
with an integral center contact and rear crimp
ferrule. This connector may be terminated
onto cable in under 20 seconds, significantly
reducing installation costs.
Applications:
Broadcast Systems
•
Central Office Switching
•
Cross-Connect Equipment
•
•
Telecommunications
For more information: www.ittcannon.com/cat078
Product Features
Meets Telcordia/SMPTE 292M standards.
Designed for field installation.
Plastic rear cap is color coded for easy
identification of cable type.
Optional right angle strain relief boot
accessory (shown above).
Compatible with select competitive crimp
tools and die sets.
Complete assembly instructions are printed
on bags.
Pneumatic crimp tool available.
•
•
•
•
•
•
•
Performance Specifications
Bump 4000 total at 390 m/s2
Cable Retention Cable
Axial Force
Torque
M17/29-RG59/U
734 type
133 N (30 lbs) min.
311 N (70 lbs) min.
111 N (25 lbs) min.
133 N (30 lbs) min.
0,9 Nm (8.0 in. lbs)
0,9 Nm (8.0) in. lbs)
0,45 Nm (4.0 in. lbs)
0,9 Nm (8.0 in. lbs)
735A type
1694A
Connector Durability 500 mating cycles min.
Contact Current Rating
1.5 A dc max.
Contact/Insulator Retention 22,3 N (5 lbs) min. axial force
Contact Resistance Outer contact: 1.0 mΩ max.; Braid to body: 1.0 mΩ max.
Corona Level 375 V ac rms min. at 21 km (70,000 ft)
Coupling Mechanism Retention
445 N (100 lbs) min.
DWV 1500 V ac rms at sea level
Frequency Range
DC to 2.0 GHz
Impedance 75 Ω nominal
Insertion Force 22,3 N (5 lbs) max.
Insertion Loss 0.2 dB max. at 2 GHz
Insulation Resistance
5000 MΩ min.
Operating Temperature –40°C to 85°C (–40°F to 185°F)
Operating Voltage
RF Leakage –60 dB typical up to 2 GHz
Shock
490 m/s2 for 11 ms
Termination Resistance (QT Center contact) 3 mΩ max. (excluding pole resistance)
500 V ac rms at sea level
Vibration (a) Frequency range from 10 Hz to 500 Hz. (b) Displacement: 0.75 (.029).
(c) Acceleration: 98 m/s2. (d) Duration: 6 hours.
VSWR
1.2 max. (DC to 1 GHz); 1.3 max. (1 to 2 GHz)
Materials and Finishes
Description
Connector Body
Insulators
Center Contact Male
Coupling Nut
Crimp Ferrule
Spring
Material
Phosphor bronze
Finish
140 µ in. Nickel
—
50 µ in. Gold
80 µ in. Nickel
150 µ in. Nickel
—
Polymers rated to UL 94V-0
Beryllium copper
Die Cast, Copper Zinc Alloy
Annealed Copper Alloy
Stainless Steel
Please contact your local Cannon representative: www.ittcannon.com/support/ContactUs
Dimensions are shown in mm (inch)
Dimensions subject to change
