NXPXR70XSS

型号:

NXPXR70XSS

描述:

规格FOR日亚白光LED[ SPECIFICATIONS FOR NICHIA WHITE LED ]

品牌:

NICHIA[ NICHIA CORPORATION ]

页数:

13 页

PDF大小:

426 K

No. STSE-CW5115B
<Cat.No.070202>

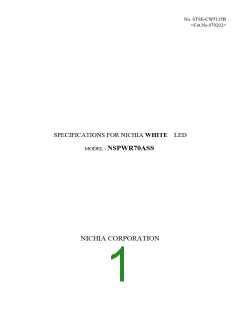

SPECIFICATIONS FOR NICHIA WHITE LED
MODEL : NSPWR70ASS
NICHIA CORPORATION
Nichia STSE-CW5115B
<Cat.No.070202>
1.SPECIFICATIONS
(1) Absolute Maximum Ratings
Item
(Ta=25°C)
Unit
mA
Symbol
IF
Absolute Maximum Rating
Forward Current
35
100
Pulse Forward Current
Reverse Voltage
IFP
mA
VR
5
V
Power Dissipation
Operating Temperature
Storage Temperature
Soldering Temperature
PD
147
mW
°C
Topr
Tstg
Tsld
-30 ~ + 85
-40 ~ +100
°C
265°C for 5sec.
<
<
IFP Conditions
:
Pulse Width 10msec. and Duty 1/10
=
=
(2) Initial Electrical/Optical Characteristics
Item Symbol Condition
Forward Voltage
(Ta=25°C)
Typ.
(3.8)
-
Max.
Unit
V
VF
IR
φV
-
IF=30[mA]
VR= 5[V]
4.2
50
-
Reverse Current
Luminous Flux
µA
lm
-
IF=30[mA]
IF=30[mA]
IF=30[mA]
(4.0)
0.31
0.32
½
x
y
-
Chromaticity Coordinate
-
-
-
½ Please refer to CIE 1931 chromaticity diagram.
(3) Ranking
(Ta=25°C)
Item
Symbol Condition
Min.
4.8
Max.
6.8
Unit
lm
Rank Rc
Rank Rb
Rank Ra
φV
φV
φV
IF=30[mA]
IF=30[mA]
IF=30[mA]
Luminous Flux
3.4
4.8
lm
2.4
3.4
lm
½ Luminous Flux Measurement allowance is ± 10%.
Color Ranks
Rank a0
(IF=30mA,Ta=25°C)
Rank b3
x
y
0.280
0.248
0.264
0.267
0.283
0.305
0.296
0.276
x
y
0.287
0.295
0.283
0.305
0.304
0.330
0.307
0.315
Rank b4
Rank b5
x
y
0.307
0.315
0.304
0.330
0.330
0.360
0.330
0.339
x
y
0.296
0.276
0.287
0.295
0.307
0.315
0.311
0.294
Rank b6
Rank c0
x
y
0.311
0.294
0.307
0.315
0.330
0.339
0.330
0.318
x
y
0.330
0.318
0.330
0.360
0.361
0.385
0.356
0.351
½ Color Coordinates Measurement allowance is ± 0.01.
-1-
Nichia STSE-CW5115B
<Cat.No.070202>
2.INITIAL OPTICAL/ELECTRICAL CHARACTERISTICS
Please refer to figure’s page.
3.OUTLINE DIMENSIONS AND MATERIALS
Please refer to figure’s page.
Material as follows ;
Resin(Mold) :
Leadframe
Epoxy Resin (over Silicone Resin + Phosphor)
Ag plating Copper Alloy
:
4.PACKAGING
· The LEDs are packed in cardboard boxes after packaging in stick.
Please refer to figure’s page.
The label on the packing unit shows ; Part Number, Lot Number, Ranking, Quantity
· In order to protect the LEDs from mechanical shock, we pack them in cardboard boxes for transportation.
· The LEDs may be damaged if the boxes are dropped or receive a strong impact against them,
so precautions must be taken to prevent any damage.
· The boxes are not water resistant and therefore must be kept away from water and moisture.
· When the LEDs are transported, we recommend that you use the same packing method as Nichia.
5.LOT NUMBER
The first six digits number shows lot number.
The lot number is composed of the following characters;
ꢀꢁꢂꢂꢂ- Uꢃ
- Year
( 6 for 2006, 7 for 2007 )
- Month ( 1 for Jan., 9 for Sep., A for Oct., B for Nov. )
ꢂꢂꢂꢂ - Nichia's Product Number
U - Ranking by Color Coordinates
- Ranking by Luminous Flux
-2-
Nichia STSE-CW5115B
<Cat.No.070202>
6.RELIABILITY
(1) TEST ITEMS AND RESULTS
Standard
Number of
Test Item
Resistance to
Test Method
JEITA ED-4701
300 302
Test Conditions
Tsld=260 ± 5°C, 5sec.
1.6mm from the base of the stopper
(Pre treatment 30°C,70%,168hrs.)
Tsld=235 ± 5°C, 5sec.
(using flux)
Note
Damaged
0/50
1 time
Soldering Heat
Solderability
JEITA ED-4701
300 303
1 time
0/50
0/50
0/50
0/50
0/50
0/50
0/50
0/50
0/50
0/50
0/50
0/50
0/50
over 95%
100 cycles
Thermal Shock
JEITA ED-4701
300 307
0°C ~ 100°C
15sec. 15sec.
Temperature Cycle
Moisture Resistance Cyclic
JEITA ED-4701
100 105
-40°C ~ 25°C ~ 100°C ~ 25°C
30min. 5min. 30min. 5min.
25°C ~ 65°C ~ -10°C
90%RH 24hrs./1cycle
Load 5N (0.5kgf)
100 cycles
10 cycles
JEITA ED-4701
200 203
Terminal Strength
(bending test)
JEITA ED-4701
400 401
No noticeable
damage
0° ~ 90° ~ 0° bend 2 times
Load 10N (1kgf)
Terminal Strength
(pull test)
JEITA ED-4701
400 401
No noticeable
damage
10 ± 1 sec.
High Temperature Storage
JEITA ED-4701
200 201
Ta=100°C
1000hrs.
Temperature Humidity
Storage
JEITA ED-4701
100 103
Ta=60°C, RH=90%
Ta=-40°C
1000hrs.
1000hrs.
1000hrs.
1000hrs.
500hrs.
Low Temperature Storage
JEITA ED-4701
200 202
Steady State Operating Life
Condition 1
Ta=25°C, IF=35mA
Ta=35°C, IF=30mA
60°C, RH=90%, IF=20mA
Ta=-30°C, IF=30mA
Steady State Operating Life
Condition 2
Steady State Operating Life
of High Humidity Heat
Steady State Operating Life
of Low Temperature
1000hrs.
(2) CRITERIA FOR JUDGING DAMAGE
Criteria for Judgement
Item
Forward Voltage
Reverse Current
Luminous Flux
Symbol Test Conditions
Min.
Max.
VF
IR
IF=30mA
VR=5V
-
U.S.L.*)1.1
U.S.L.*)2.0
-
-
φV
IF=30mA
L.S.L.**)0.7
*) U.S.L. : Upper Standard Level
**) L.S.L. : Lower Standard Level
-3-
Nichia STSE-CW5115B
<Cat.No.070202>
7.CAUTIONS
The LEDs are devices which are materialized by combining Blue LEDs and special phosphors.
Consequently, the color of the LEDs is changed a little by an operating current.
Care should be taken after due consideration when using LEDs.
(1) Storage
· Storage Conditions
Before opening the package :
The LEDs should be kept at 30°C or less and 90%RH or less. The LEDs should be used within a
year.
When storing the LEDs, moisture proof packaging with absorbent material (silica gel)
is recommended.
After opening the package :
The LEDs should be kept at 30°C or less and 70%RH or less.
The LEDs should be soldered
within 168 hours (7days) after opening the package.
If unused LEDs remain, they should be
stored in moisture proof packages, such as sealed containers with packages of moisture absorbent
material (silica gel). It is also recommended to return the LEDs to the original moisture proof bag
and to reseal the moisture proof bag again.
· If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the storage
time, baking treatment should be performed using the following conditions.
Baking treatment : more than 24 hours at 85°C
· Nichia LED leadframes are silver plated copper alloy. The silver surface may be affected by
environments which contain corrosive substances. Please avoid conditions which may cause the LED
to corrode, tarnish or discolor. This corrosion or discoloration may cause difficulty during soldering
operations. It is recommended that the LEDs be used as soon as possible.
· Please avoid rapid transitions in ambient temperature, especially, in high humidity environments where
condensation can occur.
(2) Static Electricity
· Static electricity or surge voltage damages the LEDs.
It is recommended that a wrist band or an anti-electrostatic glove be used when handling the LEDs.
· All devices, equipment and machinery must be properly grounded. It is recommended that precautions
be taken against surge voltage to the equipment that mounts the LEDs.
· When inspecting the final products in which LEDs were assembled, it is recommended to check
whether the assembled LEDs are damaged by static electricity or not.
It is easy to find
static-damaged LEDs by a light-on test or a VF test at a lower current (below 1mA is recommended).
· Damaged LEDs will show some unusual characteristics such as the leak current remarkably
increases, the forward voltage becomes lower, or the LEDs do not light at the low current.
Criteria : (VF > 2.0V at IF=0.5mA)
-4-
Nichia STSE-CW5115B
<Cat.No.070202>
(3) Soldering Conditions
· Nichia LEDs uses a copper alloy lead frame which provides a high thermal conductivity.
stress such as soldering heat may reduce the reliability of the product; particular caution should be
Thermal
used to avoid damage prior to and during soldering.
listed in the following table.
The recommended soldering conditions are
· Solder the LED no closer than 1.6mm from the base of the stopper.
· The mechanical stress by clinching will cause degradation of the reliability on the LEDs. It is
important to minimize the mechanical stress on the LEDs.
that it will not cause any problem when using it.
· Recommended soldering conditions
Dip Soldering
It should be confirmed beforehand
Hand Soldering
Pre-Heat
120°C Max.
Temperature
350°C Max.
Pre-Heat Time
Solder Bath
Temperature
Dipping Time
60 seconds Max.
260°C Max.
Soldering Time
Position
3 seconds Max.
No closer than 1.6 mm from the
base of the stopper.
5 seconds Max.
Dipping Position No lower than 1.6 mm from the
base of the stopper.
· Although the recommended soldering conditions are specified in the above table, dip or hand
soldering at the lowest possible temperature is desirable for the LEDs.
· A rapid-rate process is not recommended for cooling the LEDs down from the peak temperature.
· Dip soldering should not be done more than one time.
· Hand soldering should not be done more than one time.
· Do not apply any stress to the lead particularly when heated.
· The LEDs must not be repositioned after soldering.
· After soldering the LEDs, the epoxy bulb should be protected from mechanical shock or vibration until
the LEDs return to room temperature.
· Direct soldering onto a PC board should be avoided.
from warping of the PC board or from the clinching and cutting of the leadframes.
absolutely necessary, the LEDs may be mounted in this fashion but the User will assume responsibility
for any problems. Direct soldering should only be done after testing has confirmed that no damage,
such as wire bond failure or resin deterioration, will occur. Nichia’s LEDs should not be soldered
Mechanical stress to the resin may be caused
When it is
directly to double sided PC boards because the heat will deteriorate the epoxy resin.
· When it is necessary to clamp the LEDs to prevent soldering failure, it is important to minimize
the mechanical stress on the LEDs.
· Cut the LED leadframes at room temperature.
cause failure of the LEDs.
Cutting the leadframes at high temperatures may
(4) Heat Generation
· Thermal design of the end product is of paramount importance.
Please consider the heat generation
of the LED when making the system design. The coefficient of temperature increase per input
electric power is affected by the thermal resistance of the circuit board and density of LED
placement on the board, as well as other components. It is necessary to avoid intense heat generation
and operate within the maximum ratings given in this specification.
· The operating current should be decided after considering the ambient maximum temperature of LEDs.
-5-
Nichia STSE-CW5115B
<Cat.No.070202>
(5) Cleaning
· It is recommended that isopropyl alcohol be used as a solvent for cleaning the LEDs. When using
other solvents, it should be confirmed beforehand whether the solvents will dissolve the resin or not.
Freon solvents should not be used to clean the LEDs because of worldwide regulations.
· Do not clean the LEDs by the ultrasonic. When it is absolutely necessary, the influence of ultrasonic
cleaning on the LEDs depends on factors such as ultrasonic power and the assembled condition.
Before cleaning, a pre-test should be done to confirm whether any damage to the LEDs will occur.
(6) Safety Guideline for Human Eyes
· In 1993, the International Electric Committee (IEC) issued a standard concerning laser product safety
(IEC 825-1). Since then, this standard has been applied for diffused light sources (LEDs) as well
as lasers.
In 1998 IEC 60825-1 Edition 1.1 evaluated the magnitude of the light source.
In 2001 IEC 60825-1 Amendment 2 converted the laser class into 7 classes for end products.
Components are excluded from this system. Products which contain visible LEDs are now classified
as class 1. Products containing UV LEDs are class 1M. Products containing LEDs can be classified
as class 2 in cases where viewing angles are narrow, optical manipulation intensifies the light, and/or the
energy emitted is high. For these systems it is recommended to avoid long term exposure.
It is also recommended to follow the IEC regulations regarding safety and labeling of products.
(7) Others
· NSPWR70AS complies with RoHS Directive.
· Care must be taken to ensure that the reverse voltage will not exceed the absolute maximum rating
when using the LEDs with matrix drive.
· Flashing lights have been known to cause discomfort in people; you can prevent this by taking
precautions during use.
incorporated into it.
Also, people should be cautious when using equipment that has had LEDs
· The LEDs described in this brochure are intended to be used for ordinary electronic equipment (such
as office equipment, communications equipment, measurement instruments and household appliances).
Consult Nichia’s sales staff in advance for information on the applications in which exceptional quality
and reliability are required, particularly when the failure or malfunction of the LEDs may directly
jeopardize life or health (such as for airplanes, aerospace, submersible repeaters, nuclear reactor
control systems, automobiles, traffic control equipment, life support systems and safety devices).
· User shall not reverse engineer by disassembling or analysis of the LEDs without having prior written
consent from Nichia.
When defective LEDs are found, the User shall inform Nichia directly before
disassembling or analysis.
· The formal specifications must be exchanged and signed by both parties before large volume purchase begins.
· The appearance and specifications of the product may be modified for improvement without notice.
-6-
Nichia STSE-CW5115B
<Cat.No.070202>
ICI Chromaticity Diagram
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
520
530
540
510
500
550
560
570
580
590
600
b4
c0
610
620
b3
a0
b6
b5
490
630
480
470
460
0.1
0.2
0.3
0.4
x
0.5
0.6
0.7
0.8
0
½ Color Coordinates Measurement allowance is ± 0.01.
-7-
Forward Voltage vs.
Forward Current vs.
Duty Ratio vs.
Forward Current
Relative Luminous Flux
Allowable Forward Current
3.0
200
200
Ta=25°C
Ta=25°C
Ta=25°C
100
50
2.5
100
2.0
1.5
1.0
0.5
0
20
10
5
50
30
20
1
10
2.5 3.0 3.5 4.0 4.5 5.0
Forward Voltage VF (V)
0
20 40 60 80 100 120
Forward Current IFP (mA)
1
5
10 20
50 100
Duty Ratio (%)
Ambient Temperature vs.
Ambient Temperature vs.
Ambient Temperature vs.
Forward Voltage
Relative Luminous Flux
Allowable Forward Current
5.4
2.0
50
40
30
20
IFP=30mA
IFP=30mA
5.0
4.6
4.2
3.8
3.4
3.0
2.6
1.0
0.5
10
9
0.2
0
-40 -20
0
20 40 60 80 100
Ambient Temperature Ta (°C)
-40 -20
0
20 40 60 80 100
Ambient Temperature Ta (°C)
0
20
40
60
80 100
Ambient Temperature Ta (°C)
Model
NSPWR70AS
Title CHARACTERISTICS
NICHIA CORPORATION
No.
051208543122
Forward Current vs.
Spectrum
Chromaticity Coordinate
0.35
1.2
1.0
0.8
0.6
0.4
0.2
0
Ta=25°C
Ta=25°C
IF=30mA
0.34
0.33
0.32
0.31
0.30
1mA
5mA
30mA
50mA
100mA
0.29 0.30 0.31 0.32 0.33 0.34
350
450
550
650
750
0°
Wavelength λ (nm)
x
Ambient Temperature vs.
Directivity
Chromaticity Coordinate
10°
1.0
20°
0.35
30°
Ta=25°C
IFP=30mA
40°
IFP=30mA
0.34
50°
0.33
60°
70°
80°
90°
-30°C
0°C
0.5
0.32
0.31
0.30
25°C
50°C
85°C
0
0.29 0.30 0.31 0.32 0.33 0.34
90°
60°
30°
0°
0.5
1.0
Radiation Angle
x
Model
NSPWR70AS
Title CHARACTERISTICS
NICHIA CORPORATION
No.
050725543131
7.62 ± 0.5
7.5 ± 0.5
4.4
Internal Circuit
φ 3
0.5
3
2
3A
2A
4K
1K
4
R 0.69
1
(C 1.25) 1 Pin Mark
(5°)
Stopper
0.4 ± 0.1
0.5
5.08 ± 0.3
ITEM
RESIN
LEAD FRAME
Remark:
MATERIALS
Epoxy Resin
(over Silicone Resin + Phosphor)
Ag Plating Copper Alloy
Unit
mm
Model
NSPWR70AS
Please note that the bare copper alloy showing at the cut end
of the lead frame may be corroded under certain conditions.
LEDs have some sharp edges and points, particularly lead
frames. Please handle with care so as to avoid injuries.
5/1
Title
No.
OUTLINE DIMENSIONS
NICHIA CORPORATION
Scale
Allow
050725543331
±0.2
Cross Sectional image of stick
5.4
½1 t = 0.6 ± 0.1mm
½2 Warp : 1mm Max.
3
9.6
Whole image of stick
485 ± 1
Cap
NICHIA
>PC< CAUTION TO ELECTROSTATIC DAMAGE 静電気に注意
60pcs / stick
A
K
Unit
mm
NxPxR70xSS
Model
Title
STICK DIMENSIONS
NICHIA CORPORATION
Scale
Allow
±0.2
No.
061117436073
Nichia STSE-CW5115B
<Cat.No.070202>
The stick and moisture absorbent material are put in the moisture proof foil bag
and then heat sealed.
Stick
Moisture
absorbent material
Label
Moisture proof foil bag
NICHIA
XXXX LED
TYPE
LOT
QTY
NxPxR70xSS
xxxxxx-U„
PCS
Seal
NICHIA CORPORATION
491 OKA, KAMINAKA, ANAN, TOKUSHIMA, JAPAN
Label
NICHIA
XXXX LED
TYPE
RANK
QTY
NxPxR70xSS
U„
PCS
NICHIA CORPORATION
491 OKA, KAMINAKA, ANAN, TOKUSHIMA, JAPAN
Empty space in the box is filled
with cushion material.
Packing unit
Stick/bag
Quantity/bag (pcs)
600 MAX.
Moisture proof foil bag
10 stick Max.
Cardboard box
Cardboard box M
Cardboard box 1/2L
Cardboard box L
Dimensions (mm)
Stick/box
Quantity/box (pcs)
6,000 MAX.
590¯277¯120¯4t 100 stick MAX.
613¯298¯268¯7t 200 stick MAX.
613¯298¯518¯7t 400 stick MAX.
12,000 MAX.
24,000 MAX.
Model
Title
NxPxR70xSS
PACKING
NICHIA CORPORATION
No.
061117436084
-12-
厂商 型号 描述 页数 下载

ETC

NXP - 12号的铝制车身绘( RAL 7032 ) 78 页

NEUTRIK

NXP-RM-AES [ XIRIUM PRO US Receiver RX Digital AES/EBU Output Module, including NKXPF-5-15-3 ] 2 页

NEUTRIK

NXP-RM-AES-PI [ XIRIUM PRO US Receiver RX Digital AES/EBU Output Module, including NKXPF-5-15-3 ] 2 页

NEUTRIK

NXP-RM-DANTE [ XIRIUM PRO US Receiver RX Digital DANTE Output Module, including NKXPF-5-15-3 ] 2 页

NEUTRIK

NXP-RM-DANTE-PI [ XIRIUM PRO US Receiver RX Digital DANTE Output Module, including NKXPF-5-15-3 ] 2 页

NEUTRIK

NXP-RM-RP [ XIRIUM PRO US Receiver RX Repeater Module, including NKXPF-5-15-3 ] 1 页

NEUTRIK

NXP-RM-RP-PI [ XIRIUM PRO US Receiver RX Repeater Module, including NKXPF-5-15-3 ] 1 页

NEUTRIK

NXP-TM-AES [ XIRIUM PRO US Transmitter TX Digital AES/EBU Input Module, including NKXPF-5-15-3 ] 2 页

NEUTRIK

NXP-TM-AES-PI [ XIRIUM PRO US Transmitter TX Digital AES/EBU Input Module, including NKXPF-5-15-3 ] 2 页

NEUTRIK

NXP-TM-ANA [ XIRIUM PRO US Transmitter TX Analog Line Input Module, including NKXPF-5-15-3 ] 2 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.164523s
