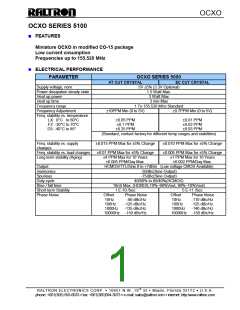

OCXO
OCXO SERIES 5100
ꢁ FEATURES
Miniature OCXO in modified CO-15 package
Low current cnsumption
Frequencies up to 155.520 MHz
ꢁ ELECTRICAL PERFORMANCE
PARAMETER
OCXO SERIES 5000
AT CUT CRYSTAL
SC CUT CRYSTAL
Supply voltage, nom.
Power dissipation steady state
Heat up power
5V ±5% (3.3V Optional)
1.5 Watt Max.
3 Watt Max
Heat up time.
3 min Max
Frequency range
1 To 155.520 MHz Standard
Frequency Adjustment
Freq. stability vs. temperature
LX: 0°C to 60°C
±10PPM Min (0 to 5V)
±0.7PPM Min (0 to 5V)
±0.05 PPM
±0.1 PPM
±0.25 PPM
±0.01 PPM
±0.02 PPM
±0.03 PPM
FZ: -30°C to 70°C
D3: -40°C to 85°
(Standard, contact factory for different temp ranges and stabilities)
Freq. stability vs. supply
changes
±0.015 PPM Max for ±5% Change
±0.010 PPM Max for ±5% Change
Freq. stability vs. load changes
Long term stability (Aging)
±0.01 PPM Max for ±5% Change
±4 PPM Max for 10 Years
±0.005 PPM/Day Max.
±0.005 PPM Max for ±5% Change
±1 PPM Max for 10 Years
±0.002 PPM/Day Max.
Output
Harmonics
Spurious
HCMOS/TTL/Sine 0 to +7dBm (Low voltage CMOS Available)
-30dBc(Sine Output)
-75dBc(Sine Output)
Duty cycle
40/60% to 60/40%(HCMOS)
Rise / fall time
Short term Stability
Phase Noise
10nS Max. (HCMOS,10%~90%Vout, 90%~10%Vout)
1 E-10 /Sec
5 E-11 /Sec
Offset
10Hz
100Hz
1000Hz
Phase Noise
Offset
10Hz
100Hz
1000Hz
Phase Noise
-90 dBc/Hz
-125 dBc/Hz
-135 dBc/Hz
-110 dBc/Hz
-125 dBc/Hz
-140 dBc/Hz
10000Hz -150 dBc/Hz
10000Hz -150 dBc/Hz
