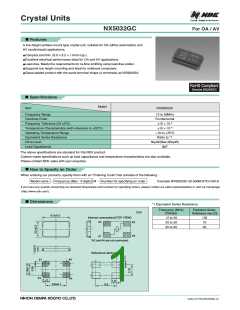

Crystal Units
For OA / AV
NX5032GC
Features
n
A low-height surface-mount type crystal unit, suitable for OA (office automation) and
AV (audiovisual) applications.
Compact and thin. (5.0 ꢁ 3.2 ꢁ 1.0mm typ.)
l
l
Excellent electrical performance ideal for OA and AV applications.
Lead-free. Meets the requirements for re-flow profiling using lead-free solder.
l
l
Supports low height mounting and ideal for notebook computers.
Glass-sealed product with the same terminal shape (4 terminals) as NX5032SA.
l
Specifications
n
Model
NX5032GC
Item
Frequency Range
12 to 50MHz
Fundamental
Overtone Order
−6
Frequency Tolerance (25 3ꢀ)
15 ꢁ 10
−6
Temperature Characteristics (with reference to +25°C)
Operating Temperature Range
Equivalent Series Resistance
Drive Level
15 ꢁ 10
−10 to +75ꢀ
Refer to *1
50μW(Max:500μW)
8pF
Load Capacitance
The above specifications are standard for this NDK product.
Custom-made specifications such as load capacitance and temperature characteristics are also available.
Please contact NDK sales with your enquiries.
How to Specify an Order
n
When ordering our products, specify them with an “Ordering Code” that consists of the following :
Model name - Frequency (Max : 9 digits) M - Number for specifying an order
Example NX5032GC-20.000M-STD-CSK-6
If you have any queries concerning our standard frequencies and numbers for specifying orders, please contact our sales representatives or visit our homepage
(http://www.ndk.com/).
Dimensions
n
*1 Equivalent Series Resistance
Frequency (MHz)
Equivalent Series
mm
(Range)
Resistance max.[Ω]
5.0 0.2
Internal connections(TOP VIEW)
#4
12 to 20
20 to 30
30 to 50
120
70
50
#3
#2
#1
*#2 and #4 are not connected.
Reference land pattern
#1
#2
#3
#4
1. 2
1.6
3.6
3.6 0.1
