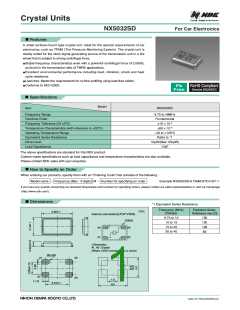

Crystal Units
For Car Electronics
NX5032SD
Features
n
A small surface-mount type crystal unit, ideal for the special requirements of car
electronics, such as TPMS (Tire Pressure Monitoring System). The crystal unit is
ideally suited for the clock signal generating source of the transmission unit in a tire
wheel that is subject to strong centrifugal force.
Stable frequency characteristics even with a powerful centrifugal force of 2,000G,
l
as found in the transmission side of TMRS applications.
Excellent environmental performance including heat, vibration, shock and heat
l
cycle resistance.
Lead-free. Meets the requirements for re-flow profiling using lead-free solder.
l
Conforms to AEC-Q200.
l
Pb
Free
Specifications
n
Model
NX5032SD
Item
Frequency Range
9.75 to 40MHz
Fundamental
Overtone Order
−6
Frequency Tolerance (25 3ꢀ)
15 ꢁ 10
−6
Temperature Characteristics (with reference to +25°C)
Operating Temperature Range
Equivalent Series Resistance
Drive Level
50 ꢁ 10
−40 to +125ꢀ
Refer to *1
10μW(Max:100μW)
12pF
Load Capacitance
The above specifications are standard for this NDK product.
Custom-made specifications such as load capacitance and temperature characteristics are also available.
Please contact NDK sales with your enquiries.
How to Specify an Order
n
When ordering our products, specify them with an “Ordering Code” that consists of the following :
Model name - Frequency (Max : 9 digits) M - Number for specifying an order
Example NX5032SD-9.750M-STD-CSY-1
If you have any queries concerning our standard frequencies and numbers for specifying orders, please contact our sales representatives or visit our homepage
(http://www.ndk.com/).
Dimensions
n
*1 Equivalent Series Resistance
Frequency (MHz)
Equivalent Series
mm
4.9 0.1
(Range)
Resistance max.[Ω]
Internal connections(TOP VIEW)
Cover
9.75 to 10
10 to 15
15 to 20
20 to 40
150
120
100
80
#4
#1
#3
#2
<Terminals>
#1, #3: Crystal
Others: GND (connected to a cover)
R0.425
#2
#3
#1
#4
(1.2)
1.9
6.0
3.5 0.1
cu30_071108_NX5032SD_e1
