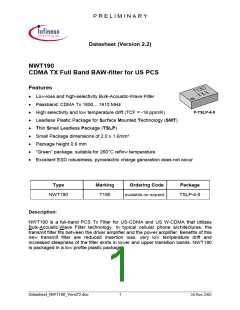

P R E L I M I N A R Y
Datasheet (Version 2.2)
NWT190
CDMA TX Full Band BAW-filter for US PCS
Features
• Low-loss and high-selectivity Bulk-Acoustic-Wave Filter
• Passband: CDMA Tx 1850 .. 1910 MHz
P-TSLP-4-5
• High selectivity and low temperature drift (TCF = -18 ppm/K)
• Leadless Plastic Package for Surface Mounted Technology (SMT)
• Thin Small Leadless Package (TSLP)
• Small Package dimensions of 2.0 x 1.6mm²
• Package height 0.6 mm
• “Green” package, suitable for 260°C reflow temperature
• Excellent ESD robustness, pyroelectric charge generation does not occur
Type
Marking
Ordering Code
Package
TSLP-4-5
NWT190
T190
available on request
Description:
NWT190 is a full-band PCS Tx Filter for US-CDMA and US W-CDMA that utilizes
Bulk-Acoustic-Wave Filter technology. In typical cellular phone architectures, the
transmit filter fits between the driver amplifier and the power amplifier. Benefits of this
new transmit filter are reduced insertion loss, very low temperature drift and
increased steepness of the filter skirts in lower and upper transition bands. NWT190
is packaged in a low profile plastic package.
Datasheet_NWT190_Vers2'2.doc
1
26.Nov.2003
