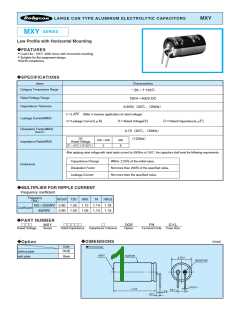

LARGE CAN TYPE ALUMINUM ELECTROLYTIC CAPACITORS
MXY
SERIES
MXY
Low Profile with Horizontal Mounting
◆FEATURES
•
•
•
Load Life : 105℃ 3000 hours with horizontal mounting.
Suitable for flat equipment design.
RoHS compliance.
◆SPECIFICATIONS
Items
Characteristics
Category Temperature Range
－25～＋105℃
Rated Voltage Range
Capacitance Tolerance
160V～400V.DC
±20％（20℃，120Hz）
I＝3 CV (After 5 minutes application of rated voltage)
Leakage Current(MAX)
I＝Leakage Current(μA) ꢀꢀꢀꢀV＝Rated Voltage(V) ꢀꢀꢀꢀC＝Rated Capacitance(μF)
Dissipation Factor(MAX)
(tanδ)
0.15（20℃，120Hz）
(V)
（120Hz）
160～250
3
400
8
Impedance Ratio(MAX)
Rated Voltage
Z（－25℃）/Z（20℃）
After applying rated voltage with rated ripple current for 3000hrs at 105℃, the capacitors shall meet the following requirements.
Capacitance Change
Dissipation Factor
Leakage Current
Within ±20％ of the initial value.
Endurance
Not more than 200％ of the specified value.
Not more than the specified value.
◆MULTIPLIER FOR RIPPLE CURRENT
ꢀFrequency coefficient
Frequency
（Hz）
6（0 50） 120 500
1k 10k≦
160～250WV 0.80 1.00 1.10 1.14 1.18
Coefficient
400WV
0.80 1.00 1.05 1.10 1.15
◆PART NUMBER
□□□
MXY
□□□□□
□
OOE
FN
D×L
Rated Voltage
Series
Rated Capacitance
Capacitance Tolerance
Option
Terminal Code
Case Size
◆DIMENSIONS
（mm）
◆Option
Code
OOE
Blank
●FN terminal type
without plate
with plate
VENT
SLEEVE
φD±1
NEGATIVE
1.5±0.1
L±2
8±1
0.8
4±1
