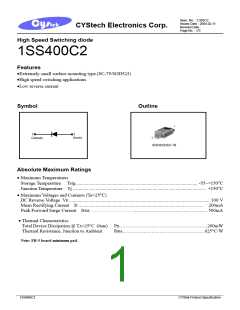

Spec. No. : C303C2
Issued Date : 2004.02.11
Revised Date :
CYStech Electronics Corp.
Page No. : 1/3
1HigSh SSpee4d S0wit0chiCng d2iode
Features
•Extremely small surface mounting type.(SC-79/SOD523)
•High speed switching applications
•Low reverse current
Symbol
Outline
Absolute Maximum Ratings
• Maximum Temperatures
Storage Temperature Tstg .................................................................................................... -55~+150°C
Junction Temperature Tj .............................................................................................................. +150°C
• Maximum Voltages and Currents (Ta=25°C)
DC Reverse Voltage VR .................................................................................................................... 100 V
Mean Rectifying Current IF ........................................................................................……….. 200mA
Peak Forward Surge Current IFSM………………………………….. ………………………………………. 500mA
• Thermal Characteristics
Total Device Dissipation @ TA=25°C (Note) PD……………………………………………….200mW
Thermal Resistance, Junction to Ambient
RθJA……………………………………………625°C/W
Note: FR-5 board minimum pad.
1SS400C2
CYStek Product Specification
