1SS401_07

型号:

1SS401_07

描述:

高速开关应用[ High Speed Switching Applications ]

品牌:

TOSHIBA[ TOSHIBA ]

页数:

2 页

PDF大小:

111 K

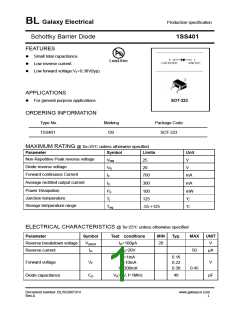

BL Galaxy Electrical
Production specification
Schottky Barrier Diode
1SS401
FEATURES
Pb
Lead-free
z
z
z
Small total capacitance.
Low reverse current.
Low forward voltage:VF=0.38V(typ).
APPLICATIONS
z
For general purpose applications.
SOT-323
ORDERING INFORMATION
Type No.
1SS401
Marking
D9
Package Code
SOT-323
MAXIMUM RATING @ Ta=25unless otherwise specified
Parameter
Symbol
VRM
VR
Limits
Unit
V
Non-Repetitive Peak reverse voltage
25
Diode reverse voltage
20
V
Forward continuous Current
Average rectified output current
Power Dissipation
IF
700
mA
IO
300
mA
mW
Pd
Tj
100
Junction temperature
125
Storage temperature range
Tstg
-55-+125
ELECTRICAL CHARACTERISTICS @ Ta=25unless otherwise specified
Parameter
Symbol
V(BR)R
IR
Test conditions
IR=100μA
MIN
Typ.
MAX
UNIT
V
Reverse breakdown voltage
Reverse current
20
VR=20V
50
μA
IF=1mA
IF=10mA
IF=300mA
0.16
0.22
0.38
Forward voltage
VF
V
0.45
Diode capacitance
CD
VR=0V, f=1MHz
46
pF
Document number: BL/SSSKF014
Rev.A
www.galaxycn.com
1
BL Galaxy Electrical
Production specification
Schottky Barrier Diode
1SS401
PACKAGE OUTLINE
Plastic surface mounted package
SOT-323
SOT-323
Dim
A
Min
1.8
Max
2.2
B
1.15
1.35
C
D
E
1.0Typical
0.15
0.25
1.2
0.35
0.40
1.4
G
H
J
0.02
0.1
0.1Typical
K
2.1
2.3
All Dimensions in mm
PACKAGE INFORMATION
Device
Package
Shipping
1SS401
SOT-323
3000/Tape&Reel
Document number: BL/SSSKF014
Rev.A
www.galaxycn.com
2
