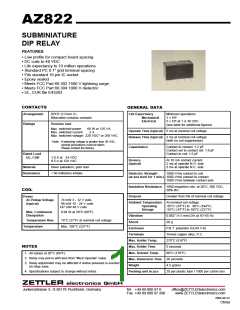

AZ822
SUBMINIATURE
DIP RELAY
FEATURES
• Low profile for compact board spacing
• DC coils to 48 VDC
• Life expectancy to 10 million operations
• Standard PC 0.1" grid terminal spacing
• Fits standard 16 pin IC socket
• Epoxy sealed
• Meets FCC Part 68.302 1500 V lightning surge
• Meets FCC Part 68.304 1000 V dielectric
• UL, CUR file E43203
CONTACTS
GENERAL DATA
Arrangement
DPDT (2 Form C)
Bifurcated crossbar contacts
Life Expectancy
Mechanical
Electrical
Minimum operations
1 x 108
5 x 105 at 1 A 30 VDC
(see table for additional figures)
Ratings
Resistive load:
Max. switched power:
Max. switched current:
60 W or 125 VA
2 A
Operate Time (typical) 5 ms at nominal coil voltage
Max. switched voltage: 220 VDC* or 250 VAC
Release Time (typical) 2 ms at nominal coil voltage
(with no coil suppression)
* Note: If switching voltage is greater than 30 VDC,
special precautions must be taken.
Please contact the factory.
Capacitance
Contact to contact: 1.2 pF
Contact set to contact set: 1.6 pF
Contact to coil: 1.5 pF
Rated Load
UL, CUR
1.0 A at 24 VDC
0.5 A at 120 VAC
Bounce
(typical)
At 10 mA contact current
2 ms at operate N.O. side
3 ms at operate N.C. side
Material
Silver palladium, gold clad
< 50 milliohms initially
Resistance
Dielectric Strength
1000 Vrms contact to coil
(at sea level for 1 min.) 1000 Vrms contact to contact
1000 Vrms between contact sets
Insulation Resistance 1000 megohms min. at 20°C, 500 VDC,
COIL
50% RH
Dropout
Greater than 5% of nominal coil voltage
Power
At Pickup Voltage
(typical)
74 mW 3 - 12 V coils
98 mW 15 - 24 V coils
147 mW 48 V coils
Ambient Temperature At nominal coil voltage
Operating
Storage
-55°C (-67°F) to 90°C (194°F)
-55°C (-67°F) to 105°C (221°F)
0.062" (1.5 mm) DA at 10–55 Hz
20 g
Max. Continuous
Dissipation
0.94 W at 20°C (68°F)
Vibration
Temperature Rise
Temperature
15°C (27°F) at nominal coil voltage
Max. 105°C (221°F)
Shock
Enclosure
P.B.T. polyester (UL94 V-0)
Tinned copper alloy, P.C.
270°C (518°F)
Terminals
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
NOTES
5 seconds
80°C (176°F)
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
Max. Immersion Time 30 seconds
3. Relay adjustment may be affected if undue pressure is exerted
on relay case.
Weight
4.5 grams
4. Specifications subject to change without notice.
Packing unit in pcs
20 per plastic tube / 1000 per carton box
