L290

型号：

L290

描述：

转速表转换器[ TACHOMETER CONVERTER ]

品牌：

STMICROELECTRONICS[ ST ]

页数：

8 页

PDF大小：

106 K

下载PDF手册

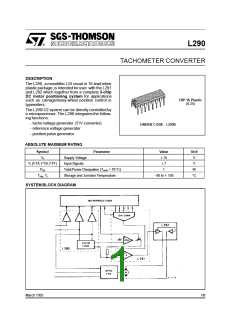

L290
TACHOMETER CONVERTER
DESCRIPTION
The L290, a monolithic LSI circuit in 16-lead inline
plastic package,is intendedfor user with the L291
and L292 which together from a complete 3-chip
DC motor positioning system for applications
such as carriage/daisy-wheel position control in
typewriters.
DIP-16 Plastic
(0.25)
The L290/1/2 system can be directly controlled by
a microprocessor. The L290 integrates the follow-
ing functions:
- tacho voltage generator (F/V converter)
- reference voltage generator
- position pulse generator
ORDER CODE : L290B
ABSOLUTE MAXIMUM RATING
Symbol
Parameter
Value
Unit
V
Vs
Vi (FTA, FTB, FTF)
Ptot
Supply Voltage
Input Signals
± 15
± 7
1
V
Total Power Dissipation (Tamb = 70°C)
W
Tstg, Tj
Storage and Junction Temperature
- 40 to + 150
°C
SYSTEM BLOCK DIAGRAM
March 1993
1/8
L290
CONNECTION DIAGRAM (top view)
BLOCK DIAGRAM
2/8
L290
TEST CIRCUIT
THERMAL DATA
Symbol
Parameter
Thermal resistance junction-case
Value
Unit
Rth-j-amb
Max
80
°C/W
ELECTRICAL CHARACTERISTICS (Refer to the test circuit, S in (A), Vs = ± 12 V, Tamb = 25 °C
unless otherwise specified)
Symbol
Parameter
Supply Voltage
Quiescent Drain Current
Test conditions
Min.
Typ. Max.
Unit
V
Vs
Id
± 10
± 15
Vs = ± 15 V
13
20
mA
INPUT AMPLIFIERS (A1 and A2)
FTA, FTB Input Signal from Encoder
(pin 1, 16)
fmax = 20 KHz
± 0.4
± 0.6
± 55
Vp
Vos
Output Offset Voltage
(pin 2, 15)
FTA= FTB = 0 V
mV
Ib
Input Bias Current (pin 1, 16)
Voltage Gain
0.15
23
µA
Gv
f = 10 KHz FTA=
22
24
dB
FTB = ± 0.6 Vp
V0
Output Voltage Swing
(pin 2, 15)
± 9.5
V
FTA= FTB = ± 1Vp
3/8
L290
ELECTRICAL CHARACTERISTICS (continued)
Symbol
Parameter
Test conditions
Min.
Typ.
Max.
Unit
COMPARATORS WITH HYSTERESIS (C1, C2, and C3)
C1 and C2
550
700
55
850
900
175
830
120
0.4
mV
mV
mV
mV
mV
V
VTHP (°)
Positive Threshold Voltage
(pin 2, 12, 15)
C3
C1 and C2
VTHN (° °) Negative Threshold Voltage
(pin 2, 12, 15)
C3
C3
570
72
∆FTF
Threshold Hysteresis
VL
Output Voltage (low level)
(pin 10, 13, 14)
I0 = 2 mA
FTA= FTB = FTF = 0 V
0.2
Ileak
(pins 10, 13, 14)
FTA= FTB = 0.5 V
µA
1
V
CE = 5 V
FTF = 1 V
REFERENCE GENERATOR
Vref
DC Reference Voltage
(pin 3)
FTA= FTB = ± 0.5 Vp (*)
ref = 1 mA
4.5
5
5.5
1.4
V
I
Iref
Output Current (pin 3)
mA
”TACHO” AMPLIFIER (A3)
Vos
Vo
Output Offset Voltage (pin 4)
FTA= ± 15 mV FTB = 0.5V
± 80
mV
V
DC Output Voltage (pin 4)
FTA= FTB =
(**)
V01
5.4
6
6.6
± 0.5 Vp
VMA = VMB =
± 1.25 Vp
(***)
V02
- 5.4
- 6
- 6.6
∆V0
V01 + V02
- 150
9
+ 150
mV
V
V0
Output Voltage Swing (pin 4)
FTA= FTB = 0.5V
FTA= FTB = -0.5 V
Sin (B)
- 9
VMA
VMB
Multiplier Input Voltage
(pin 7, 8)
± 1.25
± 1.7
Vp
V
Vbias
Bias Voltage (pin 6)
FTAand FTB Floating
- 6.5
- 8
1V
1V
(°)
:
FTA = FTB = FTF
0
(° °)
: FTA= FTB = FTF =
0
Note
:
Phase relationship between the signals :
* FTA : 0°
** FTA : 0°
*** FTA : 0°
FTB : 90°
FTB : - 90°
FTB : 90°
VMA = 90°
VMA = 90°
VMB = 0°
VMB = 180°
4/8
L290
WAVEFORMS (Neglecting threshold volage level of the comparators).
SYSTEM DESCRIPTION : refer to the L292 data sheet.
5/8
L290
Figure 1. Complete application circuit.
6/8
L290
DIP-16 PLASTIC PACKAGE MECHANICAL DATA
mm
inch
TYP.
DIM.
MIN.
0.51
0.77
TYP.
MAX.
MIN.
0.020
0.030
MAX.
a1
B
b
1.65
0.065
0.787
0.5
0.020
0.010
b1
D
E
e
0.25
20
8.5
2.54
0.335
0.100
0.700
e3
F
17.78
7.1
5.1
0.280
0.201
I
L
3.3
0.130
Z
1.27
0.050
7/8
L290
Information furnished is believed to be accurate and reliable. However, SGS-THOMSON Microelectronics assumes no responsibility for the
consequences of use of such information nor for any infringement of patents or other rights of third parties which may result from its use. No
license is granted by implication or otherwise under any patent or patent rights of SGS-THOMSON Microelectronics. Specifications mentioned
in this publication are subject to change without notice. This publication supersedes and replaces all information previously supplied.
SGS-THOMSON Microelectronics products are not authorized for use as critical components in life support devices or systems without express
written approval of SGS-THOMSON Microelectronics.
1994 SGS-THOMSON Microelectronics - All Rights Reserved
SGS-THOMSON Microelectronics GROUP OF COMPANIES
Australia - Brazil - France - Germany - Hong Kong - Italy - Japan - Korea - Malaysia - Malta - Morocco - The Netherlands - Singapore -
Spain - Sweden - Switzerland - Taiwan - Thaliand - United Kingdom - U.S.A.
8/8
