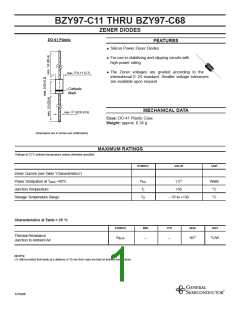

BZY97-C11 THRU BZY97-C68
ZENER DIODES
DO-41 Plastic
FEATURES
♦ Silicon Power Zener Diodes
♦ For use in stabilizing and clipping circuits with
high power rating.
♦ The Zener voltages are graded according to the
international E 24 standard. Smaller voltage tolerances
are available upon request.
0.11 (2.7)
max.
Cathode
Mark
MECHANICAL DATA
max. 0.035 (0.9)
Case: DO-41 Plastic Case
Weight: approx. 0.34 g
Dimensions are in inches and (millimeters)
MAXIMUM RATINGS
Ratings at 25°C ambient temperature unless otherwise specified.
SYMBOL
VALUE
UNIT
Zener Current (see Table “Characteristics”)
Power Dissipation at Tamb =60°C
Junction Temperature
Ptot
Tj
1.51)
150
Watts
°C
Storage Temperature Range
TS
– 55 to +150
°C
Characteristics at Tamb = 25 °C
SYMBOL
MIN.
TYP.
MAX.
UNIT
Thermal Resistance
Junction to Ambient Air
RthJA
–
–
601)
°C/W
NOTES:
(1) Valid provided that leads at a distance of 10 mm from case are kept at ambient temperature.
12/16/98
