JXMBLB-T-T15-02-C

型号:

JXMBLB-T-T15-02-C

描述:

TD-SCDMA基站滤波器[ TD-SCDMA Base Station Filter ]

品牌:

AAC[ AMERICAN ACCURATE COMPONENTS, INC. ]

页数:

2 页

PDF大小:

470 K

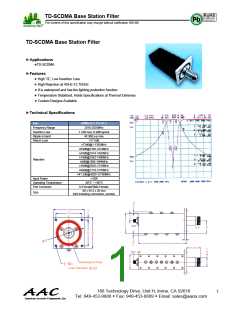

TD-SCDMA Base Station Filter
The content of this specification may change without notification 9/01/09
TD-SCDMA Base Station Filter
►Applications
●TD-SCDMA
►Features
● High “Q”, Low Insertion Loss
● High Rejection at 4GHz-12.75GHz
● It is waterproof and has the lighting protection function
● Temperature Stabilized, Holds Specifications at Thermal Extremes
● Custom Designs Available
►Technical Specifications
JXMBLB-T-T15-01-C
P/N
Frequency Range
Insertion Loss
Ripple in band
Return Loss
2010-2025MHz
1.1dB max; 0.9dB typical
≤0.3dB p-p max
≥17.5dB
≥73dB@1-1365MHz
≥63dB@1365-1914MHz
≥43dB@1914-1962MHz
≥19dB@1962-1990MHz
≥9dB@1990-1994MHz
≥16dB@2045-2110MHz
≥60dB@2110-2170MHz
≥41.2dB@4020-12750MHz
>10W
Rejection
Input Power
Operating Temperature
Port Connector
-40°C ~ +80°C
N-Female/SMA-Female
86 x 35.5 x 26 mm
(Not including connectors, screws)
Size
188 Technology Drive, Unit H, Irvine, CA 92618
Tel: 949-453-9888 Š Fax: 949-453-8889 Š Email: sales@aacix.com
1
American Accurate Components, Inc.
TD-SCDMA Base Station Filter
The content of this specification may change without notification 9/01/09
TD-SCDMA Base Station Filter
►Applications
●TD-SCDMA
►Features
● High Rejection, Low Insertion Loss
● High Rejection at 2.17GHz-6.0GHz
● It is waterproof and has the lighting protection function
● Temperature Stabilized, Holds Specifications at Thermal Extremes
►Technical Specifications
P/N
JXMBLB-T-T15-02-C
Frequency Range
2010-2025MHz
Insertion Loss
Ripple in band
Return Loss
1.1dB max; 0.9dB typical
≤0.3dB p-p max
≥20dB
≥80dB@1-1785MHz
≥70dB@1785-1920MHz
≥44dB@1920-1980MHz
≥25dB@1980-1990MHz
≥25dB@2045-2085MHz
≥44dB@2085-2110MHz
≥70dB@2110-2170MHz
≥41.2dB@2170-6000MHz
Rejection
Input Power
>10W
Operating Temperature
Port Connector
-40°C ~ +80°C
N-Female/SMA-Female
73 x 35 x 35 mm
(Not including connectors, screws)
Size
188 Technology Drive, Unit H, Irvine, CA 92618
Tel: 949-453-9888 Š Fax: 949-453-8889 Š Email: sales@aacix.com
2
American Accurate Components, Inc.
